Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

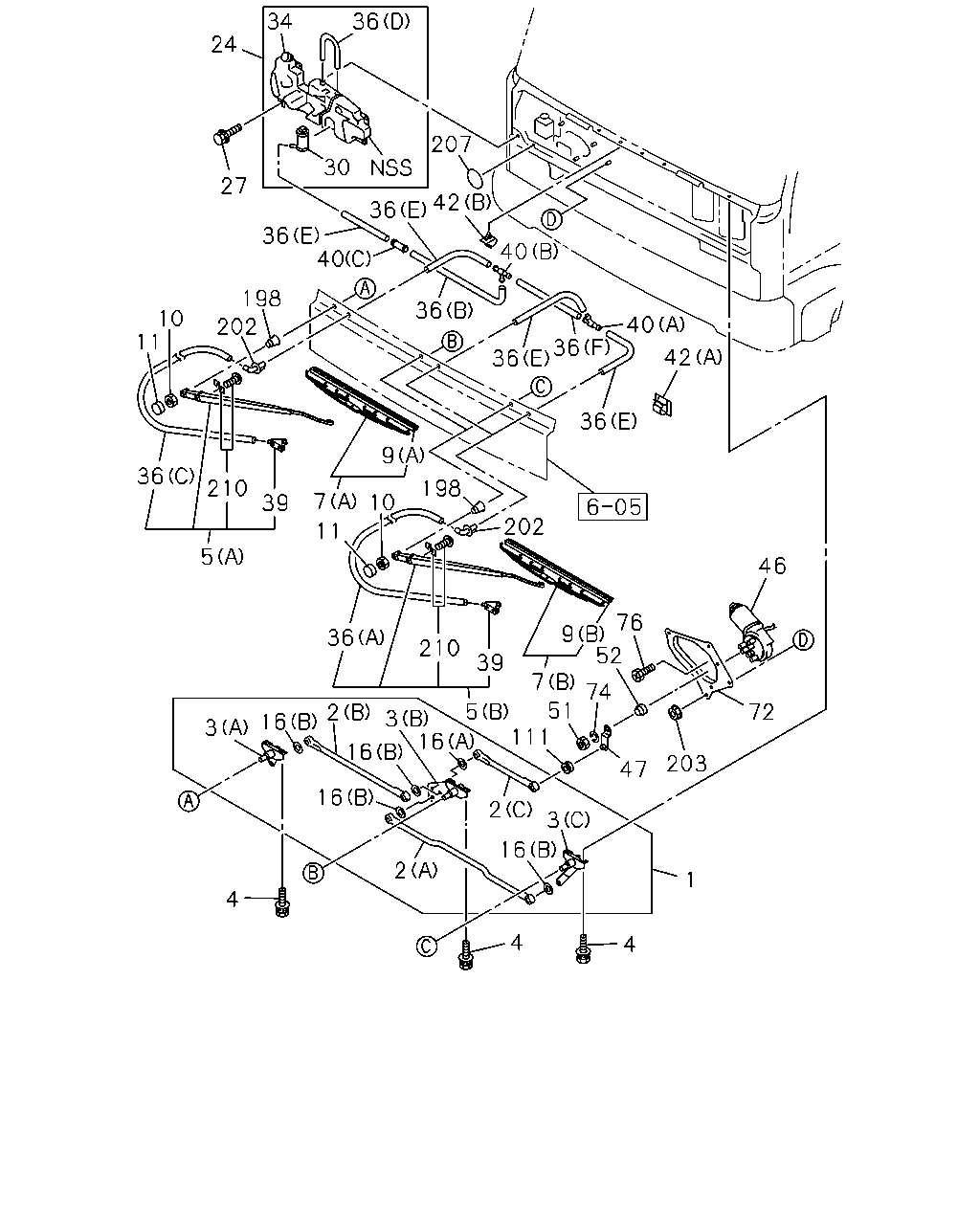

8-80 — WINDSHIELD WIPER AND WASHER
(#11655) — 47 parça
34
36
24
207
30
27
42
36
36
40
40
198
202
36
10
11
40
36
36
42
36
9
36
198
210
7
10
39
202
11
5
46
76
9
52
36
210
39
7
74
5
51
111
72
2
16
3
16
3
16
203
47
2
16
3
16
2
1
4
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-83312-112-2
01
1
0105-
2
LINK; FRT WIPER
(A)
1-83312-131-0
01
1
0105-
2
LINK; FRT WIPER
(B)
1-83312-132-0
01
1
0105-
2
LINK; FRT WIPER
(C)
1-83312-133-0
01
1
0105-
3
PIVOT ASM; FRT WIPER
(C)
1-83313-104-0
01
1
0105-
3
PIVOT ASM; FRT WIPER
(B)
1-83313-105-0
01
1
0105-
3
PIVOT ASM; FRT WIPER
(A)
1-83313-106-0
01
1
0105-
4
BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0105-
5
ARM; WIPER
(A)
1-86810-031-0
01
1
0105-
5
ARM; WIPER
(B)
1-86810-032-0
02
1
0105-
7
BLADE; WIPER
(A) L=550
1-86810-029-0
01
1
0105-
7
BLADE; WIPER
(B) L=500
8-97134-563-1
02
1
0105-
9
RUBBER; FRT WIPER BLADE
(B)
1-83355-017-0
02
1
0105-
9
RUBBER; FRT WIPER BLADE
(A) L=550
1-86810-051-0
01
1
0105-
10
NUT; WIPER ARM TO WIPER PIVOT
M10
1-09984-120-0
03
1
0105-
11
COVER; WIPER ARM
1-86810-028-0
03
1
0105-
16
SEAL; BALL JOINT
(B)
1-83318-115-0
04
1
0105-
16
SEAL; BALL JOINT
(A)
1-83318-116-0
01
1
0105-
24
TANK ASM; WASHER
1-86815-013-7
01
1
0105-
27
BOLT; WASHER TANK
M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0105-
30
MOTOR ASM; FRT WASHER TANK
1-86815-016-1
01
1
0105-
34
CAP; WASHER TANK
1-86815-018-0
01
1
0105-
36
HOSE; WASHER
(C)
1-86810-053-0
01
1
0105-
36
HOSE; WASHER
(A)
1-86810-054-0
02
1
0105-
36
HOSE; WASHER
(B) L=260
1-86815-019-0
01
1
0105-
36
HOSE; WASHER
(D) SERVICED BY L=10000
8-94153-780-0
01
1
0105-
36
HOSE; WASHER
(E) SERVICED BY L=10000
8-94389-303-0
01
1
0105-
36
HOSE; WASHER
(F) SERVICED BY L=10000
9-09914-906-0
01
1
0105-
39
NOZZLE; WINDSHIELD WASHER
3WAY
1-86810-055-0
03
1
0105-
40
JOINT; WASHER HOSE
(B) 3WAY
1-83338-005-0
01
1
0105-
40
JOINT; WASHER HOSE
(A) 3WAY
5-83363-033-0
01
1
0105-
40
JOINT; WASHER HOSE
(C) 2WAY
8-94239-402-0
01
1
0105-
42
CLIP; WASHER HOSE
(A) 1 SET=5 PIECE
1-09987-214-0
01
1
0105-
42
CLIP; WASHER HOSE
(B)
1-09987-247-0
06
1
0105-
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-86810-121-0
01
1
0105-
47
ARM; CRANK,WIPER MOTOR
1-86810-123-0
01
1
0105-
51
NUT; WIPER MOTOR LINK
M8
9-09111-408-0
01
1
0105-
52
BUSHING; BRKT,WIPER MOTOR
1-83318-020-0
01
1
0105-
72
BRACKET; WIPER MOTOR
1-86810-122-0
01
1
0105-
74
WASHER; ARM TO MOTOR
ID=8.2
9-09150-508-0
01
1
0105-
76
SCREW; BRKT TO WIPER MOTOR
8-94232-910-0
03
1
0105-
111
SEAL; FRT WIPER MOTOR TO BRKT
8-94167-624-0
01
1
0105-
198
COVER; PIVOT,WIPER
1-86810-017-0
03
1
0105-
202
GROMMET; WIPER
1-86815-003-2
03
1
0105-
203
NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
0105-
207
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
0105-
210
BRACKET KIT; HOSE
1-86810-046-0
03
1
0105-
