8-73 — BLOWER UNIT (#11652) — 101 parça

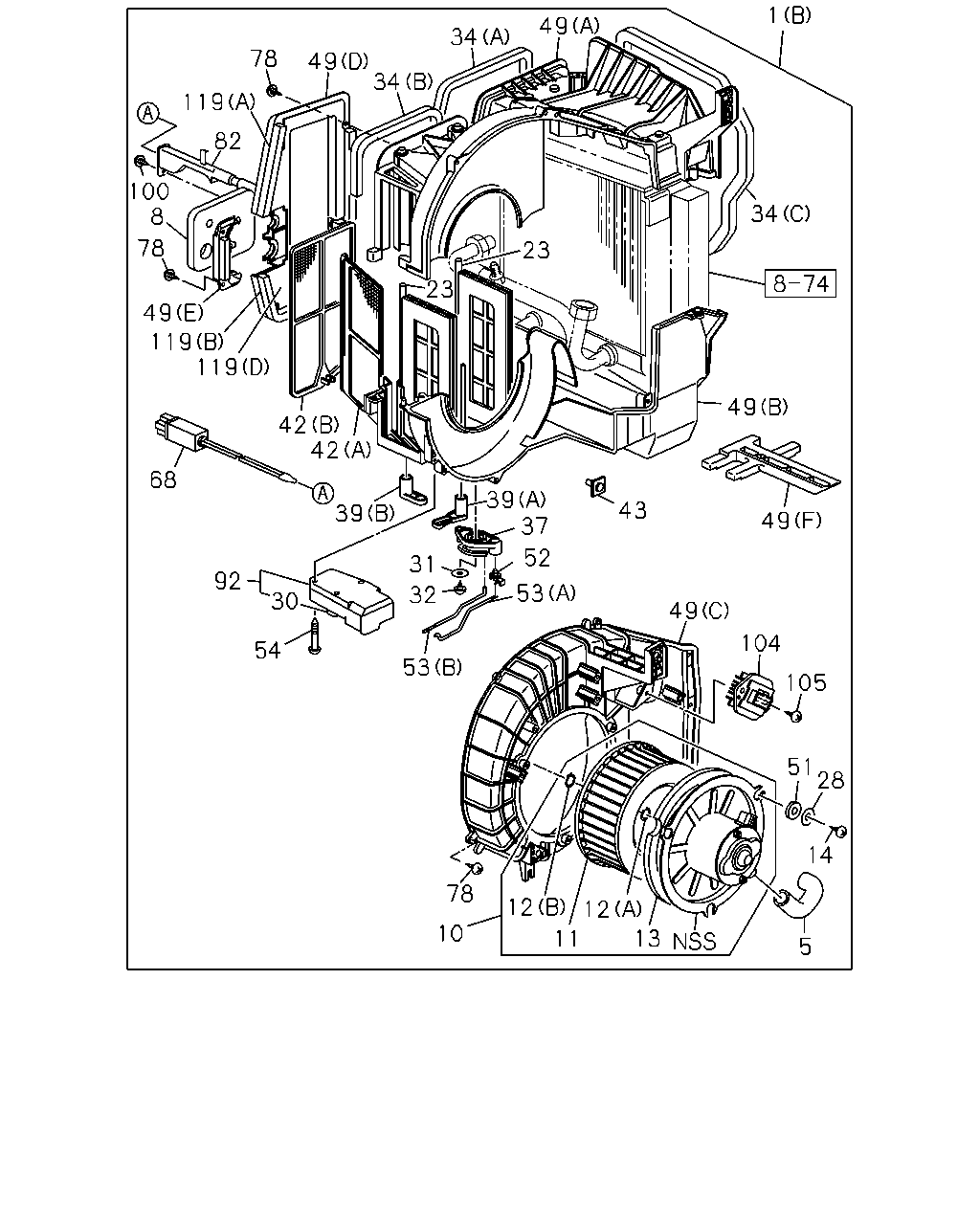

çizim 22247
1 49 34 78 49 34 119 82 100 8 34 78 23 23 49 119 119 49 42 42 68 39 37 39 43 49 52 31 92 53 32 30 49 104 54 53 105 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-5 01 1 0105-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-9 01 1 0105-
5 HOSE; AIR 1-83563-140-0 01 1 0105-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0105-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 0105-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0105-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0105-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0105-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0105-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 0105-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0105-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0105-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0105-
31 WASHER; LEVER 1-83579-095-0 01 1 0105-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0105-
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 0105-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0105-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0105-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0105-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0105-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0105-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0105-
43 BOLT; CASE 1-83579-657-2 04 1 0105-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0105-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0105-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0105-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0105-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 0105-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0105-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0105-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0105-
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 0105-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0105-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 0105-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0105-
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83519-073-1 01 1 0105-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0105-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0105-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0105-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0105-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 0105-

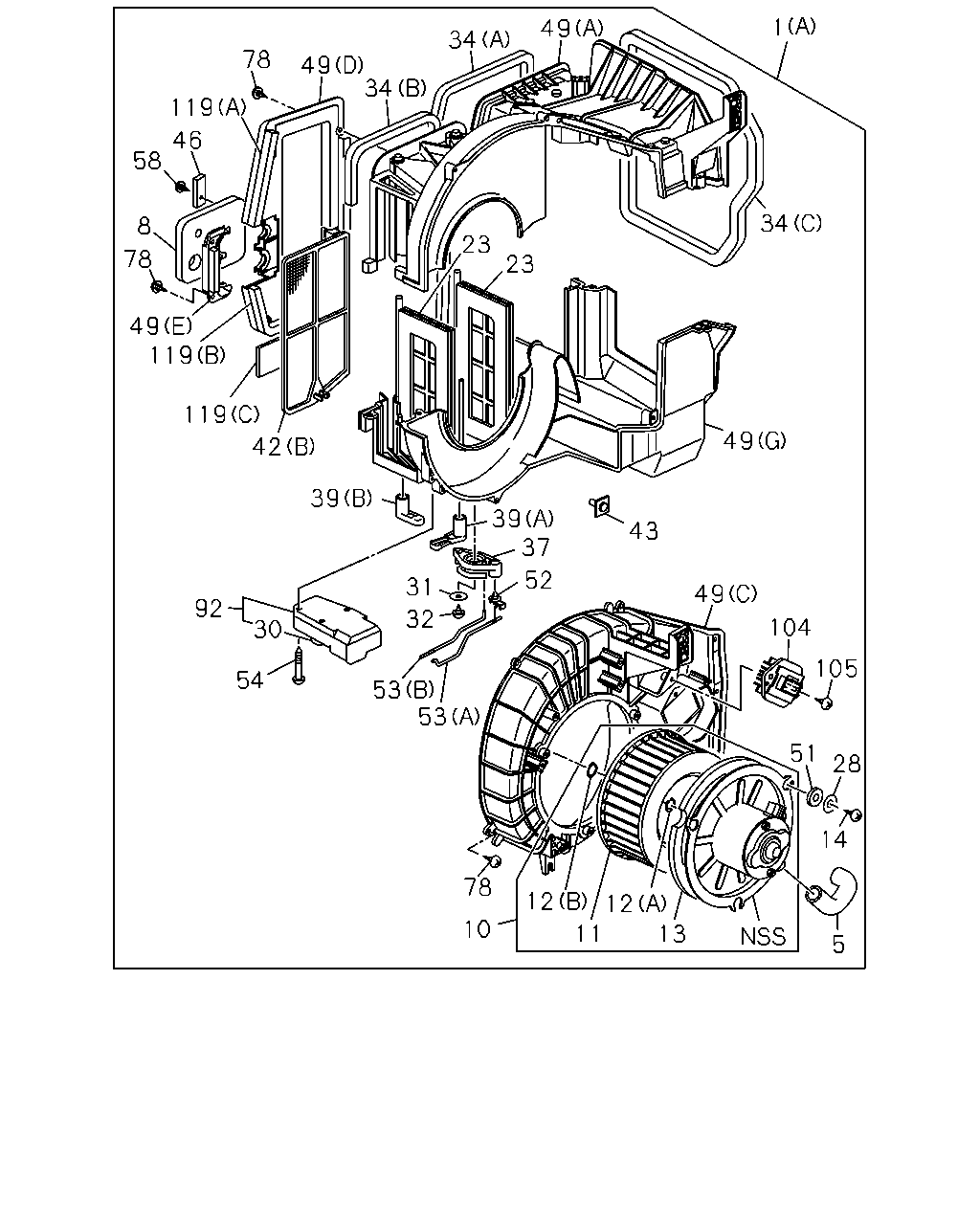

çizim 22248
49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 49 42 39 39 37 43 52 31 49 92 32 104 30 105 54 53 53 51 28 14 78 12 12 10 13 11 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-150-5 01 1 0105-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-105-9 01 1 0105-
5 HOSE; AIR 1-83563-140-0 01 1 0105-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-261-1 01 1 0105-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83579-801-1 01 1 0105-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0105-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0105-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0105-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0105-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 03 1 0105-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 03 1 0105-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0105-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0105-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0105-
31 WASHER; LEVER 1-83579-095-0 01 1 0105-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 0105-
32 SCREW; LEVER
HEATER & DEFROSTER(C41) M5X20 		9-09829-324-1 01 1 0105-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0105-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0105-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0105-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0105-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0105-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0105-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 0105-
43 BOLT; CASE 1-83579-657-2 04 1 0105-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 0105-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0105-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0105-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0105-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 0105-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 0105-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 0105-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0105-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0105-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0105-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0105-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 0105-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0105-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0105-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-092-0 01 1 0105-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83519-073-1 01 1 0105-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0105-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0105-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0105-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 0105-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 0105-
