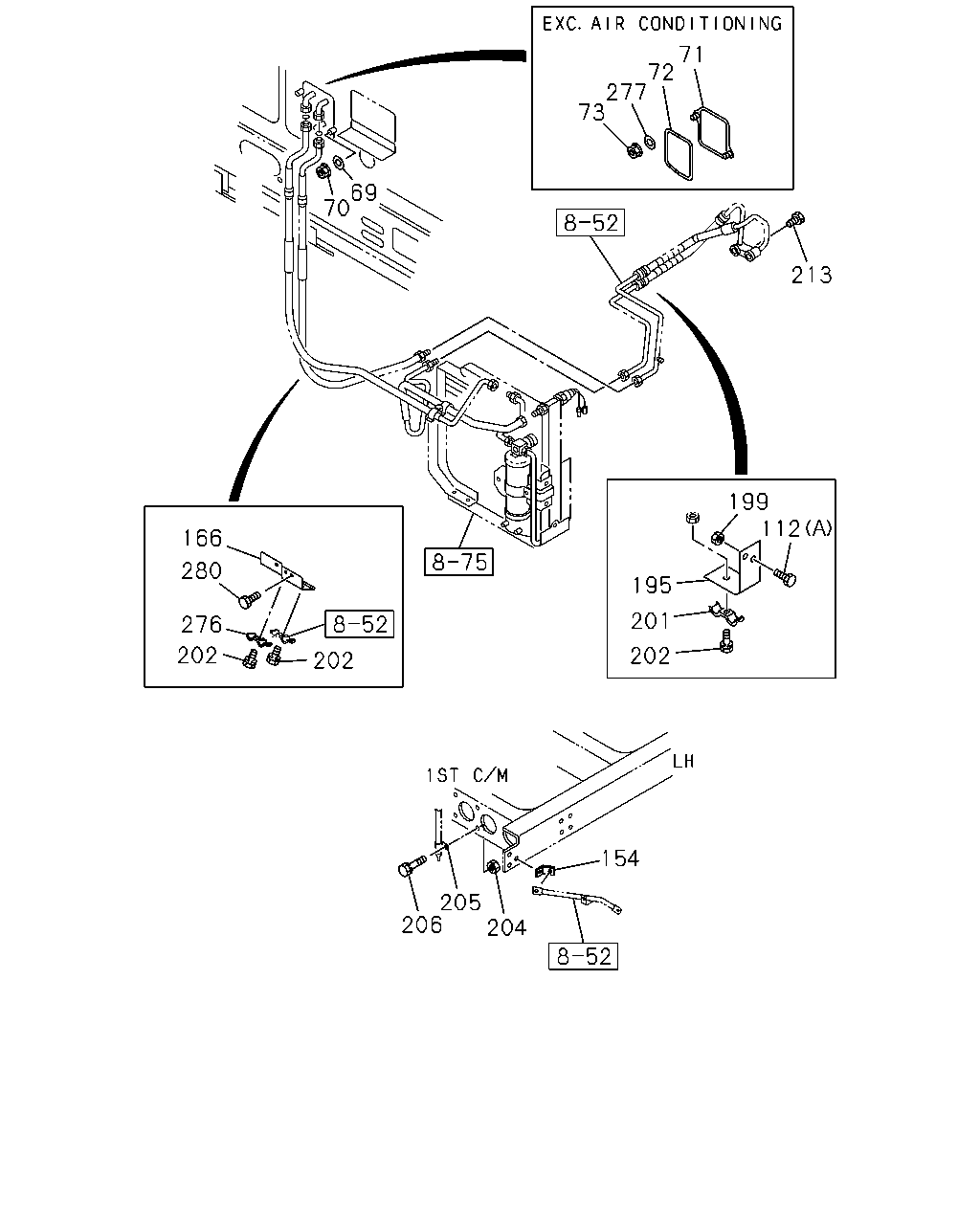

8-50 — AIR CONDITIONING SYSTEM; FRONT (#1165) — 110 parça

70 69 73 277 72 71 213 199 112 195 201 202 154 204 205 206 202 166 280 276 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9202-	●	●
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9202-	●	●
70	NUT; EVAP,A/C AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
71	COVER; EVAP,A/C EXC. AIR CON MANUAL CONTROL(C60)	1-71997-460-1	01	1	9202-	●	●
72	SEAL; COVER,EVAP EXC. AIR CON MANUAL CONTROL(C60)	1-71998-221-0	01	1	9202-	●	●
73	NUT; COVER,A/C EVAP EXC. AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9202-	●	●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28080-825-0	02	1	9202-9301	●	●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9302-	●	●
112	BOLT; STAY 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9301	●	●
112	BOLT; STAY 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB>	1-83571-773-0	01	1	9202-9301	●	●
166	BRACKET; FLEX HOSE L=200	1-71118-359-3	01	1	9202-	●	●
195	STAY; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60)	1-83571-794-0	01	1	9202-	●	●
195	STAY; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) WO/NUT	1-83571-482-0	01	1	9202-9301		●
195	STAY; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	1-83571-824-0	01	1	9302-		●
199	NUT AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9202-	●	●
201	CLIP; HOSE,CMPR TO EVAP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9302-		●
202	BOLT; CLIP,FLEX HOSE AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
202	BOLT; CLIP,FLEX HOSE 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9202-9301		●
202	BOLT; CLIP,FLEX HOSE 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE	0-28080-825-0	01	1	9302-		●
204	NUT; CLIP AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9202-	●	●
204	NUT; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9302-9302		●
205	CLIP; BAND,DRAIN HOSE AIR CON MANUAL CONTROL(C60) ID=35 L=35	1-09700-908-0	01	1	9202-	●	●
206	BOLT; CLIP BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9202-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	9-01961-040-0	01	1	9202-9204	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9205-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE	0-28080-825-0	02	1	9202-		●
276	CLIP; FLEX HOSE AIR CON MANUAL CONTROL(C60)	1-83574-116-0	01	1	9202-	●	●
277	WASHER; EVAP COVER EXC. AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9202-	●	●
280	BOLT; BRKT,A/C FLEX HOSE M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●

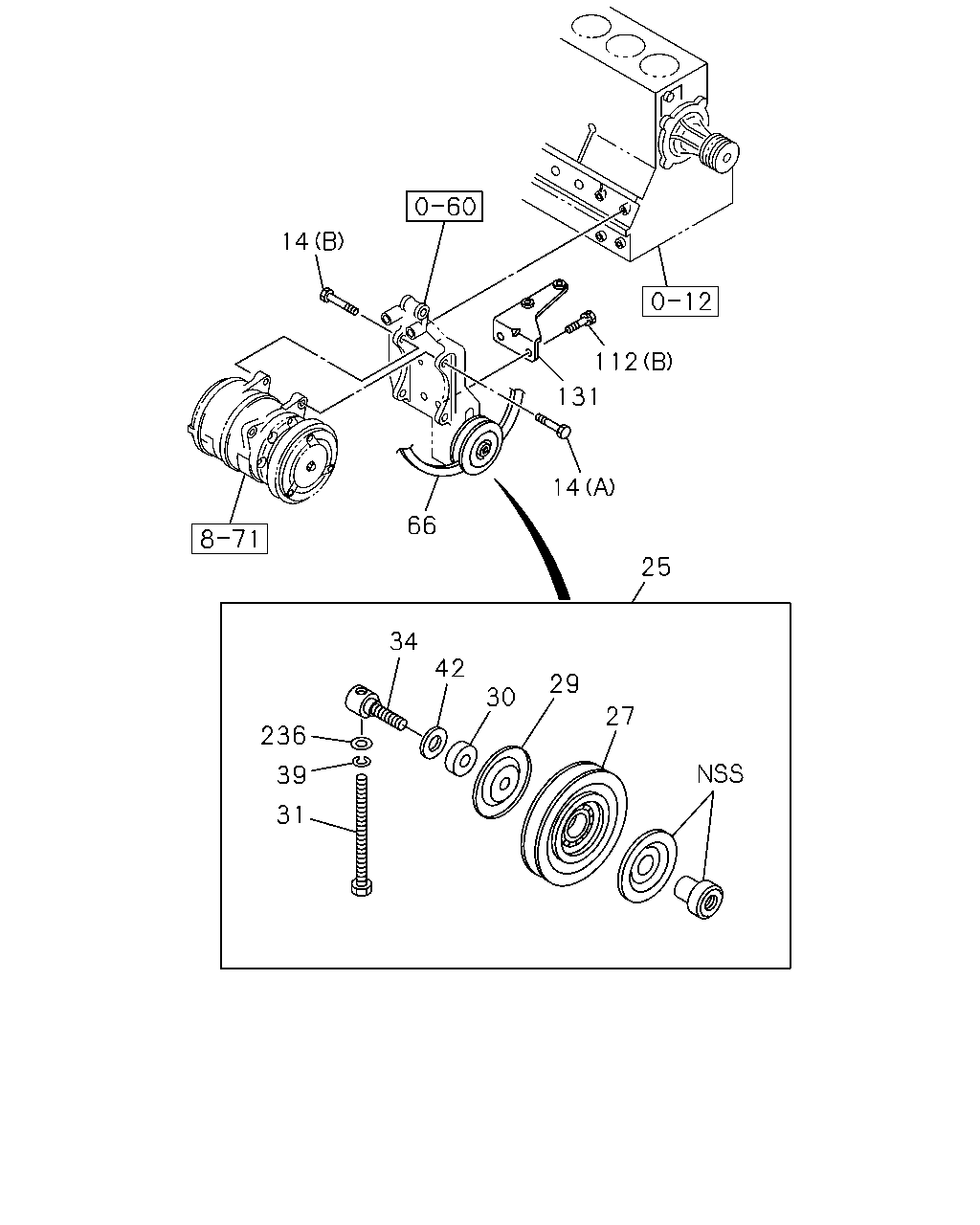

14 112 131 14 66 25 34 42 30 29 27 236 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (A) M10X30 FLANGE	0-28081-030-0	02	1	9202-9411		●
14	BOLT; CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	02	1	9412-		●
14	BOLT; CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) M10X45 FLANGE	0-28081-045-0	02	1	9202-		●
25	PULLEY ASM; IDLER,CMPR 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83570-020-0	01	1	9202-	●	●
25	PULLEY ASM; IDLER,CMPR 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83570-024-0	01	1	9202-	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	8-94399-957-0	01	1	9202-		●
27	PULLEY; IDLE,A/C AIR CON MANUAL CONTROL(C60)	1-83579-116-0	01	1	9202-	●	●
29	COVER; DUST,IDLE PULLEY AIR CON MANUAL CONTROL(C60)	9-13369-603-0	01	1	9202-	●	●
30	COLLAR; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-144-0	01	1	9202-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83579-143-0	01	1	9202-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-09009-152-0	01	1	9202-	●	●
34	SHAFT; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-236-0	01	1	9202-	●	●
39	WASHER; LK,ADJ BOLT 6SA1 STD ENG(06L),6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=8.2	9-09150-608-0	01	1	9202-	●	●
39	WASHER; LK,ADJ BOLT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83579-492-0	01	1	9202-	●	●
42	WASHER; PULLEY 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	8-97014-636-0	01	1	9202-		●
66	BELT; A/C CMPR 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> L=1130	1-13671-208-0	01	1	9202-	●	●
66	BELT; A/C CMPR 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2> L=1211	8-94146-953-0	01	1	9202-	●	●
66	BELT; A/C CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	9202-		●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28080-825-0	02	1	9202-9301	●	●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9302-	●	●
112	BOLT; STAY 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9301	●	●
112	BOLT; STAY 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
131	STAY; CMPR BRKT 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	8-94396-990-0	01	1	9202-9410		●
131	STAY; CMPR BRKT 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	8-94393-451-0	01	1	9411-		●
236	WASHER; PL,ADJ BOLT 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	1-09503-216-0	01	1	9202-		●

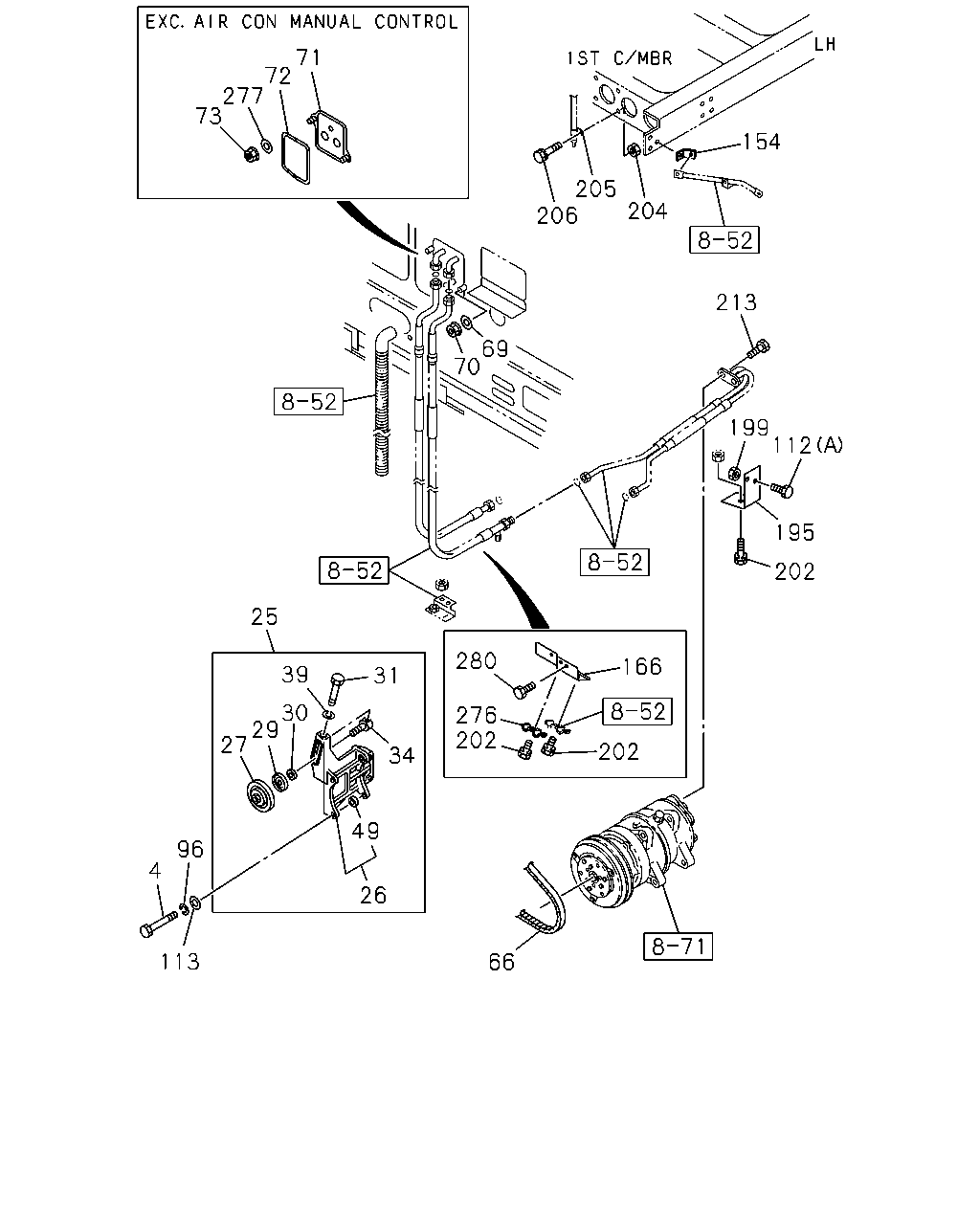

73 277 72 71 206 205 204 154 213 69 70 199 112 195 202 166 202 66 280 276 202 31 34 49 26 25 39 30 29 27 96 4 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; A/C CMPR BRKT AIR CON MANUAL CONTROL(C60) M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-	●
4	BOLT; A/C CMPR BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M10X40 W/LK WASHER	0-50041-040-0	04	1	9202-		●
4	BOLT; A/C CMPR BRKT AIR CON MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9202-	●
4	BOLT; A/C CMPR BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9202-		●
4	BOLT; A/C CMPR BRKT AIR CON MANUAL CONTROL(C60) M10X30 W/LK WASHER	0-50041-030-0	02	1	9302-9401	●
4	BOLT; A/C CMPR BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M10X30 W/LK WASHER	0-50041-030-0	02	1	9302-9401		●
4	BOLT; A/C CMPR BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2> M10X115	9-09804-203-1	02	1	9202-	●	●
25	PULLEY ASM; IDLER,CMPR 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83570-020-0	01	1	9202-	●	●
25	PULLEY ASM; IDLER,CMPR 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83570-024-0	01	1	9202-	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	8-94399-957-0	01	1	9202-		●
26	BRACKET; IDLE PULLEY,A/C 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83571-679-0	01	1	9202-	●	●
26	BRACKET; IDLE PULLEY,A/C 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83571-779-0	01	1	9202-	●	●
27	PULLEY; IDLE,A/C AIR CON MANUAL CONTROL(C60)	1-83579-116-0	01	1	9202-	●	●
29	COVER; DUST,IDLE PULLEY AIR CON MANUAL CONTROL(C60)	9-13369-603-0	01	1	9202-	●	●
30	COLLAR; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-144-0	01	1	9202-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83579-143-0	01	1	9202-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-09009-152-0	01	1	9202-	●	●
34	SHAFT; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-236-0	01	1	9202-	●	●
39	WASHER; LK,ADJ BOLT 6SA1 STD ENG(06L),6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=8.2	9-09150-608-0	01	1	9202-	●	●
39	WASHER; LK,ADJ BOLT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2>	1-83579-492-0	01	1	9202-	●	●
49	COLLAR; BRKT,CMPR 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60)	8-94201-057-1	02	1	9202-	●	●
66	BELT; A/C CMPR 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> L=1130	1-13671-208-0	01	1	9202-	●	●
66	BELT; A/C CMPR 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2> L=1211	8-94146-953-0	01	1	9202-	●	●
66	BELT; A/C CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	9202-		●
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9202-	●	●
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9202-	●	●
70	NUT; EVAP,A/C AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
71	COVER; EVAP,A/C EXC. AIR CON MANUAL CONTROL(C60)	1-71997-460-1	01	1	9202-	●	●
72	SEAL; COVER,EVAP EXC. AIR CON MANUAL CONTROL(C60)	1-71998-221-0	01	1	9202-	●	●
73	NUT; COVER,A/C EVAP EXC. AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9202-	●	●
96	WASHER; LK 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2> ID=10.2	9-09150-510-0	02	1	9202-	●	●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28080-825-0	02	1	9202-9301	●	●
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9302-	●	●
112	BOLT; STAY 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9202-9301	●	●
112	BOLT; STAY 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
113	WASHER; PL,BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) PARTIAL OIL FILTER CARTRIDGE<KC2> ID=10.5 OD=18	9-09160-510-0	02	1	9202-	●	●
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB>	1-83571-773-0	01	1	9202-9301	●	●
166	BRACKET; FLEX HOSE L=200	1-71118-359-3	01	1	9202-	●	●
195	STAY; CLIP 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60)	1-83571-794-0	01	1	9202-	●	●
195	STAY; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) WO/NUT	1-83571-482-0	01	1	9202-9301		●
195	STAY; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60)	1-83571-824-0	01	1	9302-		●
199	NUT AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9202-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
202	BOLT; CLIP,FLEX HOSE 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9202-9301		●
202	BOLT; CLIP,FLEX HOSE 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE	0-28080-825-0	01	1	9302-		●
204	NUT; CLIP AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9202-	●	●
204	NUT; CLIP 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9302-9302		●
205	CLIP; BAND,DRAIN HOSE AIR CON MANUAL CONTROL(C60) ID=35 L=35	1-09700-908-0	01	1	9202-	●	●
206	BOLT; CLIP BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9202-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	9-01961-040-0	01	1	9202-9204	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9205-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE	0-28080-825-0	02	1	9202-		●
276	CLIP; FLEX HOSE AIR CON MANUAL CONTROL(C60)	1-83574-116-0	01	1	9202-	●	●
277	WASHER; EVAP COVER EXC. AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9202-	●	●
280	BOLT; BRKT,A/C FLEX HOSE M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
