Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#11645) — 212 parça

120 617

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	SEAL	1-15739-002-0	01	1	0105-0407
120	SEAL	1-15739-008-0	01	1	0408-
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0105-

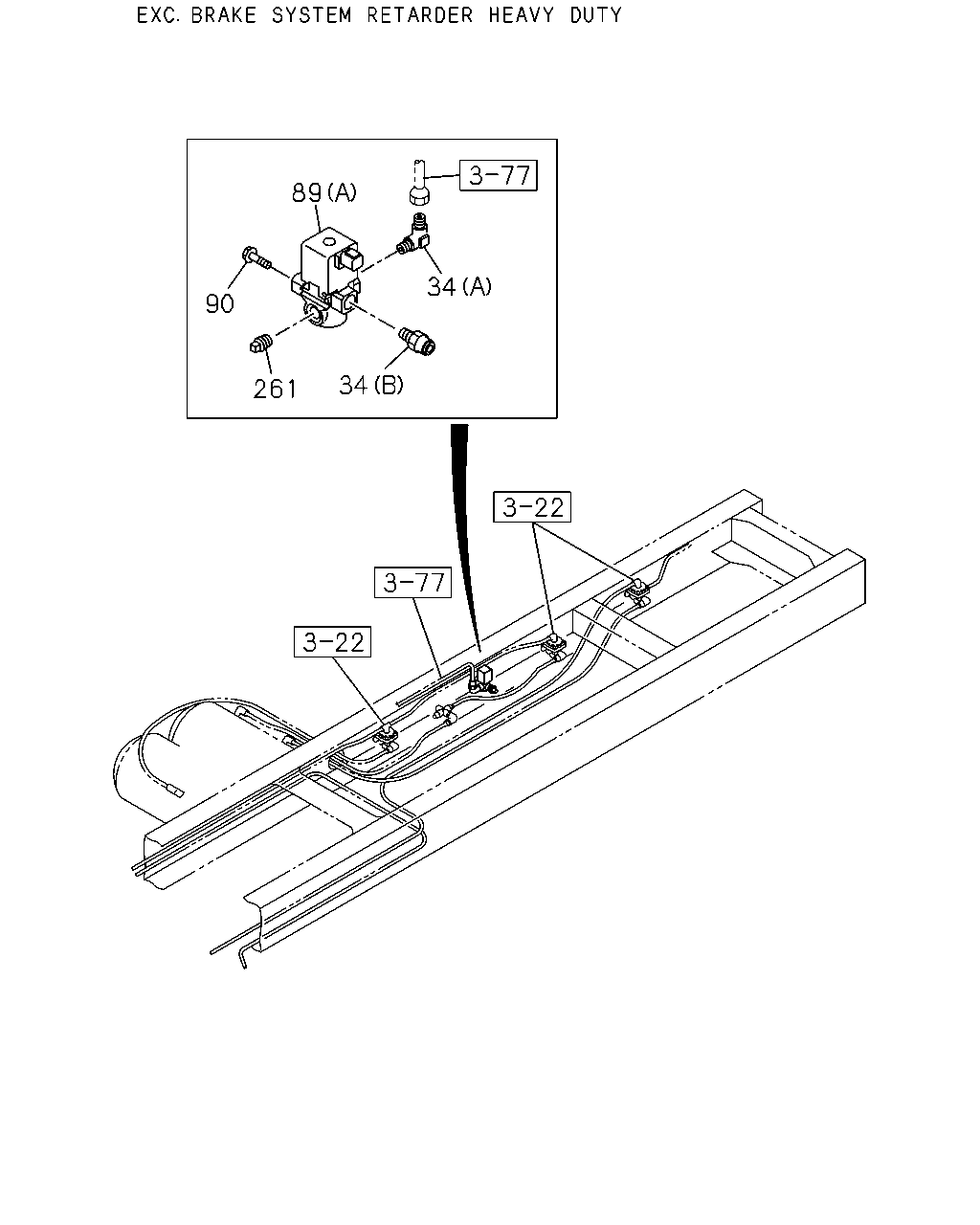

89 34 90 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-

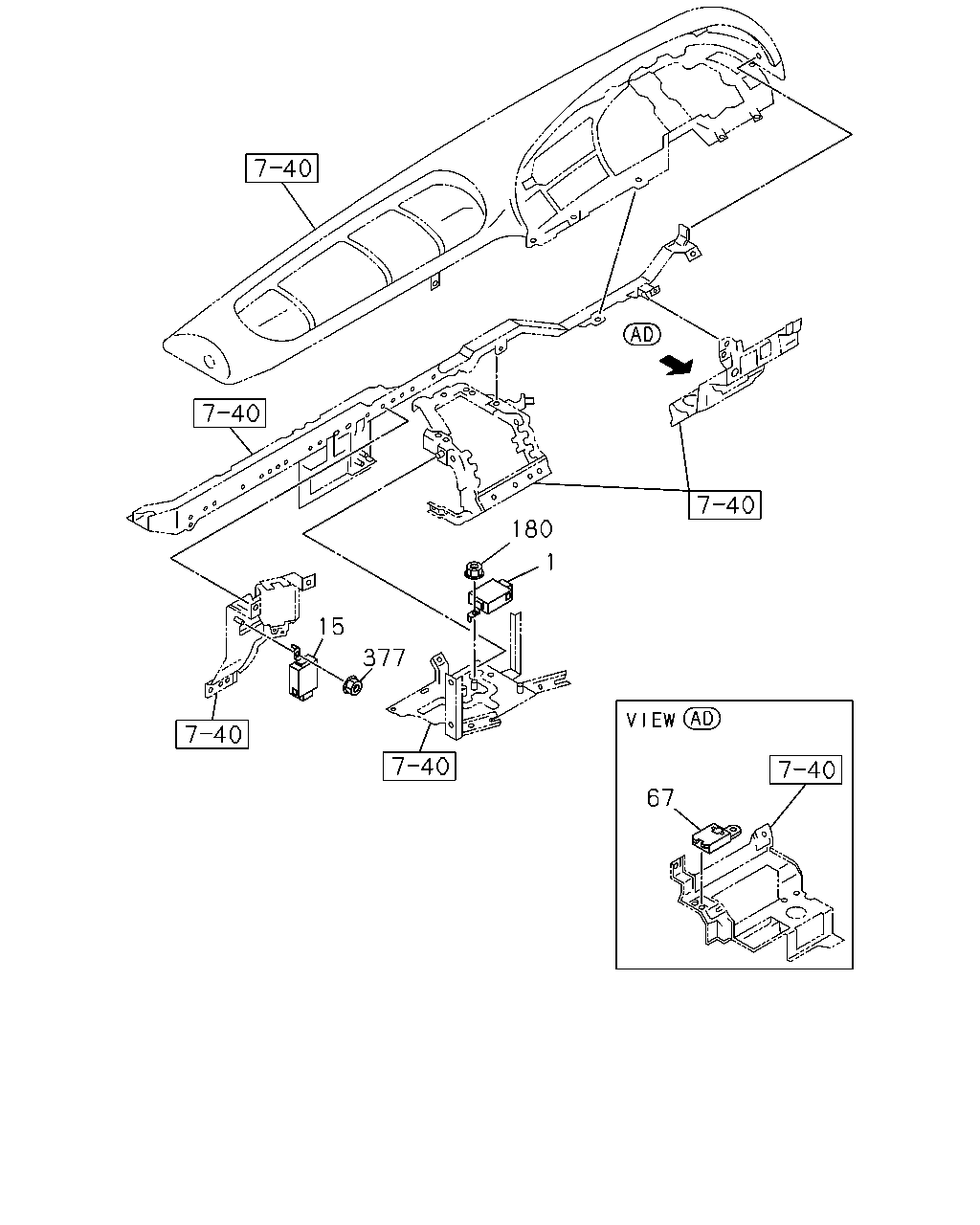

180 1 15 377 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

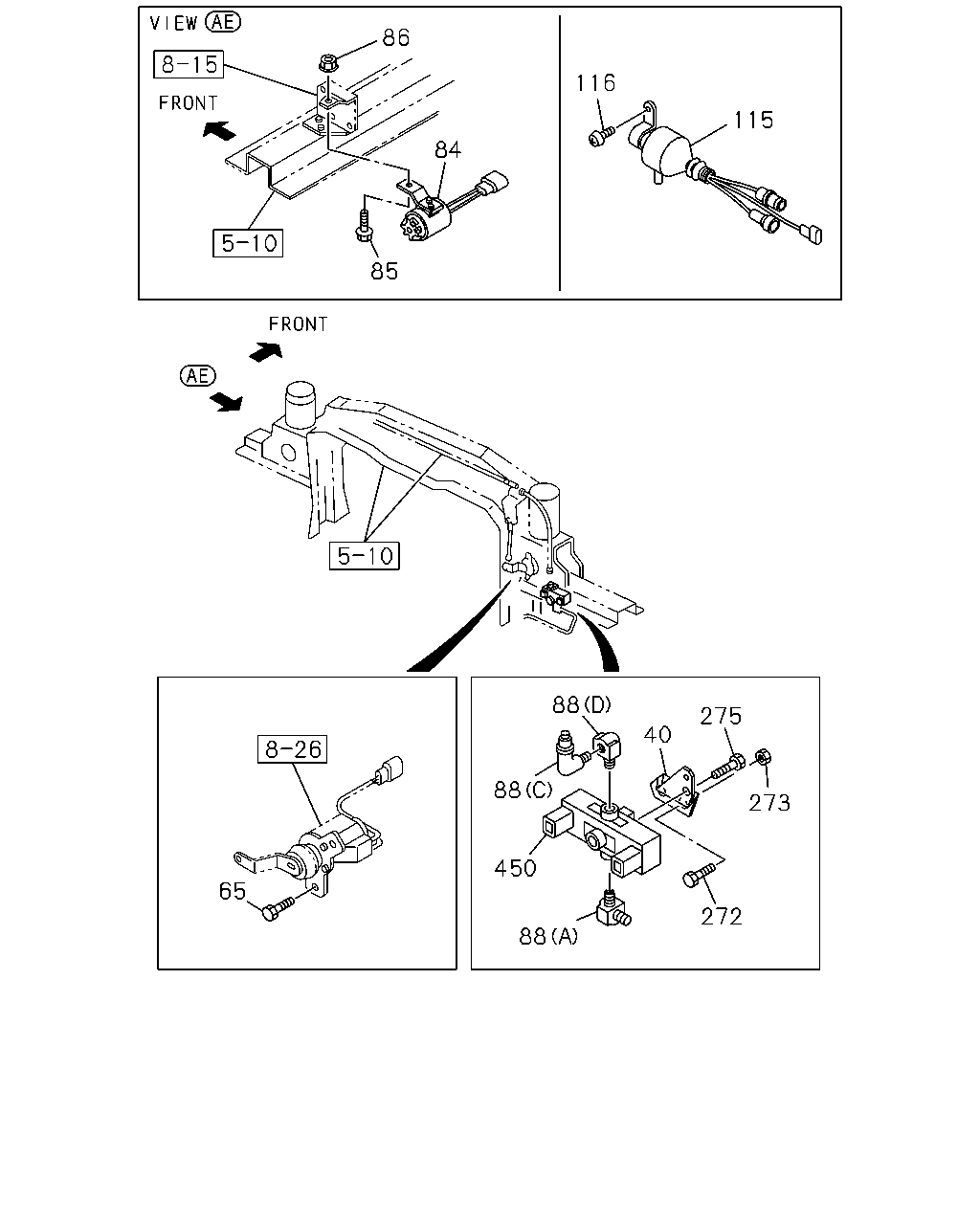

86 116 115 84 85 88 275 40 88 273 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16)	1-53458-380-0	01	1	0105-
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0305
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0306-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X35 FLANGE	0-28651-035-0	02	1	0601-
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91150-210-0	02	1	0105-0602
273	NUT; MAG VLV FULL FLOATING CAB(W16) M10 FLANGE	0-91180-210-0	02	1	0603-
275	BOLT; BRKT FULL FLOATING CAB(W16) M8X14 FLANGE	0-28080-814-0	01	1	0105-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

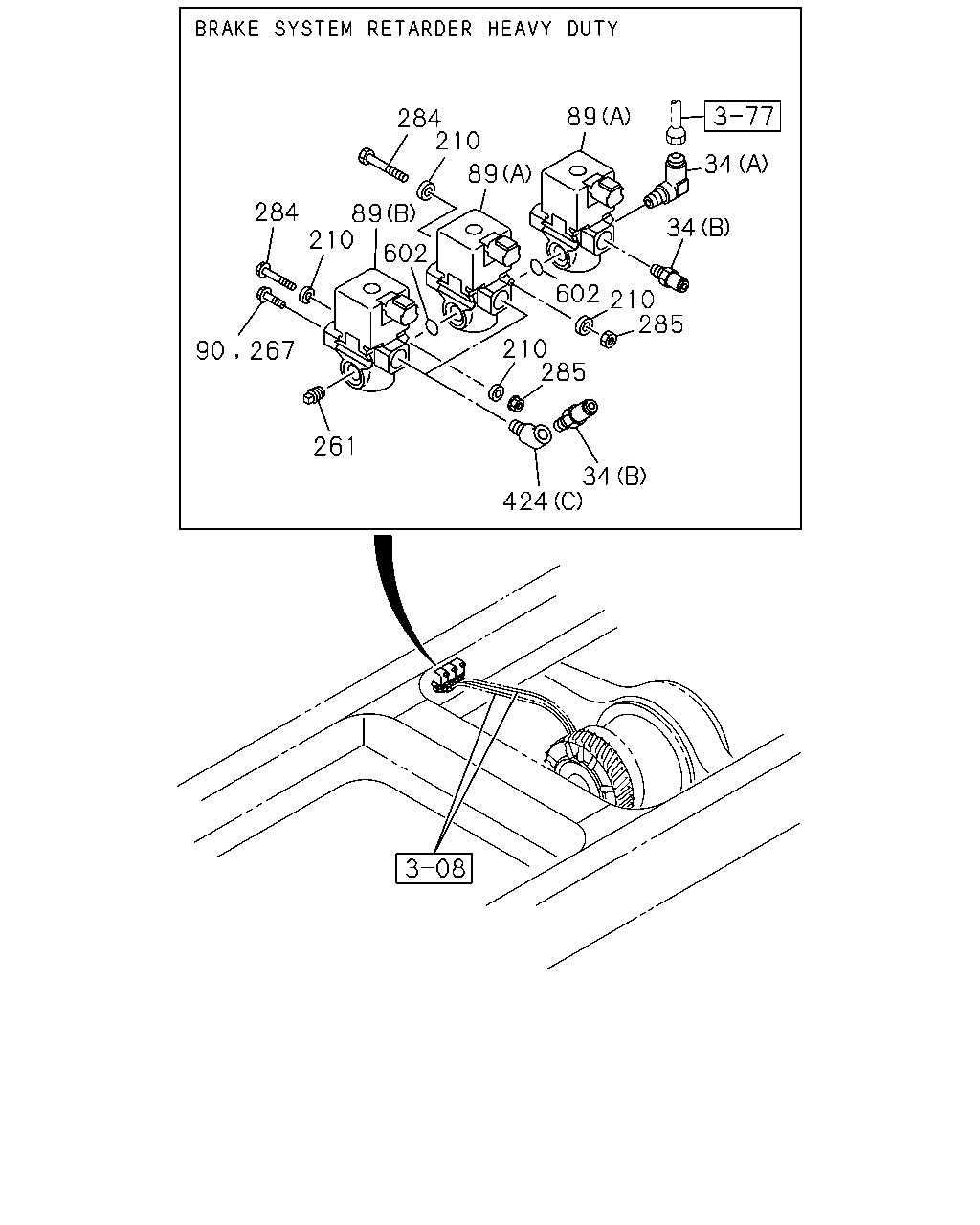

89 284 210 34 89 284 89 210 34 602 602 210 285 210 285 261 34 424 90 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0105-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	0105-0512
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	03	1	0601-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	02	1	0601-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28050-650-0	02	1	0601-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0301
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-

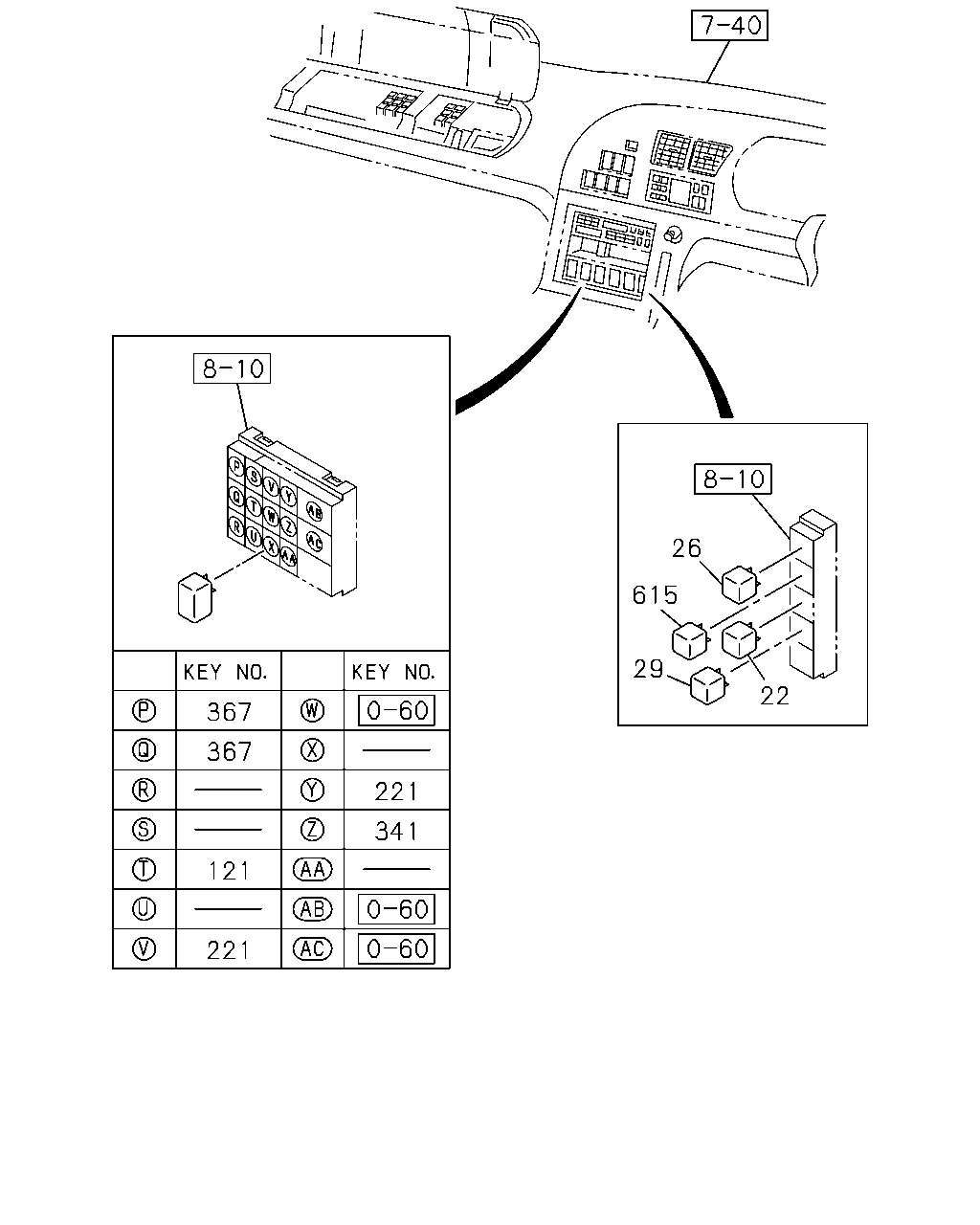

26 615 29 22 367 367 221 341 121 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-0301
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-0301
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0302-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0302-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

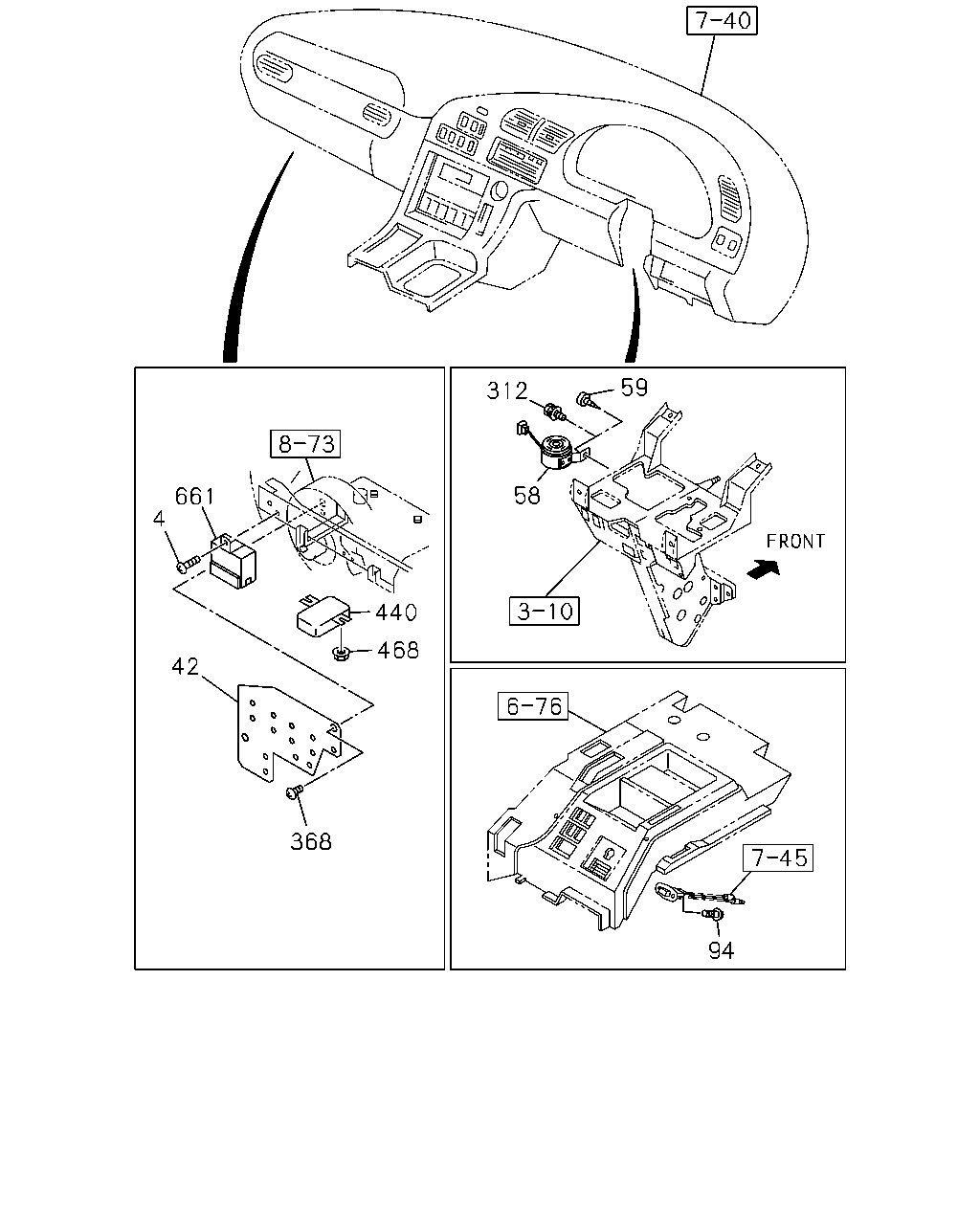

59 312 58 661 4 440 468 42 368 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0105-
42	BRACKET; RELAY	1-82698-351-0	01	1	0105-0110
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0306-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305
368	SCREW; RELAY FIX M5X14	8-94279-325-0	03	1	0105-0110
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0105-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0105-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0105-

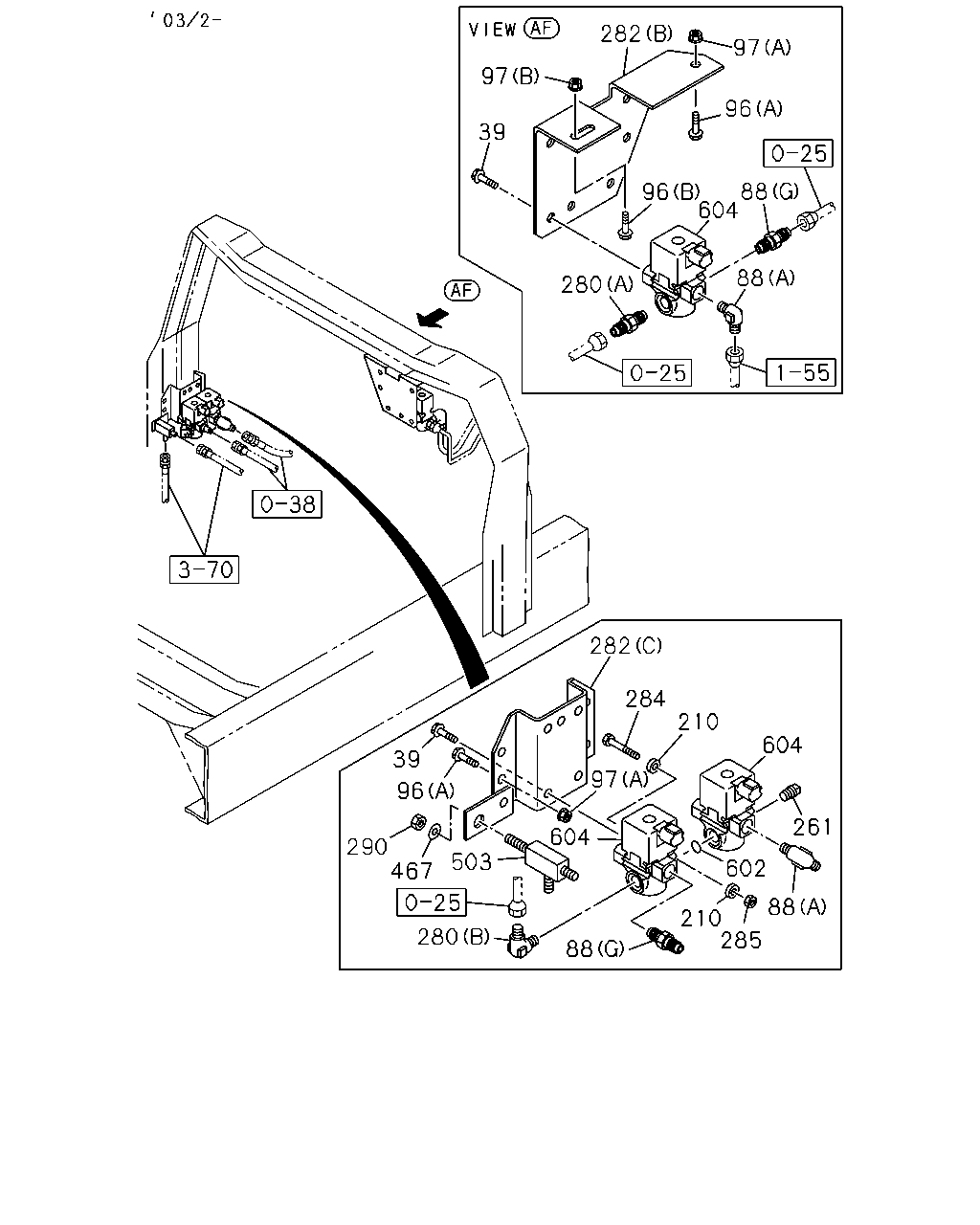

282 97 97 96 39 96 88 604 88 280 282 284 210 604 604 39 97 96 261 290 467 503 602 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0302-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0302-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0302-0602
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0302-0602
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0302-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28080-650-0	02	1	0105-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X50 FLANGE	0-28050-650-0	02	1	0601-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	0105-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	02	1	0603-
290	NUT M12	9-09840-280-0	01	1	0302-0309
290	NUT M12	9-99111-512-0	01	1	0310-0310
290	NUT M12	9-99111-412-0	01	1	0311-0512
290	NUT M12	0-91111-512-0	01	1	0601-
467	WASHER; LK,MAG VLV ID=12.2	9-09150-512-0	01	1	0302-
503	UNION M12 2WAY	1-09654-059-2	01	1	0302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	0105-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0302-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0302-

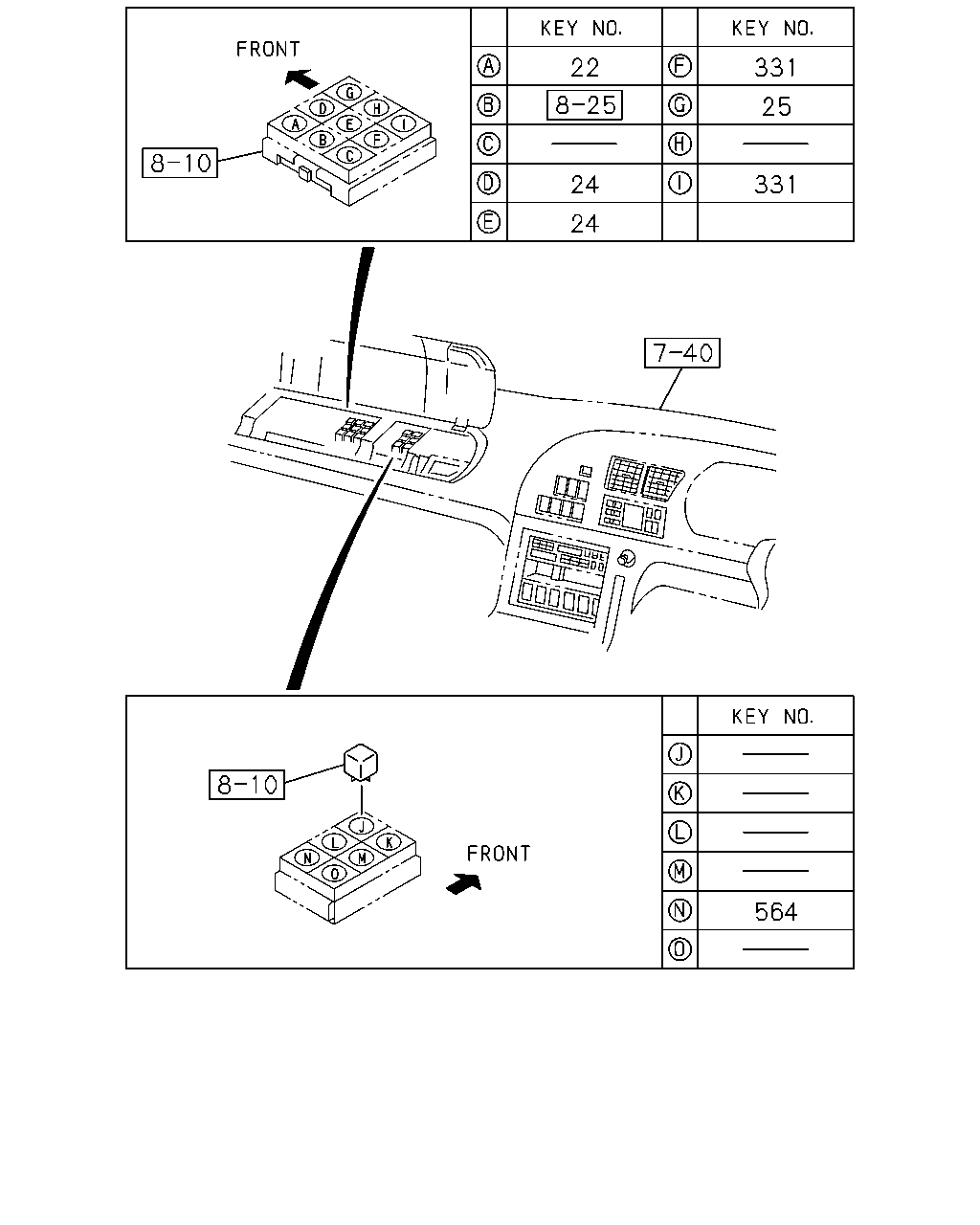

22 331 25 24 331 24 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
564	RELAY; DC-DC CONVERTER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

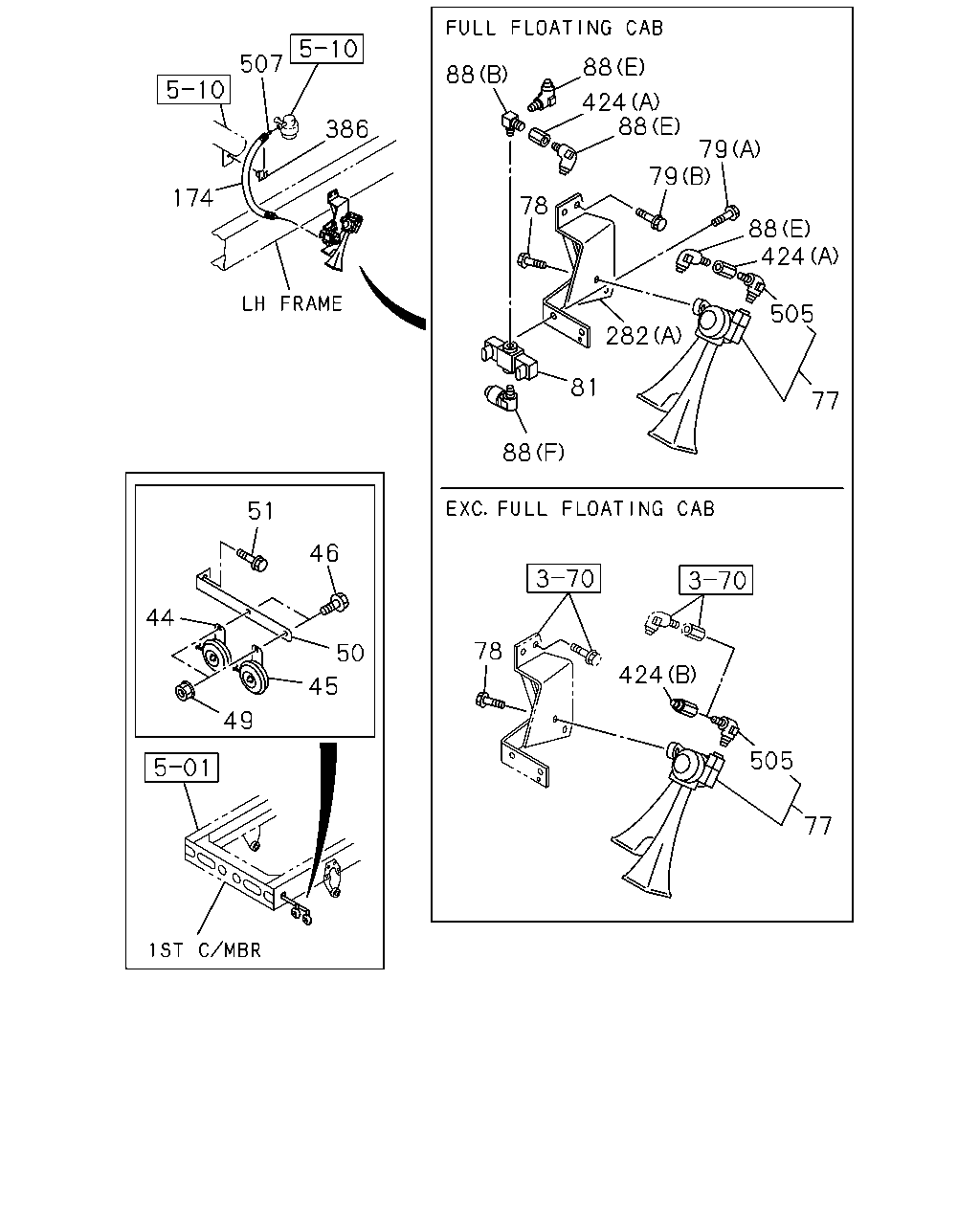

507 88 88 424 88 386 79 79 174 78 88 424 505 282 81 77 88 51 46 44 78 50 424 45 49 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	0105-
45	HORN; LOW NOTE	1-83410-062-1	01	1	0105-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	0105-0602
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN	1-53458-901-0	01	1	0105-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM	1-83430-041-2	01	1	0105-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (G) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0301
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0108
174	COVER FULL FLOATING CAB(W16) L=770 SERVICED BY L=2000	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0302-
282	BRACKET; MAG VLV (C)	1-82569-345-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0105-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-0301
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
