8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#11643) — 43 parça
◀

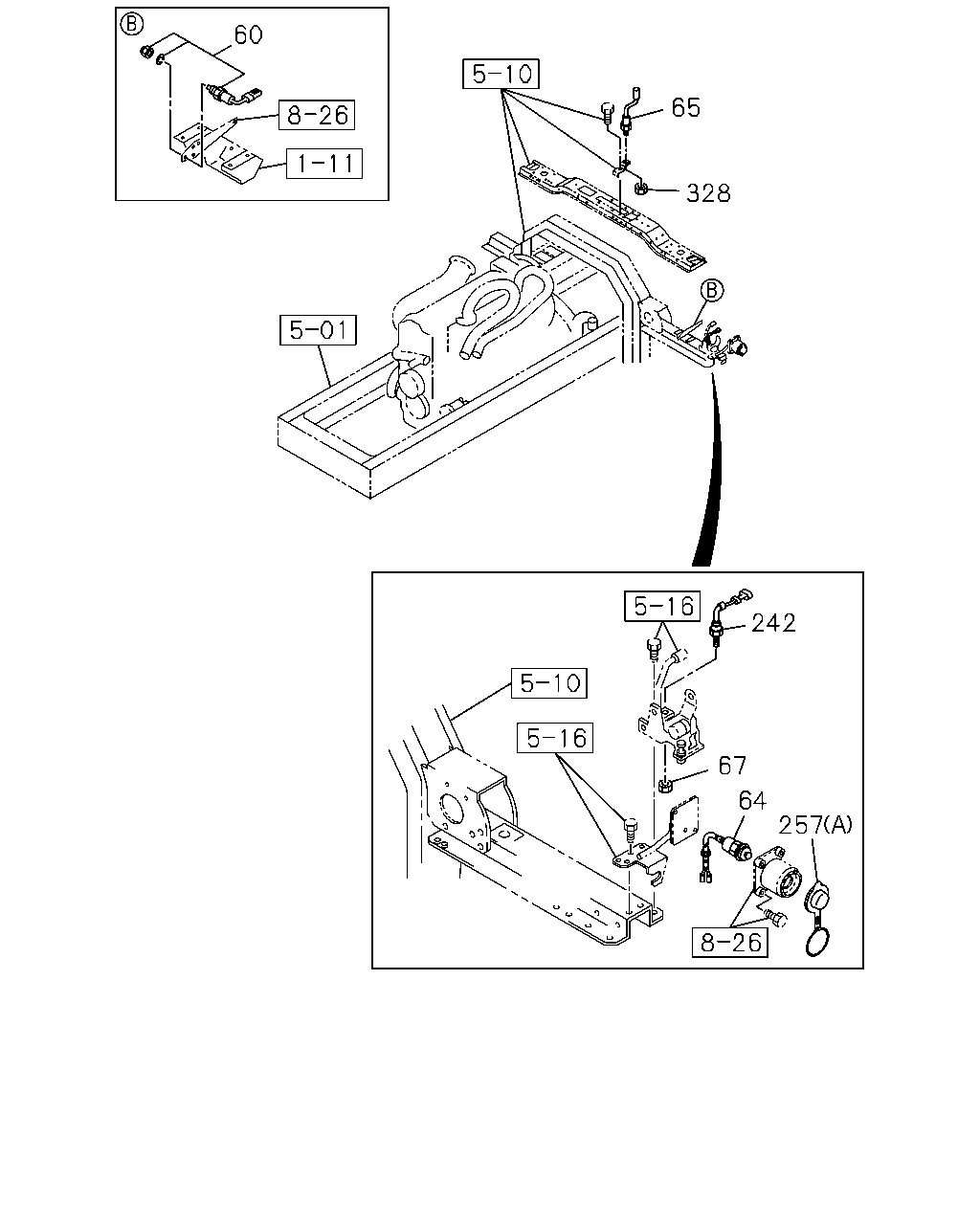

[825A] FRAME SIDE (9 parça)

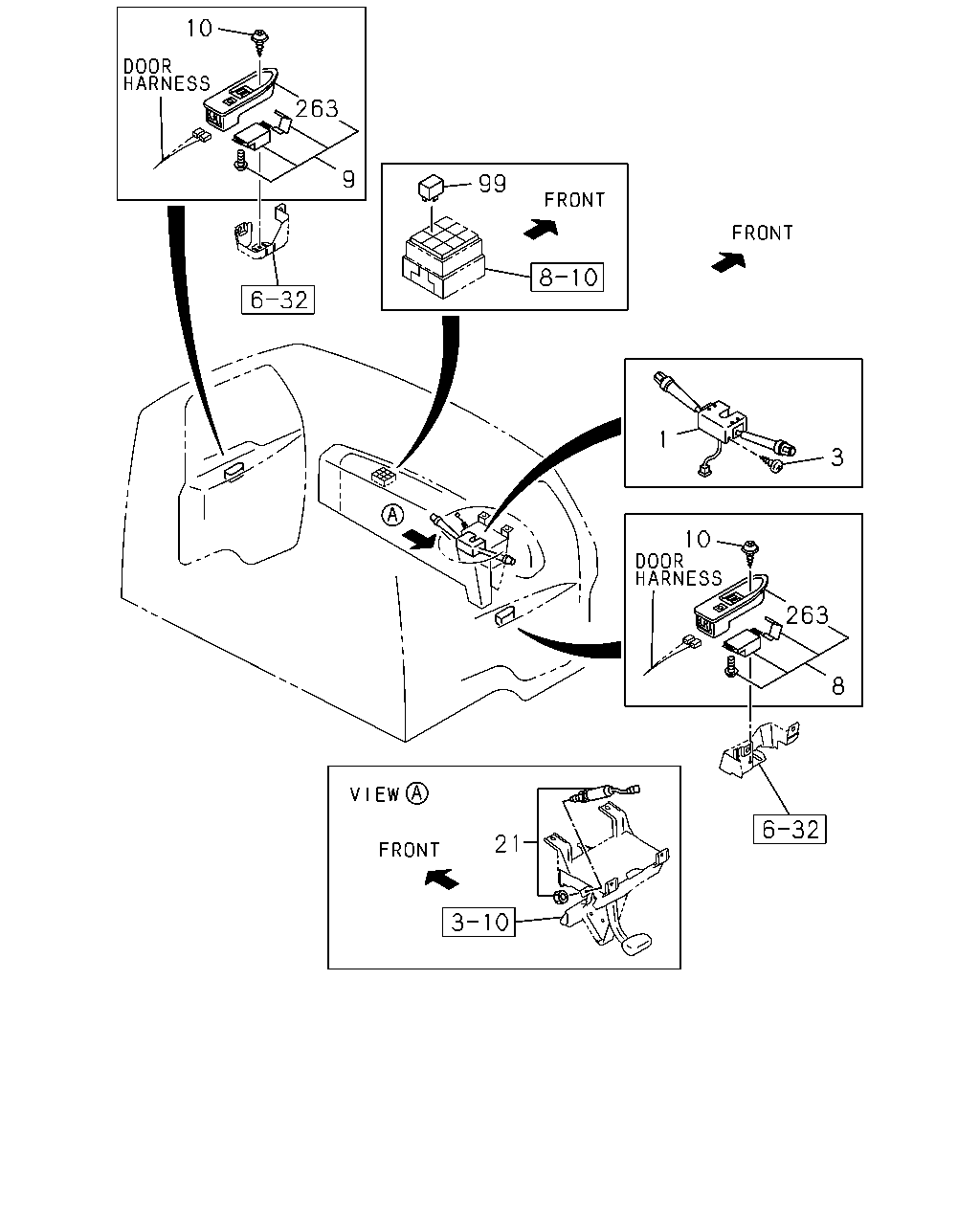

[825A] INST PANEL AND DOOR SIDE (17 parça)

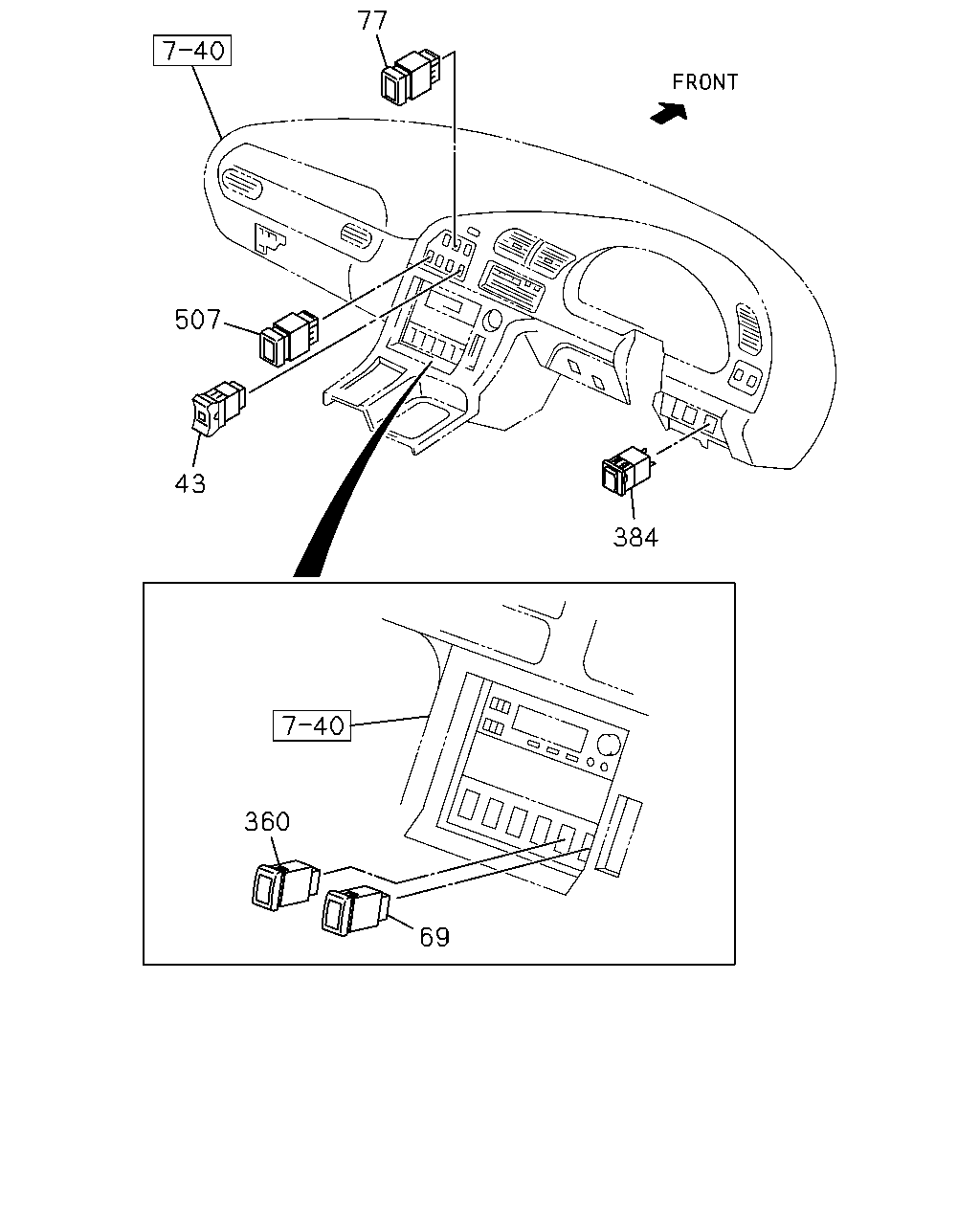

[825A] METER CLUSTER SIDE (6 parça)

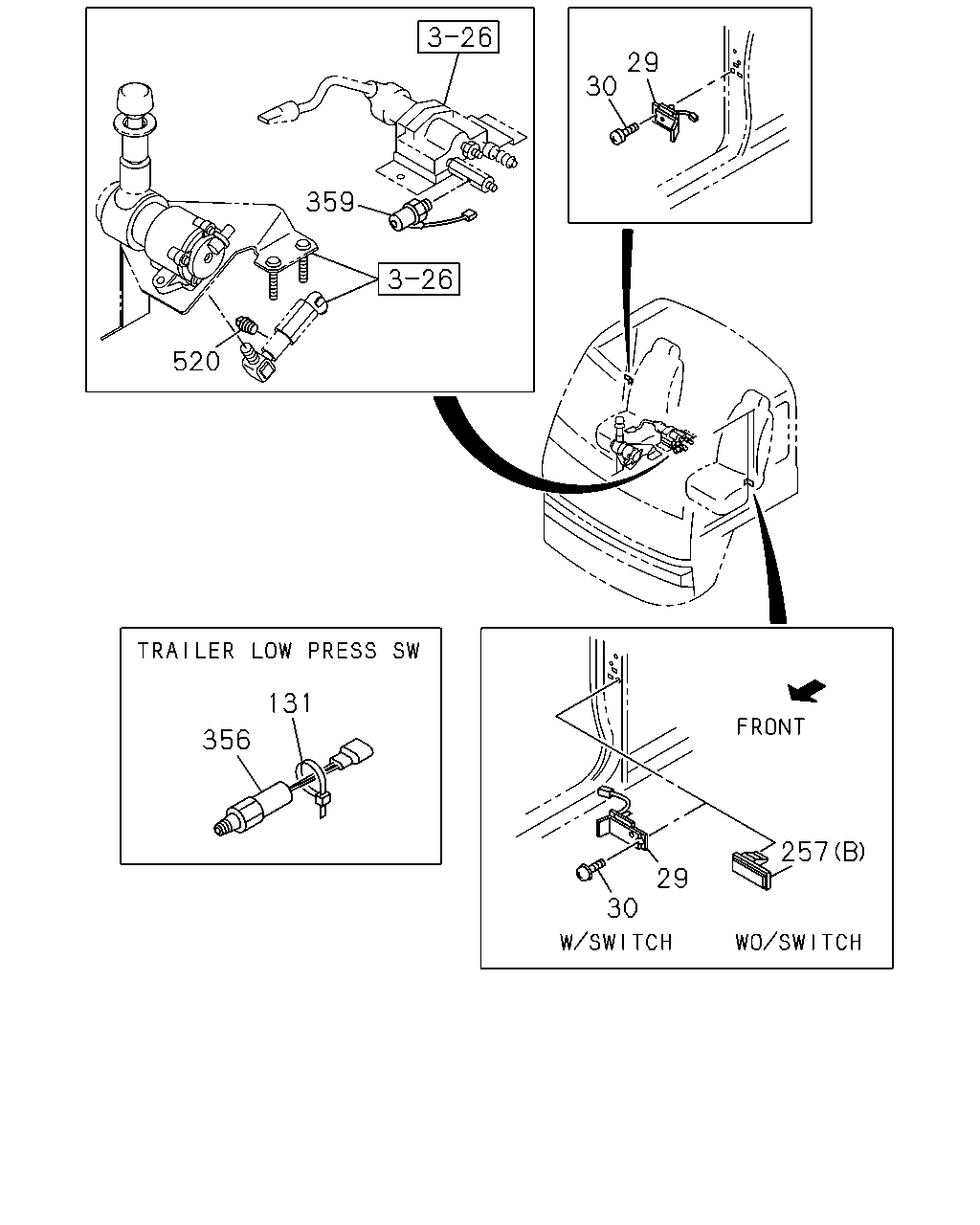

[825A] DOOR AND TRAILER SW (11 parça)
▶
60
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
0105-
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0105-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0105-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0105-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0105-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0105-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0105-0405
328
NUT; SW
M16
9-99110-416-0
01
1
0105-0512
328
NUT; SW
M16
0-91110-516-0
01
1
0601-
10
263
9
99
1
3
10
263
8
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-547-0
01
1
0105-0301
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-547-0
01
1
0302-0312
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-708-1
01
1
0401-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-640-0
01
1
0105-0301
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-640-0
01
1
0302-0312
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-724-1
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0105-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-155-3
01
1
0105-0301
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-1
01
1
0302-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-154-3
01
1
0105-0301
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0302-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0105-
21
SWITCH; CLU
1-82380-114-3
01
1
0105-
99
RELAY; FOG LAMP
24V 12.5A MITUBA
8-97062-815-1
01
1
0105-0111
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
0105-
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
0105-
77
507
43
384
360
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
SWITCH; HORN
1-82350-332-0
01
1
0105-
69
SWITCH; AUTO CRUISE
1-82340-412-2
01
1
0105-
77
SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ>
1-82340-413-0
01
1
0105-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0105-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0105-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0105-
29
30
359
520
131
356
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0105-0405
29
SWITCH; DOOR
8-97855-032-3
02
1
0406-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0105-0405
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0406-
131
CLIP; BAND
L=180
1-09707-162-1
01
1
0105-0105
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0105-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0105-0405
356
SWITCH; TRAILER,LOW PRESS
1-48340-057-0
01
1
0105-0105
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-0
01
1
0105-0508
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> GREEN
1-82410-176-1
01
1
0509-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0106-0111
