8-15 — FIXING PARTS; WIRING HARNESS (#11641) — 497 parça

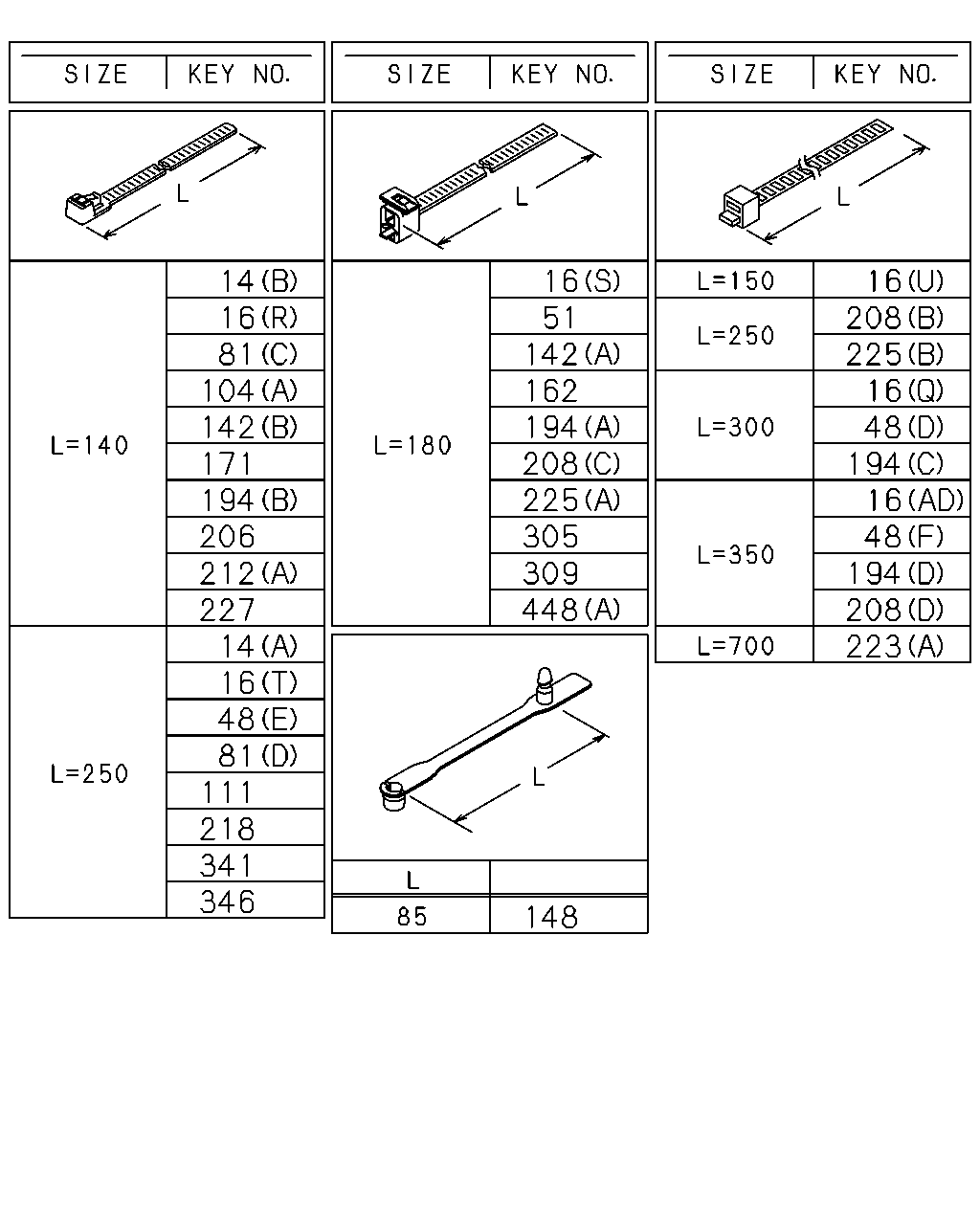

çizim 21226
14 16 81 104 142 171 194 206 212 227 14 16 48 81 111 218 341 346 148 448 309 305 225 208 194 162 142 51 16 16 208 225 16 48 194 16 48 194 208 223
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> P130 PROP SHAFT<BEE> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250 		5-09707-030-1 02 1 0105-0301
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250 		5-09707-030-1 02 1 0302-
14 CLIP; BAND,HARNESS
REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> P130 PROP SHAFT<BEE> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=140 		5-09707-031-1 01 1 0105-0301
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=140 		5-09707-031-1 01 1 0302-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AD) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(K) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(N) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AB) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(AC) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(Y) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(Y) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(Z) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (U) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 02 1 0105-0109
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0110-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 01 1 0105-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		9-09525-025-0 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 05 1 0105-0111
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 0105-0301
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 07 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-0301
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0111-0207
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0105-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-0301
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
194 CLIP; BAND
(C) L=300 		1-09707-001-1 01 1 0105-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0105-0112
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0105-0112
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0201-0301
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0201-0301
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0302-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0302-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0105-0112
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0201-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		1-09707-126-0 01 1 0105-0304
208 CLIP; HARNESS,MAG VLV
(D) L=350 		1-09707-183-0 01 1 0305-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (C) L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0111-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0208-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
225 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0105-
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 0105-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106

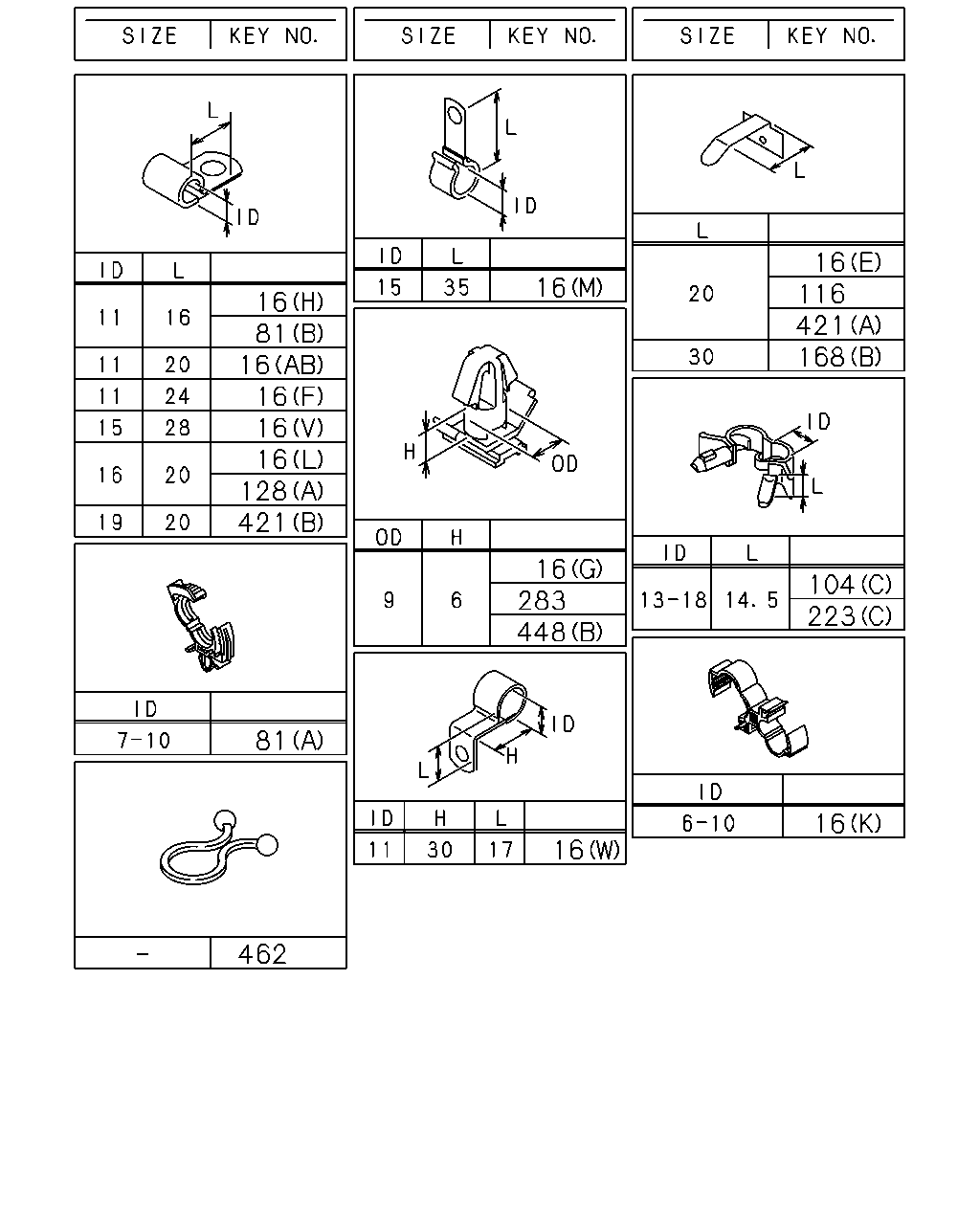

çizim 76101
16 116 421 168 16 16 81 16 16 16 16 128 421 16 283 448 104 223 81 16 16 462
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AD) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(K) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(N) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AB) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(AC) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(Y) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(Y) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(Z) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (U) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 02 1 0105-0109
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0110-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 01 1 0105-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		9-09525-025-0 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0105-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0105-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 12 1 0302-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-

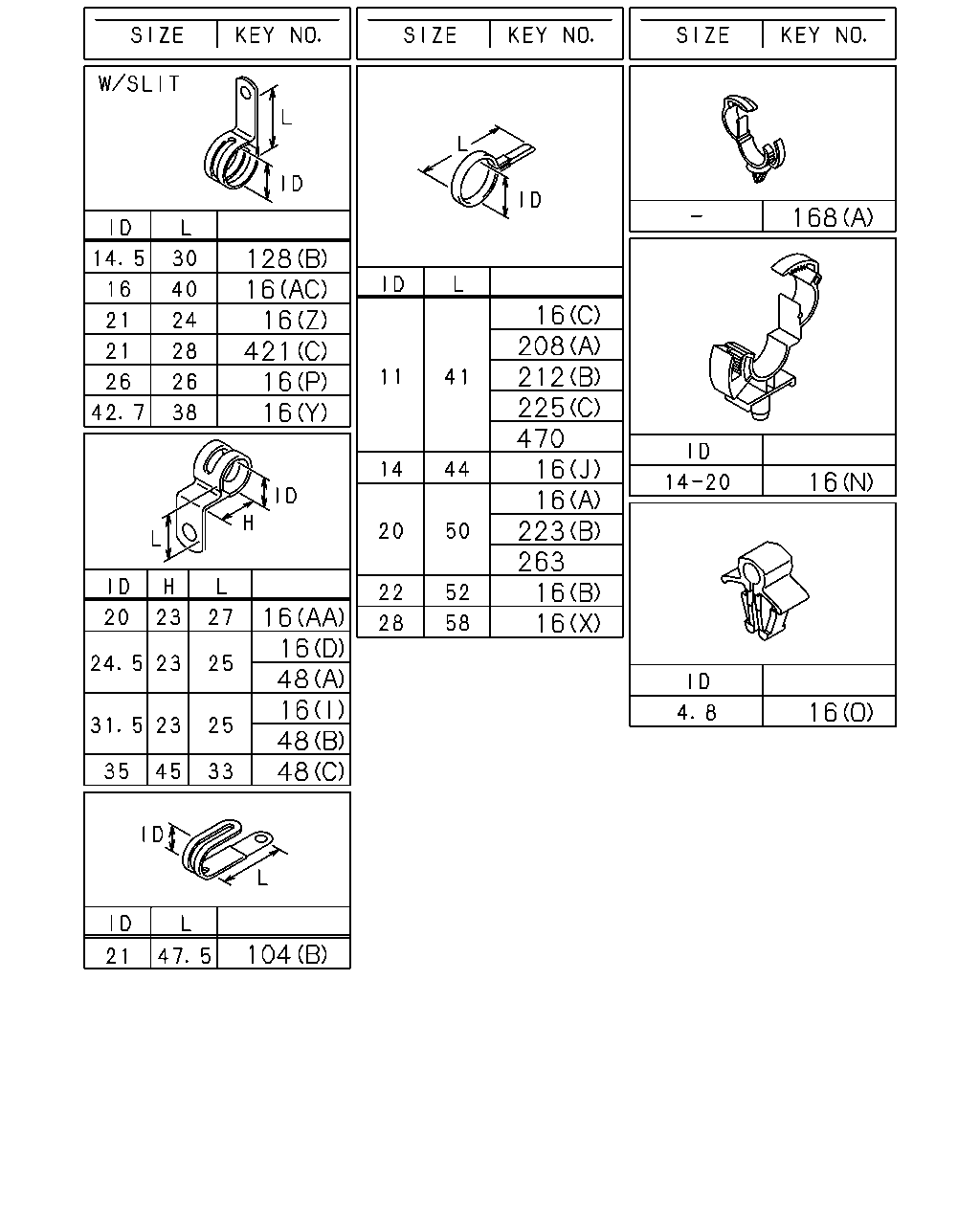

çizim 76104
128 16 16 421 16 16 16 16 48 16 48 48 104 16 208 212 225 470 16 16 223 263 16 16 16 16 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 07 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(I) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
16 CLIP; HARNESS
(O) ID=4.8 		1-09701-218-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 05 1 0107-0301
16 CLIP; HARNESS
(AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
16 CLIP; HARNESS
(Q) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(AD) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(S) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 01 1 0105-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(K) ID=6-10 & 6-10 		1-09709-192-1 01 1 0105-0106
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 02 1 0302-
16 CLIP; HARNESS
(R) L=140 		5-09707-031-1 02 1 0105-
16 CLIP; HARNESS
(N) ID=14-20 		8-97061-603-0 03 1 0105-0106
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(AB) ID=11 L=20 		9-09525-032-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 01 1 0105-0205
16 CLIP; HARNESS
(L) ID=16 L=20 		9-09525-535-0 02 1 0206-
16 CLIP; HARNESS
(AC) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0105-
16 CLIP; HARNESS
(J) ID=14 L=44 		9-09917-427-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0107-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 0105-0301
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(G) OD=9 H=6 		1-09709-178-0 04 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0105-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(P) ID=26 L=26 		1-09701-236-0 01 1 0109-
16 CLIP; HARNESS
(X) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(Y) ID=42.7 L=38 		1-09700-583-1 01 1 0302-0402
16 CLIP; HARNESS
(Y) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(T) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(Z) ID=21 L=24 		8-94176-807-1 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (U) L=150 		1-09707-145-1 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) ID=11 L=24 		9-09525-045-0 01 1 0105-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 02 1 0105-0109
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0110-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (W) ID=11 H=30 L=17 		1-09700-113-0 01 1 0302-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. BRAKE REGULATION ADR<TDU> (H) ID=11 L=16 		9-09525-025-0 01 1 0105-0301
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) ID=11 L=16 		9-09525-025-0 01 1 0302-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (J) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (E) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0105-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0105-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 05 1 0105-0111
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0112-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 01 1 0105-0301
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 07 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-0301
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 0111-0207
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0105-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		1-09707-126-0 01 1 0105-0304
208 CLIP; HARNESS,MAG VLV
(D) L=350 		1-09707-183-0 01 1 0305-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41 		1-09700-403-0 01 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> (C) L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0111-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
223 CLIP; AIR TANK HARNESS
(A) L=700 		1-09707-190-0 02 1 0105-
223 CLIP; AIR TANK HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 02 1 0105-0111
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0105-
225 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 04 1 0105-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-
çizim 77905
150 38 242 38 38 313 38 38 38 242 313 139 38 313 38 150 516 358 239 38 88 38 133 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0112
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0301
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28680-820-0 03 1 0302-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0105-0403
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 09 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 09 1 0105-0207
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0208-0301
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 09 1 0302-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 06 1 0208-0301
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28080-825-0 01 1 0302-0512
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0105-0512
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0601-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION ADR<TDU> (B) M8X12 W/LK WASHER 		0-50040-812-0 02 1 0105-0301
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X12 W/LK WASHER 		0-50040-812-0 02 1 0302-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X12 W/LK WASHER 		0-50540-812-0 02 1 0601-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. BRAKE REGULATION ADR<TDU> (B) M8X12 W/LK WASHER 		0-50040-812-0 01 1 0105-0301
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-0301
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0302-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0301
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0301
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0302-0512
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
çizim 78057
312 312 312 312 324 324 334 375 342
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-199-0 01 1 0105-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-82699-239-0 01 1 0105-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=110 		1-82699-589-0 01 1 0105-0105
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82698-258-0 01 1 0105-
334 BRACKET 1-53458-362-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
çizim 78809
5 185 1 224 1 524 219 294 340 219 530 178 178 178 178 423 119 64 178 133 510
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0201-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-0301
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0302-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0105-0207
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0105-0106
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0105-0207
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 06 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0603-
224 SLEEVE; RUBBER,HARNESS
REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> P130 PROP SHAFT<BEE> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0105-0301
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0302-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0301
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0106-0301
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0302-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 03 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0208-
530 SEAL; HARNESS
100X40 		1-72498-022-0 03 1 0206-0310
530 SEAL; HARNESS
100X40 		1-72498-022-1 02 1 0311-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
