15 |

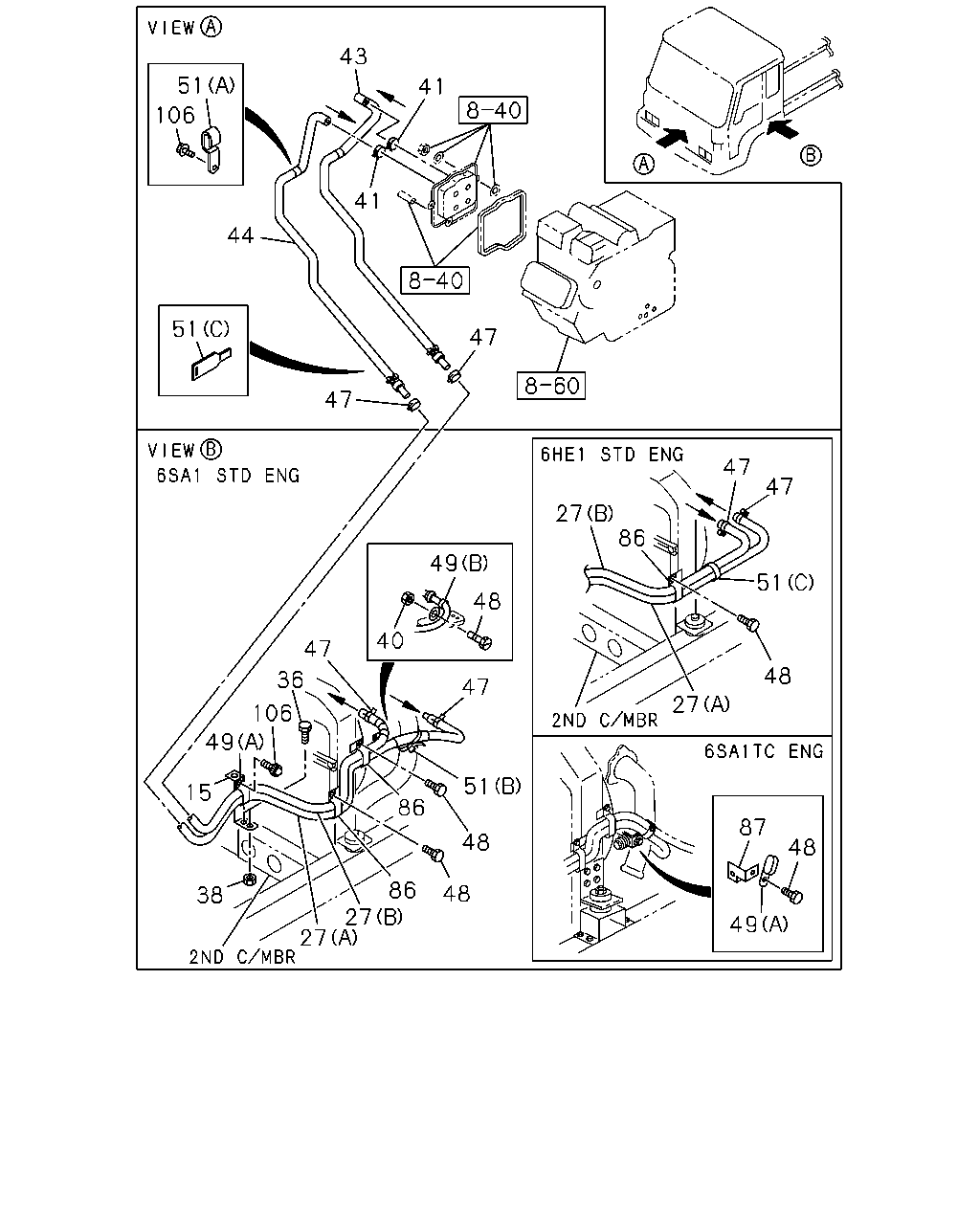

BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
1-83571-603-1 |
01 |
1 |
9202- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SA1 STD ENG(06L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
L=170+595
|
1-83565-398-2 |
01 |
1 |
9202- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SA1 STD ENG(06L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B)
L=180+525
|
1-83565-526-1 |
01 |
1 |
9202- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
L=135+460
|
1-83565-436-0 |
01 |
1 |
9202- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B)
L=160+605
|
1-83565-437-1 |
01 |
1 |
9202- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 STD ENG(46L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A) W/MARKING TAPE
|
1-83565-565-0 |
01 |
1 |
9202- |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HE1 STD ENG(46L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B) WO/MARKING TAPE
|
1-83565-566-0 |
01 |
1 |
9202- |
|
● |
| |
36 |
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18
|
0-28010-818-0 |
02 |
1 |
9202-9204 |
● |
● |
| |
36 |
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18 FLANGE
|
0-28080-818-0 |
02 |
1 |
9205-9207 |
● |
● |
| |
36 |
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9208- |
● |
● |
| |
38 |
NUT; BRKT
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
02 |
1 |
9202- |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
01 |
1 |
9202- |
● |
● |
| |
41 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
ID=26
|
1-09704-090-1 |
02 |
1 |
9202- |
● |
● |
| |
43 |
HOSE; WATER,OUTLET,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
1-83565-410-1 |
01 |
1 |
9202- |
● |
● |
| |
44 |
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
1-83565-409-1 |
01 |
1 |
9202- |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
ID=26
|
1-09704-090-1 |
04 |
1 |
9202- |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18
|
0-28010-818-0 |
01 |
1 |
9202-9204 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18 FLANGE
|
0-28080-818-0 |
01 |
1 |
9205-9207 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9208- |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SA1 STD ENG(06L),6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18
|
0-28010-818-0 |
02 |
1 |
9202-9204 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SA1 STD ENG(06L),6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X18 FLANGE
|
0-28080-818-0 |
02 |
1 |
9205-9207 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SA1 STD ENG(06L),6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9208- |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SA1 STD ENG(06L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B)
|
1-09700-846-0 |
01 |
1 |
9202- |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9202-9208 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9202-9208 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9209- |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9209- |
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(A)
|
1-09700-625-0 |
02 |
1 |
9202- |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
6SA1 STD ENG(06L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(B)
L=300
|
1-09707-001-0 |
01 |
1 |
9202- |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
6SA1 STD ENG(06L),6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(C)
L=170
|
1-83574-139-0 |
01 |
1 |
9202- |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
6HE1 STD ENG(46L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
(C)
L=170
|
1-83574-139-0 |
02 |
1 |
9202- |
|
● |
| |
86 |
CLIP; HTR HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
9-09917-380-0 |
02 |
1 |
9202- |
● |
● |
| |
86 |
CLIP; HTR HOSE
6HE1 STD ENG(46L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
9-09917-380-0 |
01 |
1 |
9202- |
|
● |
| |
87 |
BRACKET; HTR HOSE CLIP
6SA1TC ENG(28L)
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
|
1-83571-490-0 |
01 |
1 |
9202- |
● |
● |
| |
106 |
BOLT; CLIP,WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL
CONTROL(C60)
M6X20 W/LK&PL WASHER
|
1-09980-493-0 |
02 |
1 |
9202- |
● |
● |
