8-05 — INTERIOR LAMP (#11639) — 38 parça

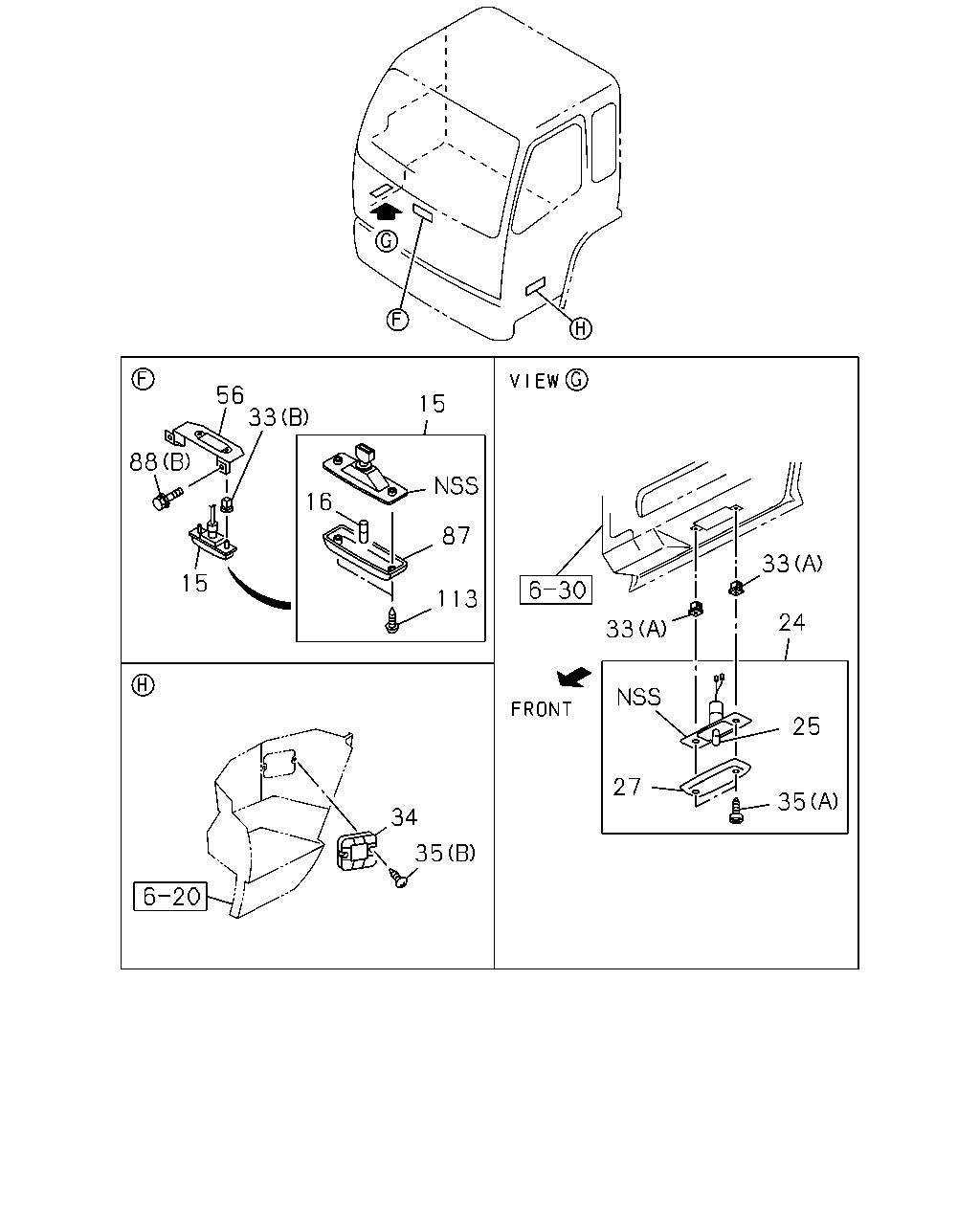

88 56 33 16 15 87 113 15 34 35 27 35 25 24 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LAMP; INSPECTION	1-82140-052-1	01	1	0105-
16	BULB; INSPECTION LAMP 24V 5W	1-82194-042-0	01	1	0302-
24	LAMP; STEP	1-82140-052-1	01	1	0105-
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	0105-
27	LENS; STEP LAMP	1-82145-019-0	01	1	0105-
33	GROMMET; SCREW,LAMP (B)	1-09983-182-0	02	1	0105-
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	0105-
34	COVER; STEP LAMP	1-71907-444-0	02	1	0105-
35	SCREW; STEP LAMP (B) M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0105-
35	SCREW; STEP LAMP (A) M4X20	1-82149-006-0	02	1	0105-
56	BRACKET; LAMP	1-86830-302-1	01	1	0105-
87	LENS; INSPECTION LAMP	1-82145-019-0	01	1	0302-
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0105-
113	SCREW; LAMP M4X20	1-82149-006-0	02	1	0302-

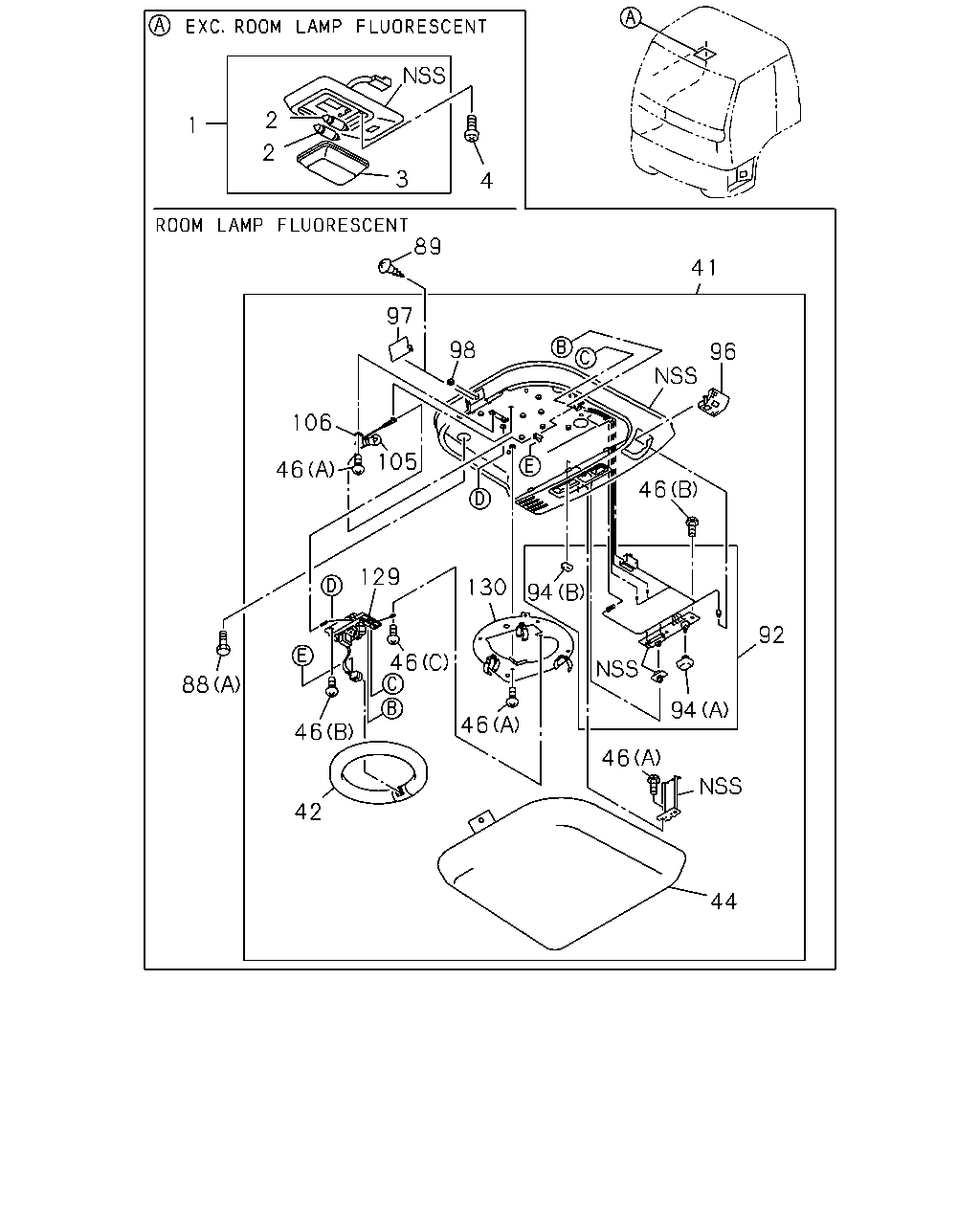

1 2 2 3 4 89 97 98 106 46 105 129 130 46 88 46 42 46 94 46 44 94 92 46 96 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	0105-
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	0105-
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	0105-
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	0105-
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-315-2	01	1	0105-
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	0105-
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	0105-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	0105-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	0105-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	0105-
88	BOLT; LAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0105-
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	0105-
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-341-0	01	1	0105-
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-312-0	01	1	0105-
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-313-0	01	1	0105-
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-337-0	01	1	0105-
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-311-0	01	1	0105-
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	0105-
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	0105-
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	0105-
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	0105-
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	0105-
