7-70 — SEPARATER AND BED (#11636) — 142 parça

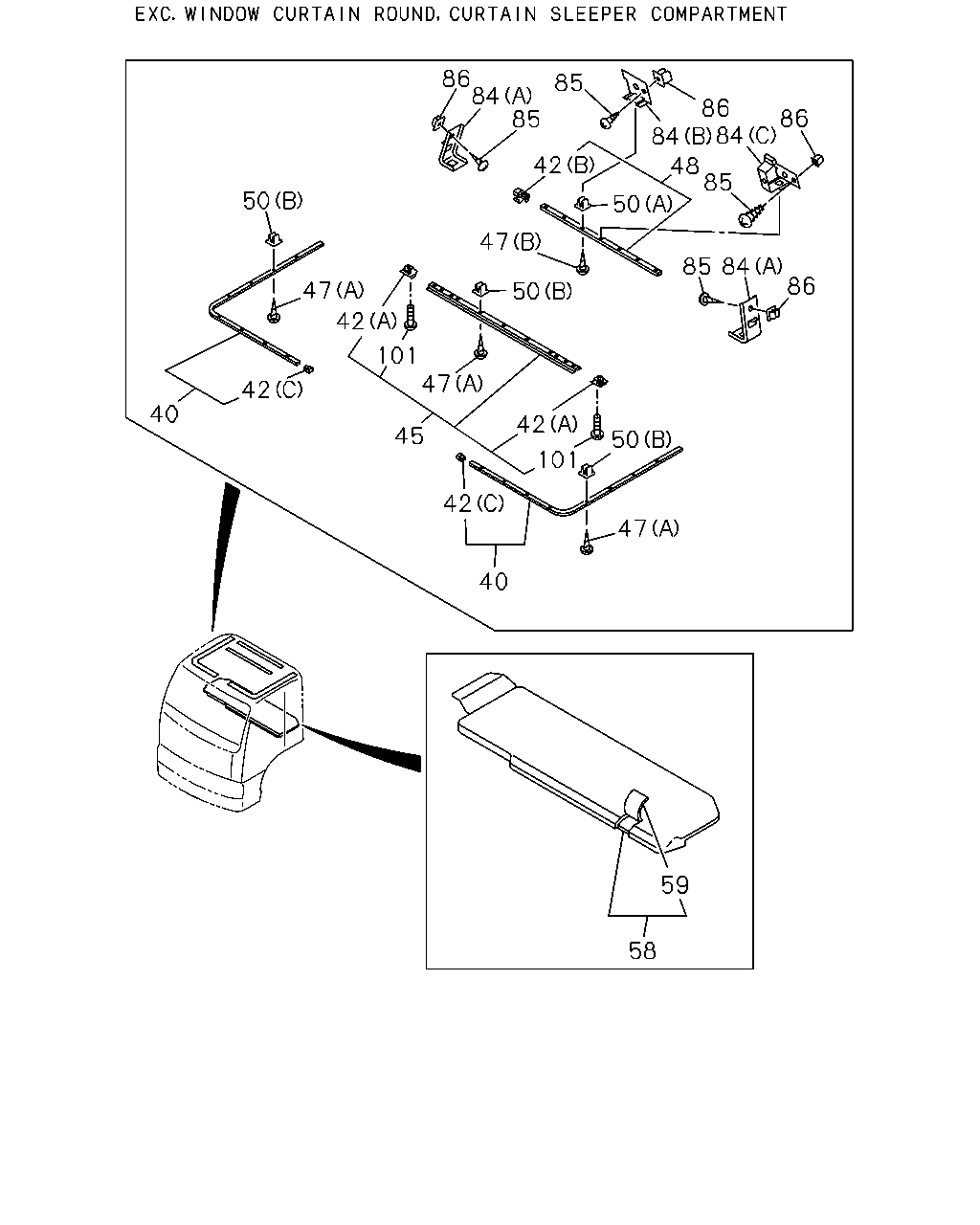

86 84 85 85 86 84 86 85 84 48 50 42 47 42 41 40 50 42 47 42 101 50 41 42 85 84 86 42 41 50 41 47 45 42 101 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	35	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0105-0301
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0105-

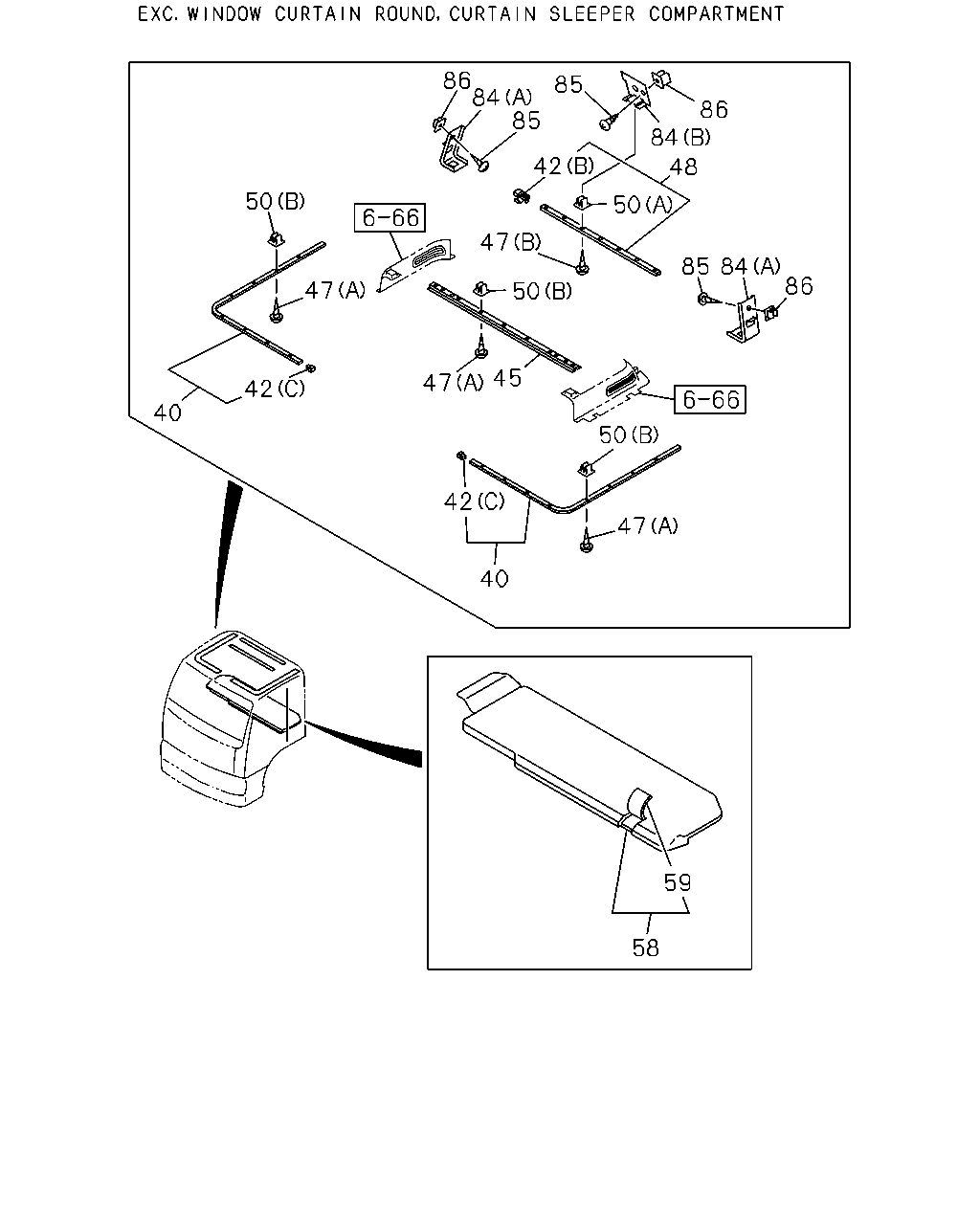

86 84 85 85 86 84 48 50 42 47 47 50 40 42 47 45 50 85 84 86 50 47 42 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-

64 51 51 92 46 92 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-505-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-504-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A)	1-73907-481-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B)	1-73907-480-1	01	1	0105-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	0105-0301
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-494-0	01	1	0302-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-483-1	01	1	0105-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-482-1	01	1	0105-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	0105-0301
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-502-1	01	1	0302-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	0105-0301
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-492-1	01	1	0302-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-485-1	01	1	0105-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-484-1	01	1	0105-

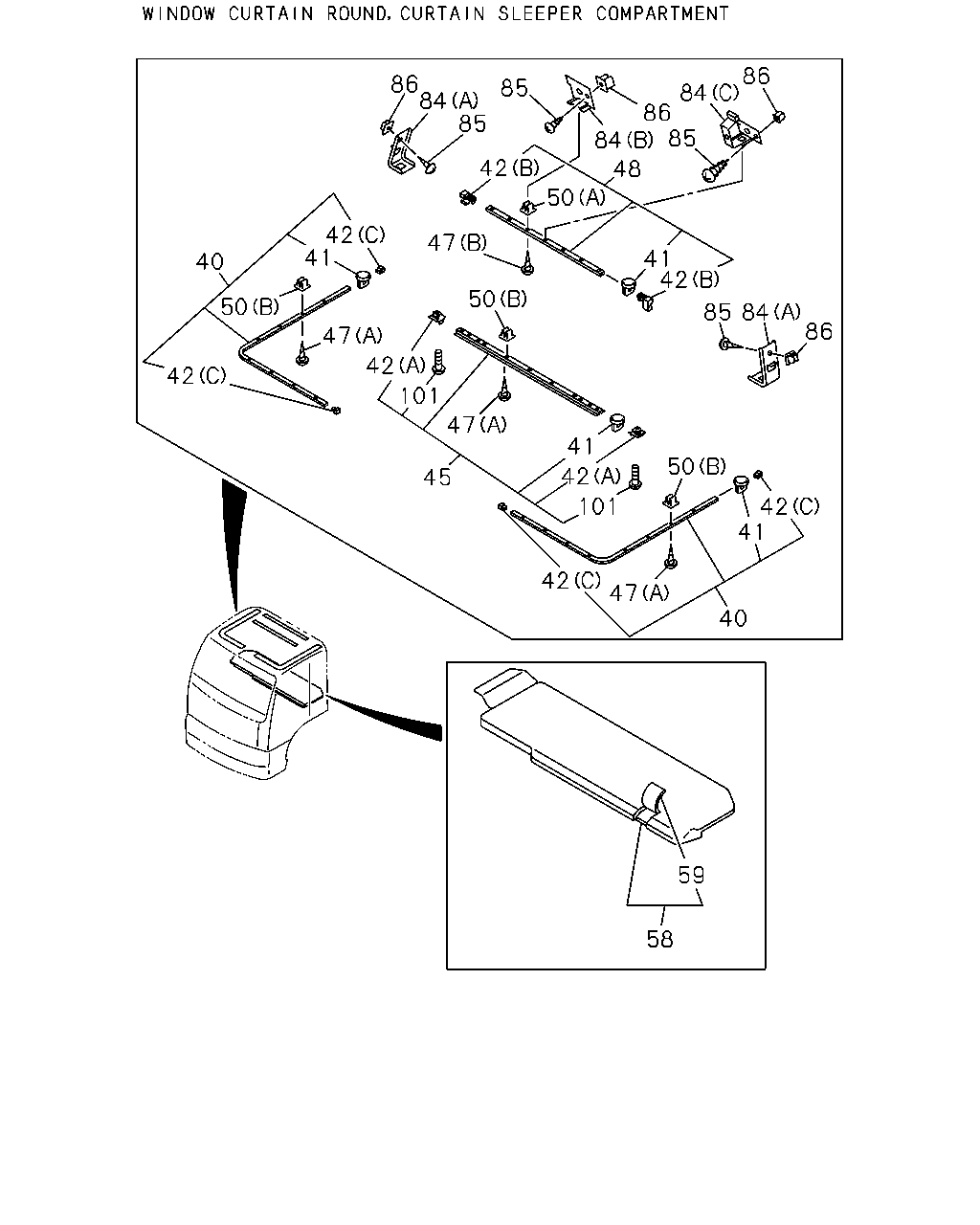

86 84 85 85 86 84 48 50 42 47 42 41 40 50 42 47 50 41 42 85 84 86 47 45 41 50 42 41 40 47 42 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	35	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0105-0301
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-

86 84 85 85 42 84 86 84 86 48 85 86 84 85 50 47 50 50 47 42 101 42 40 47 45 42 42 101 50 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0105-
