◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#11634) — 123 parça

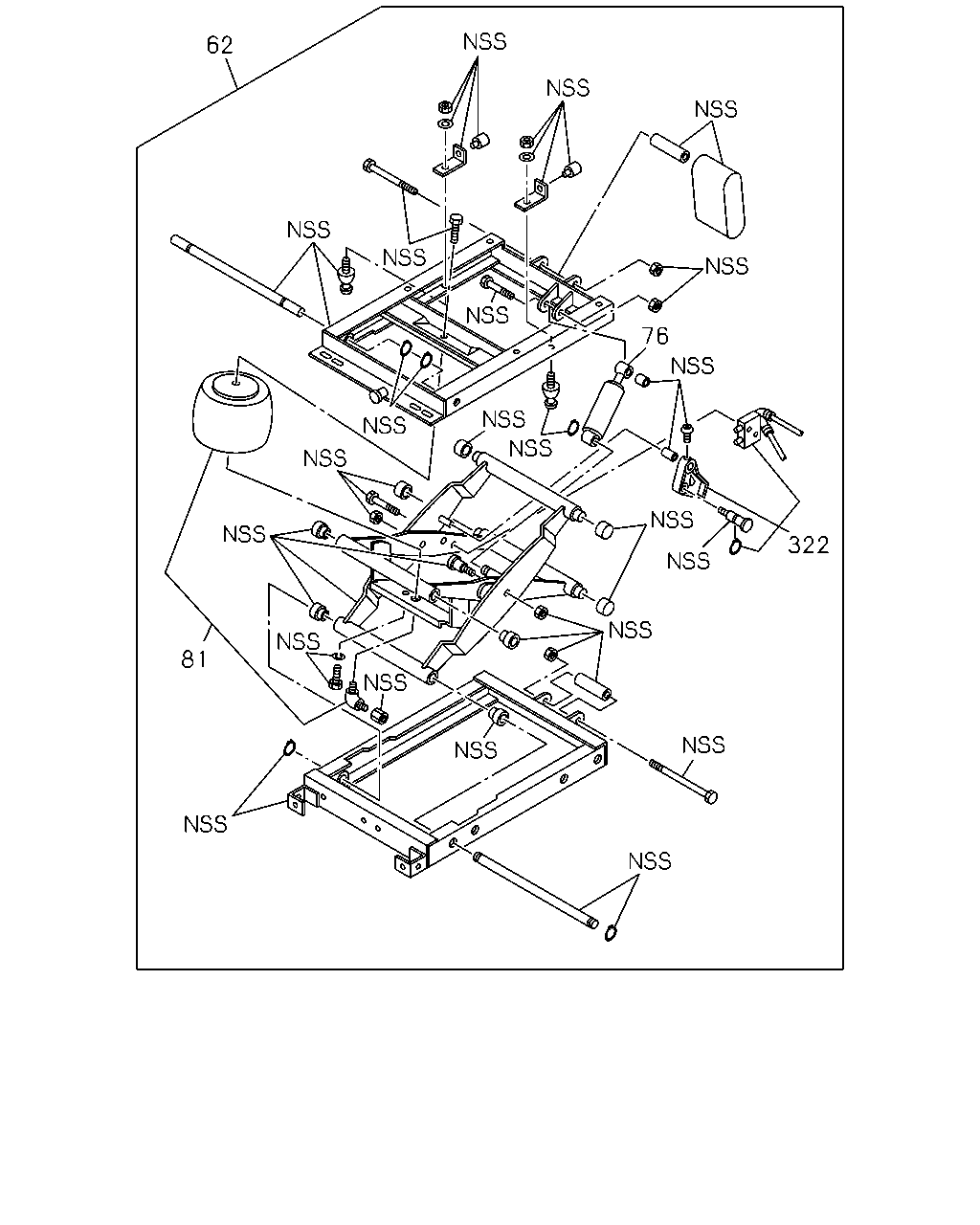

çizim 20386
62 81 322 76
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP 1-75538-198-0 01 1 0105-
76 DAMPER; AIR SUSP 1-75538-201-0 01 1 0105-
81 SPRING; AIR 1-75538-199-0 01 1 0105-
322 VALVE; AIR SPRING 1-75538-200-0 01 1 0105-

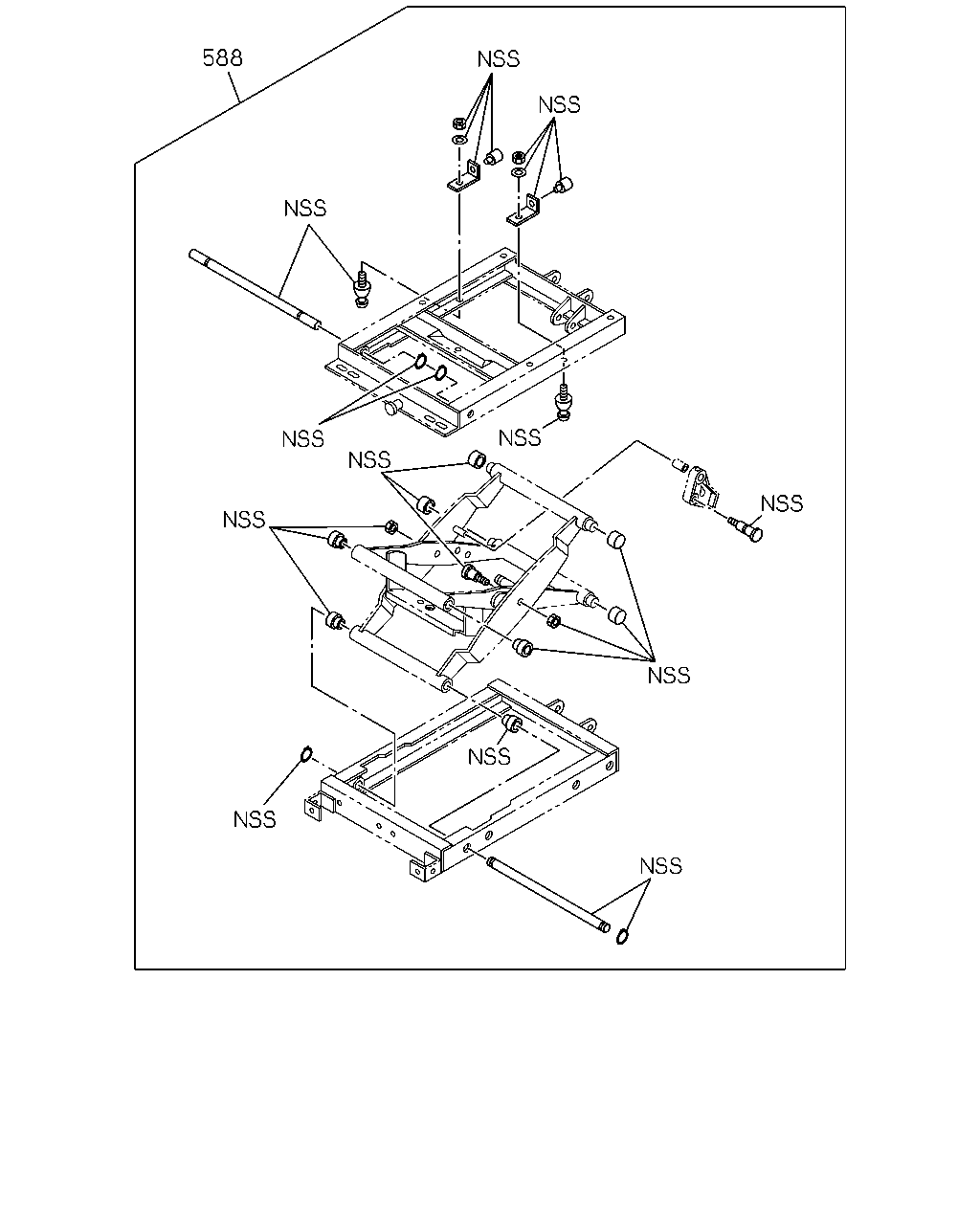

çizim 20592
588
BalonParca AdiParca NoAdetTipApplied Date
588 REPAIR KIT; SUSPENSION 1-75538-202-0 01 1 0105-
çizim 75826
506 360 175 176 188 16 188 403 182 179 403 359 189
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
(B) 		1-75418-064-0 01 1 0105-
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (A) 		1-75418-062-1 01 1 0105-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75026-857-3 01 1 0105-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		1-75116-711-2 01 1 0105-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		1-75116-694-2 01 1 0105-
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75026-843-3 01 1 0105-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0105-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0105-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) 		1-09983-165-0 02 1 0105-0310
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		8-94279-504-1 04 1 0105-0206
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		8-94279-518-0 04 1 0207-0312
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0401-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0105-

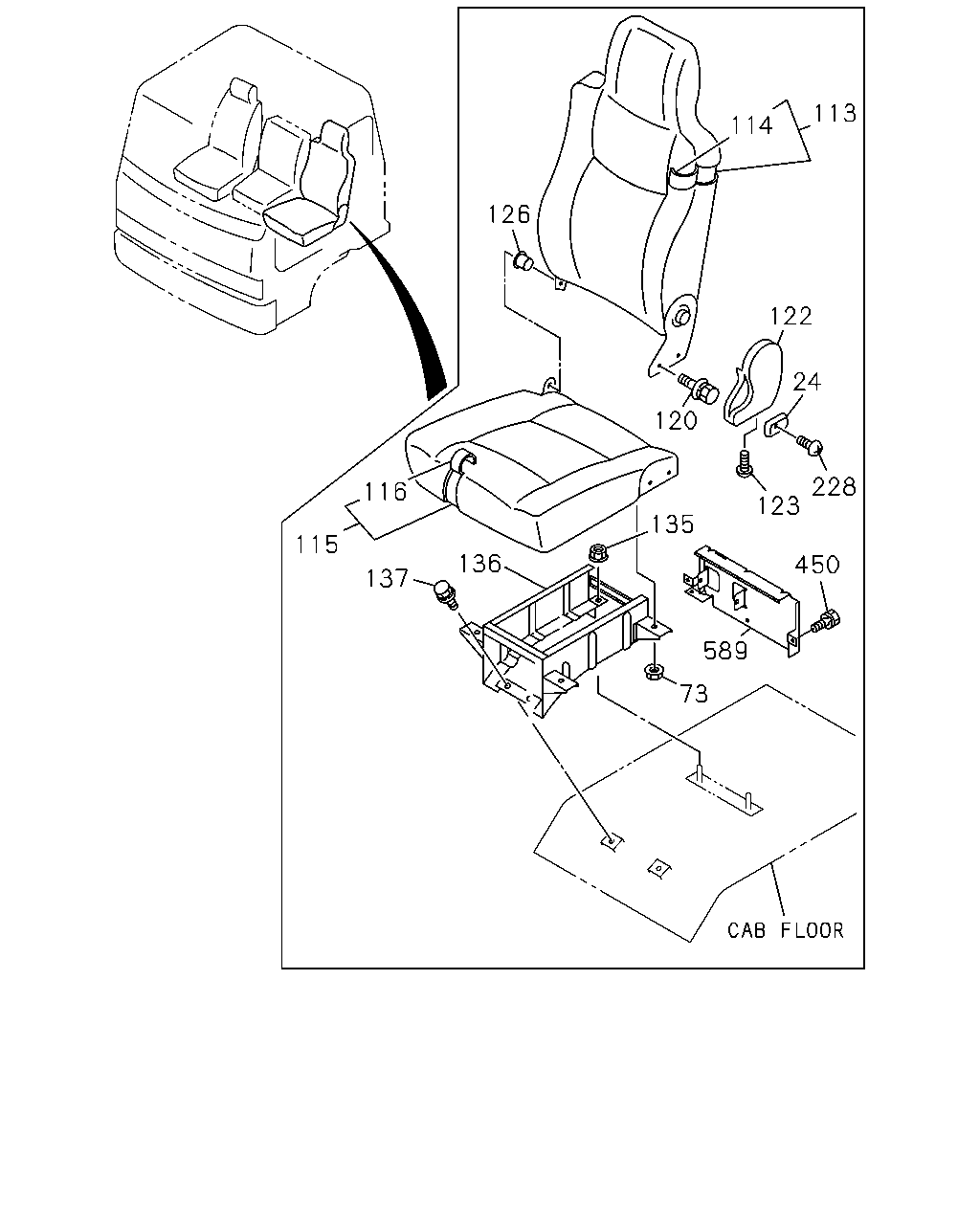

çizim 78857
126 114 113 122 24 228 123 120 135 450 589 73 136 137 115 116
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 0105-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0105-
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75207-228-0 01 1 0105-0105
113 BACK ASM; SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75026-796-0 01 1 0105-0105
113 BACK ASM; SEAT 1-75208-191-4 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) 		1-75127-059-0 01 1 0105-0105
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75116-709-0 01 1 0105-0105
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-709-2 01 1 0106-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75207-215-1 01 1 0105-0105
115 CUSHION ASM; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75026-782-0 01 1 0105-0105
115 CUSHION ASM; PASSENGER SEAT 1-75026-782-2 01 1 0106-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) 		1-75127-093-0 01 1 0105-0105
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75116-589-0 01 1 0105-0105
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-589-2 01 1 0106-
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 04 1 0105-0105
120 BOLT; RECLINING ADJ
EXC. PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0105-0105
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0106-
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-598-0 01 1 0105-0105
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		8-97859-018-0 01 1 0105-0105
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0106-
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) M6X12 		9-03490-612-0 01 1 0105-0105
123 SCREW; COVER,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0105-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0105-
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-602-0 01 1 0105-0105
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-585-0 01 1 0105-0105
136 STAND; PASSENGER SEAT 1-75558-601-1 01 1 0106-0301
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0105-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0105-
450 BOLT; BRKT
EXC. PASSENGER SEAT MULTI USED(WX9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0105
450 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0106-
589 BRACKET; SEAT STAND
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75557-469-3 01 1 0105-0105
589 BRACKET; SEAT STAND 1-75557-469-3 01 1 0106-

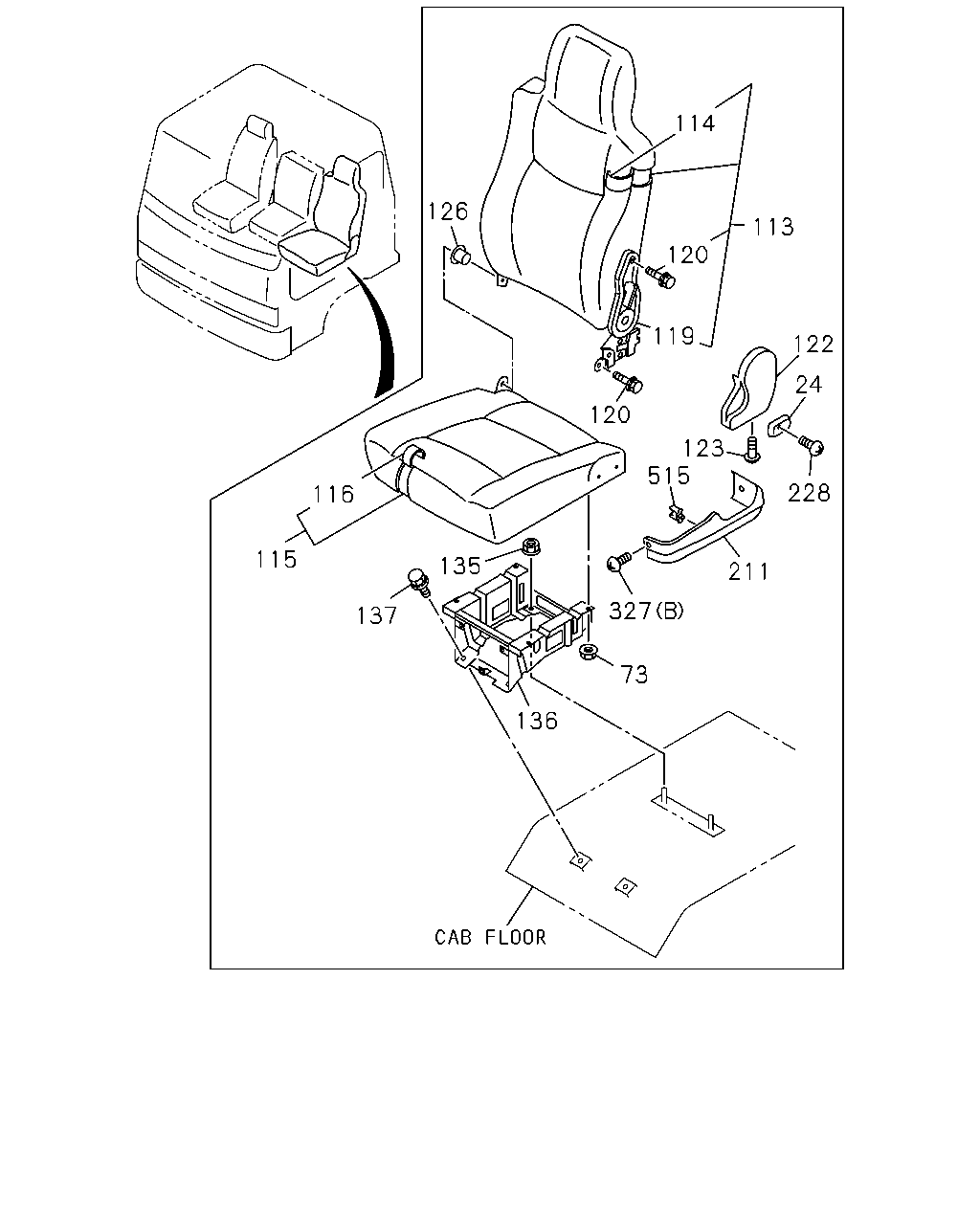

çizim 78890
126 114 113 120 119 120 116 115 137 135 136 73 327 211 228 24 122 123 515
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 0105-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0105-
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75207-228-0 01 1 0105-0105
113 BACK ASM; SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75026-796-0 01 1 0105-0105
113 BACK ASM; SEAT 1-75208-191-4 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) 		1-75127-059-0 01 1 0105-0105
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75116-709-0 01 1 0105-0105
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-709-2 01 1 0106-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75207-215-1 01 1 0105-0105
115 CUSHION ASM; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75026-782-0 01 1 0105-0105
115 CUSHION ASM; PASSENGER SEAT 1-75026-782-2 01 1 0106-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) 		1-75127-093-0 01 1 0105-0105
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75116-589-0 01 1 0105-0105
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-589-2 01 1 0106-
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) 		1-75417-597-0 01 1 0105-0105
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 04 1 0105-0105
120 BOLT; RECLINING ADJ
EXC. PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0105-0105
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0106-
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-598-0 01 1 0105-0105
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		8-97859-018-0 01 1 0105-0105
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0106-
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) M6X12 		9-03490-612-0 01 1 0105-0105
123 SCREW; COVER,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0105-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0105-
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-602-0 01 1 0105-0105
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-585-0 01 1 0105-0105
136 STAND; PASSENGER SEAT 1-75558-601-1 01 1 0106-0301
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0105-
211 COVER; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-72538-274-0 01 1 0105-0105
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0105-
327 CLIP; COVER
(A) DRIVER SEAT 		1-75538-197-0 01 1 0105-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER SEAT 		1-09987-273-0 02 1 0105-0105
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) BLACK 		8-94227-248-1 01 1 0105-0105

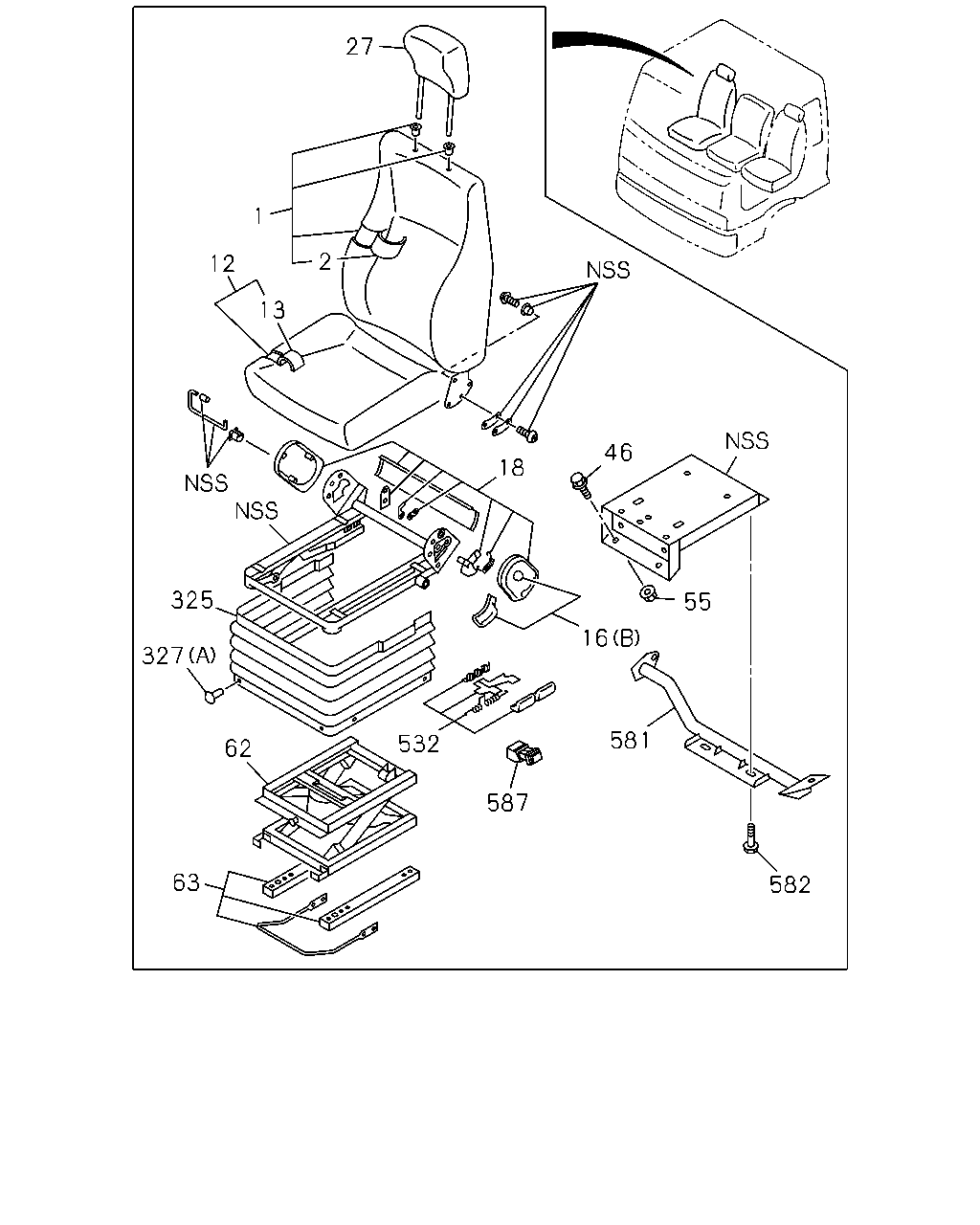

çizim 80680
27 1 2 12 13 18 46 55 16 581 582 587 532 63 62 327 325
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75026-267-0 01 1 0105-
2 COVER; TRIM,FRT SEAT,BACK 1-75116-464-0 01 1 0105-
12 CUSHION; SEAT,FRT 1-75026-268-0 01 1 0105-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-465-0 01 1 0105-
16 ADJUSTER ASM; RECLINING
(B) 		1-75418-064-0 01 1 0105-
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (A) 		1-75418-062-1 01 1 0105-
18 COVER; RECLINING 1-75418-063-0 01 1 0105-
27 REST; HD,FRT SEAT 1-75658-052-0 01 1 0105-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0105-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0105-
62 DAMPER ASM; SEAT SUSP 1-75538-198-0 01 1 0105-
63 ADJUSTER; SEAT SLIDE 1-75518-315-0 01 1 0105-
325 COVER; SUSPENSION DEVICE 1-75538-196-0 01 1 0105-
327 CLIP; COVER
(A) DRIVER SEAT 		1-75538-197-0 01 1 0105-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) (B) PASSENGER SEAT 		1-09987-273-0 02 1 0105-0105
532 LEVER ASM; TILT 1-75518-314-0 01 1 0105-
581 PIPE; SEAT 1-73907-573-3 01 1 0105-
582 BOLT; PIPE,SEAT 1-09980-619-1 02 1 0105-
587 VALVE; LUMBAR SUPPORT 1-75418-065-0 01 1 0105-

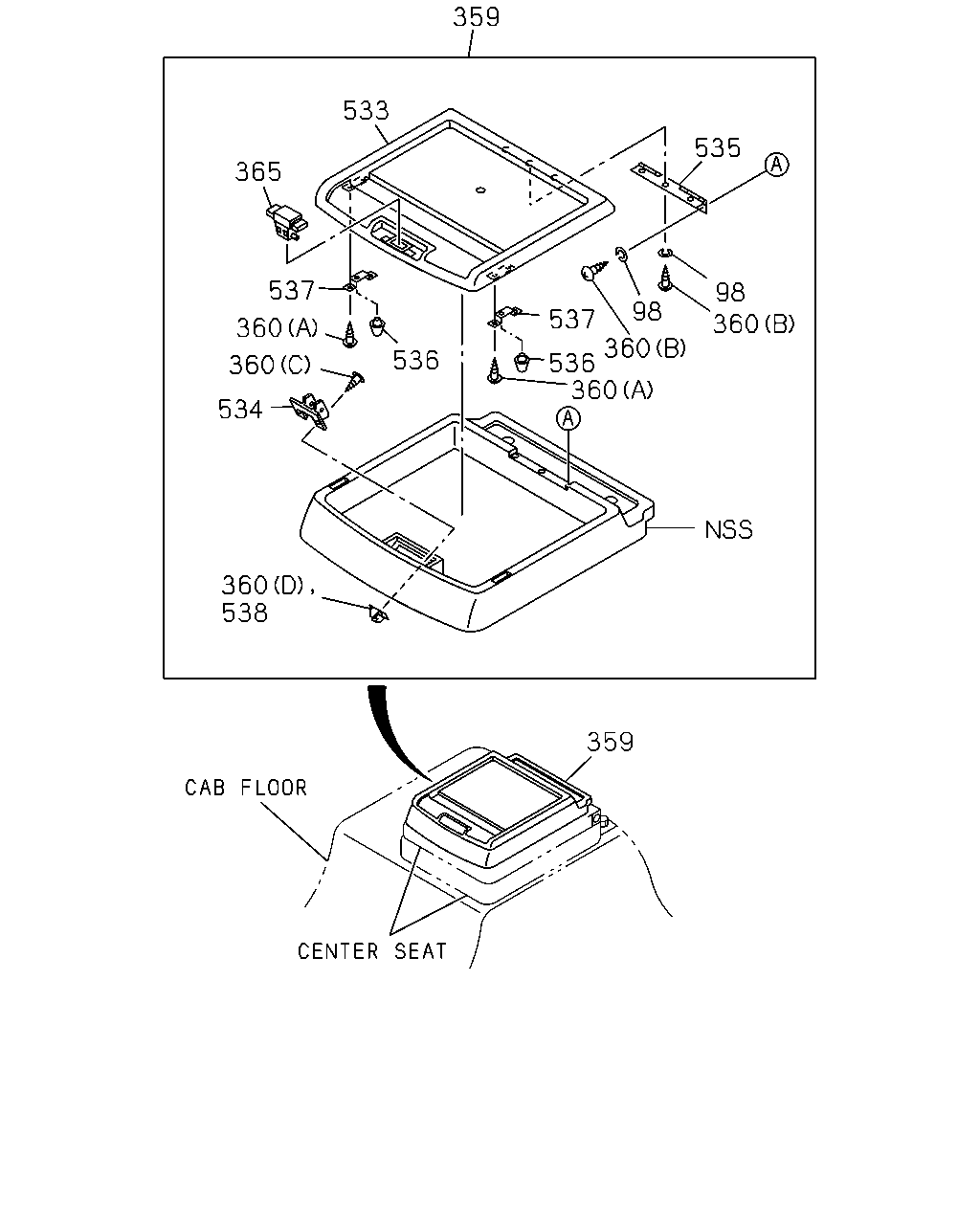

çizim 80770
359 533 365 537 360 360 534 360 538 359 536 360 536 537 98 360 360 98 535
BalonParca AdiParca NoAdetTipApplied Date
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0105-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) 		1-09983-165-0 02 1 0105-0310
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0105-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0105-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-181-0 01 1 0105-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0105-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0105-
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0105-
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0311-
