7-43 — SUN VISOR AND ASSIST GRIP (#11632) — 126 parça

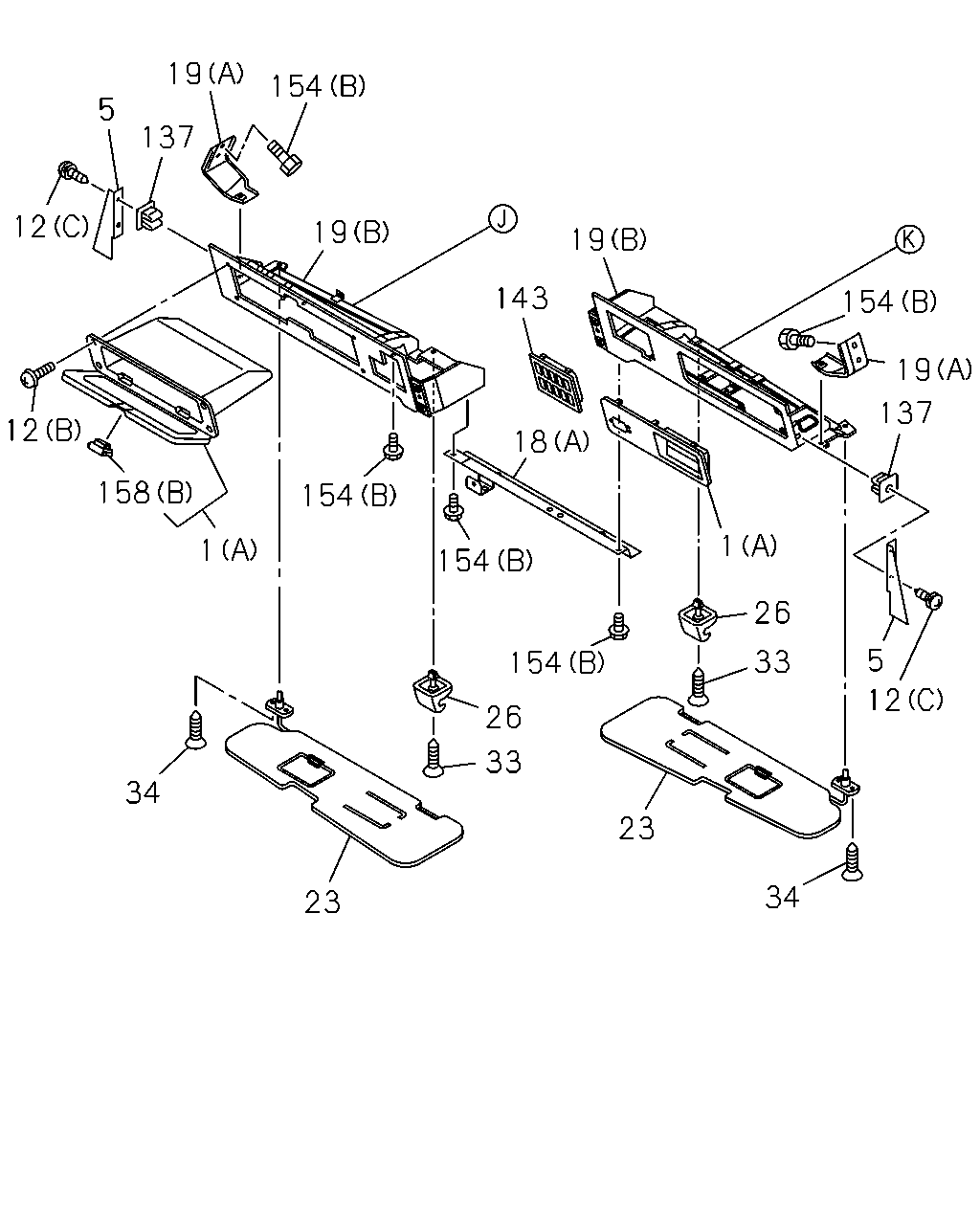

5 19 154 137 12 19 143 19 154 19 137 1 26 33 5 12 34 23 33 26 154 154 18 154 12 158 1 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-
143	BEZEL	1-72447-768-2	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

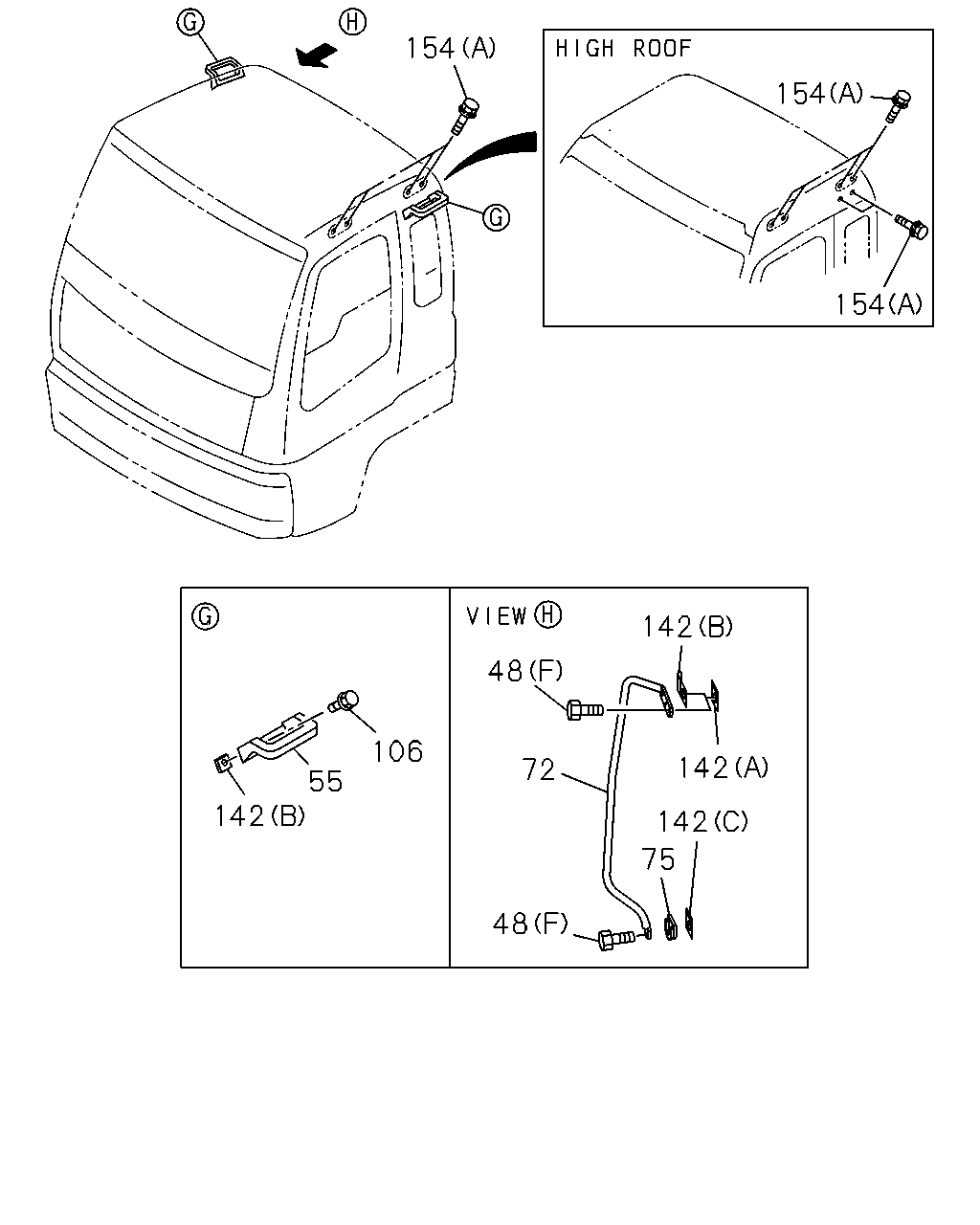

154 154 154 142 142 142 75 48 72 48 106 55 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-608-1	01	1	0105-0110
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0105-0110
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-0110
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	02	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0105-0110
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-

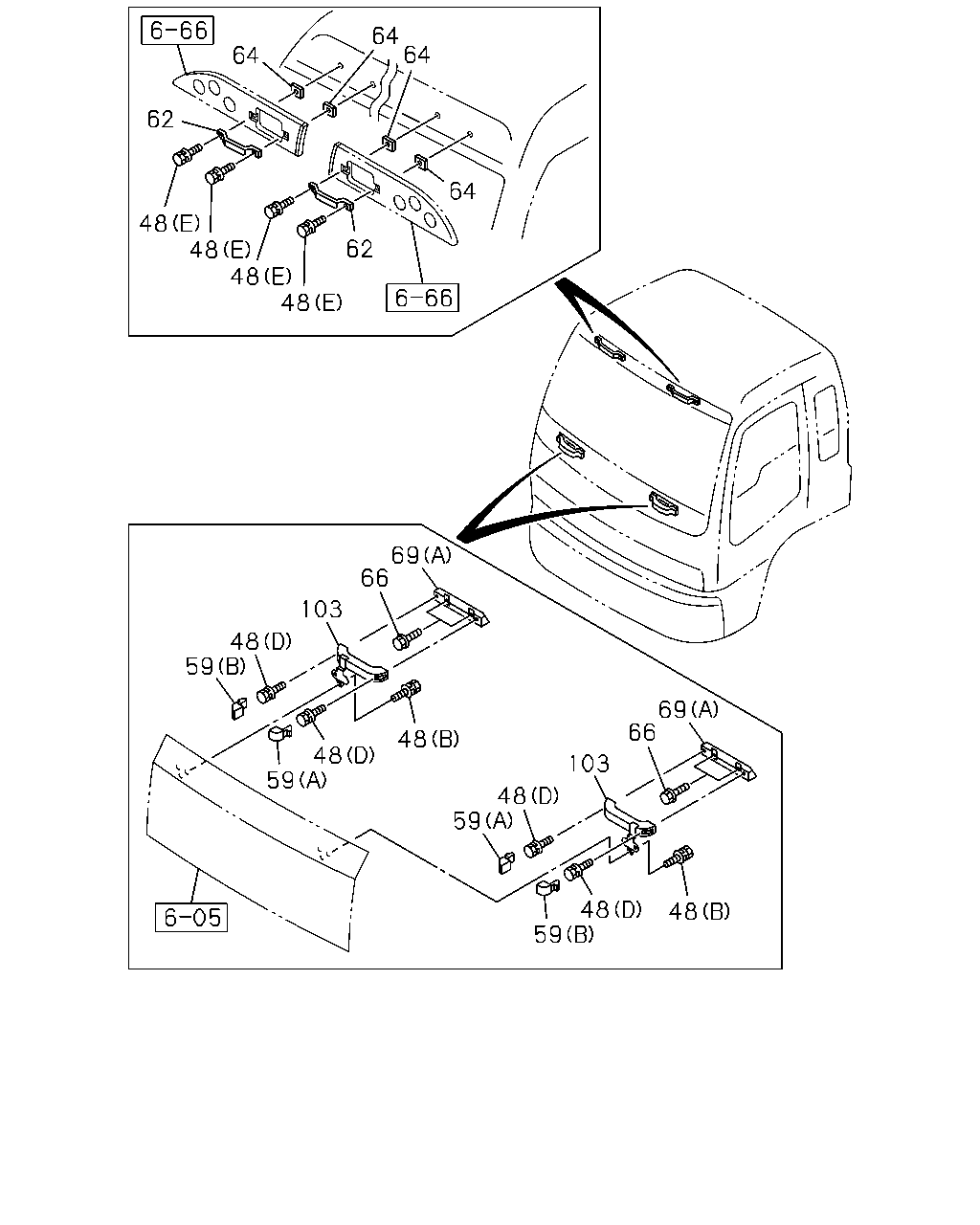

64 64 64 62 48 48 48 48 62 64 69 66 103 48 59 59 48 48 69 66 103 48 59 59 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0105-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-

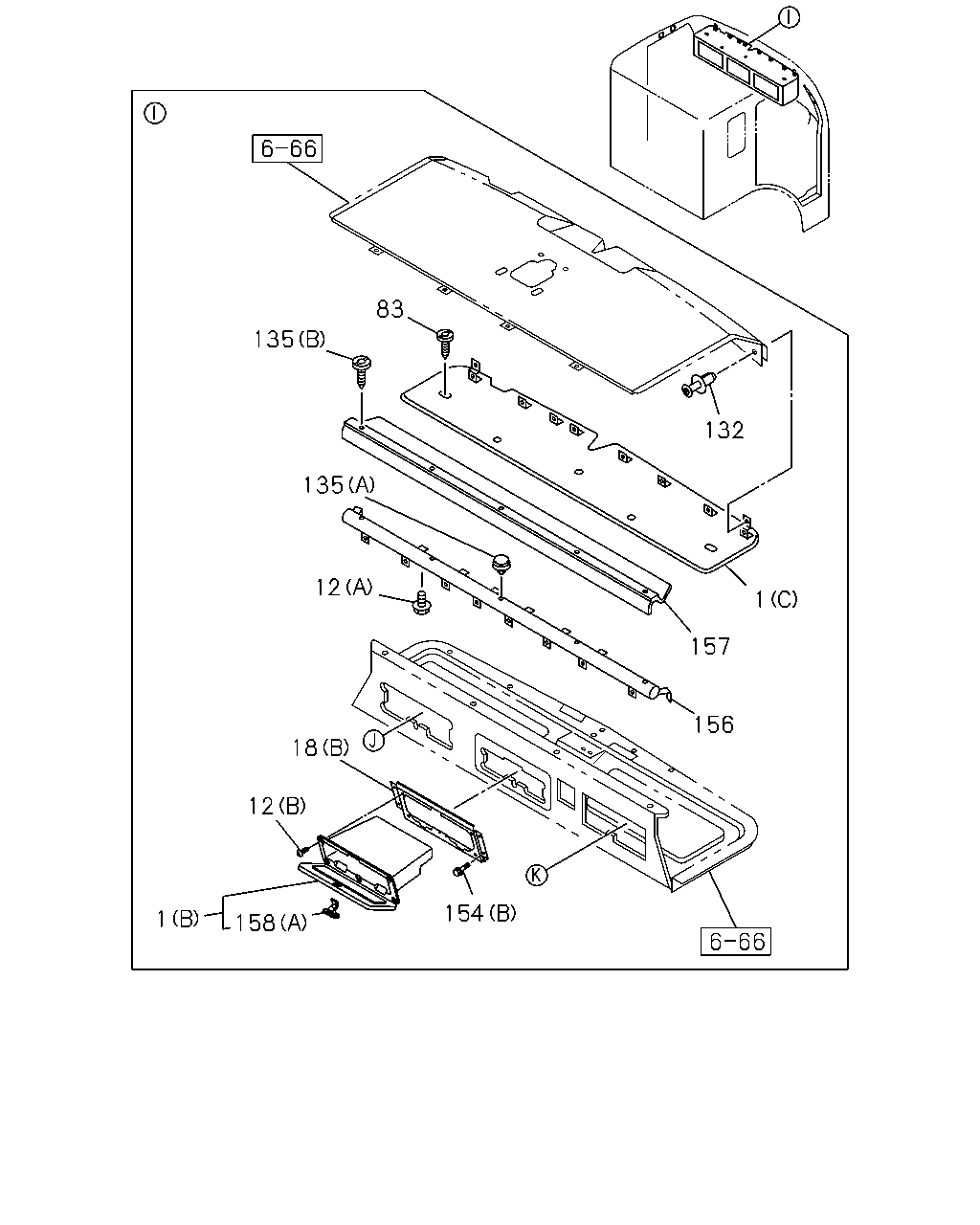

132 1 157 156 154 158 1 12 18 12 135 83 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-4	01	1	0105-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

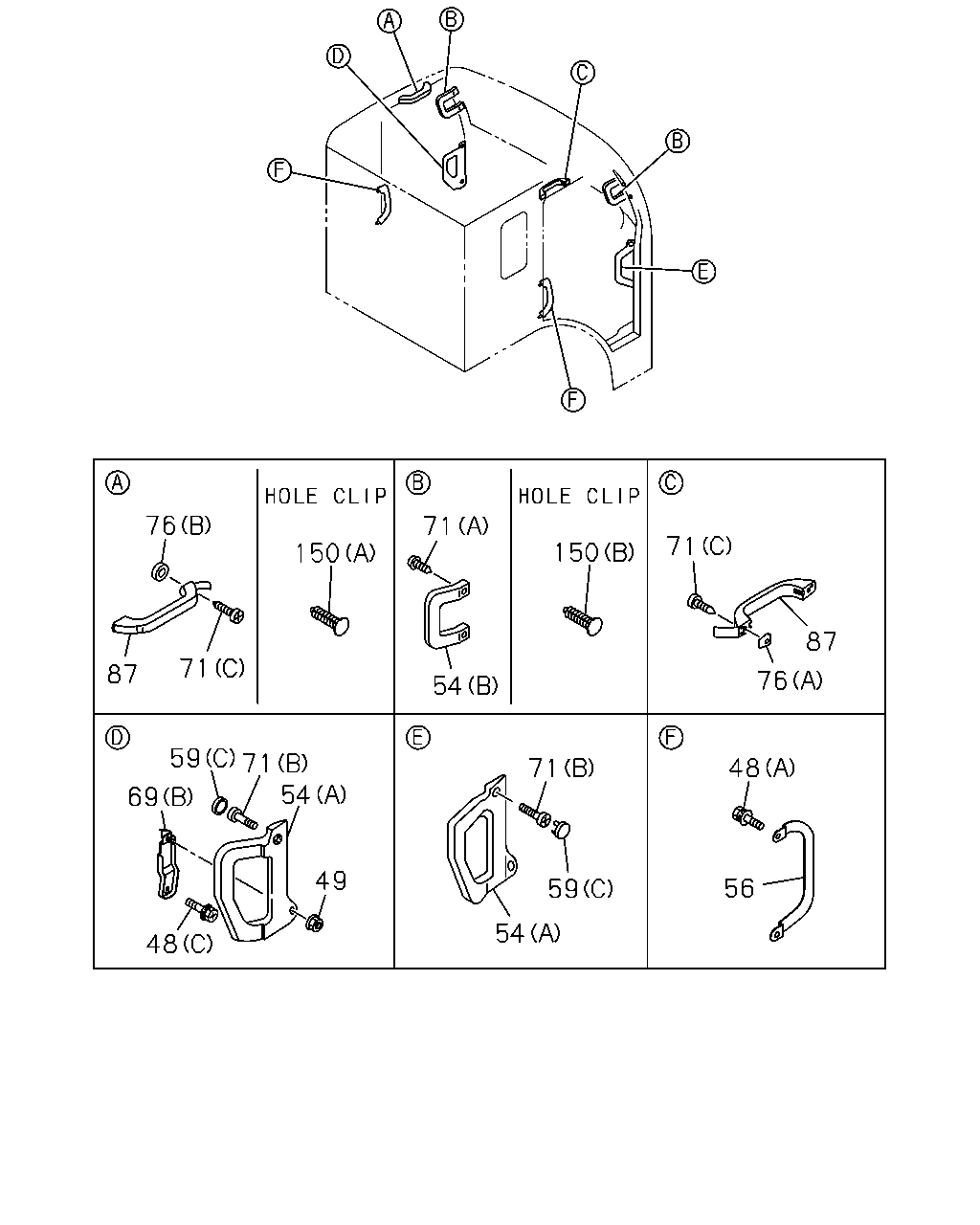

76 87 71 150 71 54 150 71 87 76 48 56 71 59 54 49 48 69 59 71 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0105-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0105-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0105-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0105-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0105-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0105-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-
