◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#11627) — 62 parça
çizim 21560
58 60
BalonParca AdiParca NoAdetTipApplied Date
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> 		1-85887-537-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> 		1-85887-536-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> 		1-85887-535-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> 		1-85878-007-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85887-457-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85887-457-0 01 1 0201-0301
58 PLATE; CAUTION,ENG START 1-85887-457-0 01 1 0302-
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> 		9-83999-419-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0201-0301
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0302-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0105-0301
çizim 21766
181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER 1-85886-884-0 01 1 0302-
çizim 21883
6 228 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 1-85875-174-0 01 1 0302-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0201-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-004-0 01 1 0302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> 		1-85877-998-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> 		1-85887-935-0 01 1 0201-0301
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0302-

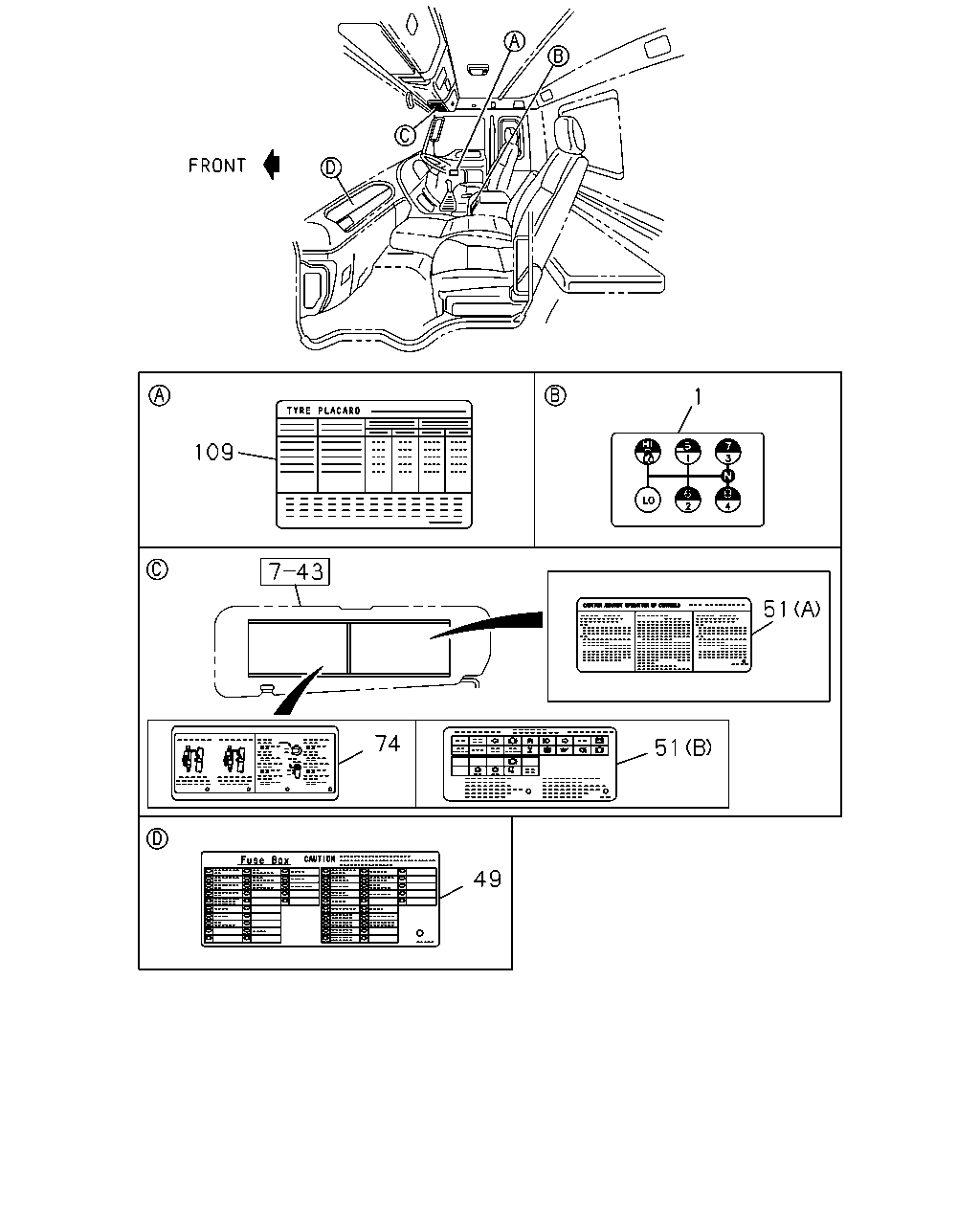

çizim 75616
1 51 51 49 74 109
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0105-0301
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-329-0 01 1 0105-0105
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0106-0301
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0105-0301
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0201-0301
49 PLATE; CAUTION,FUSE BOX 1-85878-393-0 01 1 0302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-335-1 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-334-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85878-334-1 01 1 0201-0301
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-336-1 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-333-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (B) 		1-85878-333-1 01 1 0201-0301
51 PLATE; CAUTION,WARNING
(B) 		1-85878-333-1 01 1 0302-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (A) 		1-85880-725-0 01 1 0201-0301
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0302-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-845-0 01 1 0105-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-845-0 01 1 0302-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-85881-846-0 01 1 0105-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-85881-846-0 01 1 0302-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-799-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
