8-28 — CHASSIS ELECTRICAL (#1162) — 69 parça

34 49 46 34 36 34 46 49 38 33 39 45 35 44 41 37 36 34 38 34 33 37 34 39 88 35 292 41 88 41 33 79 39 34 273 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

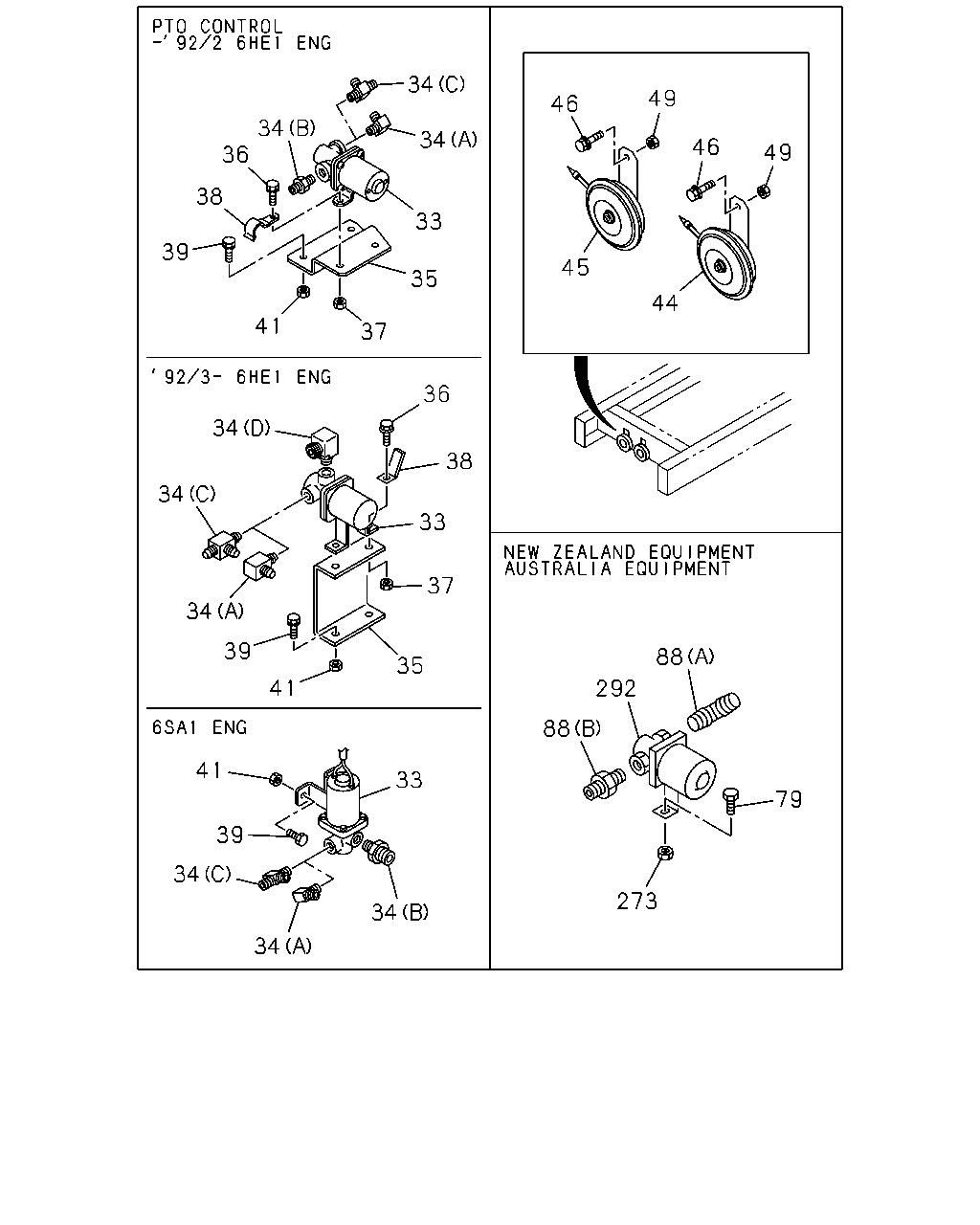

33	VALVE; MAG,PTO CONT 6SA1 STD ENG(06L),6SA1TC ENG(28L) PTO CONTROL<SV6> EXHAUST BRAKE<NF8>	1-82563-068-0	01	1	9202-	●	●
33	VALVE; MAG,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82563-196-0	01	1	9202-9202		●
33	VALVE; MAG,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82563-154-0	01	1	9203-		●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L),6SA1TC ENG(28L) PTO CONTROL<SV6> EXHAUST BRAKE<NF8> EXC. ASSISTER SHIFT CONTROL<WX8> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8> (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L),6SA1TC ENG(28L) PTO CONTROL<SV6> EXHAUST BRAKE<NF8> ASSISTER SHIFT CONTROL<WX8> (C)	1-09660-552-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (C)	1-09660-552-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SA1 STD ENG(06L),6SA1TC ENG(28L) PTO CONTROL<SV6> EXHAUST BRAKE<NF8> (B) M20 & PT1/4	9-09902-386-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (B) PT1/4 & M12 ELBOW	1-09650-117-0	01	1	9202-9202		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9203-9302		●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 STD ENG(46L) PTO CONTROL<SV6> (D) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82569-104-0	01	1	9202-9202		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6>	1-82569-110-3	01	1	9203-		●
36	BOLT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8X18	0-28010-818-0	02	1	9202-9202		●
36	BOLT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9203-		●
37	NUT; MAG VLV,PTO CONT 6HE1 STD ENG(46L) PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-		●
38	CLIP; MAG VLV HARNESS 6HE1 STD ENG(46L) PTO CONTROL<SV6>	8-94332-786-0	01	1	9202-9202		●
38	CLIP; MAG VLV HARNESS 6HE1 STD ENG(46L) PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9203-		●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-	●	●
44	HORN; HIGH NOTE	1-83410-053-1	01	1	9202-	●	●
45	HORN; LOW NOTE	1-83410-054-1	01	1	9202-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
49	NUT; HORN TO BODY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-9210	●	●
49	NUT; HORN TO BODY 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8 FLANGE	5-09440-005-0	01	1	9211-	●	●
49	NUT; HORN TO BODY 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9202-9210	●	●
49	NUT; HORN TO BODY 6SA1TC ENG(28L) M8 FLANGE	5-09440-005-0	02	1	9211-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	1-09660-530-0	01	1	9202-9203	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 17/32" PT1/4	1-09660-573-0	01	1	9204-	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9202-	●	●
273	NUT; MAG VLV NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-	●	●
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-82563-196-0	01	1	9202-	●	●

330 355 354 329 60 94 58 67 59 312 318 121 122 30 29 25 28 123 124 24 22 27 75 43 1 4 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

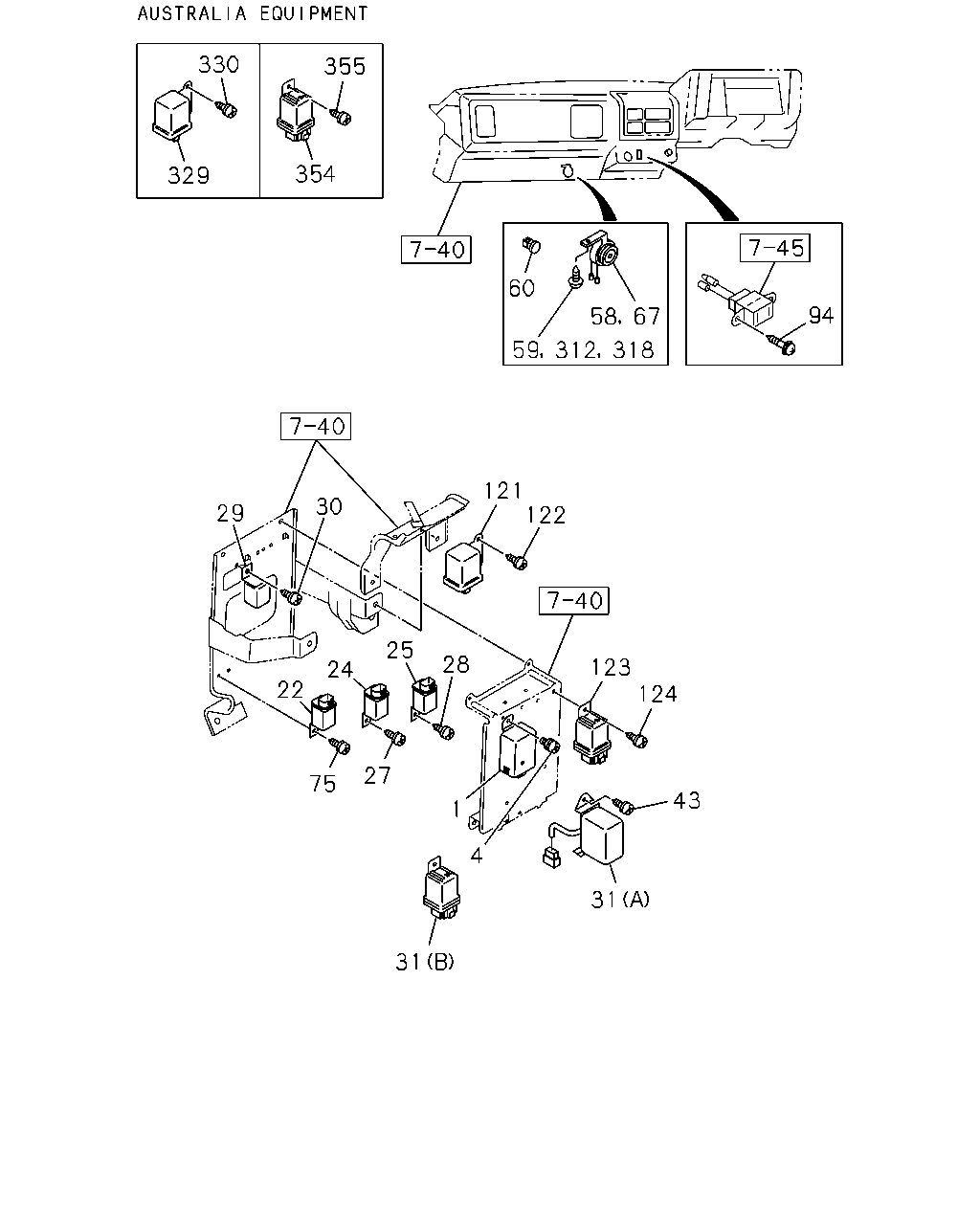

1	UNIT; FLASHER BUMPER W/HEADLAMPS<SLB>	1-83470-033-0	01	1	9202-9404	●	●
1	UNIT; FLASHER LIGHTING SYSTEM ECE<SLC>	1-83470-033-1	01	1	9405-	●	●
1	UNIT; FLASHER EXC. BUMPER W/HEADLAMPS<SLB>	1-83470-034-1	01	1	9202-9404	●	●
1	UNIT; FLASHER EXC. LIGHTING SYSTEM ECE<SLC>	1-83470-034-1	01	1	9405-	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
22	RELAY; STOP LAMP 24V	1-82550-176-0	01	1	9202-	●	●
24	RELAY; LIGHTING 24V	1-82550-176-0	02	1	9202-	●	●
25	RELAY; TAIL LAMP 24V	1-82550-176-0	01	1	9202-	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
29	RELAY; HORN	1-83420-001-0	01	1	9202-	●	●
30	SCREW; HORN RELAY TO DASH SIDE M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9202-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A JIDECO	1-82550-197-0	01	1	9202-	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9202-	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9507-	●	●
60	GROMMET; SCREW,BUZZER ENGINE OVERRUN BUZZER<SK4> D=7X7 L=7.5	5-09983-007-0	01	1	9202-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9202-	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
121	RELAY; PARKING BRK	1-82550-070-0	01	1	9202-9403	●	●
121	RELAY; PARKING BRK	1-82550-285-0	01	1	9404-	●	●
122	SCREW; PARKING BRK RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V	1-82550-176-0	01	1	9202-	●	●
124	SCREW; SET,HTR RELAY HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
312	BOLT; BUZZER M6X14 W/LK&PL WASHER	8-94279-142-0	01	1	9309-9506	●	●
318	SCREW; BUZZER ENGINE OVERRUN BUZZER<SK4> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9202-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-070-0	01	1	9202-9403	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-285-0	01	1	9404-	●	●
330	SCREW; BACK LAMP RELAY AUSTRALIA EQUIPMENT(RR3) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V	1-82550-176-0	01	1	9202-	●	●
355	SCREW; RELAY AUSTRALIA EQUIPMENT(RR3) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
