◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#11618) — 38 parça

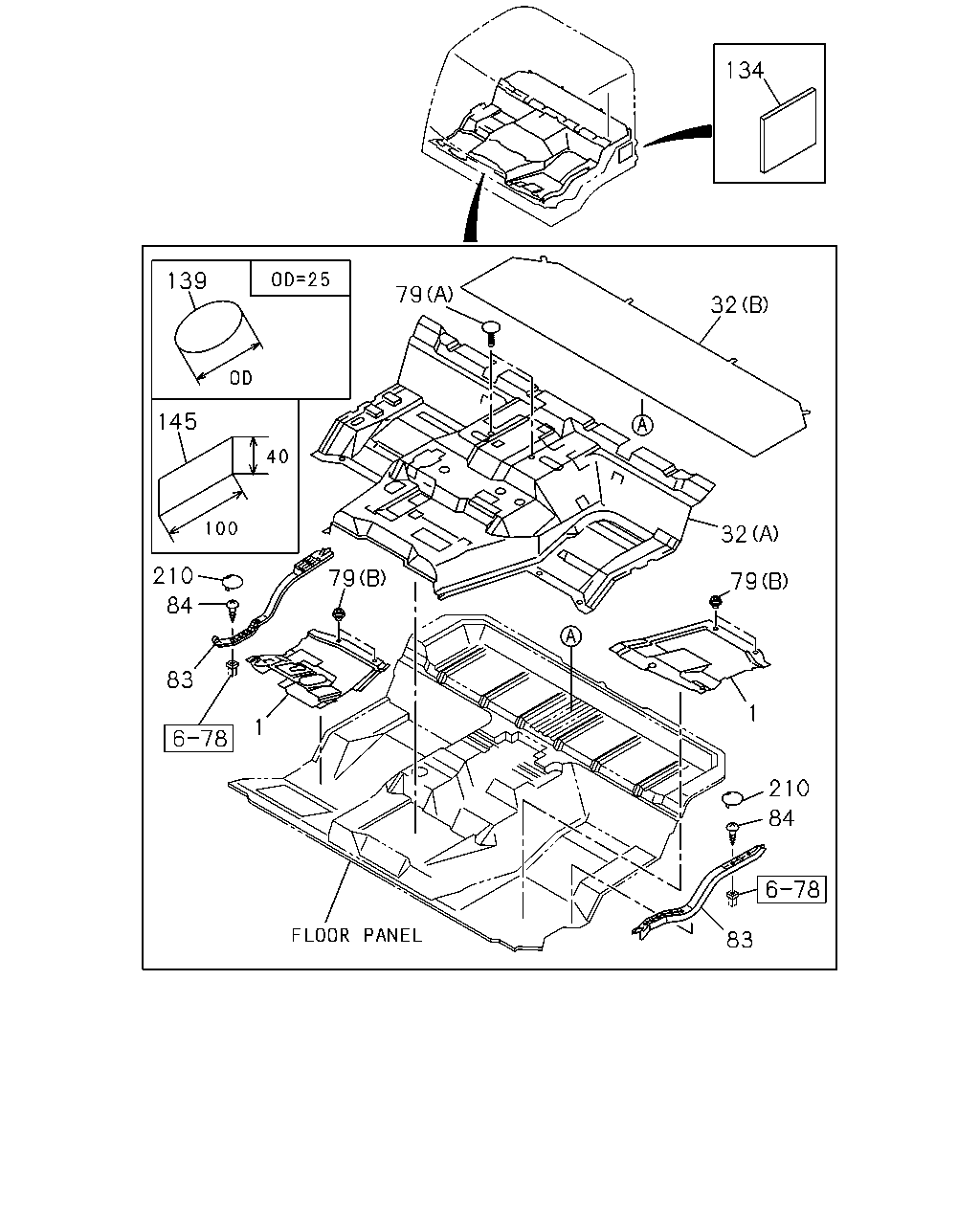

çizim 21796
134 32 32 79 1 210 84 83 1 83 84 210 79 79 139 145
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 0405-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-723-3 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-837-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-724-3 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-838-5 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 0405-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0105-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-

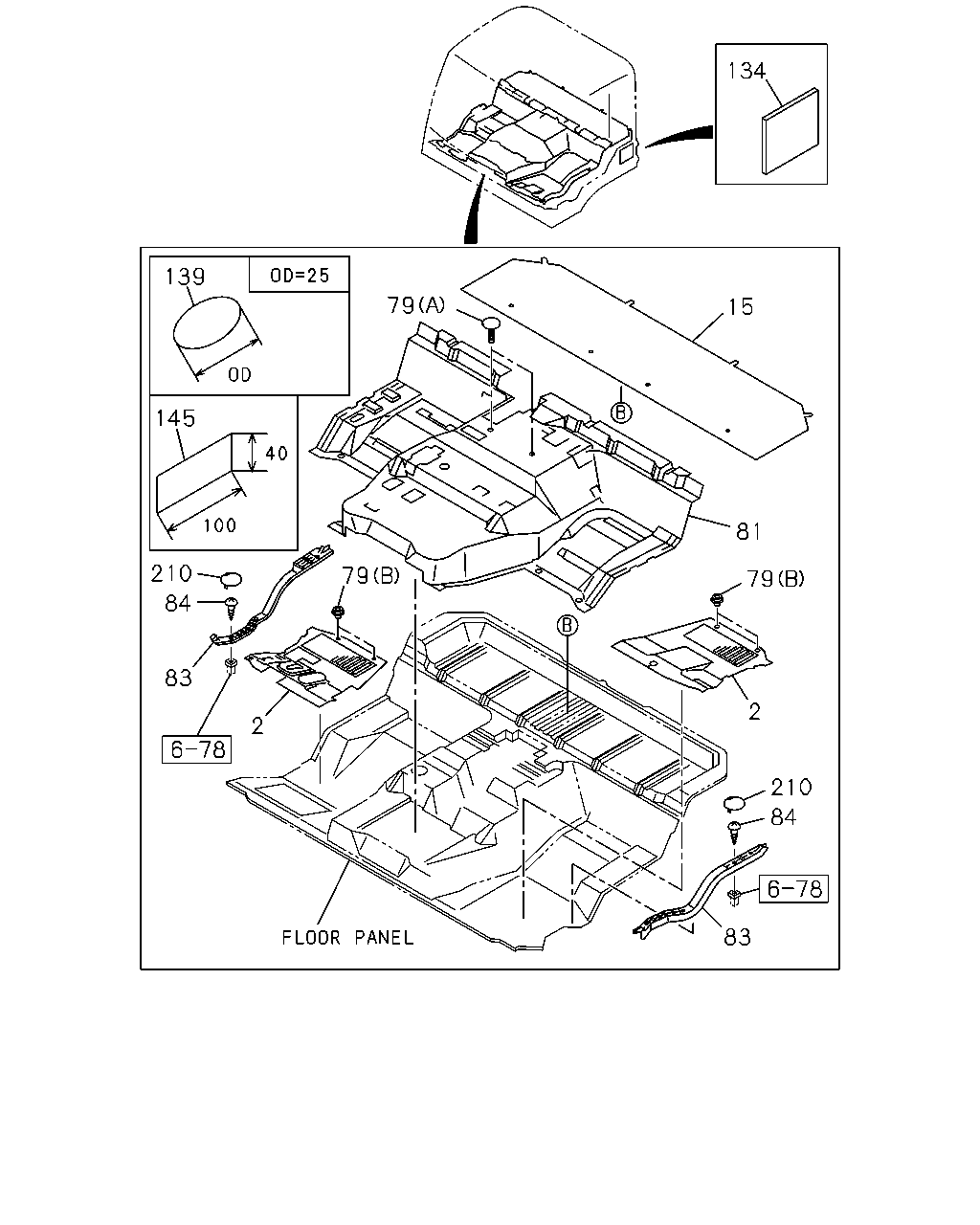

çizim 78426
134 15 81 79 2 210 84 83 2 83 84 210 79 79 139 145
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0201-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0201-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0105-0112
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0201-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-731-1 01 1 0105-0112
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-801-5 01 1 0201-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-732-1 01 1 0105-0112
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-816-2 01 1 0201-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 0105-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
