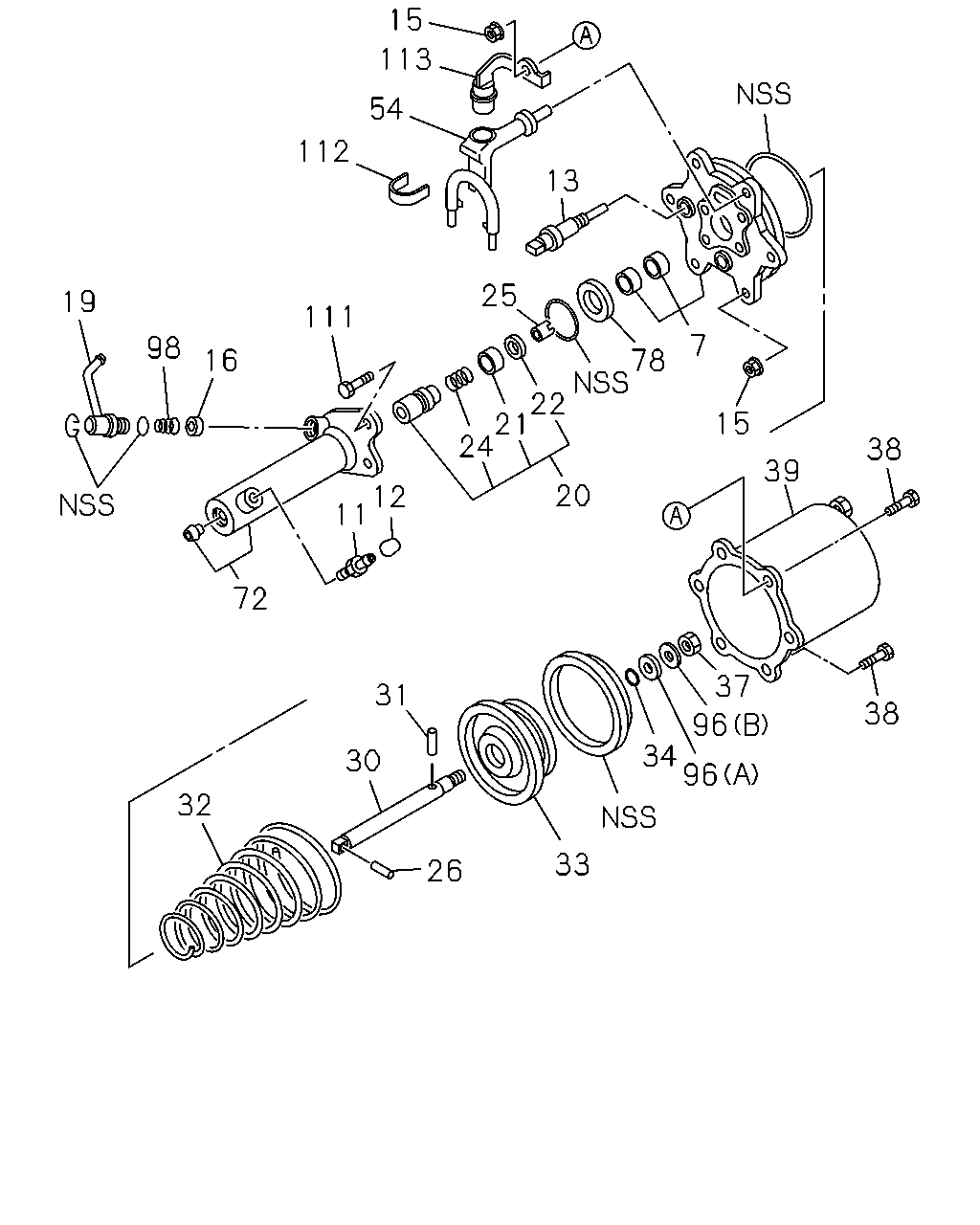

3-33 — AIR MASTER (#116171) — 43 parça

13 15 113 54 112 111 16 98 19 72 11 12 32 31 30 26 33 34 96 96 37 38 20 38 39 15 24 21 22 78 7 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-663-1	1-47841-084-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER M10 FLANGE ASM PART: A = 1-47800-663-1	8-97096-430-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-204-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-039-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-663-1	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-663-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-139-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-110-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-663-1	1-47819-205-0	01	1	-
111	BOLT; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-203-0	03	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-
113	HOLDER; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-207-0	01	1	-

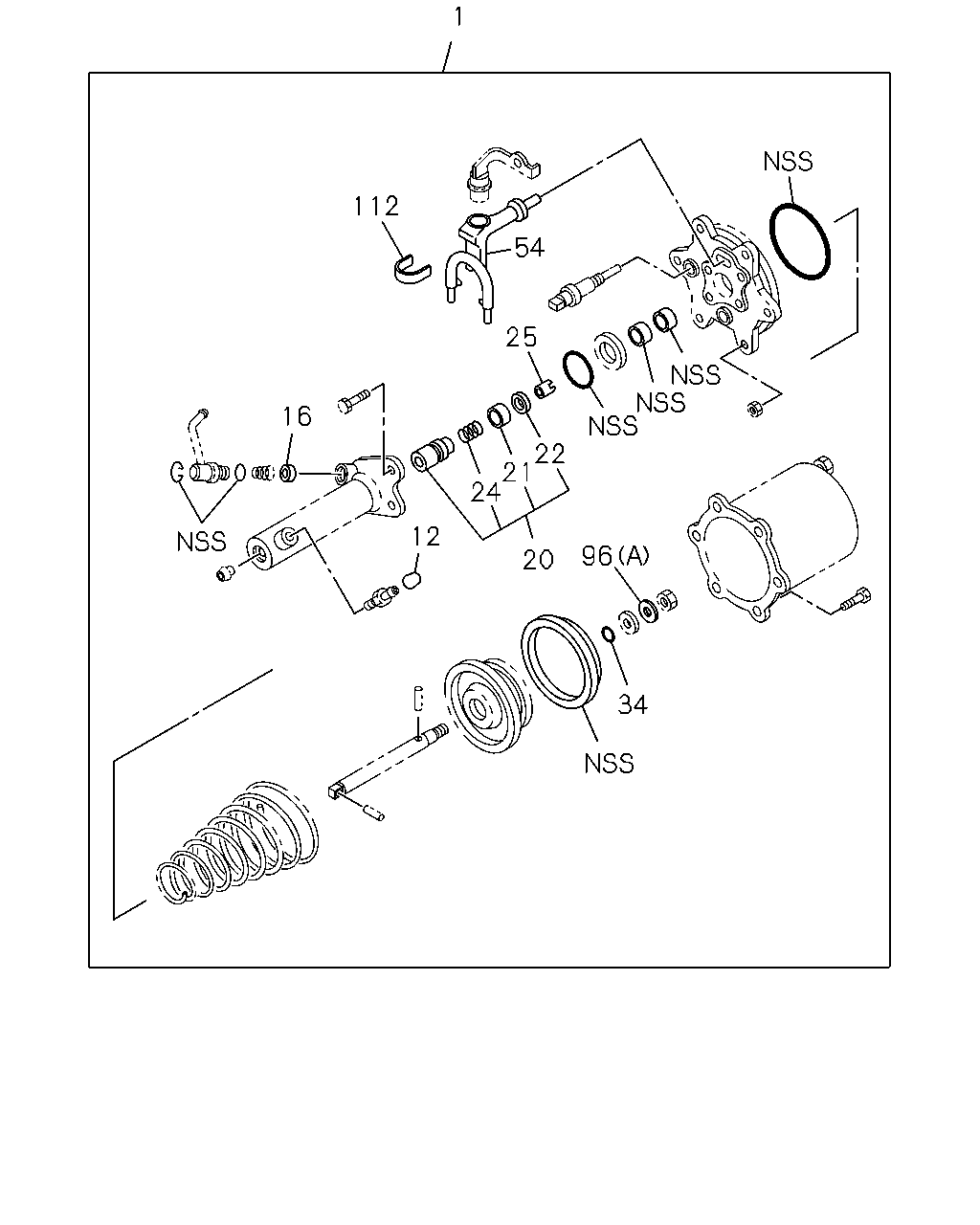

1 112 54 25 16 12 34 20 96 24 21 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-663-1	1-85576-208-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-
