◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11515 - FTS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#116145) — 144 parça

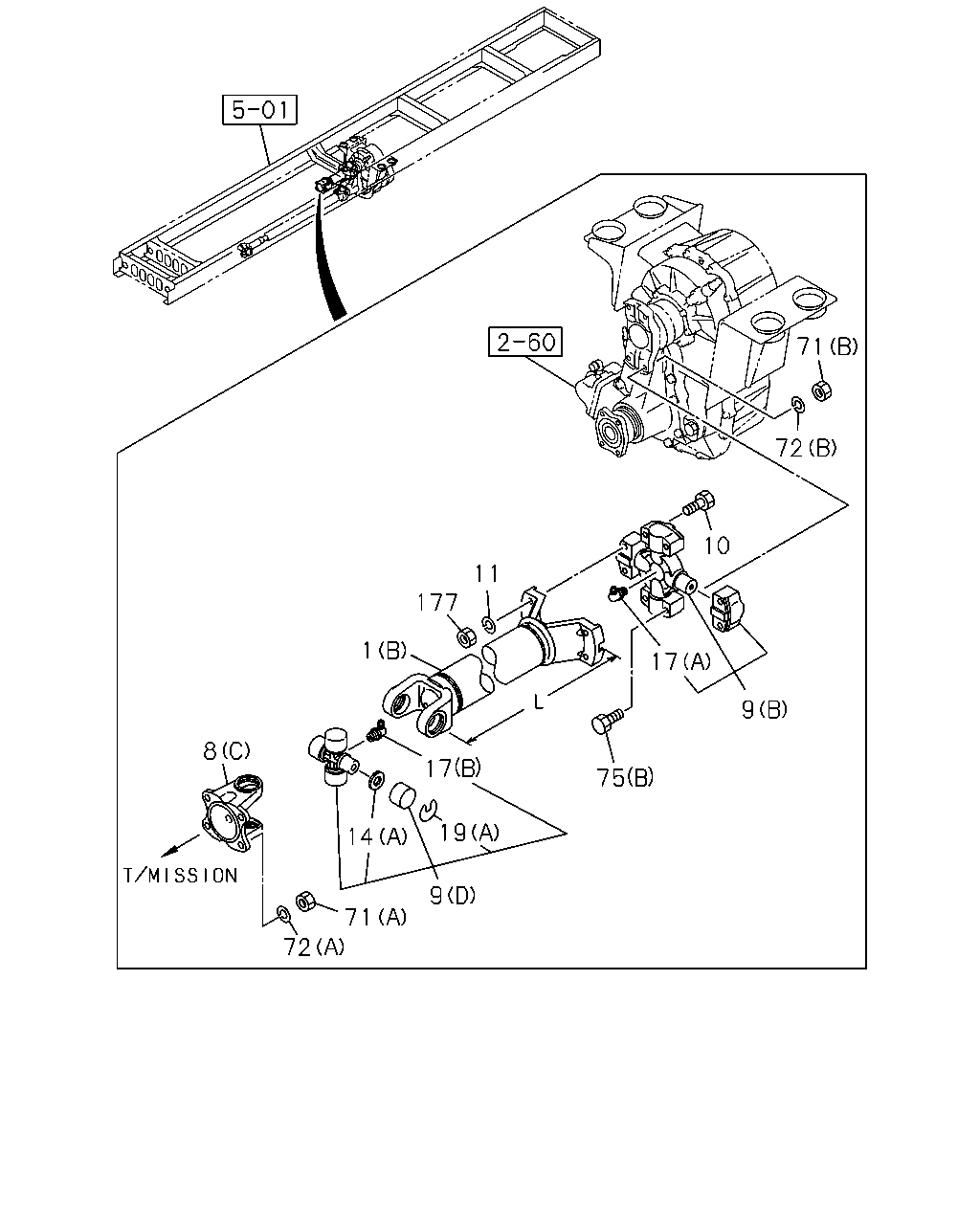

çizim 339123
11 75 17 9 10 17 1 8 14 71 9 72 177 72 71 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=436 		1-37124-528-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1302- ● ● ●
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1302- ● ● ●
1 SHAFT; PROP
DOUBLE TIRE REARWARD<SR6> (C) L=886 		1-37124-084-1 01 1 1302- ●
1 SHAFT; PROP
REARWARD INNER SINGLE TIRE<YK3> (C) L=911 		1-37123-509-1 01 1 1302- ●
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
10 BOLT; UJT
M12X75 		9-91061-275-0 04 1 1302- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 04 1 1302-1505 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302- ● ● ●
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1302- ● ● ●
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1302- ● ● ●
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1302- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1302- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1302- ● ● ●
177 NUT
M12 		0-91110-512-0 04 1 1302- ● ● ●

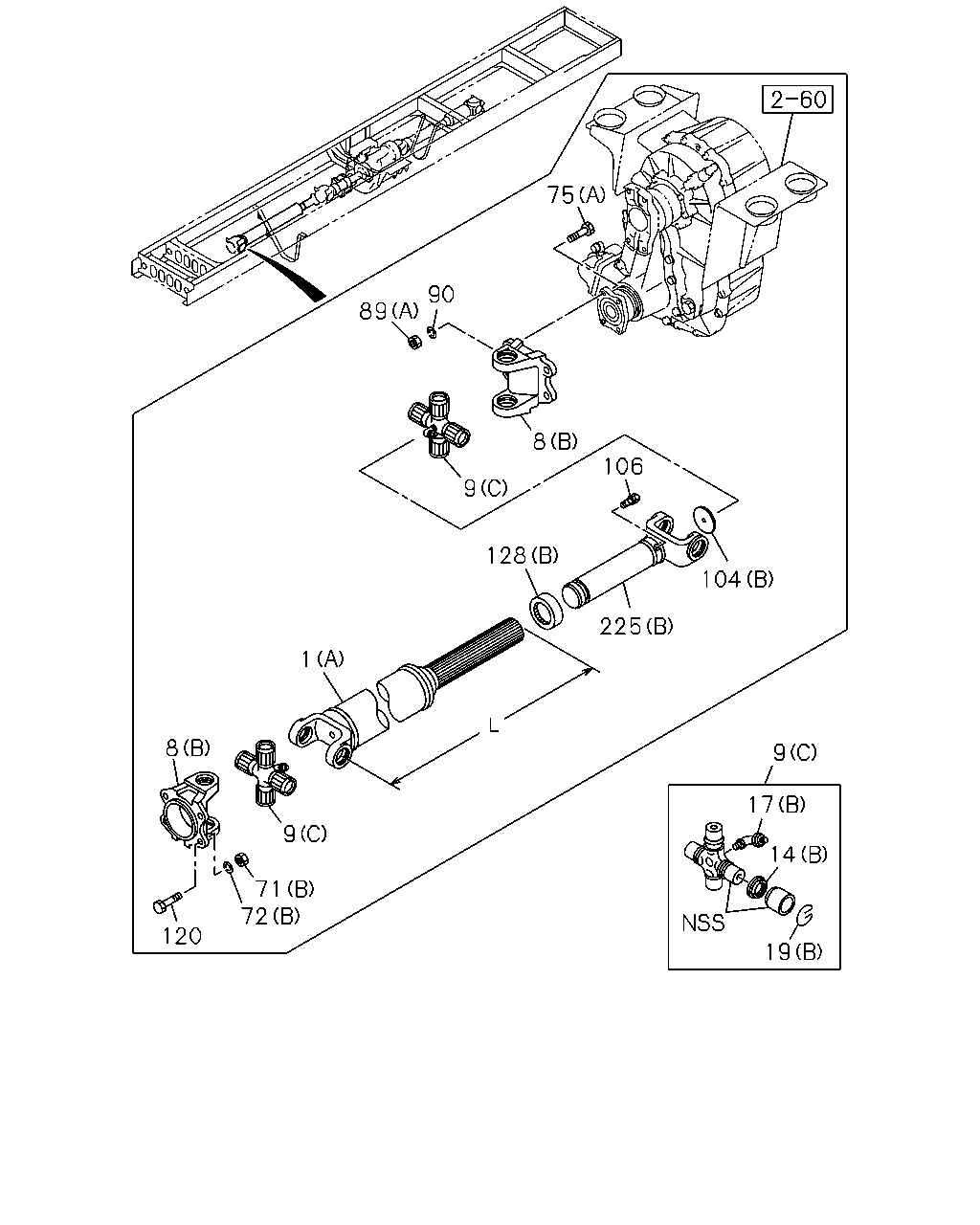

çizim 339125
19 14 17 9 225 104 106 128 8 9 1 9 71 72 120 8 90 89 75
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=436 		1-37124-528-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1302- ● ● ●
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1302- ● ● ●
1 SHAFT; PROP
DOUBLE TIRE REARWARD<SR6> (C) L=886 		1-37124-084-1 01 1 1302- ●
1 SHAFT; PROP
REARWARD INNER SINGLE TIRE<YK3> (C) L=911 		1-37123-509-1 01 1 1302- ●
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 04 1 1302-1505 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302- ● ● ●
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1302- ● ● ●
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1302- ● ● ●
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1302- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1302- ● ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1302- ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1302- ● ● ●
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1302- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-612-0 04 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ● ●
120 BOLT; YOKE TO RR AXLE
M12X32 		1-09000-076-1 04 1 1302- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1302- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1302- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1302- ● ● ●

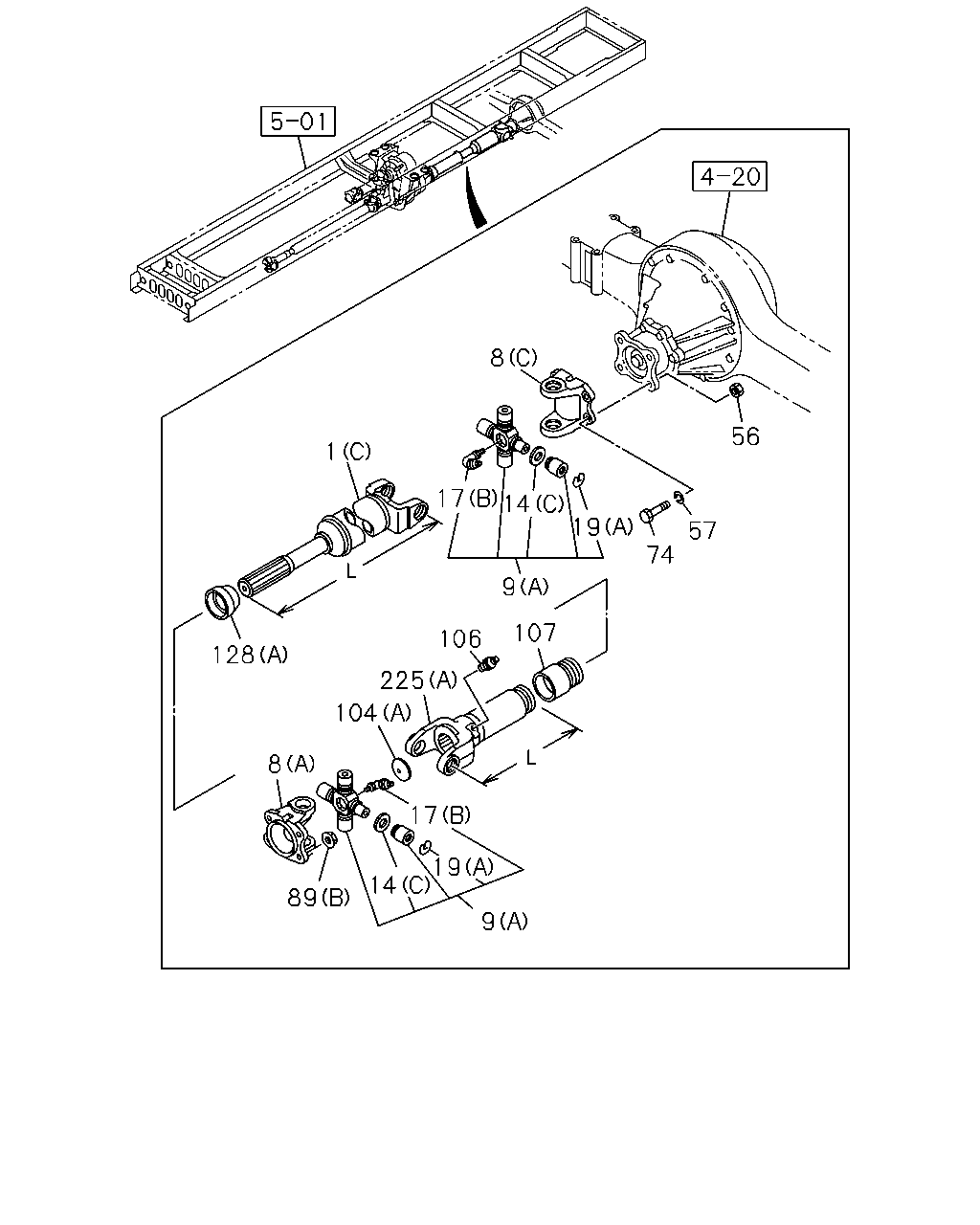

çizim 339127
9 19 17 14 89 8 104 225 106 9 107 74 57 19 14 17 8 56 1 128
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=436 		1-37124-528-0 01 1 1302- ●
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1302- ● ● ●
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1302- ● ● ●
1 SHAFT; PROP
DOUBLE TIRE REARWARD<SR6> (C) L=886 		1-37124-084-1 01 1 1302- ●
1 SHAFT; PROP
REARWARD INNER SINGLE TIRE<YK3> (C) L=911 		1-37123-509-1 01 1 1302- ●
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1302- ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1302- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1302- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1302-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 04 1 1302-1505 ● ● ●
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506- ● ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1302- ● ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1302- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1302- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1302- ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1302- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1302- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1302- ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1302- ● ● ●
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1302- ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1302- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1302- ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1302- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1302- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1302- ● ● ●
