6-47 — MUD GUARD AND INSULATOR (#11614) — 170 parça

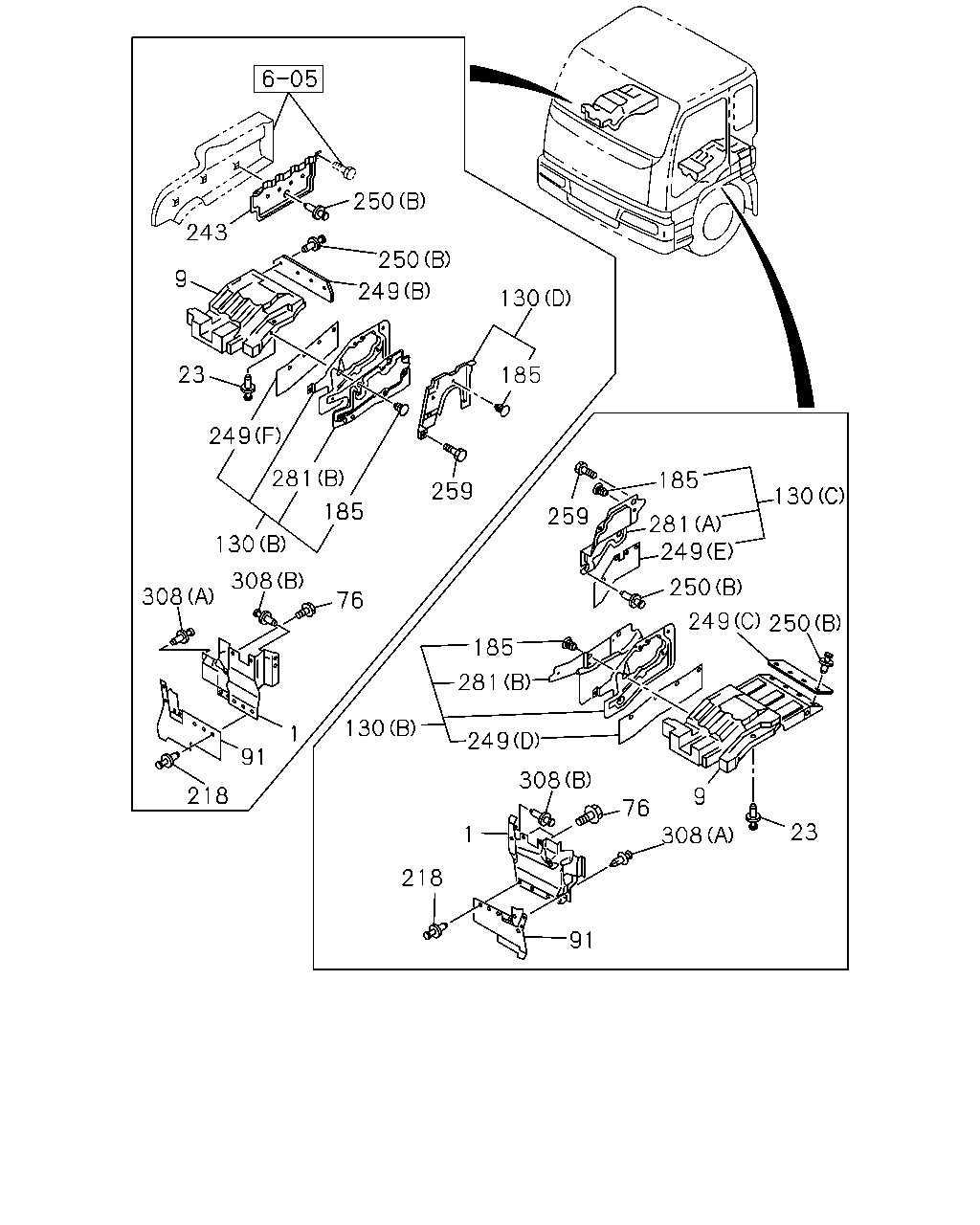

çizim 22241
250 243 9 23 249 281 185 76 308 130 308 218 91 1 130 185 281 249 308 1 218 91 76 308 23 9 250 130 249 250 249 281 185 259 259 185 130 249 250
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0105-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0301
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0301
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-0301
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-

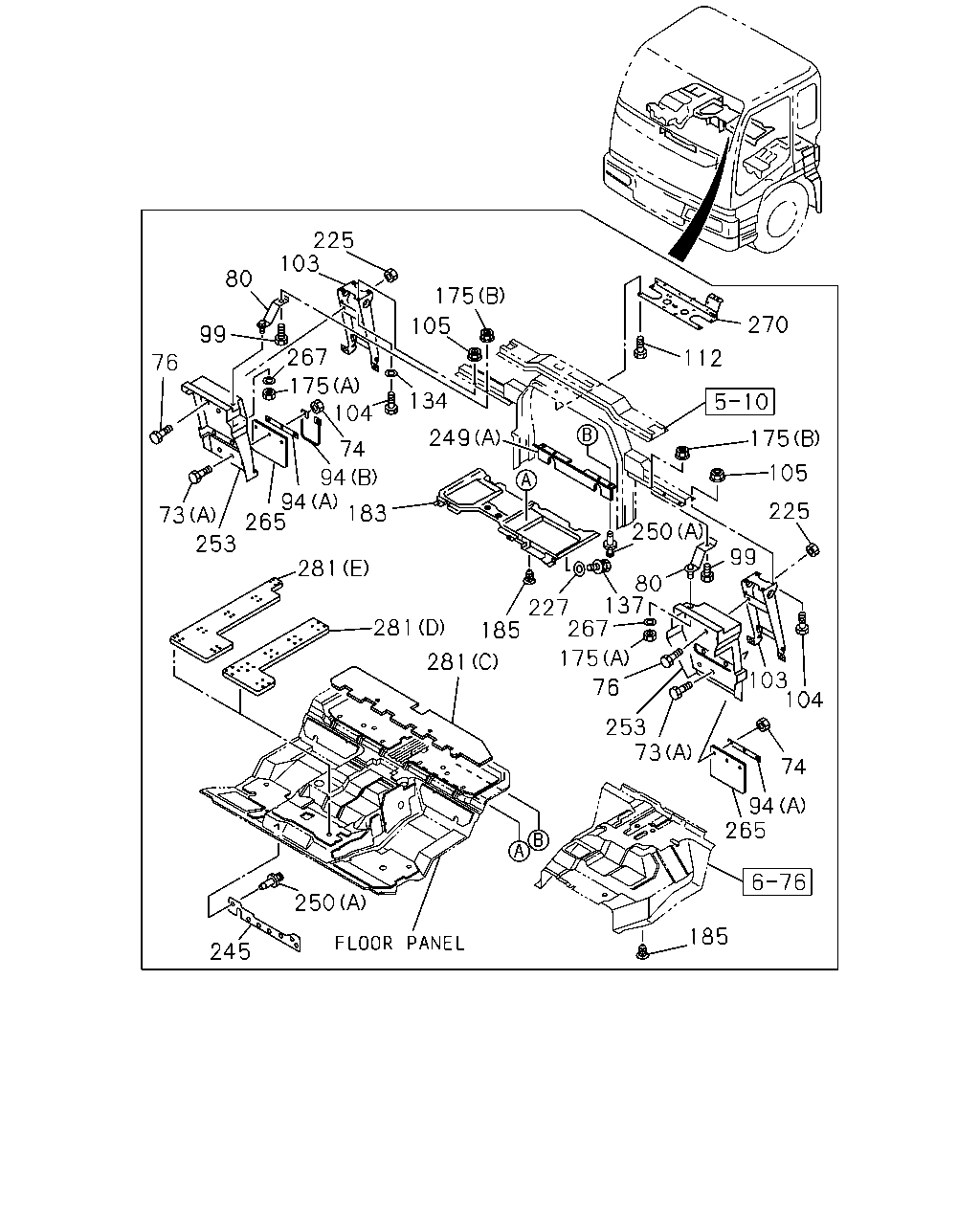

çizim 22242
80 94 99 103 104 105 112 134 137 80 250 270 175 105 225 99 103 104 74 94 265 185 73 253 76 175 267 227 185 281 281 281 265 253 73 76 267 175 225 175 249 74 94 183 250 245
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 03 1 0105-0301
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 03 1 0302-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0301
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 04 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0105-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0105-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0105-0302
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 0303-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0105-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0105-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603-
112 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 0105-0512
112 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0105-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0105-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0105-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-0301
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 0105-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0105-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-0301
253 GUARD; MUD 1-79931-067-7 01 1 0105-
253 GUARD; MUD 1-79931-065-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-
270 BRACKET; RR PANEL 1-53441-591-1 01 1 0105-0110
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 0105-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-

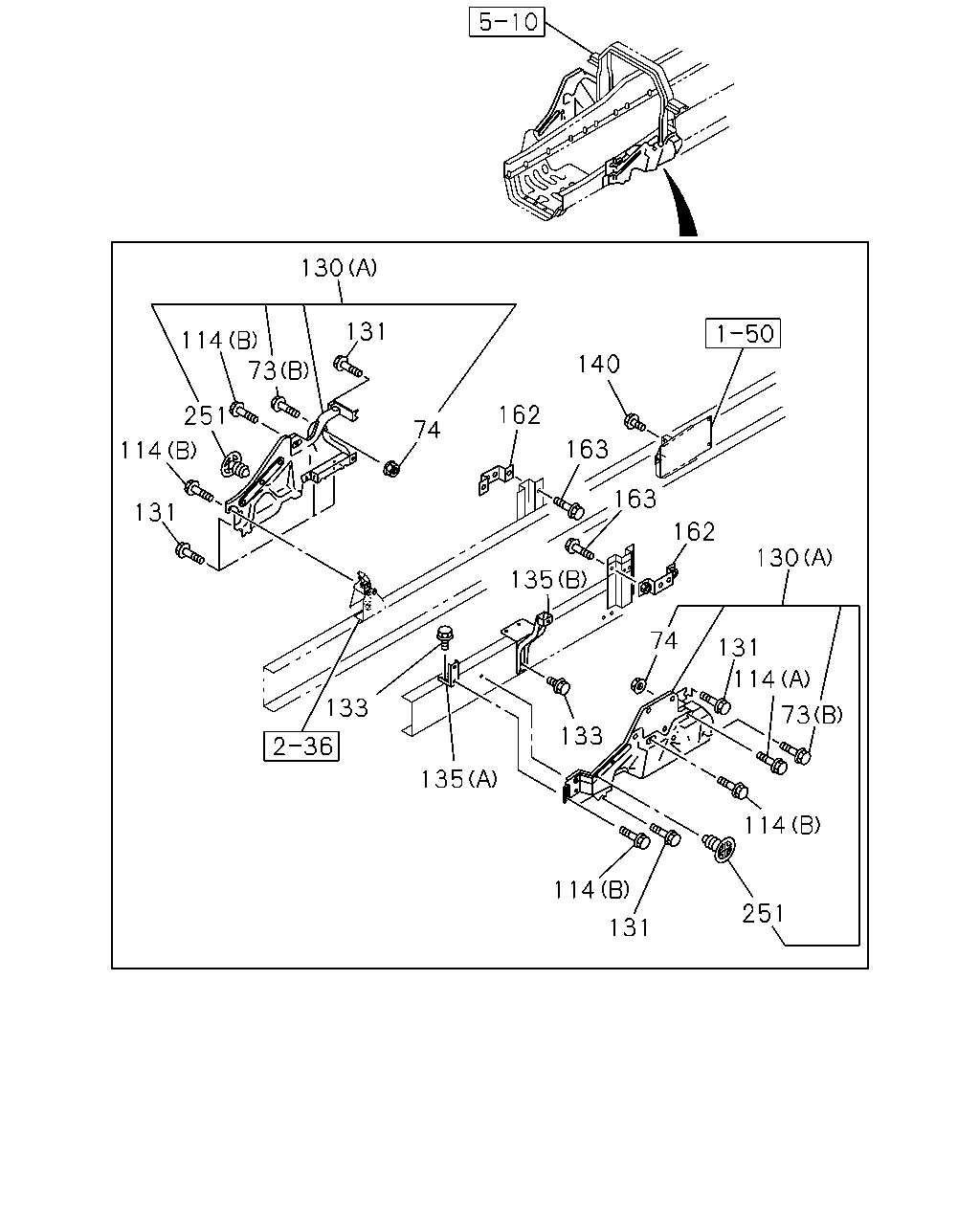

çizim 78572
130 114 131 73 251 114 131 74 162 140 163 163 162 130 135 74 131 114 73 114 251 131 114 133 135 133
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0105-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE 		0-28280-816-0 03 1 0105-0301
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 03 1 0302-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0301
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 01 1 0105-0301
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 04 1 0302-0602
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0105-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 0105-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-6 01 1 0105-0301
130 PANEL; SHUTTER NOISE
(A) 		1-53192-782-7 01 1 0302-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-2 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0105-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0105-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0107-
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
140 BOLT; SIDE PANEL
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
140 BOLT; SIDE PANEL
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0105-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR 8-94279-048-0 10 1 0105-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 04 1 0105-0301
251 CLIP; NOISE INSULATOR 8-94279-048-0 04 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
