Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#116126) — 73 parça

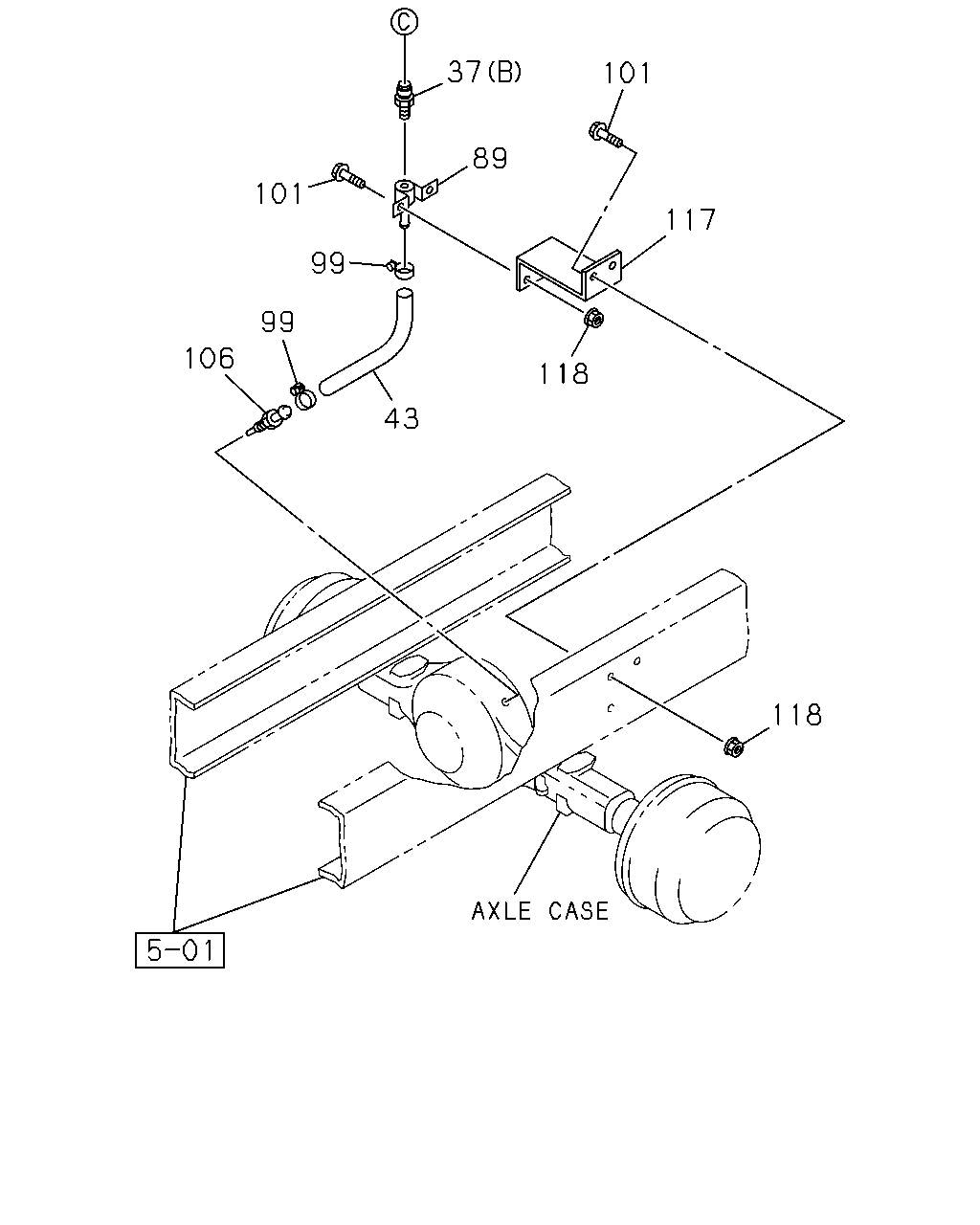

101 99 99 106 43 89 37 101 117 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	1302-
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
43	HOSE; RUBBER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M> L=440 SERVICED BY L=3000	0-02857-300-0	01	1	1302-
89	ADAPTER; AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-09669-066-0	01	1	1302-
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	1302-
99	CLIP; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M> ID=15	1-09704-018-1	01	1	1302-
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	1302-
101	BOLT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	1302-
106	CONNECTOR; RUBBER HOSE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-081-0	01	1	1302-
117	BRACKET; ADAPTER,AIR BREATHER AIR BREATHER W/FLEX HOSE<C4M>	1-42129-203-0	01	1	1302-
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-
118	NUT; BRKT,ADAPTER AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-

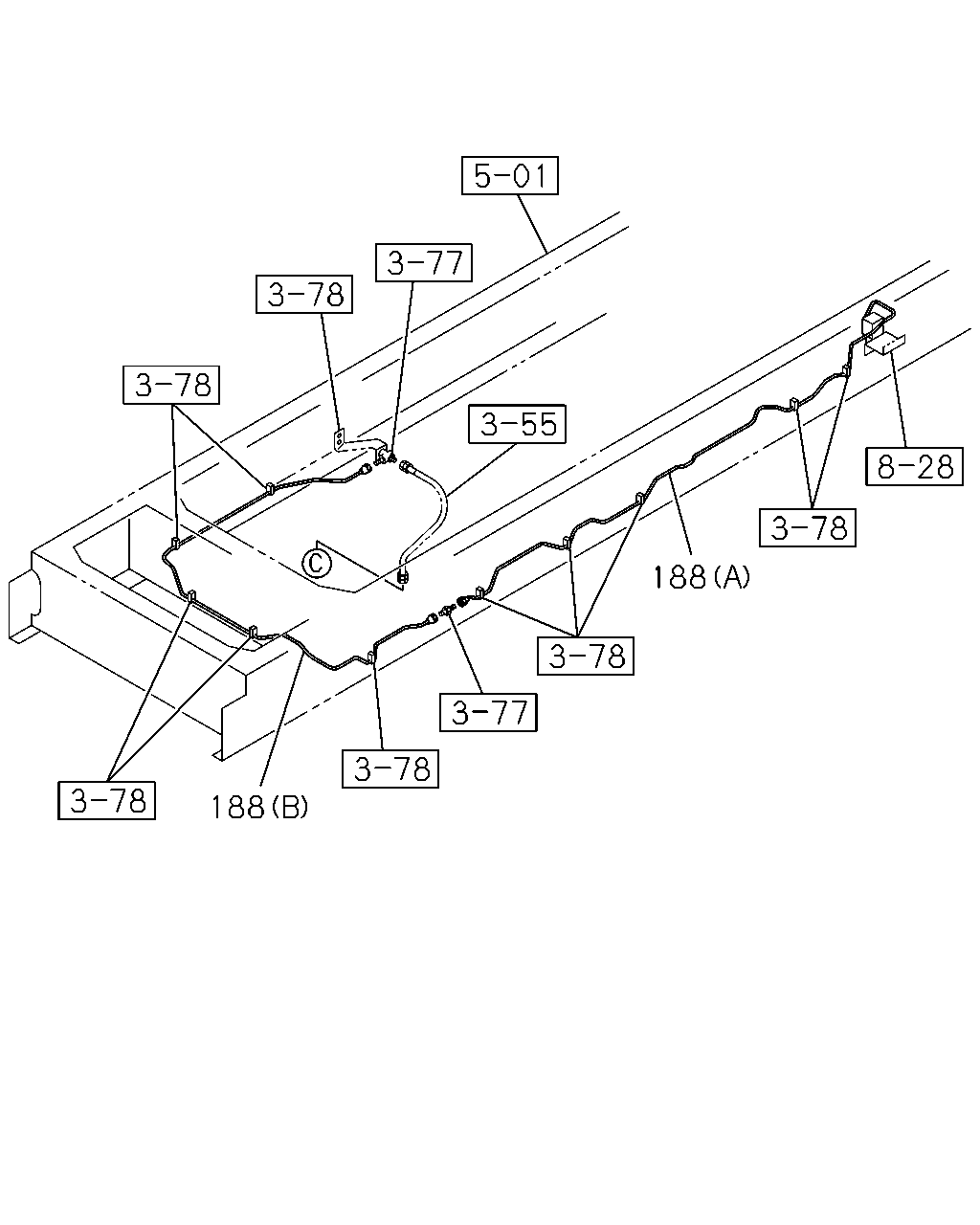

188 188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (A) L=2166 SERVICED BY L=2200	1-47428-824-0	01	1	1302-
	188	PIPE; AIR,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B) L=2042 SERVICED BY L=2200	1-47428-824-0	01	1	1302-

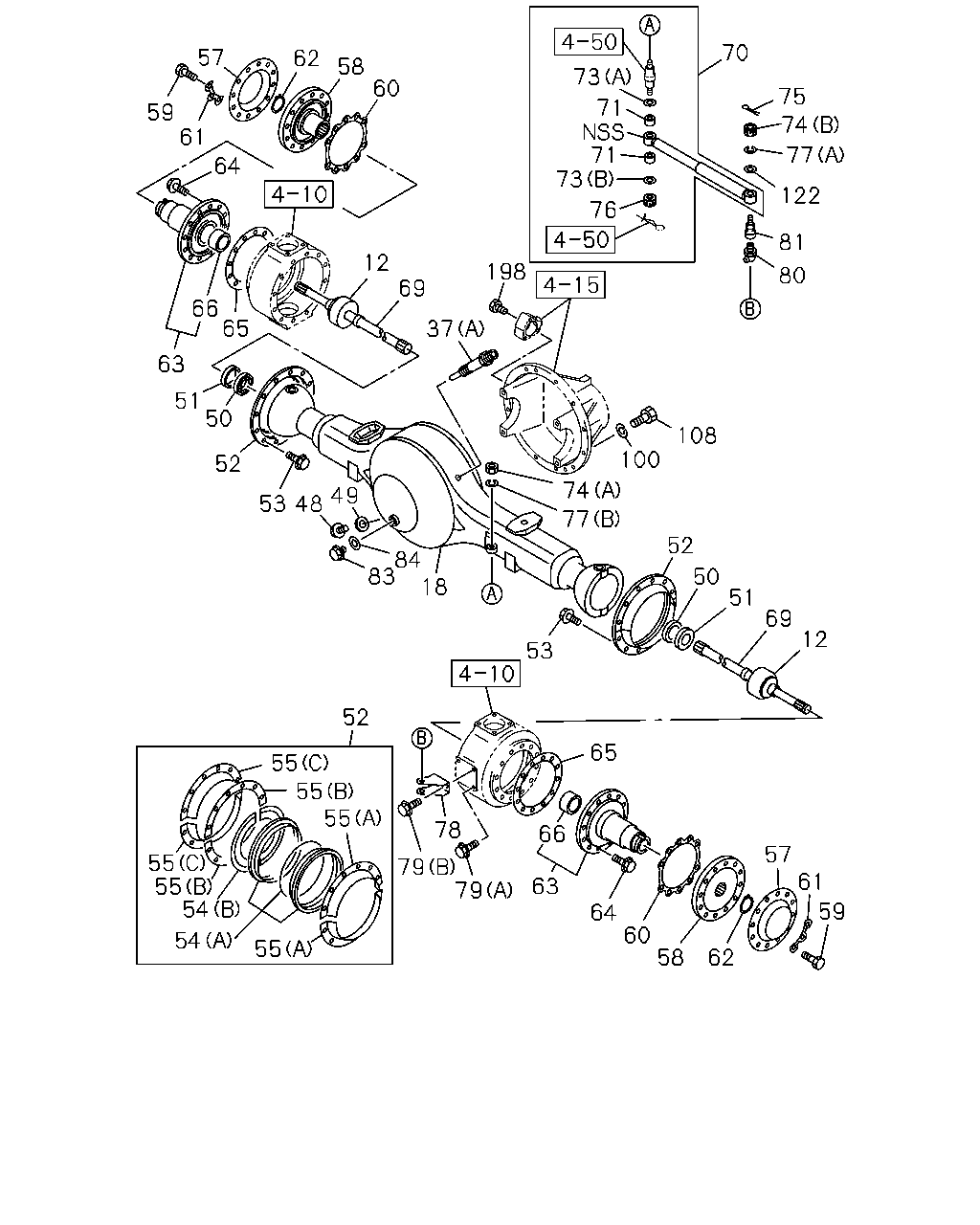

57 59 64 61 62 58 66 63 65 12 73 70 71 73 71 75 74 122 77 81 80 76 51 69 198 37 50 52 49 48 53 84 83 18 74 100 108 77 52 51 50 69 12 53 60 52 55 55 55 55 55 55 54 54 78 79 79 65 66 60 64 63 62 61 57 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1302-
18	CASE; FRT AXLE FINAL GEAR 39/6 14.5"(W1J)	8-98200-134-0	01	1	1302-
18	CASE; FRT AXLE FINAL GEAR 39/7 15.5"(W3K)	8-98200-146-0	01	1	1302-
37	BREATHER; FRT AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	9-36122-013-0	01	1	1302-
37	BREATHER; FRT AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1302-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1302-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1302-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1302-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1302-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1302-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1302-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1302-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1302-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1302-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1302-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1302-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1302-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1302-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1302-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1302-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1302-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/6 14.5"(W1J)	8-98082-198-0	02	1	1302-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT FINAL GEAR 39/7 15.5"(W3K)	1-43241-061-0	02	1	1302-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1302-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1302-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1302-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 14.5"(W1J)	8-98082-680-2	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/6 14.5"(W1J)	8-98082-681-2	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-063-0	01	1	1302-
69	SHAFT; AXLE,FRT INNER FINAL GEAR 39/7 15.5"(W3K)	1-43311-064-0	01	1	1302-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1302-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1302-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1302-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1302-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1302-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1302-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1302-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1302-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1302-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1302-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1302-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1302-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1302-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1302-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1302-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1302-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1302-
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 14.5"(W1J) M12X35	0-20951-235-0	06	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/6 14.5"(W1J) M12X105	8-97029-869-0	02	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X35	0-20951-235-0	08	1	1302-
108	BOLT; FRT FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) M12X45	9-92061-245-0	04	1	1302-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1302-
198	PLUG; COVER FINAL GEAR 39/6 14.5"(W1J) M12X9	9-99202-312-0	01	1	1302-1304
198	PLUG; COVER FINAL GEAR 39/6 14.5"(W1J) M12X9	0-92002-412-0	01	1	1305-
