4-80 — ROAD WHEEL (#116104) — 54 parça

2 32 31 11 3 2 16 32 31 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42350-775-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42350-775-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42350-775-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42350-268-2	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42350-268-2	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) REAR	1-42350-268-2	04	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M30 RH THREAD	8-97359-809-0	08	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 10STUD 8.50VX20 138-13(FJC) DISC WHEEL STEP<W66> (B)	1-43139-066-0	02	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	1302-
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) L=115	8-98167-051-0	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAE	1-42355-004-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAE	1-42355-004-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42355-004-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) REAE	1-42355-012-1	04	1	1302-
32	CAP; VALVE DOUBLE TIRE REARWARD<SR6> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE REARWARD INNER SINGLE TIRE<YK3> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1302-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> DOUBLE TIRE REARWARD<SR6>	1-42374-001-0	07	1	1302-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> REARWARD INNER SINGLE TIRE<YK3>	1-42374-001-0	05	1	1302-

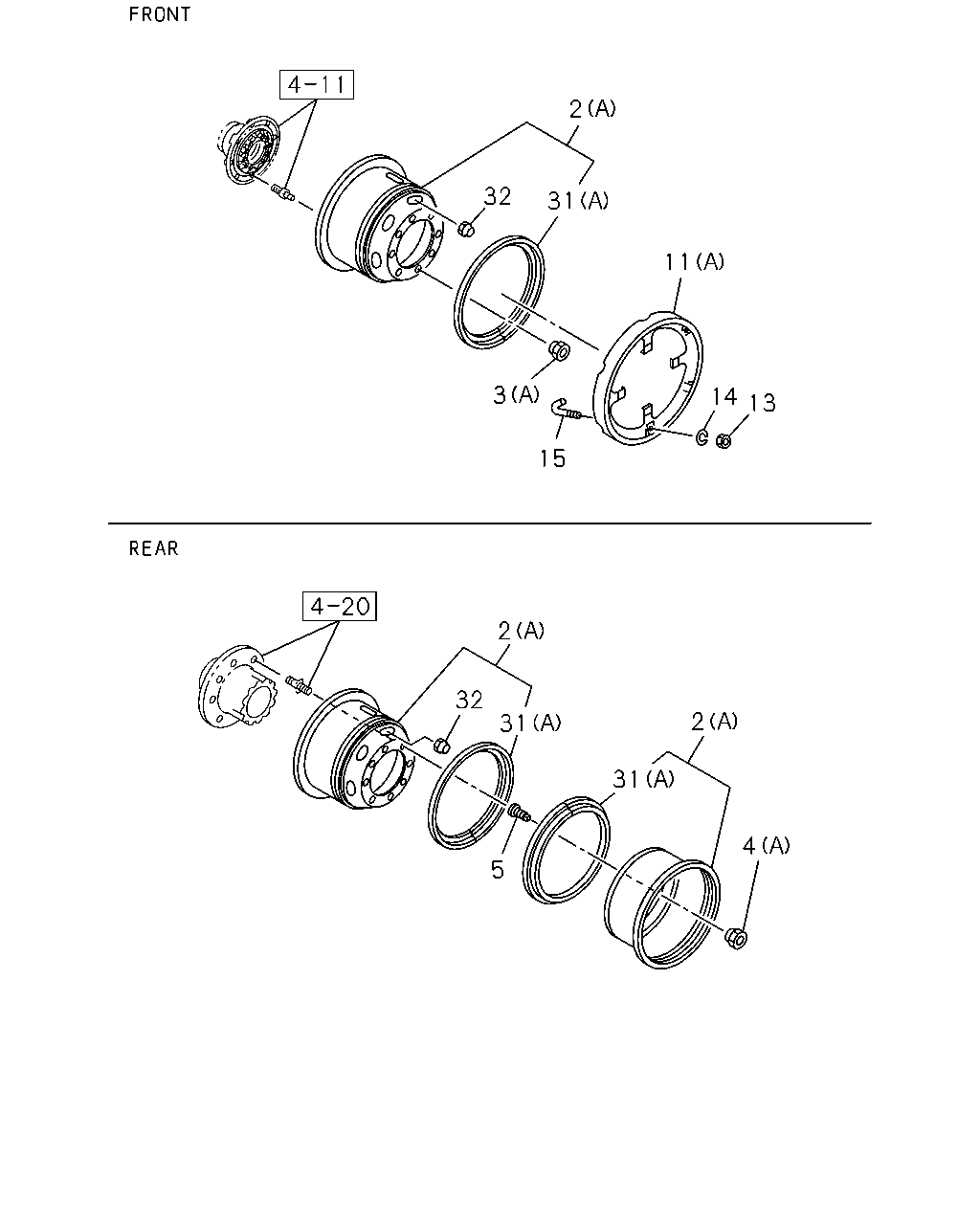

2 32 31 11 14 13 15 3 2 32 31 31 2 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42350-775-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAR	1-42350-775-0	02	1	1302-
2	WHEEL; DISC WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42350-775-0	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42350-268-2	01	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42350-268-2	02	1	1302-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11(Q50) (A) REAR	1-42350-268-2	04	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M24 LH THREAD	1-42334-022-3	08	1	1302-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M24	1-42333-022-3	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 10STUD 8.50VX20 138-13(FJC) (B) M22X1.5	1-42333-055-0	20	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M30 LH THREAD	8-97359-810-0	08	1	1302-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) (A) M30 RH THREAD	8-97359-809-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1302-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 6.50TX20 152-11(Q50) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 10STUD 8.50VX20 138-13(FJC) DISC WHEEL STEP<W66> (B)	1-43139-066-0	02	1	1302-
11	STEP; DISC WHEEL SIDE WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> (A)	1-43139-002-2	02	1	1302-
13	NUT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> M10	0-91110-510-0	06	1	1302-
14	WASHER; LK,STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> ID=10.2	0-91510-810-0	06	1	1302-
15	BOLT; STEP DISC WHEEL 8STUD 6.50TX20 152-11(Q50) DISC WHEEL STEP<W66> L=44	9-43139-023-1	06	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAE	1-42355-004-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) FRONT,REAE	1-42355-004-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 8.50VX20 138-13(FJC) (B) SPARE	1-42355-004-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) SPARE	1-42355-012-1	01	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) FRONT	1-42355-012-1	02	1	1302-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11(Q50) (A) REAE	1-42355-012-1	04	1	1302-
32	CAP; VALVE DOUBLE TIRE REARWARD<SR6> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	06	1	1302-
32	CAP; VALVE REARWARD INNER SINGLE TIRE<YK3> EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	1302-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> DOUBLE TIRE REARWARD<SR6>	1-42374-001-0	07	1	1302-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> REARWARD INNER SINGLE TIRE<YK3>	1-42374-001-0	05	1	1302-
