8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#1161) — 46 parça

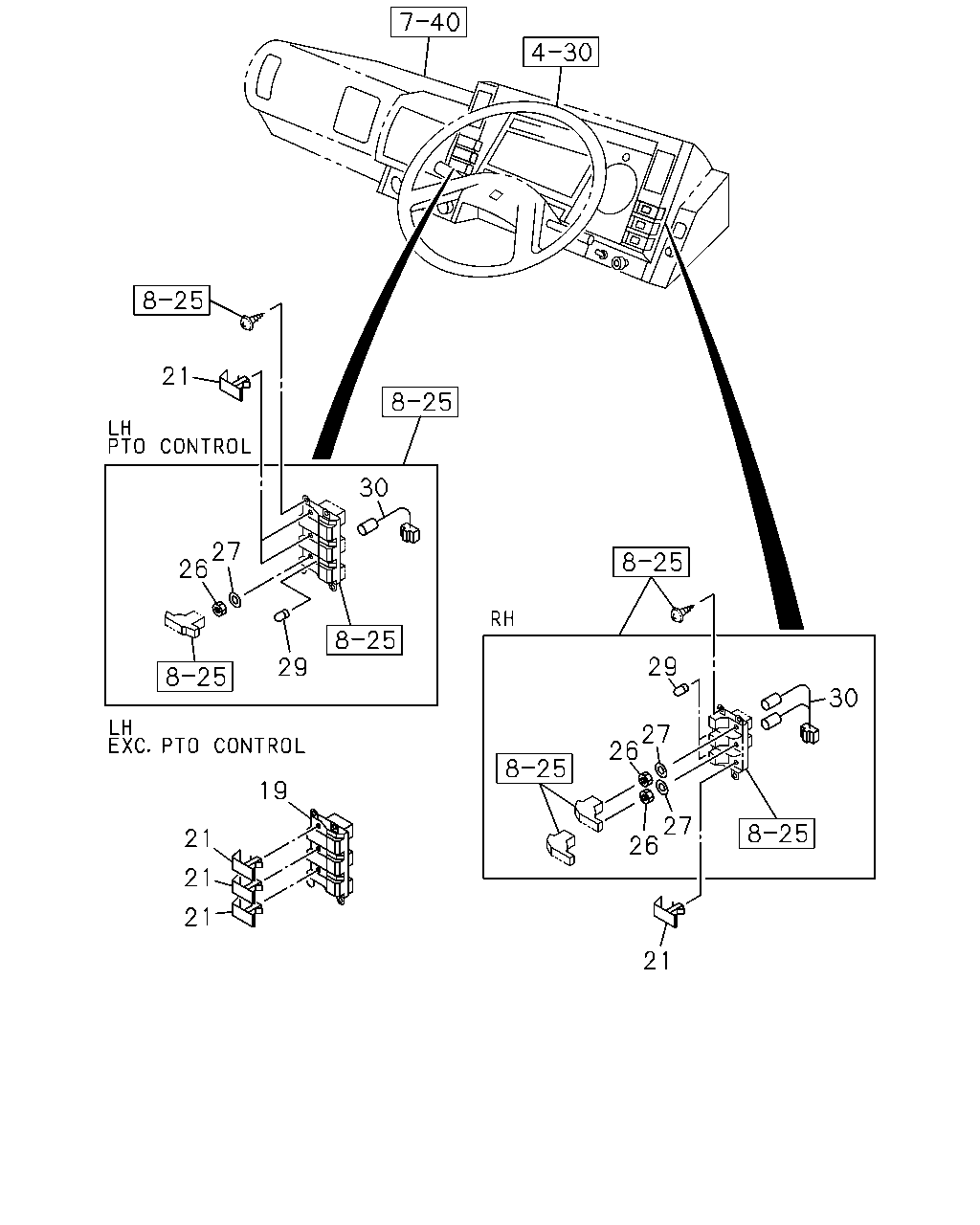

çizim 92299
21 30 27 26 29 29 30 27 26 19 27 26 21 21 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
19 BASE; SW,METER CLUSTER
EXC. PTO CONTROL<SV6> BLACK 		1-82353-008-0 01 1 9202- ● ●
21 COVER; HOLE
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82359-038-0 01 1 9202- ● ●
21 COVER; HOLE
PTO CONTROL<SV6> 		1-82359-038-0 02 1 9202-9404 ● ●
21 COVER; HOLE
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82359-038-0 02 1 9202-9404 ● ●
21 COVER; HOLE
PTO CONTROL<SV6> 		1-82359-038-0 02 1 9405- ● ●
21 COVER; HOLE
LIGHTING SYSTEM ECE<SLC> 		1-82359-038-0 02 1 9405- ● ●
21 COVER; HOLE
EXC. PTO CONTROL<SV6> 		1-82359-038-0 03 1 9202- ● ●
26 NUT; METER SW
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M12 		1-09400-066-0 01 1 9202-9404 ● ●
26 NUT; METER SW
PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		1-09400-066-0 01 1 9405- ● ●
26 NUT; METER SW
LIGHTING SYSTEM ECE<SLC> M12 		1-09400-066-0 01 1 9405- ● ●
26 NUT; METER SW
EXC. LIGHTING SYSTEM ECE<SLC> M12 		1-09400-066-0 03 1 9202- ● ●
27 WASHER; WAVE,SW
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-09550-006-0 01 1 9202-9404 ● ●
27 WASHER; WAVE,SW
PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09550-006-0 01 1 9405- ● ●
27 WASHER; WAVE,SW
LIGHTING SYSTEM ECE<SLC> 		1-09550-006-0 01 1 9405- ● ●
27 WASHER; WAVE,SW
EXC. LIGHTING SYSTEM ECE<SLC> 		1-09550-006-0 03 1 9202- ● ●
29 BULB; METER SW
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 24V 1.2W 		1-82194-027-0 01 1 9202-9404 ● ●
29 BULB; METER SW
PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 1.2W 		1-82194-027-0 01 1 9405- ● ●
29 BULB; METER SW
LIGHTING SYSTEM ECE<SLC> 24V 1.2W 		1-82194-027-0 01 1 9405- ● ●
29 BULB; METER SW
EXC. LIGHTING SYSTEM ECE<SLC> 24V 1.2W 		1-82194-027-0 03 1 9202- ● ●
30 CORD ASM; METER SW
BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> 		1-82359-065-0 01 1 9202-9404 ● ●
30 CORD ASM; METER SW
LIGHTING SYSTEM ECE<SLC> 		1-82359-065-0 01 1 9405- ● ●
30 CORD ASM; METER SW
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82359-058-0 01 1 9202- ● ●
30 CORD ASM; METER SW
PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82359-024-0 01 1 9202- ● ●

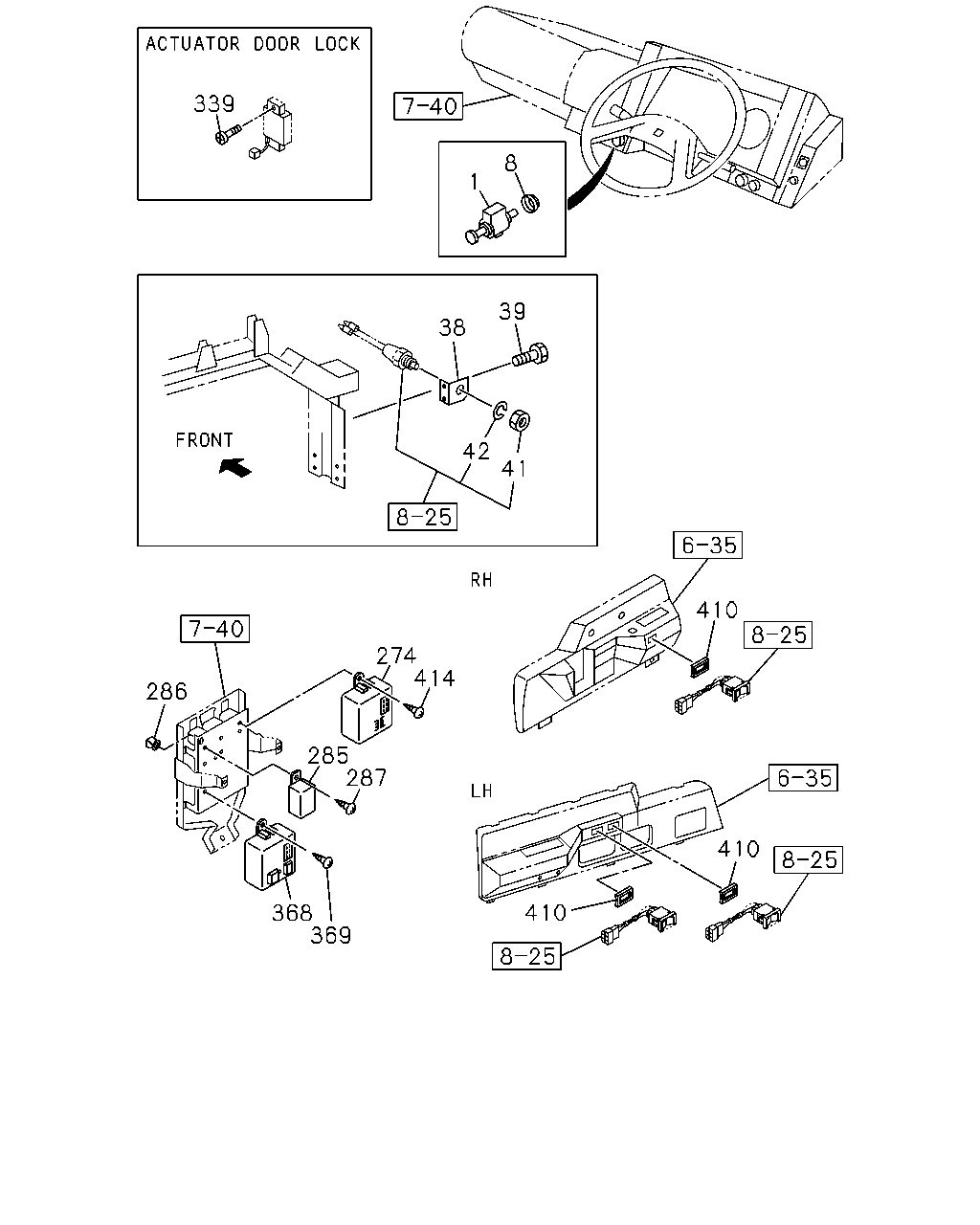

çizim 95621
339 8 1 39 38 42 41 410 274 414 286 285 287 410 410 368 369
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 1-84190-023-0 01 1 9202- ● ●
8 PANEL; GUIDE,CIGAR LIGHTER 8-94232-213-1 01 1 9202- ● ●
38 BRACKET; SW,STARTER SUB
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-82699-137-0 01 1 9202-9203 ● ●
38 BRACKET; SW,STARTER SUB
6HE1 STD ENG(46L) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-82699-137-0 01 1 9202-9203 ●
38 BRACKET; SW,STARTER SUB
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-82699-351-0 01 1 9204-9208 ● ●
38 BRACKET; SW,STARTER SUB
6HE1 STD ENG(46L) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-82699-351-0 01 1 9204-9208 ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9209- ●
38 BRACKET; SW,STARTER SUB
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-82699-351-0 01 1 9209- ●
38 BRACKET; SW,STARTER SUB
6HE1 STD ENG(46L) EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-82699-351-0 01 1 9209- ●
39 BOLT; BRKT,STARTER SUB SW
M8X18 		0-28010-818-0 02 1 9202-9204 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
41 NUT; SUB STARTER SW 9-82755-020-0 01 1 9202- ● ●
42 WASHER; LK,SUB STARTER SW
ID=14.2 		9-09150-514-0 01 1 9202- ● ●
274 UNIT; CORNERING LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-83470-044-1 01 1 9308- ●
285 BUZZER ASM; ALARM CLOCK
RADIO AM/FM<U69> 		1-83460-053-0 01 1 9202- ● ●
286 GROMMET; SCREW,BUZZER
RADIO AM/FM<U69> D=7X7 L=7.5 		5-09983-007-0 01 1 9202- ● ●
287 SCREW; BUZZER
RADIO AM/FM<U69> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9202- ● ●
339 SCREW; ACTUATOR
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-176-0 02 1 9211-9302 ●
339 SCREW; ACTUATOR
POWER WINDOW<A30> M4X30 		8-94279-360-0 02 1 9303- ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94437-633-1 01 1 9208- ●
369 SCREW; DOOR CONT UNIT
AUTO DOOR LOCK<AU4> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9210- ●
410 BEZEL; SWITCH,POWER WINDOW
POWER WINDOW<A30> 		1-73337-381-0 03 1 9206- ●
414 SCREW; CORNERING LAMP UNIT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9308- ●
