Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#116087) — 23 parça
◀

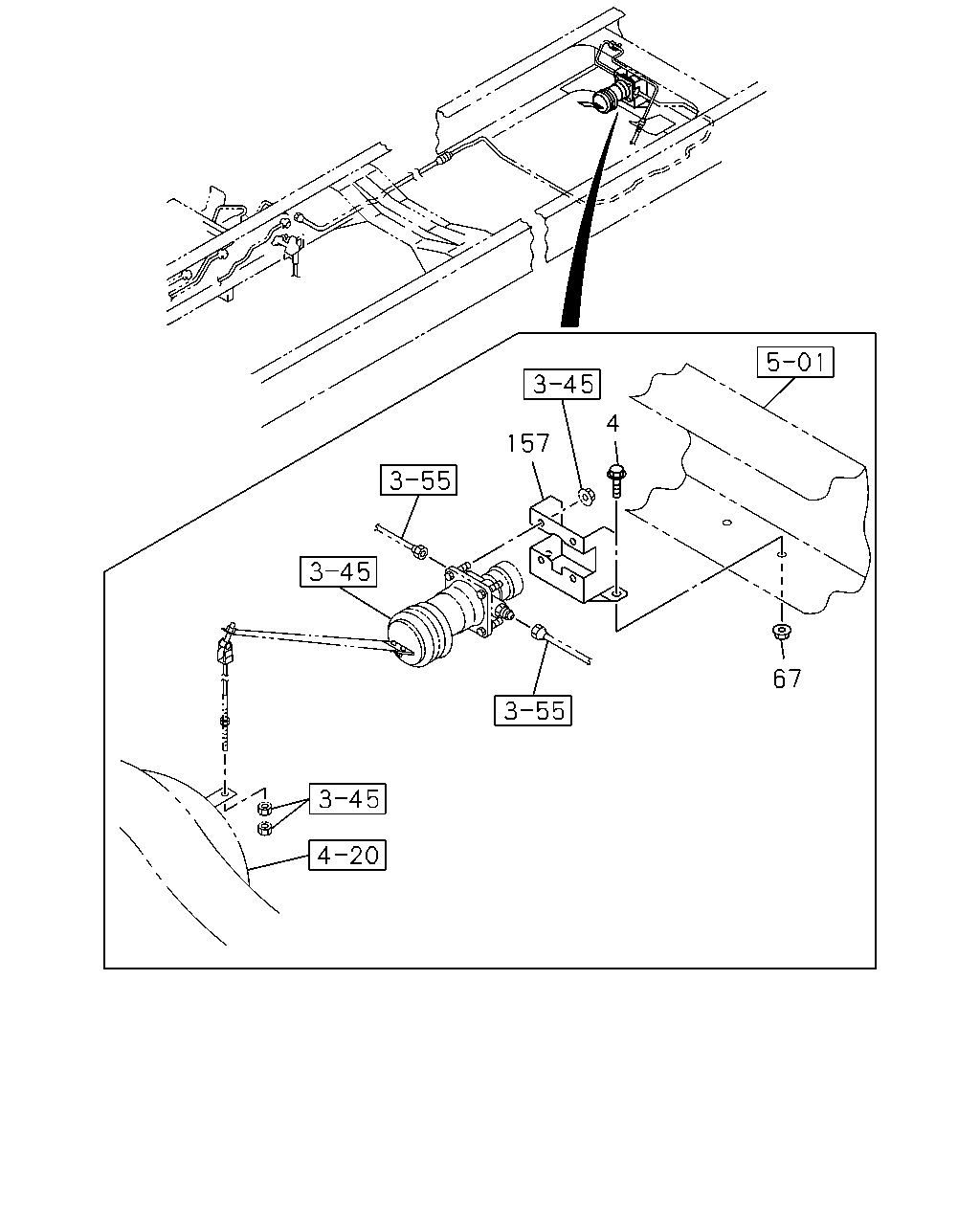

[358A] NO.2 (3 parça)

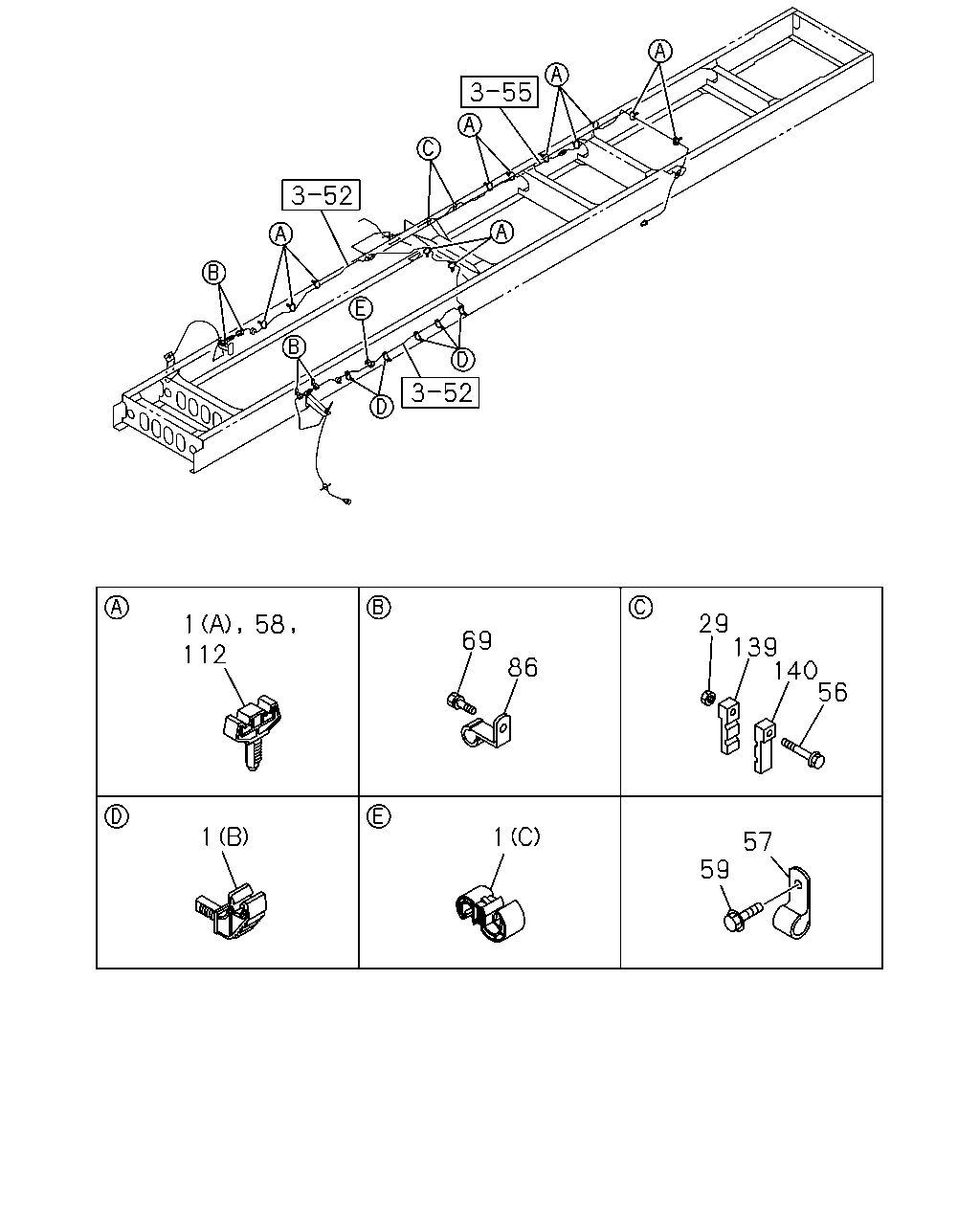

[358A] NO.1 (20 parça)
▶
67
157
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOLT; BRKT
BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE
0-28650-830-0
02
1
1302-
67
NUT; BRKT
BRK WHL LK CONT LSPV<6PH> M8 FLANGE
0-91180-108-0
02
1
1302-
157
BRACKET; BRK
BRK WHL LK CONT LSPV<6PH>
1-47477-787-0
01
1
1302-
57
59
1
1
56
140
139
29
86
69
58
112
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35
1-09701-247-1
05
1
1302-
1
CLIP; OIL PIPE TO BODY
(C) ID=6.35 & 6.35
1-09709-273-1
01
1
1302-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
02
1
1302-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1302-
29
NUT; CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M8 FLANGE
0-91180-108-0
02
1
1302-
56
BOLT; CLIP
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) M8X50 FLANGE
0-28050-850-0
02
1
1302-
57
CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/6 14.5"(W1J) ID=7 L=20
0-95234-635-0
06
1
1302-
57
CLIP; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) ID=7 L=20
0-95234-635-0
04
1
1302-
58
CLIP; OIL PIPE
BRK WHL LK CONT LSPV<6PH>
8-98012-254-1
02
1
1302-
58
CLIP; OIL PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W)
8-98012-254-1
03
1
1302-
58
CLIP; OIL PIPE
WHEEL BASE 4100MM(41W) EXC. BRK WHL LK CONT LSPV<6PH>
8-98012-254-1
01
1
1302-
59
BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/6 14.5"(W1J) M8X10 FLANGE
0-28050-810-0
06
1
1302-
59
BOLT; BRK PIPE,RR AXLE
FINAL GEAR 39/7 15.5"(W3K) M8X10 FLANGE
0-28050-810-0
04
1
1302-
69
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
1302-
86
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 3600MM(36W)
8-98012-254-1
02
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4100MM(41W)
8-98012-254-1
05
1
1302-
112
CLIP; OIL PIPE
WHEEL BASE 4200MM(42W)
8-98012-254-1
03
1
1302-
139
CLIP; UPR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ID=10 & 10
1-09709-241-0
02
1
1302-
140
CLIP; LWR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) ID=6 & 6
1-09709-244-0
02
1
1302-
