Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#116081) — 263 parça

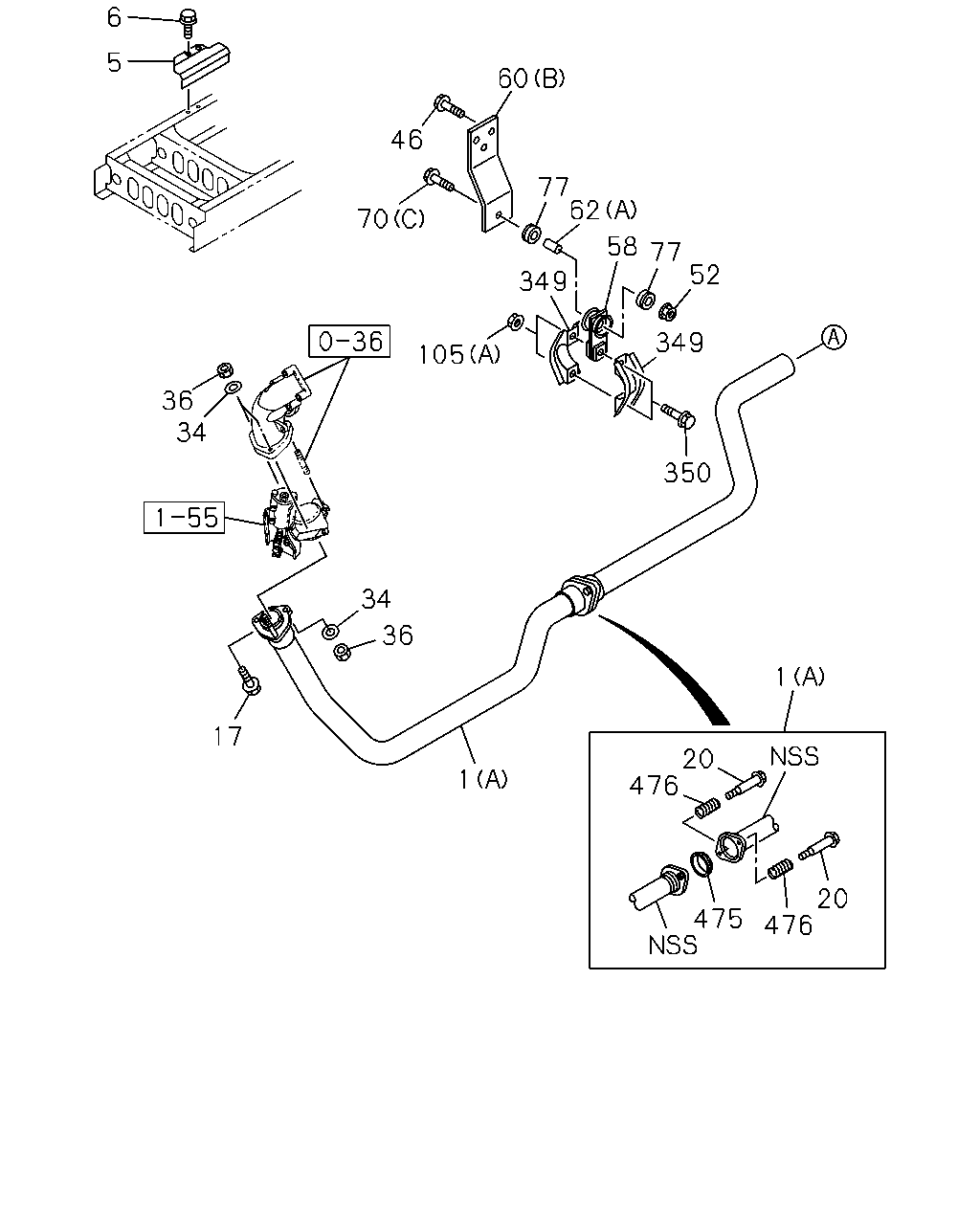

6 5 60 46 70 77 349 62 52 77 58 349 350 105 36 34 34 36 17 1 1 20 476 475 476 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH DOUBLE TIRE REARWARD<SR6> (B)	8-98216-883-0	01	1	1302-
1	PIPE; EXH EXC. DOUBLE TIRE REARWARD<SR6> (A)	8-98216-882-0	01	1	1302-
5	PROTECTOR; HEAT	8-98044-124-0	01	1	1302-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-
17	BOLT; EXH PIPE M12X120	1-09000-293-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	1302-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	1302-
46	BOLT; BRKT,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> M10X35 FLANGE	0-28651-035-0	02	1	1302-
52	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> M10 FLANGE	0-91180-210-0	01	1	1302-
58	BRACKET; EXH PIPE,RR EXC. DOUBLE TIRE REARWARD<SR6> L=94	1-22131-575-0	01	1	1302-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98108-507-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B)	8-98108-372-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-835-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
77	RUBBER; CUSHION,BRKT EXC. DOUBLE TIRE REARWARD<SR6> OD=40	1-22159-094-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
349	CLAMP; EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> ID=80-84	1-22133-233-0	02	1	1302-
350	BOLT; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> M10X40 FLANGE	0-28651-040-0	02	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	1302-
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	1302-

6 5 36 34 34 36 476 475 476 20 20 1 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH DOUBLE TIRE REARWARD<SR6> (B)	8-98216-883-0	01	1	1302-
1	PIPE; EXH EXC. DOUBLE TIRE REARWARD<SR6> (A)	8-98216-882-0	01	1	1302-
5	PROTECTOR; HEAT	8-98044-124-0	01	1	1302-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-
17	BOLT; EXH PIPE M12X120	1-09000-293-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	1302-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	1302-
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	1302-

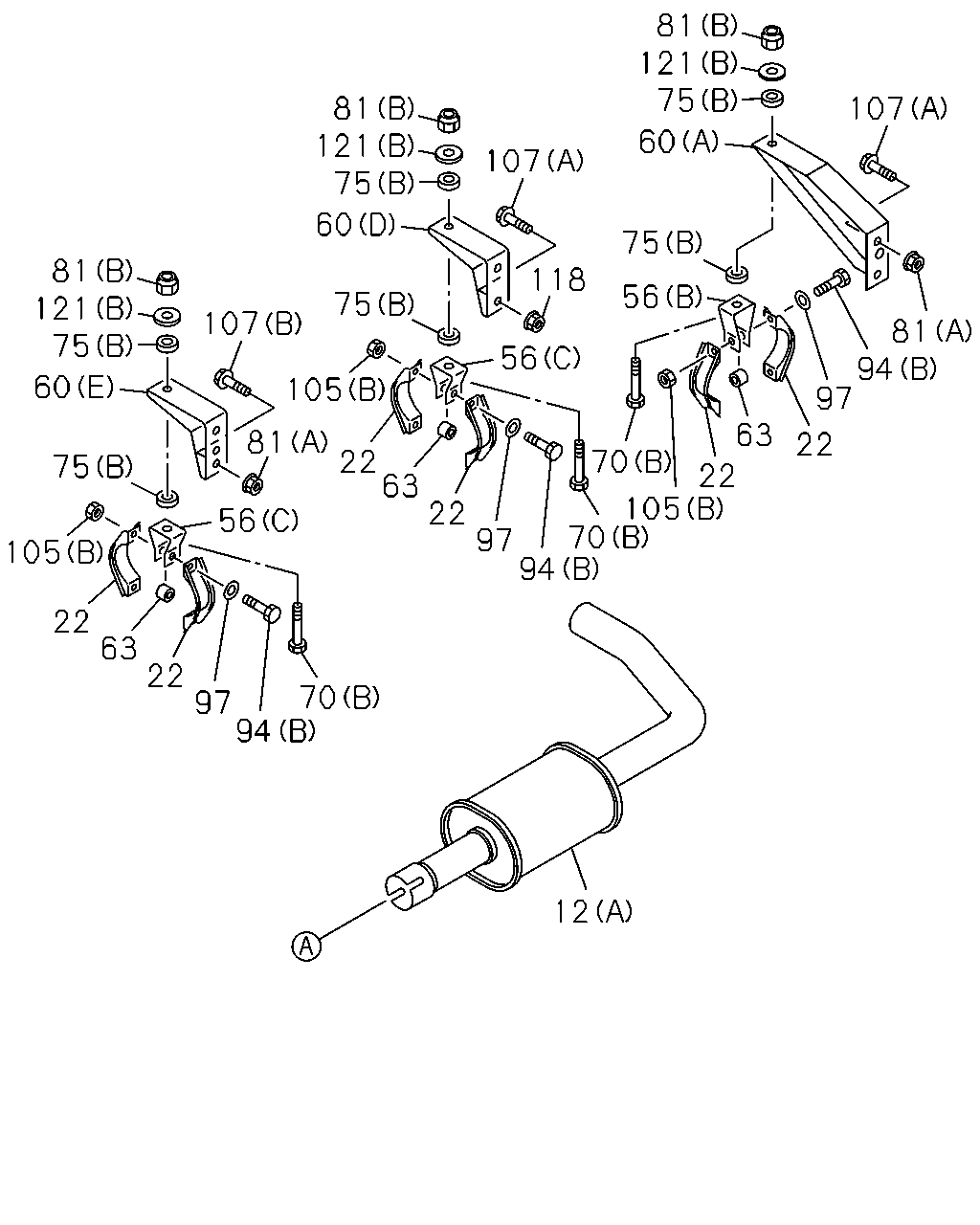

81 12 70 94 97 22 63 22 105 75 60 75 121 107 56 81 94 97 22 63 22 105 70 70 94 97 22 63 22 81 105 56 75 118 75 56 107 60 75 121 81 60 75 121 81 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH DOUBLE TIRE REARWARD<SR6> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (A)	8-98216-885-0	01	1	1302-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) H=67	1-22139-050-0	01	1	1302-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98108-507-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B)	8-98108-372-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-835-0	01	1	1302-
63	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> L=11	1-22139-026-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	03	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
97	WASHER; PL,CLAMP EXC. DOUBLE TIRE REARWARD<SR6> ID=10.5	9-09164-510-0	02	1	1302-
97	WASHER; PL,CLAMP EXC. DOUBLE TIRE REARWARD<SR6> ID=10.5	9-09164-510-0	02	1	1302-
97	WASHER; PL,CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	03	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-

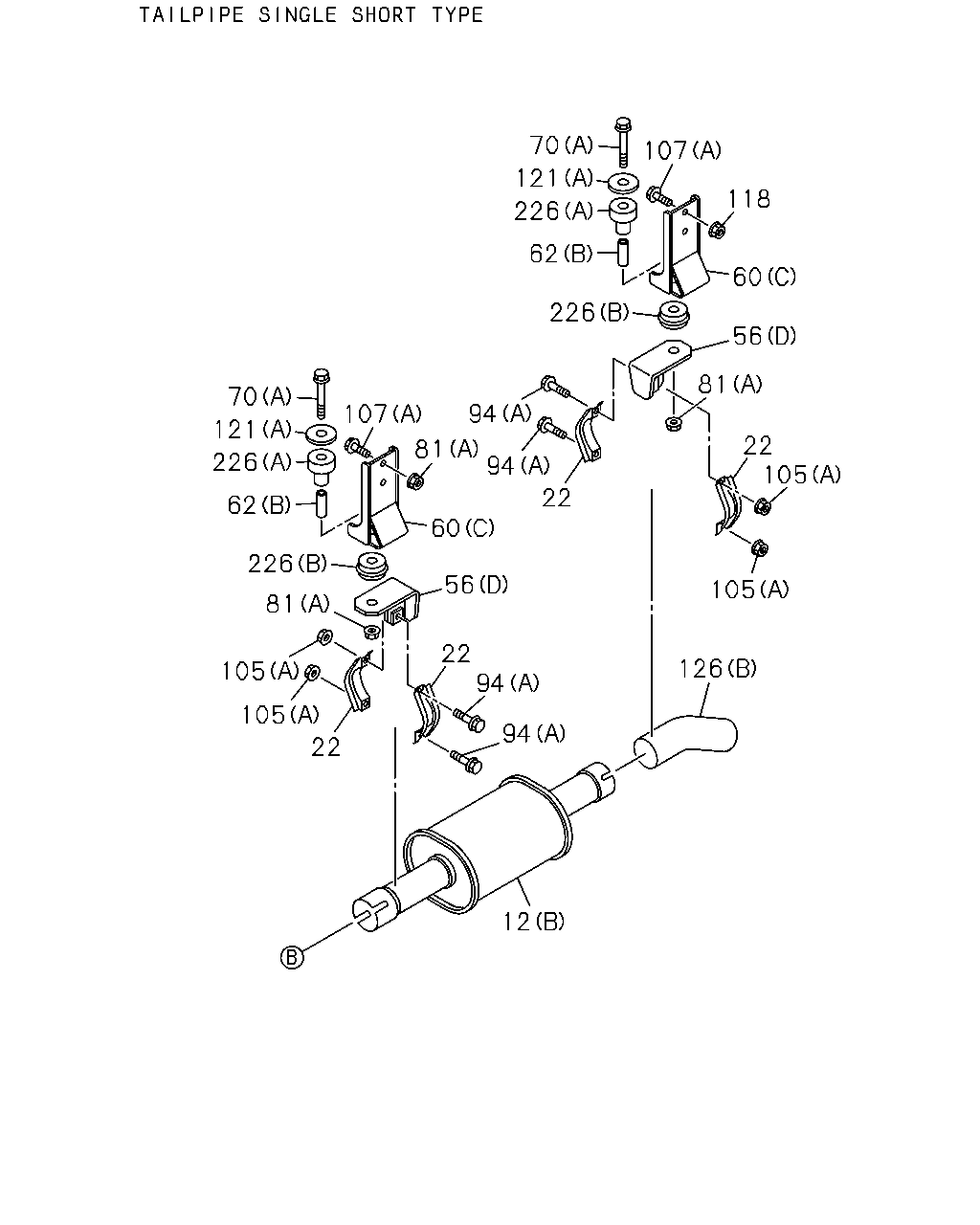

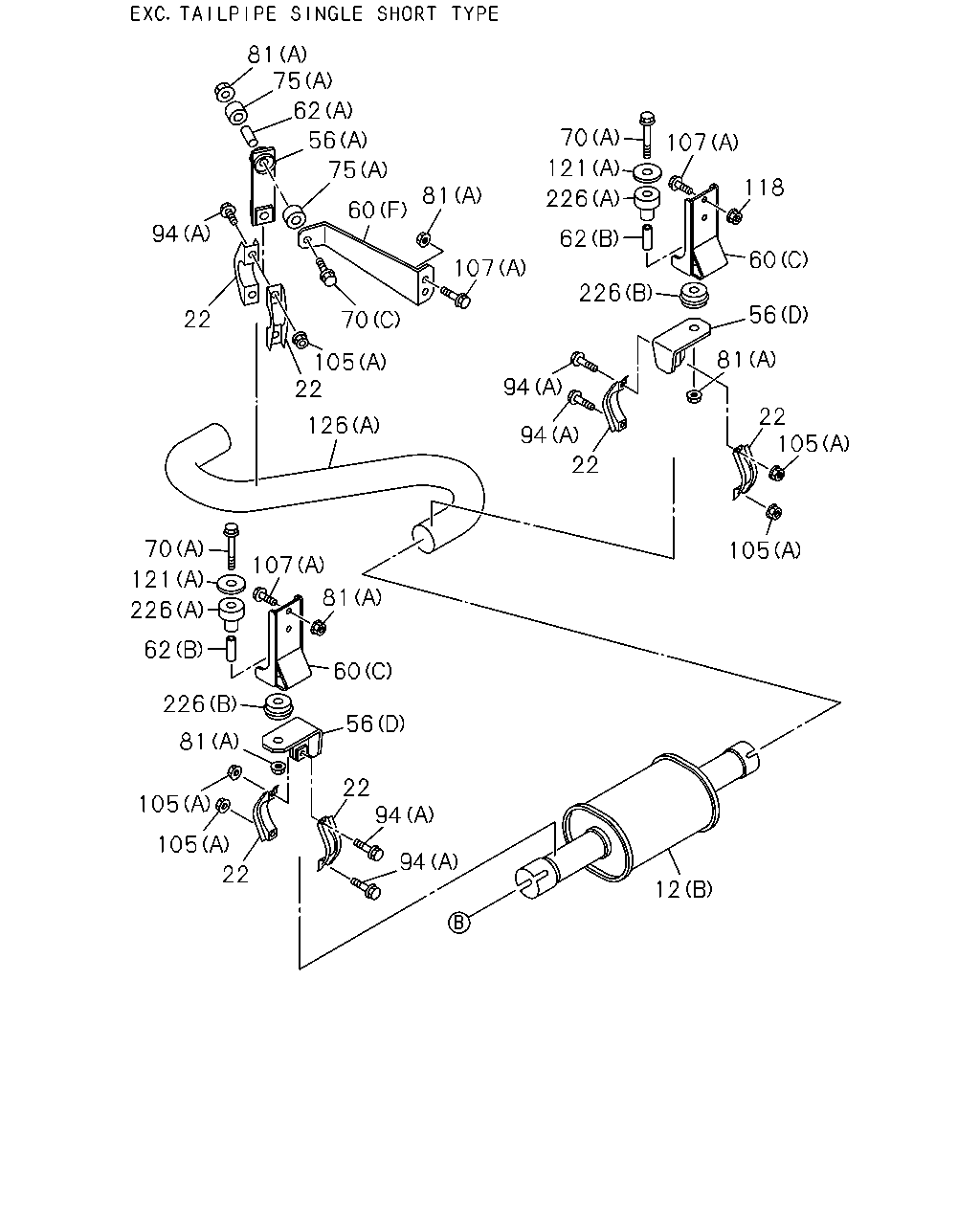

70 107 121 62 226 226 60 118 56 81 22 105 105 94 94 81 107 70 226 121 62 226 81 105 105 22 22 94 94 12 126 22 60 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH DOUBLE TIRE REARWARD<SR6> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (A)	8-98216-885-0	01	1	1302-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) H=67	1-22139-050-0	01	1	1302-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98108-507-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B)	8-98108-372-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-835-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	03	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	03	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
126	PIPE; EXH,RR DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (B)	8-94457-278-1	01	1	1302-

81 62 75 56 60 81 107 70 94 22 105 22 94 94 126 226 62 226 121 70 107 118 60 56 81 22 105 105 22 107 70 81 60 56 22 94 94 22 105 105 81 226 62 121 226 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH DOUBLE TIRE REARWARD<SR6> (B)	8-98212-747-0	01	1	1302-
12	SILENCER ASM; EXH EXC. DOUBLE TIRE REARWARD<SR6> (A)	8-98216-885-0	01	1	1302-
22	CLAMP; EXH PIPE ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=80-84	1-22133-233-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98101-361-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> (D)	8-98245-538-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-528-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6> (C)	1-22139-074-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) H=67	1-22139-050-0	01	1	1302-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> (C)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98108-507-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (D)	1-22151-501-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (E)	1-22151-847-0	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B)	8-98108-372-1	01	1	1302-
60	BRACKET; FRAME TO BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22131-835-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> (B) L=39	8-98060-852-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) L=22	9-22159-024-0	01	1	1302-
62	TUBE; DIST,BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=30	1-22159-106-1	02	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
81	NUT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	03	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT DOUBLE TIRE REARWARD<SR6> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
107	BOLT; BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) M10X40 FLANGE	0-28651-040-0	03	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT DOUBLE TIRE REARWARD<SR6> (A) ID=11 OD=54	1-09503-154-2	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT EXC. DOUBLE TIRE REARWARD<SR6>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
126	PIPE; EXH,RR DOUBLE TIRE REARWARD<SR6> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (B)	8-94457-278-1	01	1	1302-
226	RUBBER; CUSHION DOUBLE TIRE REARWARD<SR6> (B)	8-94457-278-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
