Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#116069) — 464 parça

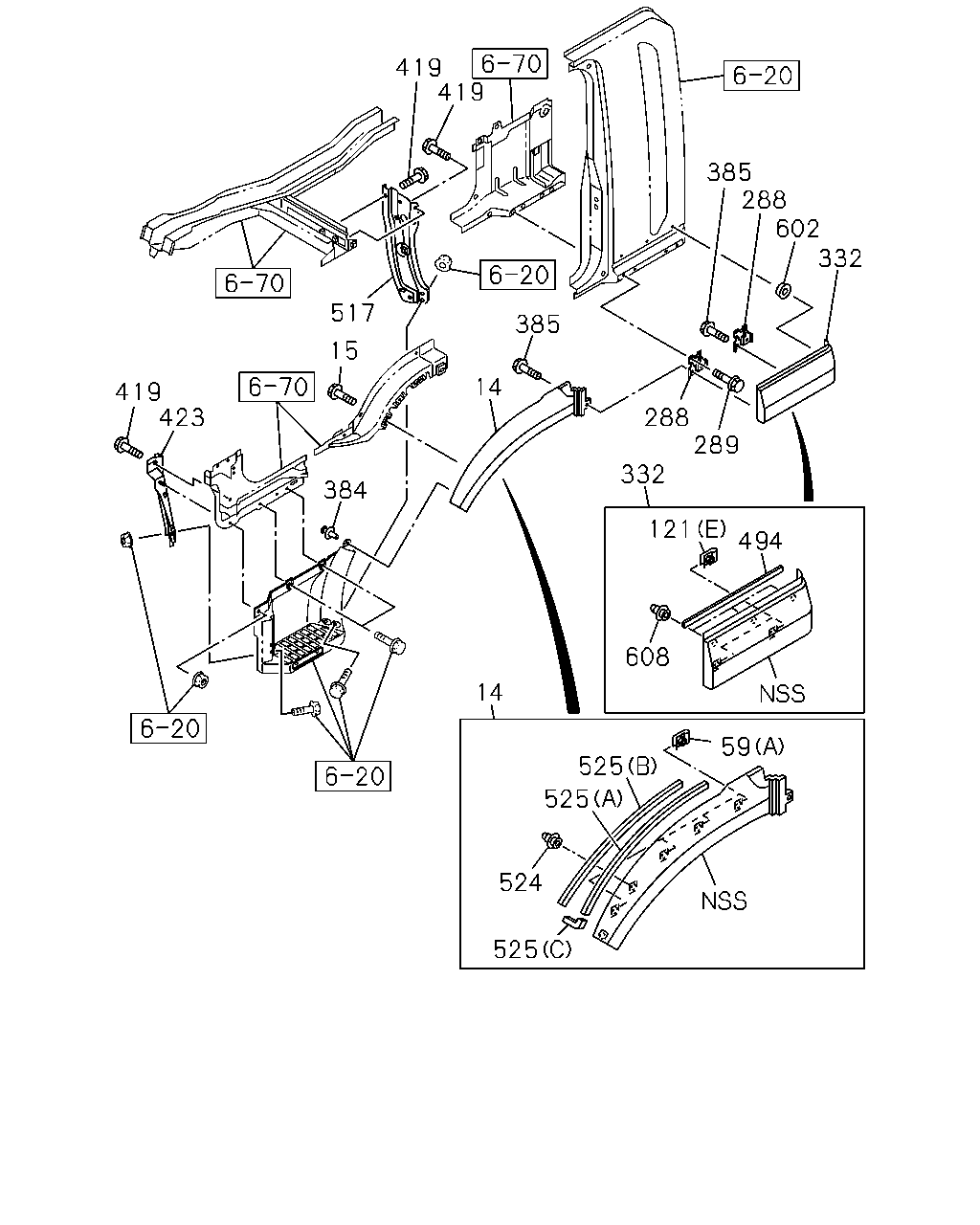

419 419 385 288 602 332 289 288 332 121 494 608 59 525 525 524 525 14 14 385 517 15 384 423 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT BLACK	8-98041-399-3	01	1	1302-
14	FENDER; FRT BLACK	8-98041-398-3	01	1	1302-
15	BOLT; FENDER M6X20 W/PL WASHER	8-98059-504-0	06	1	1302-
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A)	8-94279-723-0	02	1	1302-
59	GROMMET; SCREW CAB ALL PAINTING<TFD> (A)	8-94279-723-0	08	1	1302-
59	GROMMET; SCREW EXC. CAB ALL PAINTING<TFD> (A)	8-94279-723-0	10	1	1302-
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1302-
121	GROMMET; FENDER (E)	8-94279-723-0	04	1	1302-
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	10	1	1302-
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1302-
121	GROMMET; FENDER (A)	8-98073-421-0	01	1	1302-
121	GROMMET; FENDER (A)	8-98073-420-0	01	1	1302-
288	BRACKET; FENDER SKIRT	8-98041-162-1	04	1	1302-
289	BOLT; FENDER SKIRT BRKT M6X16 FLANGE	0-28650-616-0	08	1	1302-
332	FENDER; RR BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97413-606-2	01	1	1302-
332	FENDER; RR BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97413-596-2	01	1	1302-
332	FENDER; RR BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97407-507-2	01	1	1302-
332	FENDER; RR BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97407-506-2	01	1	1302-
332	FENDER; RR BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97411-310-2	01	1	1302-
332	FENDER; RR BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97411-304-2	01	1	1302-
332	FENDER; RR BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97413-609-2	01	1	1302-
332	FENDER; RR BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97413-599-2	01	1	1302-
332	FENDER; RR BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97411-313-2	01	1	1302-
332	FENDER; RR BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97411-307-2	01	1	1302-
332	FENDER; RR BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97413-608-2	01	1	1302-
332	FENDER; RR BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97413-598-2	01	1	1302-
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97411-314-2	01	1	1302-
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97411-308-2	01	1	1302-
332	FENDER; RR BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97413-615-2	01	1	1302-
332	FENDER; RR BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97413-605-2	01	1	1302-
332	FENDER; RR BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97413-613-2	01	1	1302-
332	FENDER; RR BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97413-603-2	01	1	1302-
332	FENDER; RR BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97413-612-2	01	1	1302-
332	FENDER; RR BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97413-602-2	01	1	1302-
332	FENDER; RR BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97417-086-2	01	1	1302-
332	FENDER; RR BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97417-085-2	01	1	1302-
332	FENDER; RR BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97417-675-2	01	1	1302-
332	FENDER; RR BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97417-674-2	01	1	1302-
332	FENDER; RR BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97413-607-2	01	1	1302-
332	FENDER; RR BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97413-597-2	01	1	1302-
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97411-311-2	01	1	1302-
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97411-305-2	01	1	1302-
332	FENDER; RR BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97411-315-2	01	1	1302-
332	FENDER; RR BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97411-309-2	01	1	1302-
332	FENDER; RR BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97413-611-2	01	1	1302-
332	FENDER; RR BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97413-601-2	01	1	1302-
332	FENDER; RR BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97413-610-2	01	1	1302-
332	FENDER; RR BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97413-600-2	01	1	1302-
332	FENDER; RR EXC. CAB ALL PAINTING<TFD>	8-98038-435-2	01	1	1302-
332	FENDER; RR EXC. CAB ALL PAINTING<TFD>	8-98038-434-2	01	1	1302-
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	02	1	1302-
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	04	1	1302-
419	BOLT; STEP M8X20 FLANGE	0-28650-820-0	08	1	1302-
423	SUPPORT ASM; STEP	8-98037-336-1	01	1	1302-
423	SUPPORT ASM; STEP	8-98037-335-1	01	1	1302-
494	FINISHER; FENDER	8-98072-723-0	01	1	1302-
494	FINISHER; FENDER	8-98041-172-1	01	1	1302-
517	SUPPORT; STEP PANEL	8-98037-339-2	01	1	1302-
517	SUPPORT; STEP PANEL	8-98037-338-2	01	1	1302-
524	CLIP; FENDER COVER OD=7.9 BLACK	8-94279-974-1	02	1	1302-
525	SEAL; FENDER (A) UPPER	8-98061-760-0	02	1	1302-
525	SEAL; FENDER (B) LOWER	8-98061-761-0	02	1	1302-
525	SEAL; FENDER (C)	8-98061-762-0	02	1	1302-
602	RETAINER; COVER ID=5.4 OD=6.8	1-09989-021-0	06	1	1302-1302
602	RETAINER; COVER ID=5.4 OD=6.8	8-98241-984-0	06	1	1303-
608	CLIP D5.4X8	1-09983-154-0	06	1	1302-

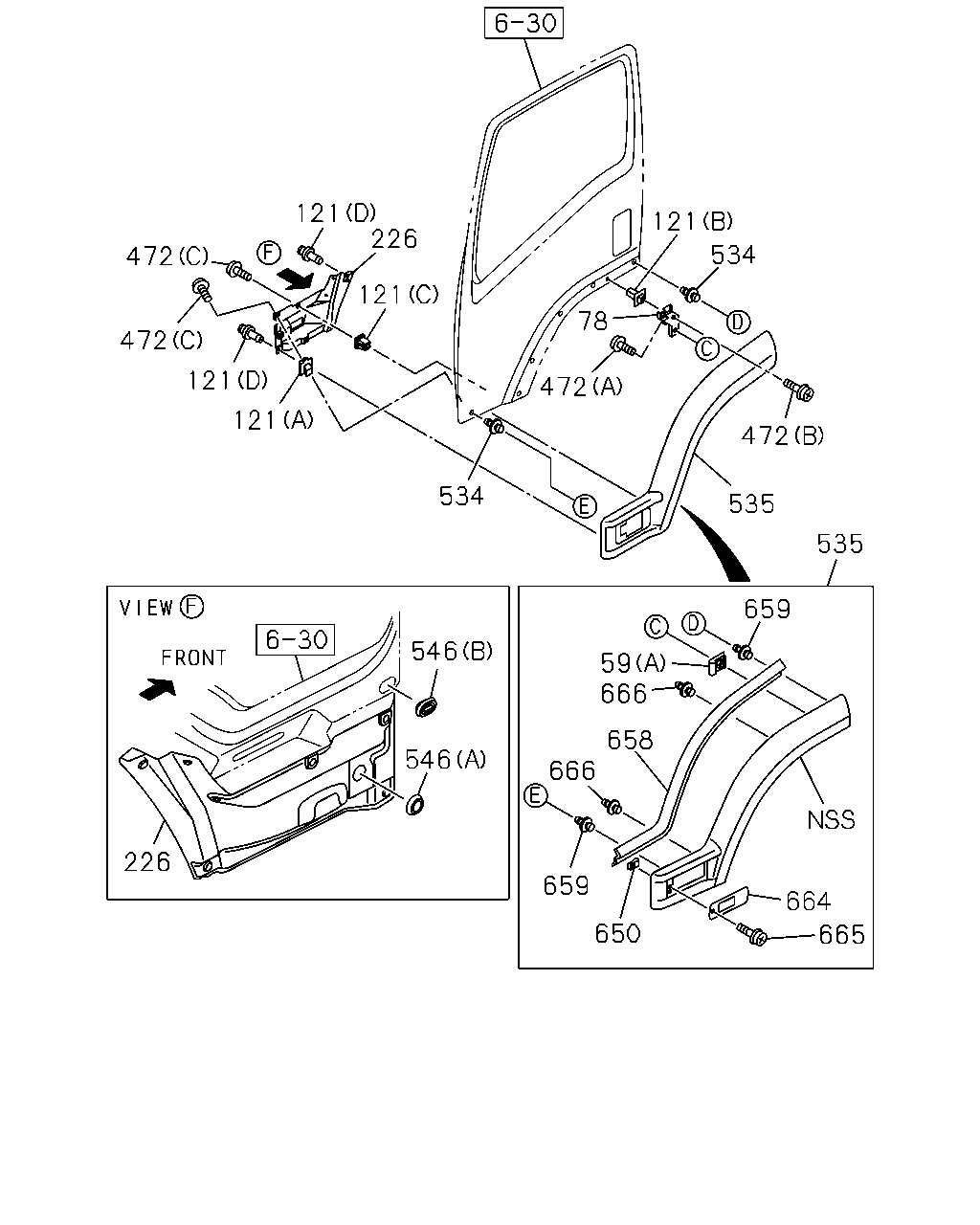

472 472 121 121 121 226 121 534 472 78 121 534 472 535 659 535 59 666 658 666 659 650 664 665 546 546 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A)	8-94279-723-0	02	1	1302-
59	GROMMET; SCREW CAB ALL PAINTING<TFD> (A)	8-94279-723-0	08	1	1302-
59	GROMMET; SCREW EXC. CAB ALL PAINTING<TFD> (A)	8-94279-723-0	10	1	1302-
78	BRACKET; FENDER	8-98041-166-1	01	1	1302-
78	BRACKET; FENDER	8-98041-165-1	01	1	1302-
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1302-
121	GROMMET; FENDER (E)	8-94279-723-0	04	1	1302-
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	10	1	1302-
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1302-
121	GROMMET; FENDER (A)	8-98073-421-0	01	1	1302-
121	GROMMET; FENDER (A)	8-98073-420-0	01	1	1302-
226	PROTECTOR; FRT	8-98037-713-2	01	1	1302-
226	PROTECTOR; FRT	8-98037-712-2	01	1	1302-
472	SCREW; FENDER TO CAB (A) M6X18 TAPPING	8-98059-505-0	02	1	1302-
472	SCREW; FENDER TO CAB (C) M5X16	8-98090-737-0	08	1	1302-
472	SCREW; FENDER TO CAB (B) M5X12	8-98093-669-0	04	1	1302-
534	FASTENER ID=5.4 OD=6.8	1-09989-021-0	12	1	1302-1302
534	FASTENER ID=5.4 OD=6.8	8-98241-984-0	12	1	1303-
535	FENDER; BLISTER BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97415-340-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97415-320-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97415-345-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97415-325-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97415-342-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97415-322-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97415-334-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97415-314-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97415-343-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97415-323-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97415-341-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97415-321-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97415-348-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97415-328-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97415-337-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97415-317-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97415-349-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97415-329-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97415-352-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97415-332-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97417-090-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97417-089-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97417-743-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97417-742-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97415-333-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97415-313-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97415-351-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97415-331-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97415-335-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97415-315-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97415-350-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97415-330-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97415-339-1	01	1	1302-
535	FENDER; BLISTER BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97415-319-1	01	1	1302-
535	FENDER; BLISTER EXC. CAB ALL PAINTING<TFD> BLACK	8-98106-499-0	01	1	1302-
535	FENDER; BLISTER EXC. CAB ALL PAINTING<TFD> BLACK	8-98106-498-0	01	1	1302-
546	PLUG; DUMMY HOLE (A) OD=38	8-94159-507-0	02	1	1302-
546	PLUG; DUMMY HOLE (B)	8-94430-184-1	02	1	1302-
650	NUT; SPIRE	8-94279-501-0	02	1	1302-
658	FINISHER; BLISTER FENDER	8-98041-169-3	01	1	1302-
658	FINISHER; BLISTER FENDER	8-98041-168-3	01	1	1302-
659	CLIP; FENDER D5.4X8	1-09983-154-0	08	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97421-549-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY	8-97421-521-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97421-497-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97421-485-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97421-499-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97421-487-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97421-539-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE	8-97421-511-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97421-503-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97421-491-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97421-551-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED	8-97421-523-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97421-505-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97421-493-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97421-543-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN	8-97421-515-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97421-559-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE	8-97421-531-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97421-563-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97421-535-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97421-603-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN	8-97421-601-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97421-607-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE	8-97421-605-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97421-537-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE	8-97421-509-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97421-501-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97421-489-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97421-507-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE	8-97421-495-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97421-596-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW	8-97421-533-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97421-547-0	01	1	1302-
664	BASE; DOOR,SIDE TURN BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN	8-97421-519-0	01	1	1302-
664	BASE; DOOR,SIDE TURN EXC. CAB ALL PAINTING<TFD>	8-98053-146-1	01	1	1302-
664	BASE; DOOR,SIDE TURN EXC. CAB ALL PAINTING<TFD>	8-98053-145-1	01	1	1302-
665	SCREW; FENDER M6X20 W/PL WASHER	0-36210-620-0	02	1	1302-
666	CLIP; BLISTER FENDER	8-98071-178-0	04	1	1302-

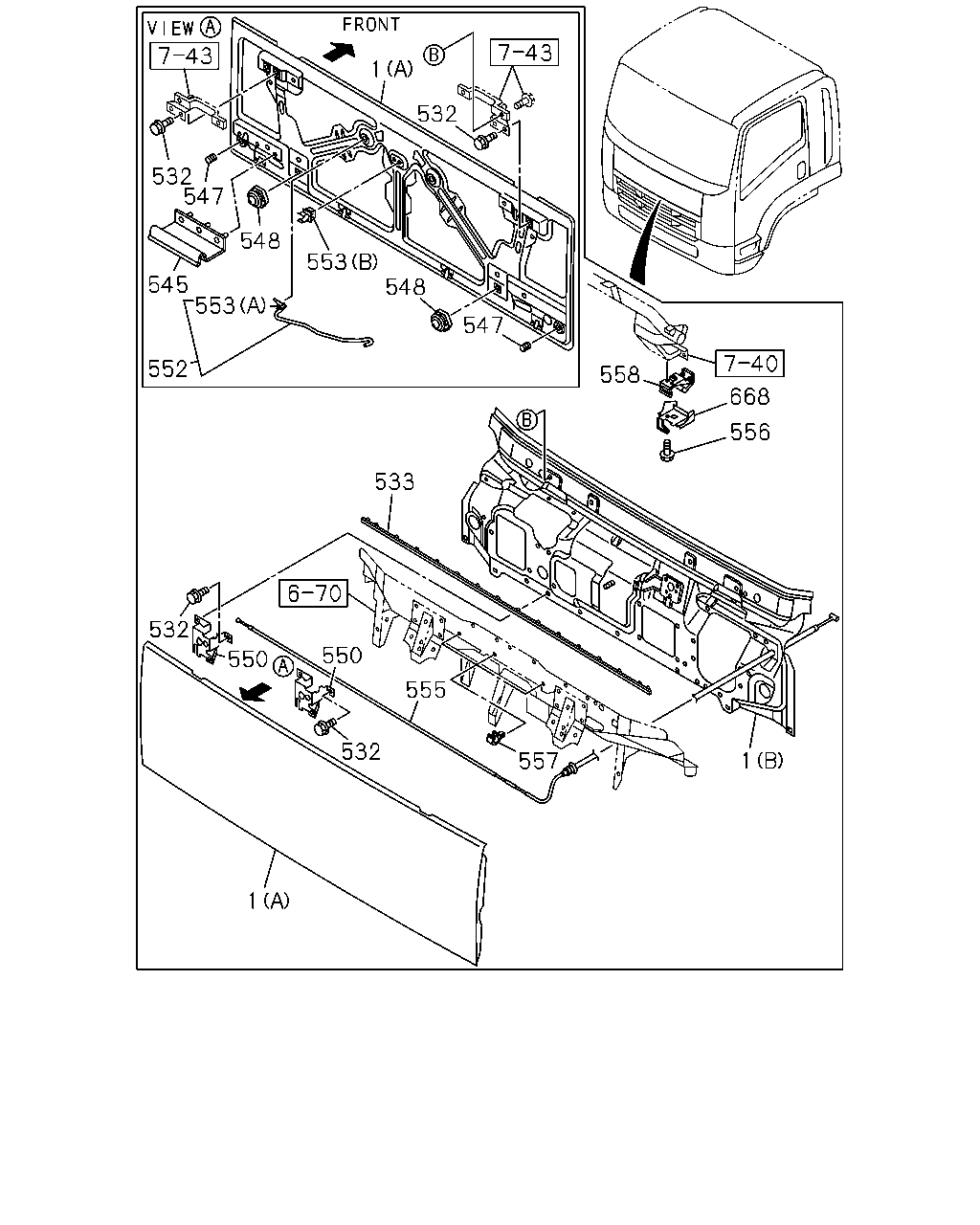

1 532 547 548 553 548 547 532 553 545 552 668 556 558 533 550 555 557 1 1 550 532 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (B)	8-97585-961-6	01	1	1302-
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1302-
532	BOLT; FRT PANEL M8X20 FLANGE	0-28650-820-0	08	1	1302-
533	SEAL; FRT PANEL	8-98096-289-0	01	1	1302-
545	SEAL; FRT LID	8-98123-265-0	01	1	1302-
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	02	1	1302-
548	STRIKER; FRT LID PANEL	8-98068-145-1	02	1	1302-
550	LOCK ASM; FRT LID	8-98036-568-2	02	1	1302-
552	STAY; FRT LID	8-98089-839-1	01	1	1302-
553	CLIP; STAY (B)	8-97031-428-0	01	1	1302-
553	CLIP; STAY (A)	8-98094-542-0	01	1	1302-
555	CABLE; FRT LID	8-98036-574-1	01	1	1302-
556	BOLT; CABLE M6X16 FLANGE	0-28650-616-0	01	1	1302-
557	CLIP; CABLE ID=4.8	8-94128-483-0	03	1	1302-
558	LEVER; FRT LID	8-97865-110-0	01	1	1302-
668	COVER; LEVER,FRT LID	8-98076-339-1	01	1	1302-

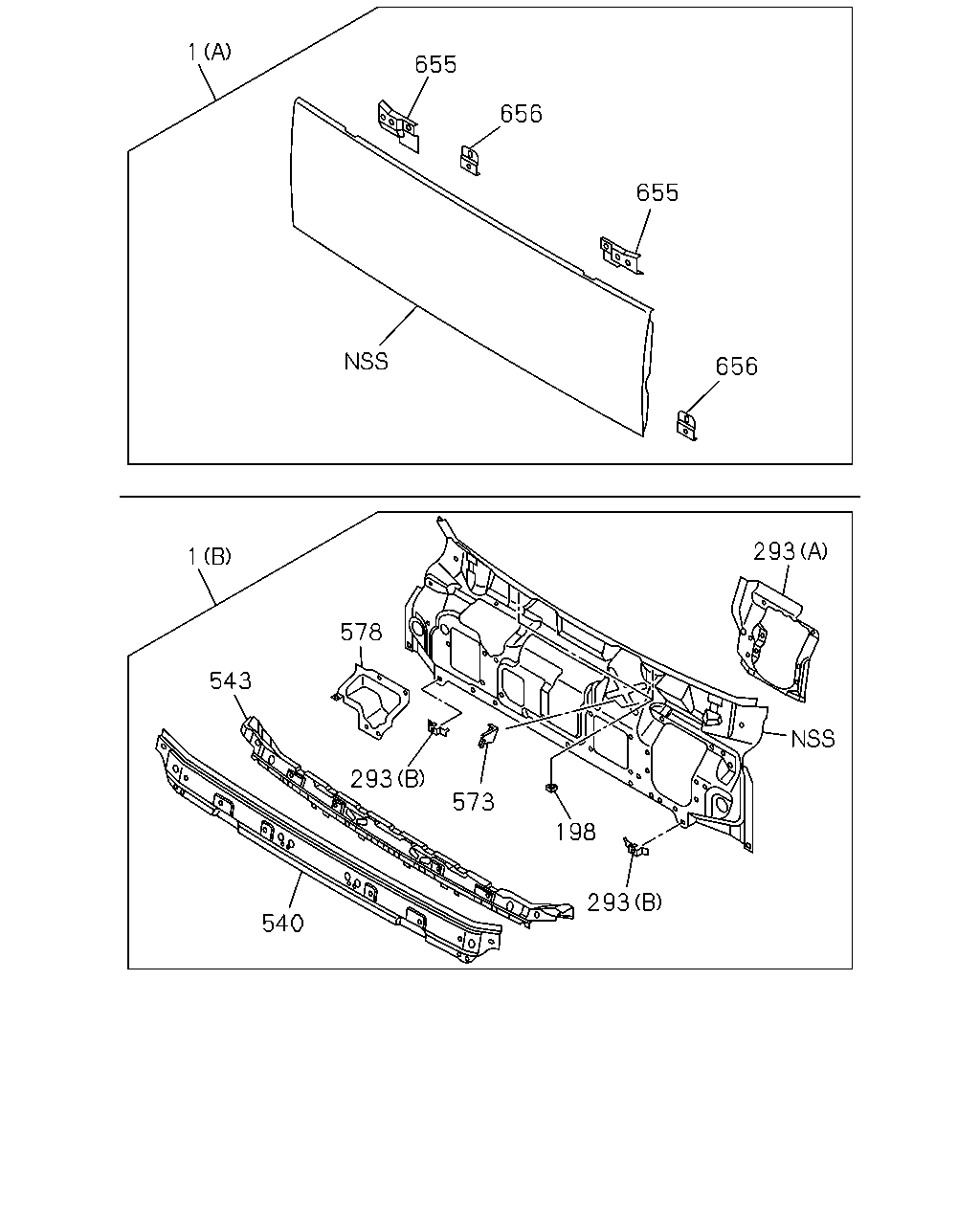

655 656 655 656 1 1 543 578 293 573 198 293 293 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (B)	8-97585-961-6	01	1	1302-
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1302-
198	NUT; PANEL M6	9-09114-086-0	02	1	1302-
293	BRACKET; PANEL (A)	8-97586-008-1	01	1	1302-
293	BRACKET; PANEL (B)	8-98008-124-1	01	1	1302-
293	BRACKET; PANEL (B)	8-98008-126-1	01	1	1302-
540	PANEL; FRONT,OUTER	8-97585-967-1	01	1	1302-
543	CLOSING; FRT MTG RAIL	8-98021-034-3	01	1	1302-
573	BRACKET; SUPPORT	8-98008-127-2	01	1	1302-
578	COVER; WIPER MOTOR	8-98017-702-1	01	1	1302-
655	PATCH; HINGE	8-98031-263-0	01	1	1302-
655	PATCH; HINGE	8-98031-264-0	01	1	1302-
656	PATCH; STRIKER	8-98031-265-0	02	1	1302-

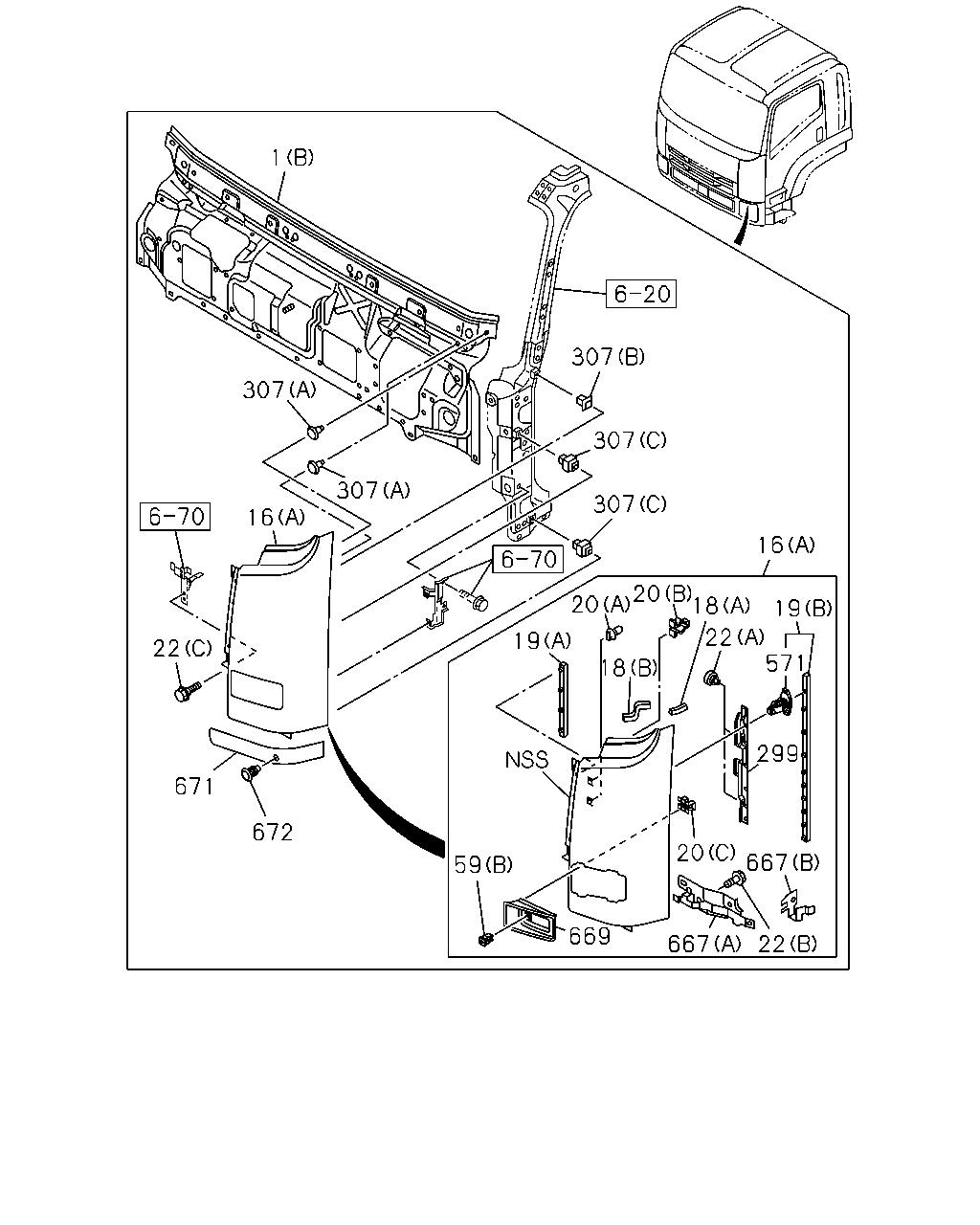

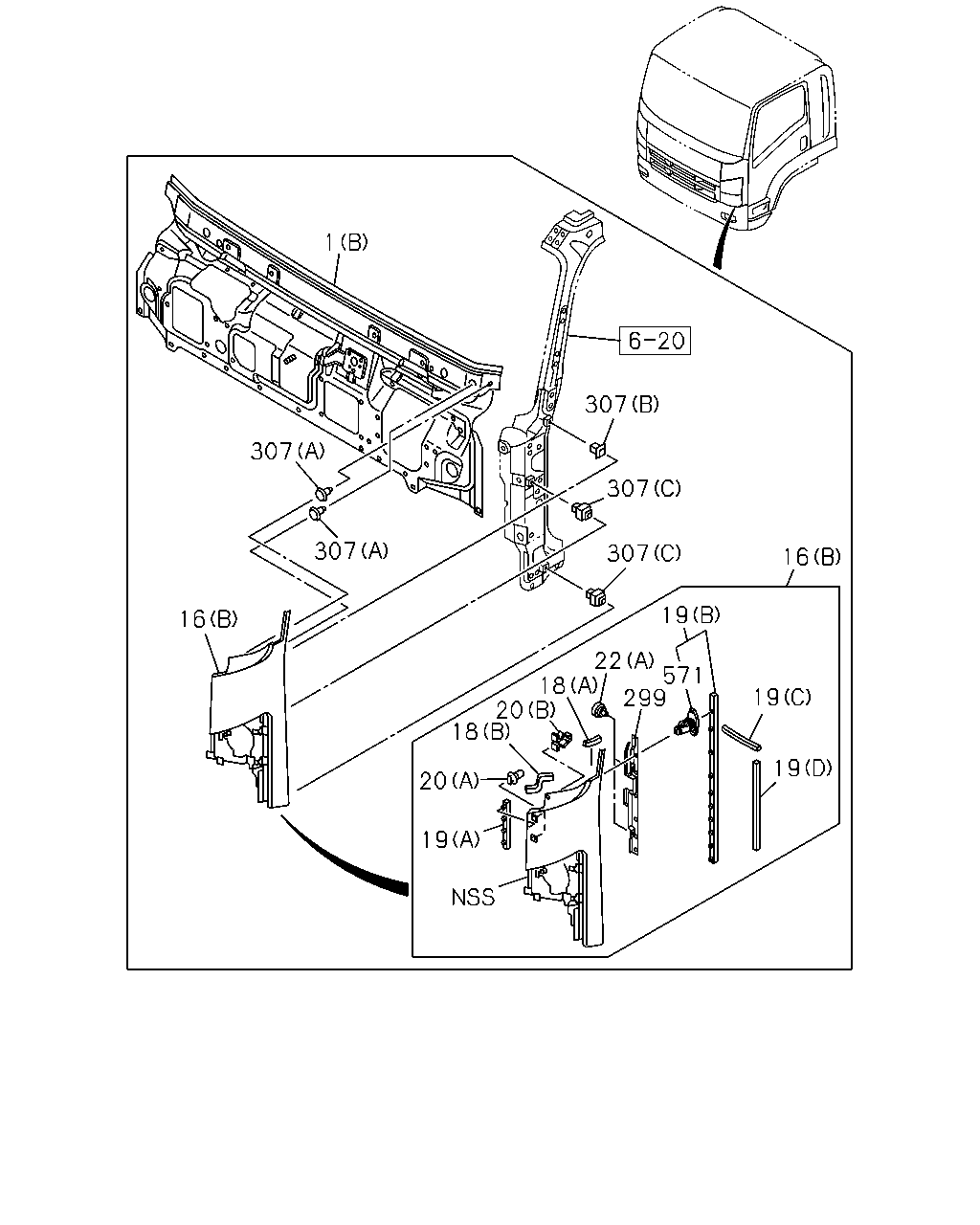

1 307 307 16 22 671 672 59 19 307 307 307 16 19 18 22 571 20 20 18 299 667 20 667 22 669

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (B)	8-97585-961-6	01	1	1302-
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY	8-97417-796-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY	8-97414-259-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY	8-97417-654-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY	8-97413-576-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97412-464-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97409-257-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97409-901-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97407-509-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-465-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-490-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-298-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-292-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-800-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-262-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97415-030-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-579-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-468-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-493-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-301-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-295-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97417-799-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97414-261-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED	8-97417-656-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED	8-97413-578-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97412-467-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97412-492-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97411-302-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97411-296-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN	8-97417-806-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN	8-97414-270-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-660-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97413-585-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE	8-97417-804-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE	8-97414-267-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE	8-97417-658-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE	8-97413-583-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-803-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-265-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97417-657-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-582-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-084-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-083-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97417-805-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97417-795-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97417-659-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97417-653-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-798-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-260-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97417-655-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-577-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE	8-97412-466-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE	8-97412-491-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE	8-97411-299-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE	8-97411-293-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97412-469-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97412-494-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97411-303-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97411-297-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97417-802-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97414-264-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97415-032-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97413-581-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN	8-97417-801-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN	8-97414-263-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN	8-97415-031-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN	8-97413-580-4	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (B)	8-98043-511-1	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98043-511-1	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98043-511-1	01	1	1302-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98036-581-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-581-0	01	1	1302-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B)	8-98041-359-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-359-2	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (C)	8-98035-268-0	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (D)	8-98062-215-0	01	1	1302-
20	CLIP; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C)	8-98046-457-0	04	1	1302-
20	CLIP; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C)	8-98046-457-0	04	1	1302-
22	SCREW; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE	8-98061-108-0	06	1	1302-1505
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE	8-98314-627-0	06	1	1506-
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7	8-94430-147-0	02	1	1302-
59	GROMMET; SCREW BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A)	8-94279-723-0	02	1	1302-
59	GROMMET; SCREW CAB ALL PAINTING<TFD> (A)	8-94279-723-0	08	1	1302-
59	GROMMET; SCREW EXC. CAB ALL PAINTING<TFD> (A)	8-94279-723-0	10	1	1302-
299	COVER; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB>	8-98034-814-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-814-1	01	1	1302-
299	COVER; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7>	8-98034-813-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1302-
307	GROMMET; FRT PANEL (B)	8-97410-738-0	02	1	1302-
307	GROMMET; FRT PANEL (C)	8-98021-300-1	04	1	1302-
307	GROMMET; FRT PANEL (A) OD=20	8-98034-363-1	04	1	1302-
571	CLIP; SEAL REINFORCEMENT BUMPER<VG7> NATURAL	8-98027-457-0	10	1	1302-
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1302-
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1302-
667	STAY; EXT,SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98088-642-0	01	1	1302-
667	STAY; EXT,SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B)	8-98088-644-1	01	1	1302-
667	STAY; EXT,SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98088-641-0	01	1	1302-
667	STAY; EXT,SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B)	8-98088-643-1	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY	8-97414-473-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY	8-97414-489-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-261-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-265-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED	8-97412-509-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED	8-97412-519-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-479-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-383-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED	8-97412-512-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED	8-97412-522-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED	8-97414-477-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED	8-97414-380-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW	8-97412-511-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW	8-97412-521-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN	8-97414-471-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN	8-97414-430-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE	8-97414-464-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE	8-97414-436-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-462-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-422-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE	8-97417-987-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE	8-97418-047-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-475-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE	8-97414-377-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE	8-97412-510-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE	8-97412-520-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE	8-97412-513-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE	8-97412-523-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW	8-97414-461-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW	8-97414-490-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN	8-97414-460-0	01	1	1302-
669	BEZEL; LAMP,FT TURN BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN	8-97414-386-0	01	1	1302-
671	RUBBER; SIDE PANEL BUMPER W/HEADLAMPS<SLB>	8-98088-646-1	02	1	1302-
672	PLUG; SIDE PANEL BUMPER W/HEADLAMPS<SLB> OD=16 L=11	1-76378-155-0	02	1	1302-

1 307 307 16 307 307 307 16 19 19 299 571 22 19 18 20 18 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PANEL ASM; FRT (B)	8-97585-961-6	01	1	1302-
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY	8-97417-796-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> (A) GRAY	8-97414-259-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY	8-97417-654-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR AL GRAY(517) REINFORCEMENT BUMPER<VG7> (B) GRAY	8-97413-576-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97412-464-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97409-257-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97409-901-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97407-509-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-465-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-490-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-298-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-292-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-800-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-262-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97415-030-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR DARK BLUE(695) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-579-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-468-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97412-493-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-301-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) REINFORCEMENT BUMPER<VG7> (B) RED	8-97411-295-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97417-799-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> (A) RED	8-97414-261-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED	8-97417-656-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GERANIUM RED(681) REINFORCEMENT BUMPER<VG7> (B) RED	8-97413-578-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97412-467-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97412-492-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97411-302-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97411-296-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN	8-97417-806-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> (A) GREEN	8-97414-270-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-660-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR GREEN(989) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97413-585-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE	8-97417-804-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> (A) ORANGE	8-97414-267-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE	8-97417-658-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR HIGHWAY ORANGE(944) REINFORCEMENT BUMPER<VG7> (B) ORANGE	8-97413-583-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-803-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-265-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97417-657-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-582-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-084-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR MIDDLE BRONZE GREEN(909) REINFORCEMENT BUMPER<VG7> (B) GREEN	8-97417-083-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97417-805-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> (A) WHITE	8-97417-795-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97417-659-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR POLAR WHITE(982) REINFORCEMENT BUMPER<VG7> (B) WHITE	8-97417-653-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97417-798-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97414-260-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97417-655-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR PURPLISH BLUE(668) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97413-577-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE	8-97412-466-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> (A) BEIGE	8-97412-491-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE	8-97411-299-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) REINFORCEMENT BUMPER<VG7> (B) BEIGE	8-97411-293-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97412-469-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> (A) BLUE	8-97412-494-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97411-303-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR TRANS BLUE(999) REINFORCEMENT BUMPER<VG7> (B) BLUE	8-97411-297-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97417-802-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> (A) YELLOW	8-97414-264-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97415-032-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WHEATLAND YELLOW(812) REINFORCEMENT BUMPER<VG7> (B) YELLOW	8-97413-581-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN	8-97417-801-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> (A) DARK GREEN	8-97414-263-5	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN	8-97415-031-4	01	1	1302-
16	PANEL; FRONT,SIDE BODY COLOR WOODLAND GREEN(807) REINFORCEMENT BUMPER<VG7> (B) DARK GREEN	8-97413-580-4	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98038-608-0	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (B)	8-98043-511-1	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98043-511-1	01	1	1302-
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98043-511-1	01	1	1302-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	8-98036-581-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-581-0	01	1	1302-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B)	8-98041-359-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-359-2	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (C)	8-98035-268-0	01	1	1302-
19	SEAL; FRT SIDE PANEL REINFORCEMENT BUMPER<VG7> (D)	8-98062-215-0	01	1	1302-
20	CLIP; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1302-
20	CLIP; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1302-
20	CLIP; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C)	8-98046-457-0	04	1	1302-
20	CLIP; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C)	8-98046-457-0	04	1	1302-
22	SCREW; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7> (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1302-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE	8-98061-108-0	06	1	1302-1505
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE	8-98314-627-0	06	1	1506-
299	COVER; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB>	8-98034-814-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-814-1	01	1	1302-
299	COVER; FRT PANEL SIDE REINFORCEMENT BUMPER<VG7>	8-98034-813-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1302-
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1302-
307	GROMMET; FRT PANEL (B)	8-97410-738-0	02	1	1302-
307	GROMMET; FRT PANEL (C)	8-98021-300-1	04	1	1302-
307	GROMMET; FRT PANEL (A) OD=20	8-98034-363-1	04	1	1302-
571	CLIP; SEAL REINFORCEMENT BUMPER<VG7> NATURAL	8-98027-457-0	10	1	1302-
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1302-
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
