Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

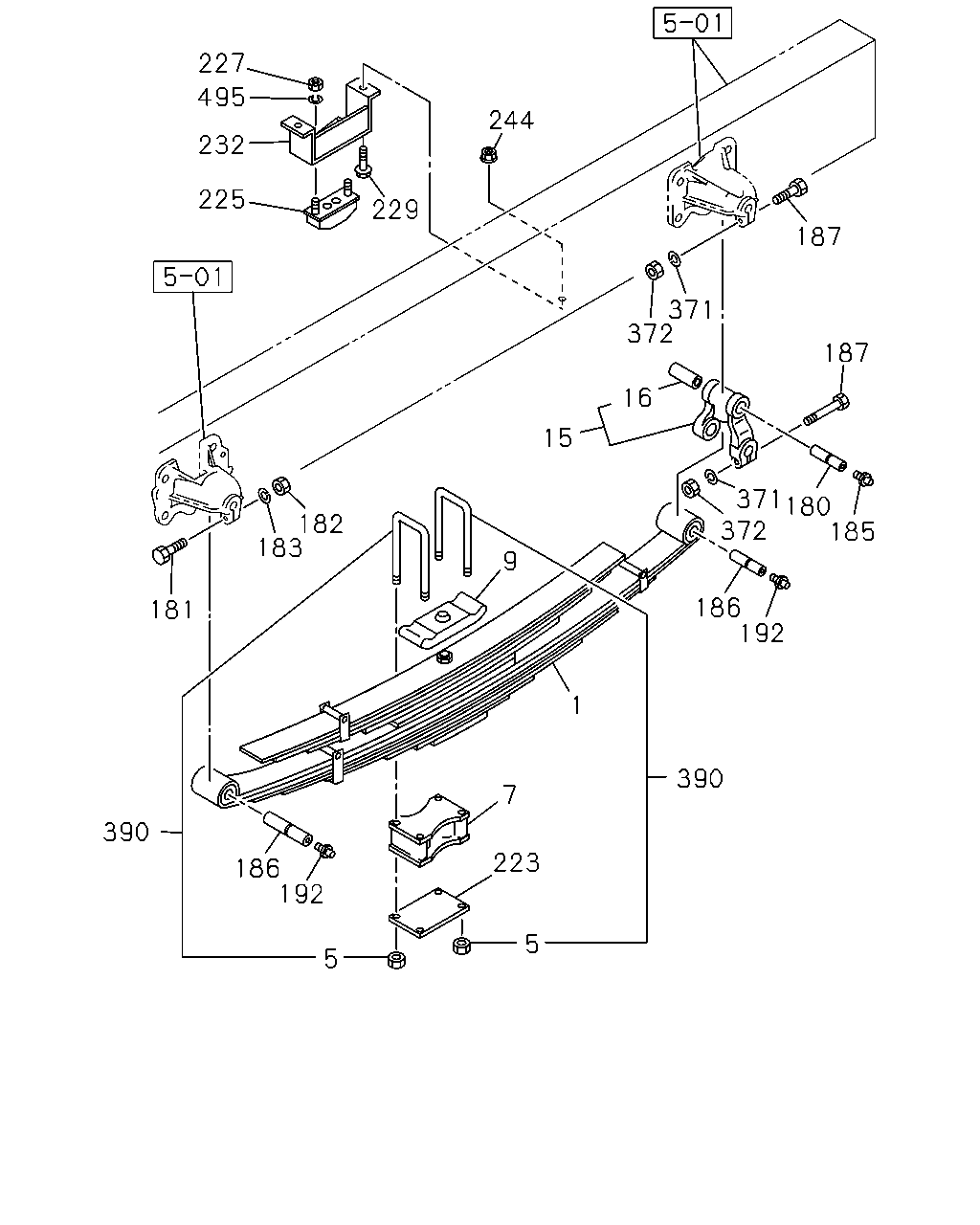

4-60 — REAR SUSPENSION
(#116065) — 27 parça
227
495
232
225
229
244
187
371
372
16
15
187
185
180
371
372
186
192
390
5
223
7
1
9
182
183
181
390
186
192
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REARWARD INNER SINGLE TIRE<YK3> 15-LEAF
8-98034-468-0
02
1
1302-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REARWARD INNER SINGLE TIRE<YK3> 16-LEAF
8-98034-467-0
02
1
1302-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1302-
7
SEAT; SPR,LWR
1-51385-062-2
02
1
1302-
9
PAD; U BOLT,RR SPR
1-51372-048-1
02
1
1302-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1302-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1302-
16
BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS
1-87610-163-0
02
1
1302-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
02
1
1302-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1302-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1302-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1302-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1302-
186
PIN; SHACKLE,RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
04
1
1302-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1302-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
1302-
223
SPACER; U BOLT,RR SPR
1-51377-246-0
01
1
1302-
225
RUBBER; CUSHION,RR SPR
REAR SHOCK ABSORBER<GL6>
9-53366-021-1
02
1
1302-
227
NUT; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6> M10 FLANGE
0-91180-210-0
04
1
1302-
229
BOLT; BRKT
REAR SHOCK ABSORBER<GL6> M12X35 FLANGE
0-28651-235-0
04
1
1302-
232
BRACKET; CUSHION RUBBER
REAR SHOCK ABSORBER<GL6>
8-98050-661-0
02
1
1302-
244
NUT; BRKT
REAR SHOCK ABSORBER<GL6> M12 FLANGE
0-91180-212-0
04
1
1302-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
04
1
1302-
372
NUT; SHACKLE
M14
0-91110-514-0
04
1
1302-
390
U-BOLT SET; RR SPRING
DOUBLE TIRE REARWARD<SR6> L=590
1-87870-478-0
04
1
1302-
390
U-BOLT SET; RR SPRING
REARWARD INNER SINGLE TIRE<YK3> L=570
1-87870-320-1
04
1
1302-
495
WASHER; RUBBER
REAR SHOCK ABSORBER<GL6> ID=10.2
0-91510-510-0
04
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
