Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#116061) — 16 parça
◀

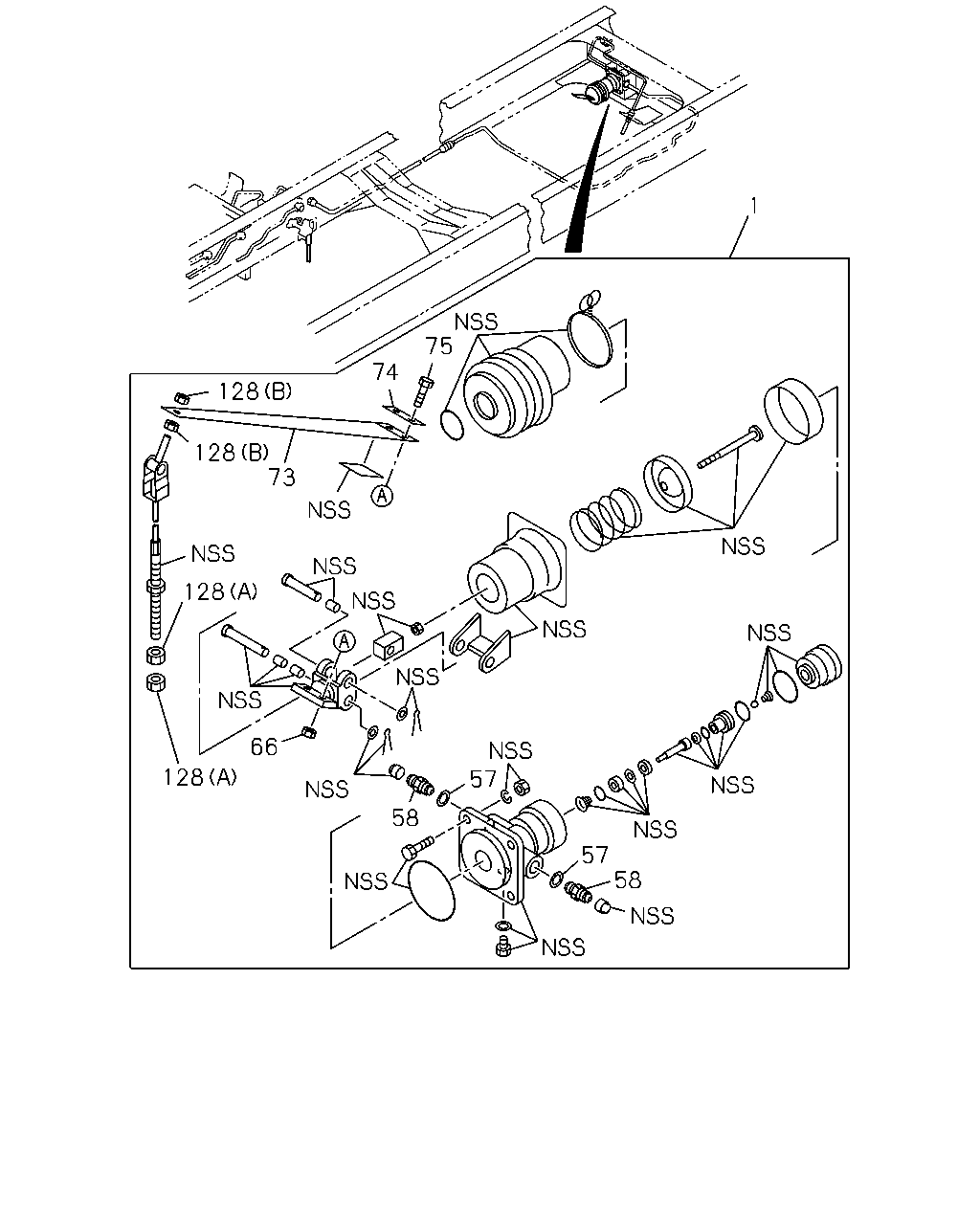

[345A] COMPONENT (9 parça)

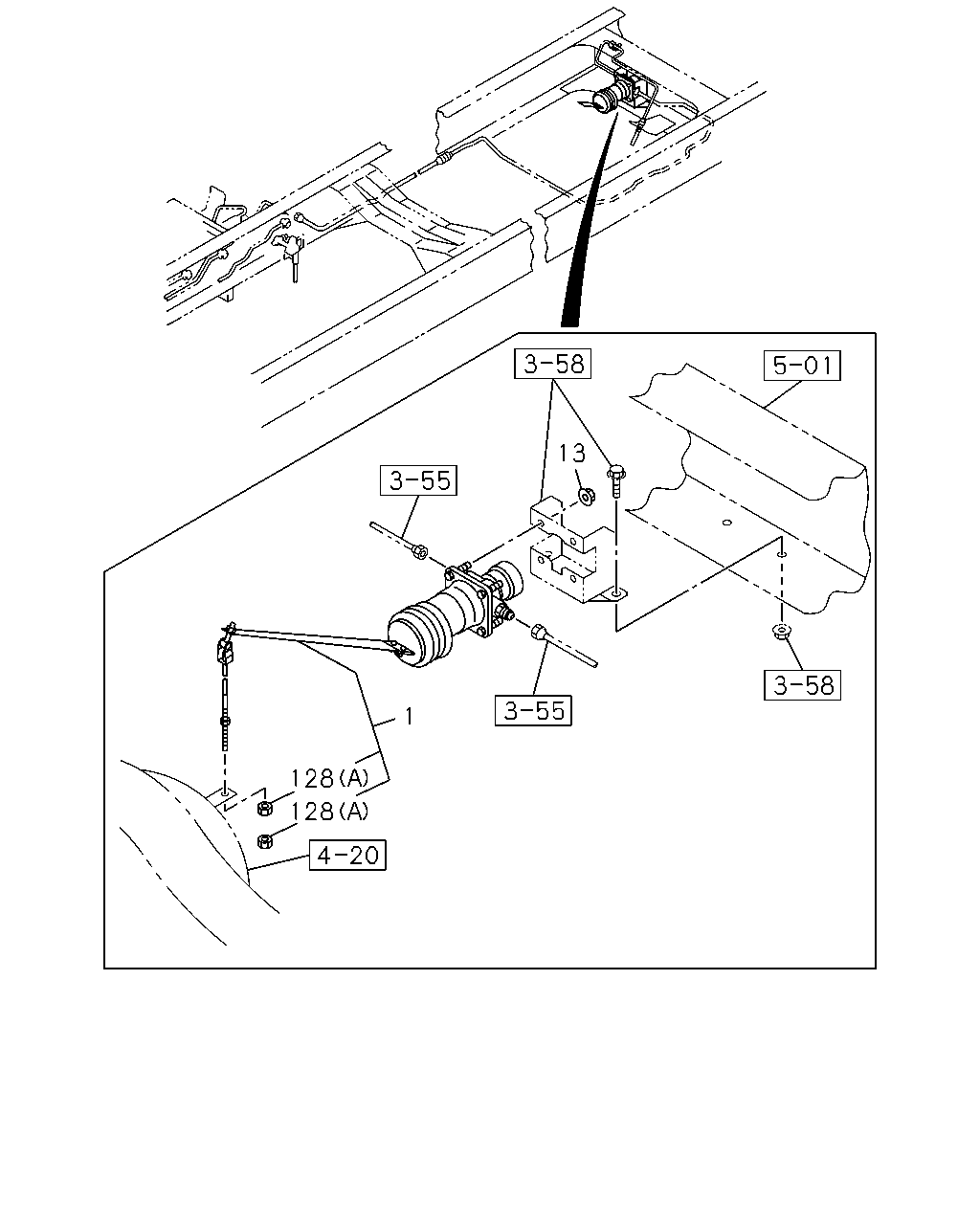

[345A] FIXING (4 parça)

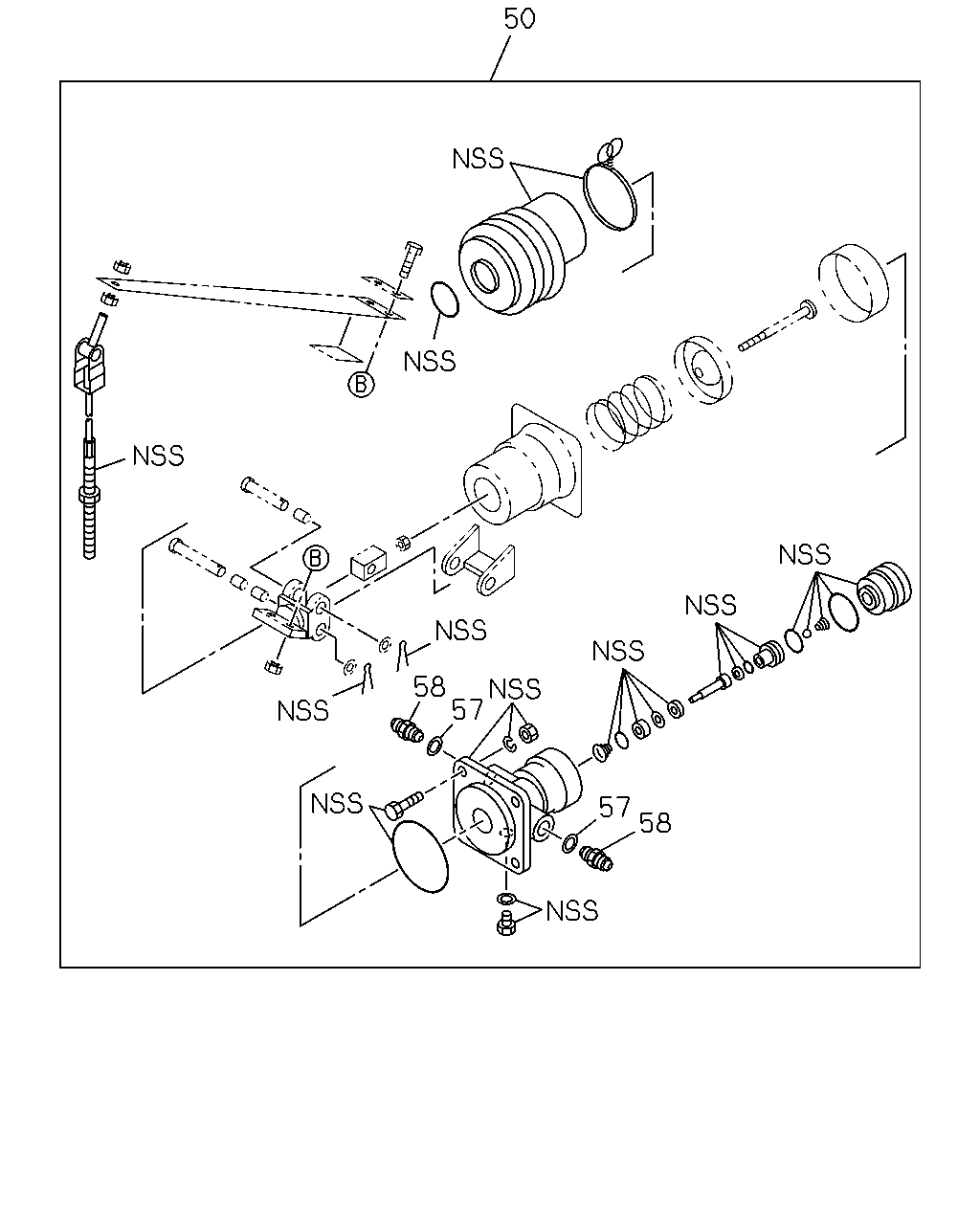

[345A] REPAIR KIT (3 parça)
▶
58
57
57
58
66
128
128
128
128
73
74
75
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
BRK WHL LK CONT LSPV<6PH>
1-47710-087-0
01
1
1302-
57
GASKET; CONNECTOR
BRK WHL LK CONT LSPV<6PH>
1-47719-039-0
02
1
1302-
58
CONNECTOR; LSPV
BRK WHL LK CONT LSPV<6PH>
1-47719-035-0
02
1
1302-
66
NUT; LEAF SPR,LSPV
BRK WHL LK CONT LSPV<6PH>
1-47819-021-0
02
1
1302-
73
SPRING; LEAF,LSPV
BRK WHL LK CONT LSPV<6PH>
1-47714-016-0
01
1
1302-
74
PLATE; LEAF SPRING
BRK WHL LK CONT LSPV<6PH>
1-47719-067-0
01
1
1302-
75
BOLT; LEAF SPRING
BRK WHL LK CONT LSPV<6PH>
1-47719-031-0
02
1
1302-
128
NUT; CABLE
BRK WHL LK CONT LSPV<6PH> (B)
1-47819-021-0
02
1
1302-
128
NUT; CABLE
BRK WHL LK CONT LSPV<6PH> (A)
9-83315-085-0
02
1
1302-
128
1
128
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
BRK WHL LK CONT LSPV<6PH>
1-47710-087-0
01
1
1302-
13
NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<6PH> M8 FLANGE
0-91180-108-0
04
1
1302-
128
NUT; CABLE
BRK WHL LK CONT LSPV<6PH> (B)
1-47819-021-0
02
1
1302-
128
NUT; CABLE
BRK WHL LK CONT LSPV<6PH> (A)
9-83315-085-0
02
1
1302-
58
57
57
58
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
REPAIR KIT; LSPV
BRK WHL LK CONT LSPV<6PH>
1-85576-340-0
01
1
1302-
57
GASKET; CONNECTOR
BRK WHL LK CONT LSPV<6PH>
1-47719-039-0
02
1
1302-
58
CONNECTOR; LSPV
BRK WHL LK CONT LSPV<6PH>
1-47719-035-0
02
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
