Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#116050) — 50 parça
◀

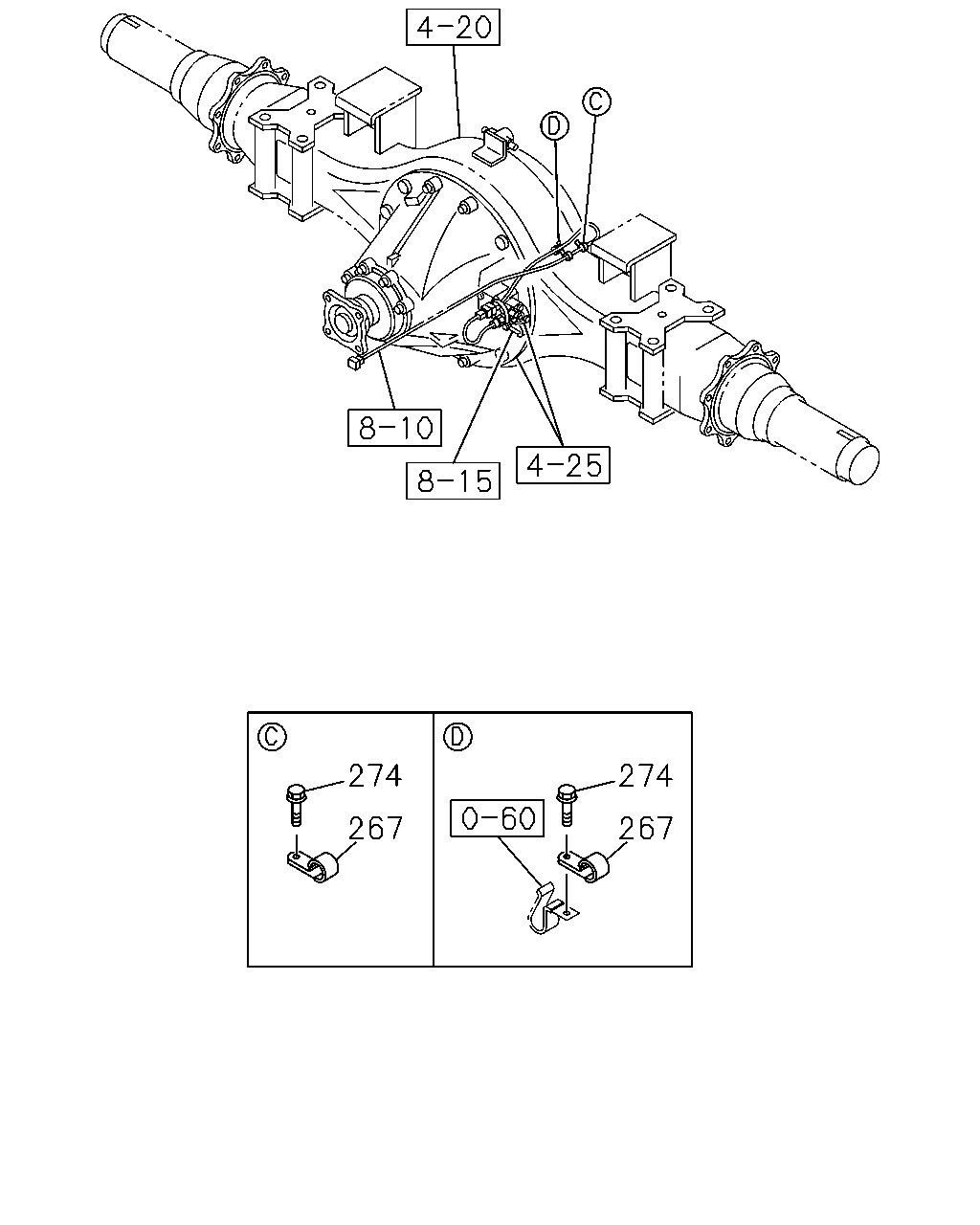

[410A] DIFF LOCK HARNESS FIXING (2 parça)

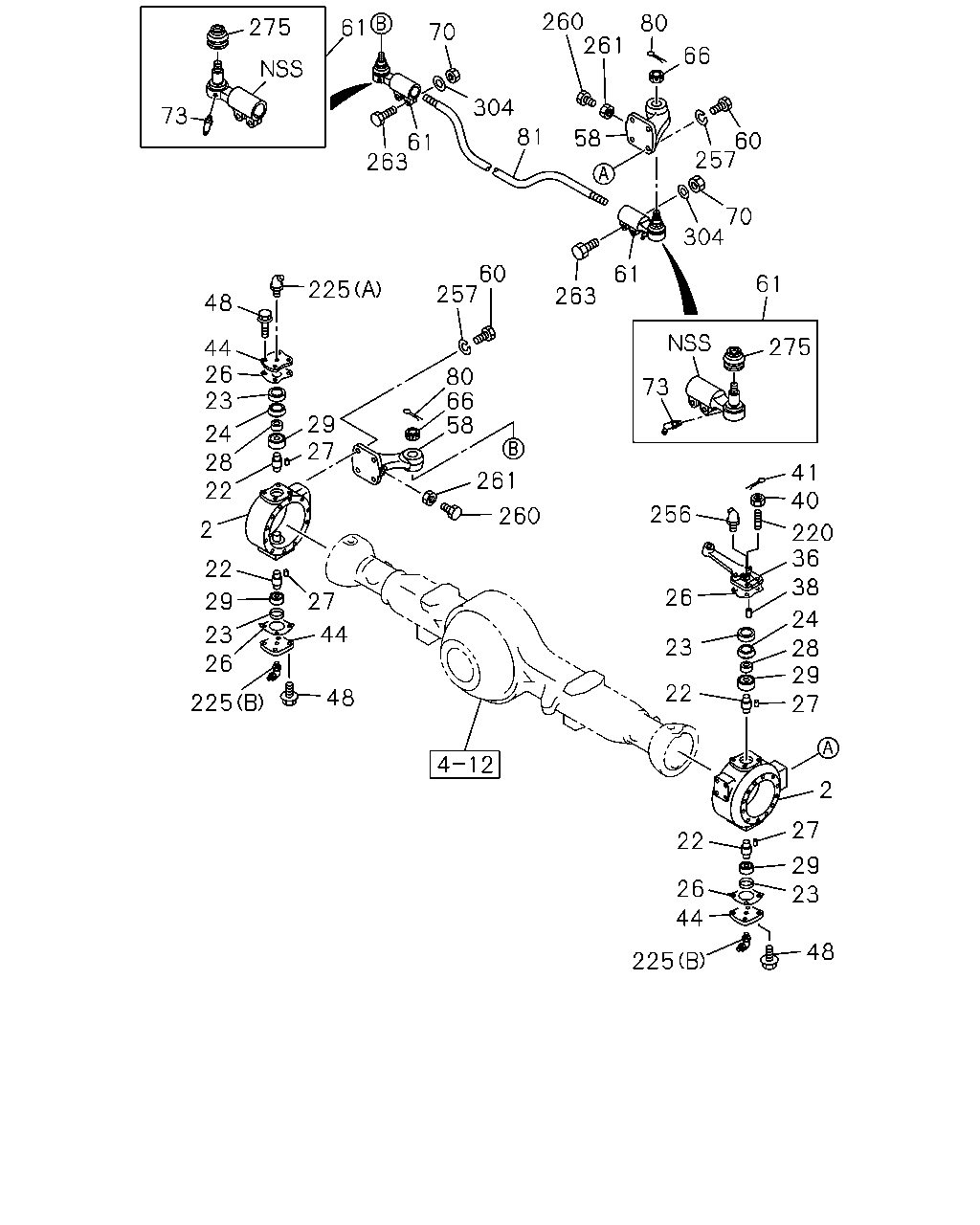

[410A] KNUCKLE,TIE ROD AND OTHER PARTS (48 parça)
▶
274
267
274
267
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
267
CLIP; HARNESS
FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> ID=11 L=20
0-95235-035-0
02
1
1302-
274
BOLT; CLIP
FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M8X10 FLANGE
0-28050-810-0
02
1
1302-
48
23
29
27
2
22
26
44
225
27
29
28
24
38
36
220
40
41
256
26
23
22
260
73
275
61
61
263
304
70
257
60
66
80
261
260
70
304
81
61
263
61
275
73
48
44
225
257
80
60
66
58
261
27
44
27
29
48
225
26
23
29
22
2
22
28
24
23
26
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
KNUCKLE; FRT AXLE
FINAL GEAR 39/6 14.5"(W1J)
8-98090-493-2
01
1
1302-
2
KNUCKLE; FRT AXLE
FINAL GEAR 39/6 14.5"(W1J)
8-98090-494-2
01
1
1302-
2
KNUCKLE; FRT AXLE
FINAL GEAR 39/7 15.5"(W3K)
1-43242-006-4
01
1
1302-
2
KNUCKLE; FRT AXLE
FINAL GEAR 39/7 15.5"(W3K)
9-43241-037-2
01
1
1302-
22
PIN; KING,FRT AXLE
H=50
1-43264-003-0
04
1
1302-
23
COLLAR; DIST BRG
9-43267-004-0
04
1
1302-
24
RECEIVER; KING PIN
9-43269-008-0
02
1
1302-
26
SHIM; KING PIN,BRG
T=0.1
9-43266-013-0
AR
1
1302-
26
SHIM; KING PIN,BRG
T=0.2
9-43266-014-0
AR
1
1302-
26
SHIM; KING PIN,BRG
T=0.5
9-43266-015-0
AR
1
1302-
27
PIN; STRAIGHT,KING PIN
OD=5 L=10
9-08160-510-0
04
1
1302-
28
WASHER; KING PIN
9-43269-007-0
02
1
1302-
29
BEARING; KING PIN
9-00093-181-0
04
1
1302-
36
ARM; KNUCKLE
1-43261-035-0
01
1
1302-
38
KNOCK; KNUCKLE ARM
9-43269-009-1
02
1
1302-
40
NUT; KNUCKLE ARM
M14 SLOTTED
0-91116-514-0
04
1
1302-
41
PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25
0-81123-025-0
04
1
1302-
44
COVER; KING PIN
9-43265-007-1
03
1
1302-
48
BOLT; COVER
M14X35 FLANGE
0-28861-435-0
12
1
1302-
58
ARM; TIE ROD
8-98138-221-0
01
1
1302-
58
ARM; TIE ROD
8-98138-222-0
01
1
1302-
60
BOLT; TIE ROD ARM
M16X40
0-20951-640-0
08
1
1302-
61
ROD END; TIE ROD
8-98138-799-0
01
1
1302-1306
61
ROD END; TIE ROD
8-98236-792-1
01
1
1307-
61
ROD END; TIE ROD
8-98138-800-0
01
1
1302-1306
61
ROD END; TIE ROD
8-98236-793-1
01
1
1307-
66
NUT; TIE ROD END
M24
1-09442-032-0
02
1
1302-
70
NUT; TIE ROD END
M12
0-91110-512-0
04
1
1302-
73
NIPPLE; GREASE,TIE ROD END
1-43159-133-0
02
1
1302-1404
73
NIPPLE; GREASE,TIE ROD END
1-43159-132-0
02
1
1405-
80
PIN; SPLIT,ROD END
OD=4.6 L=35
0-81125-035-0
02
1
1302-
81
ROD; TIE
FINAL GEAR 39/6 14.5"(W1J)
8-98147-601-0
01
1
1302-
81
ROD; TIE
FINAL GEAR 39/7 15.5"(W3K)
8-98147-602-0
01
1
1302-
220
STUD; KNUCKLE ARM
M14X54.5 L=72
9-09830-131-0
01
1
1302-
220
STUD; KNUCKLE ARM
M14X41.5 L=60.5
9-09830-132-0
01
1
1302-
220
STUD; KNUCKLE ARM
M14X46.5 L=72
9-09830-133-0
01
1
1302-
220
STUD; KNUCKLE ARM
M14X33.5 L=60.5
9-09830-134-0
01
1
1302-
225
NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
1302-
225
NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW
0-90301-610-0
02
1
1302-
256
NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
1302-
257
WASHER; LK,TIE ROD ARM
ID=16.2
0-91510-516-0
08
1
1302-
260
BOLT; STOPPER,TIE ROD ARM
FINAL GEAR 39/6 14.5"(W1J) M14X45
0-20951-445-0
02
1
1302-
260
BOLT; STOPPER,TIE ROD ARM
FINAL GEAR 39/7 15.5"(W3K) M14X35
0-20851-435-0
02
1
1302-
261
NUT; STOPPER BOLT
M14
0-91111-514-0
02
1
1302-
263
BOLT; ROD END
M12X65
8-98053-922-0
04
1
1302-
275
BOOT; ROD END,TIE
1-43159-131-0
02
1
1302-1306
275
BOOT; ROD END,TIE
8-98229-116-0
02
1
1307-
304
WASHER; PL
ID=12.5
0-91614-512-0
04
1
1302-
