8-15 — FIXING PARTS; WIRING HARNESS (#116042) — 188 parça

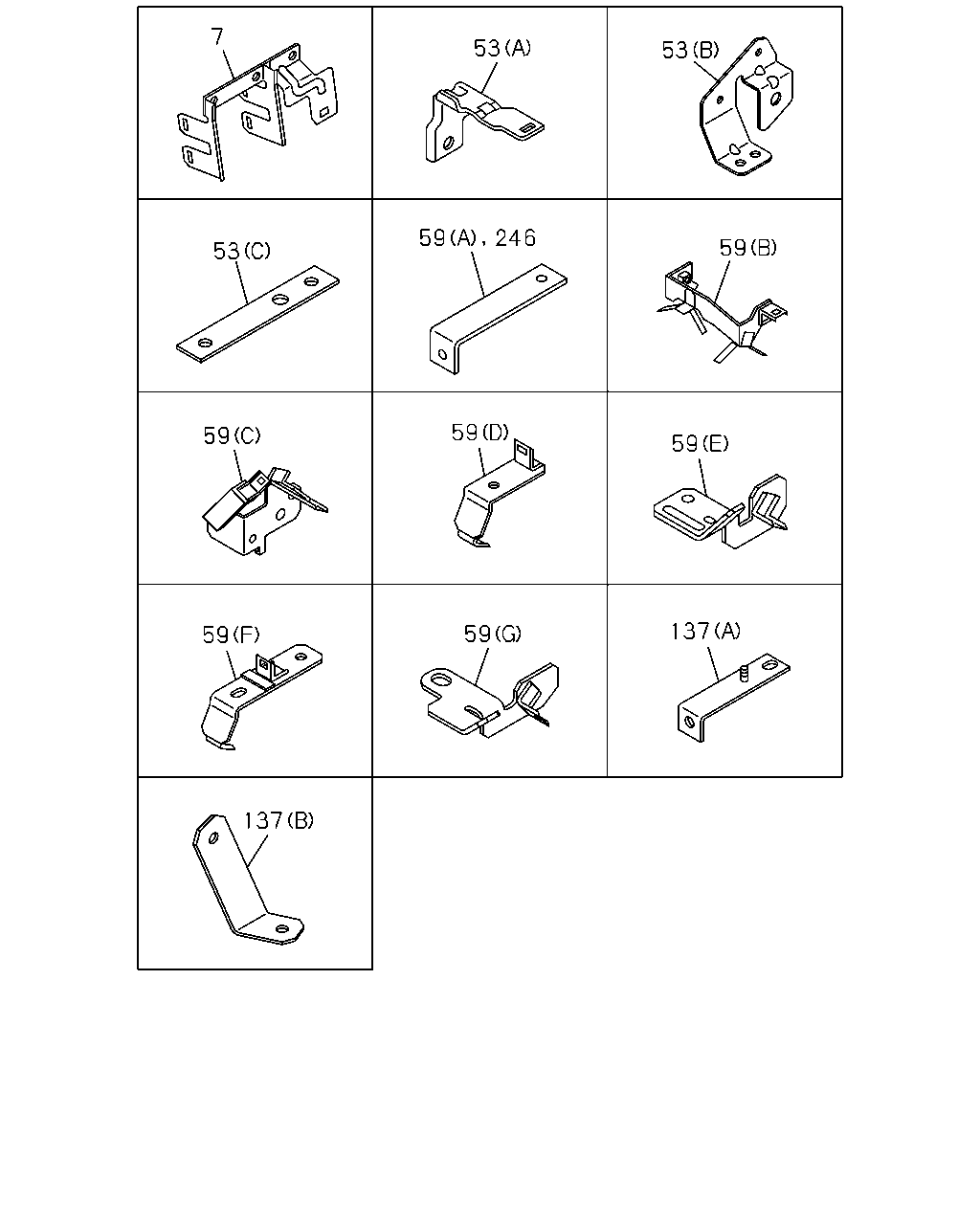

308 308 308 308 428 428 335 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1302-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	1302-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	1302-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	1302-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1302-
428	BRACKET (B)	1-47475-519-0	01	1	1302-
428	BRACKET (C)	8-98049-870-2	01	1	1302-
428	BRACKET (A)	8-98090-953-1	01	1	1302-

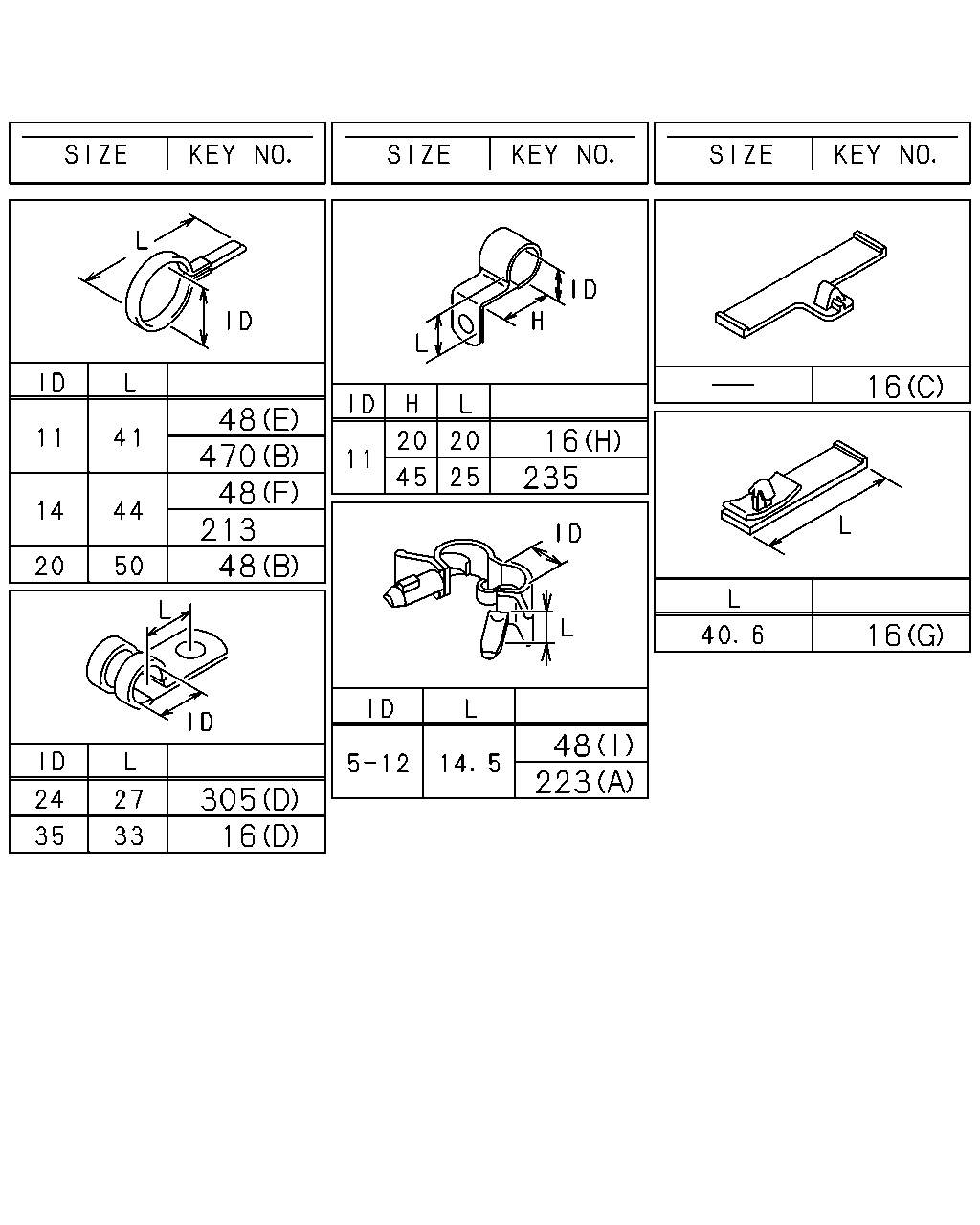

48 48 470 213 48 16 305 223 48 235 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (C) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (F) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS REARWARD INNER SINGLE TIRE<YK3> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> (F) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (B) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (F) ID=14 L=44	9-09917-427-0	13	1	1302-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1302-
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
235	CLIP; HARNESS,SPD SENSOR,SSPS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> ID=11 H=45 L=25	1-09700-866-0	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (B) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (D) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (J) L=100	8-94443-021-1	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP PINTLE HOOK<PP7> (B) ID=11 L=41	1-09700-403-0	01	1	1302-

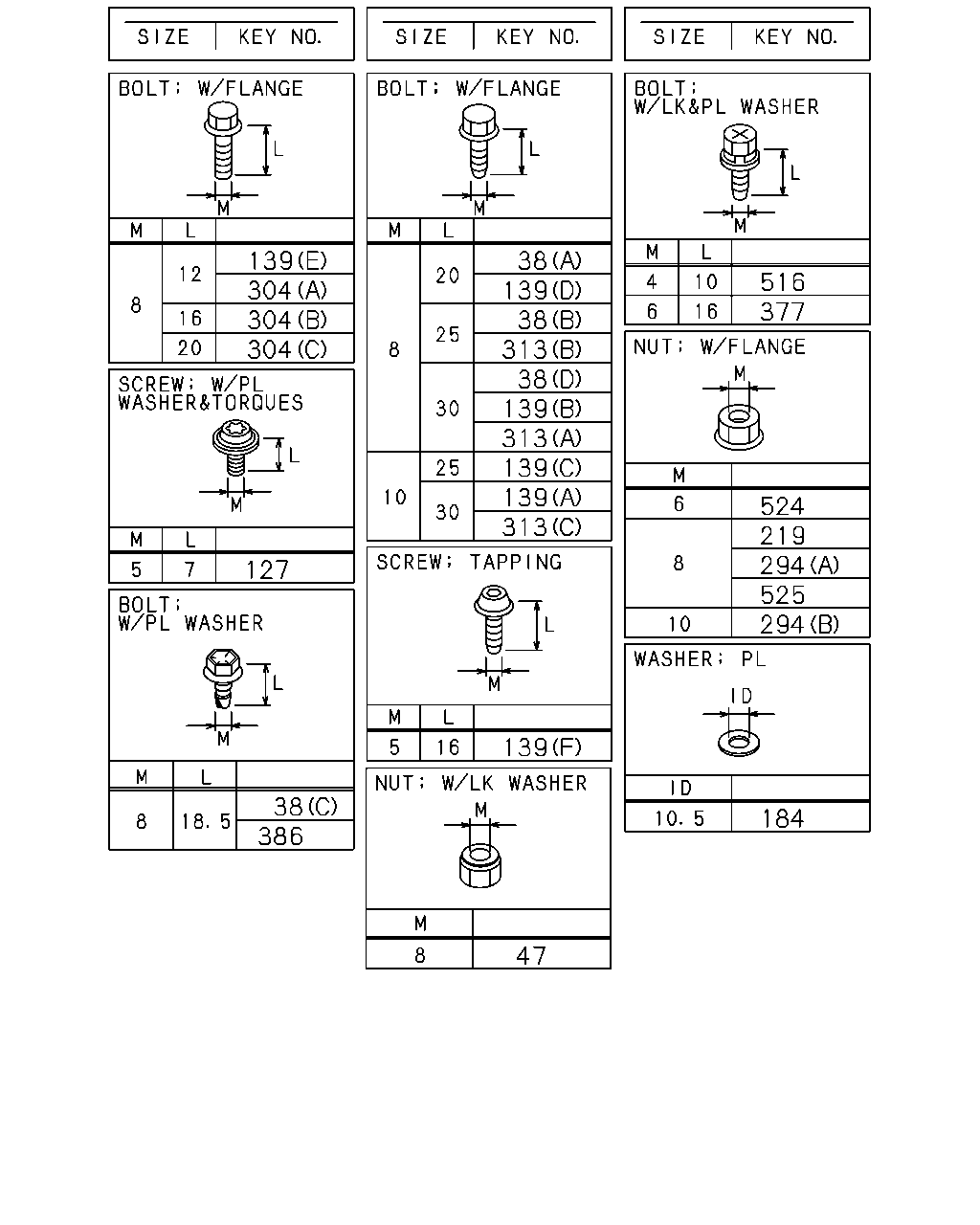

139 304 304 304 139 38 38 38 313 139 313 139 139 313 294 524 525 294 219 184 47 38 386 127 377 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1302-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M8X30 FLANGE	0-28650-830-0	01	1	1302-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1302-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1302-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1406-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1406-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1405
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1302-1405
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1302-
139	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1302-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1302-
219	NUT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1302-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
294	NUT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	06	1	1302-
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	05	1	1302-
304	BOLT; ENG HARNESS CLIP (C) M8X20 FLANGE	0-28050-820-0	04	1	1302-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1302-
313	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1302-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1302-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1302-1311
516	BOLT; HARNESS EXC. GLOW SYSTEM DELETE<7RK> M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1312-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1302-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1302-

7 53 53 53 59 246 59 59 59 59 59 59 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1302-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1302-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-699-0	01	1	1302-
53	BRACKET; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) L=170	1-47479-380-0	01	1	1302-
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	1302-
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	1302-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1302-
59	BRACKET; FRAME HARNESS (D)	8-98118-500-0	01	1	1302-
59	BRACKET; FRAME HARNESS (E)	8-97616-305-0	01	1	1302-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (F)	8-98152-281-0	01	1	1302-
59	BRACKET; FRAME HARNESS USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (F)	8-98152-282-0	01	1	1302-
59	BRACKET; FRAME HARNESS REARWARD INNER SINGLE TIRE<YK3> (F)	8-98152-282-0	01	1	1302-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1302-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1302-
246	BRACKET; CLIP,SPD SENSOR L=95	1-82699-085-0	01	1	1302-

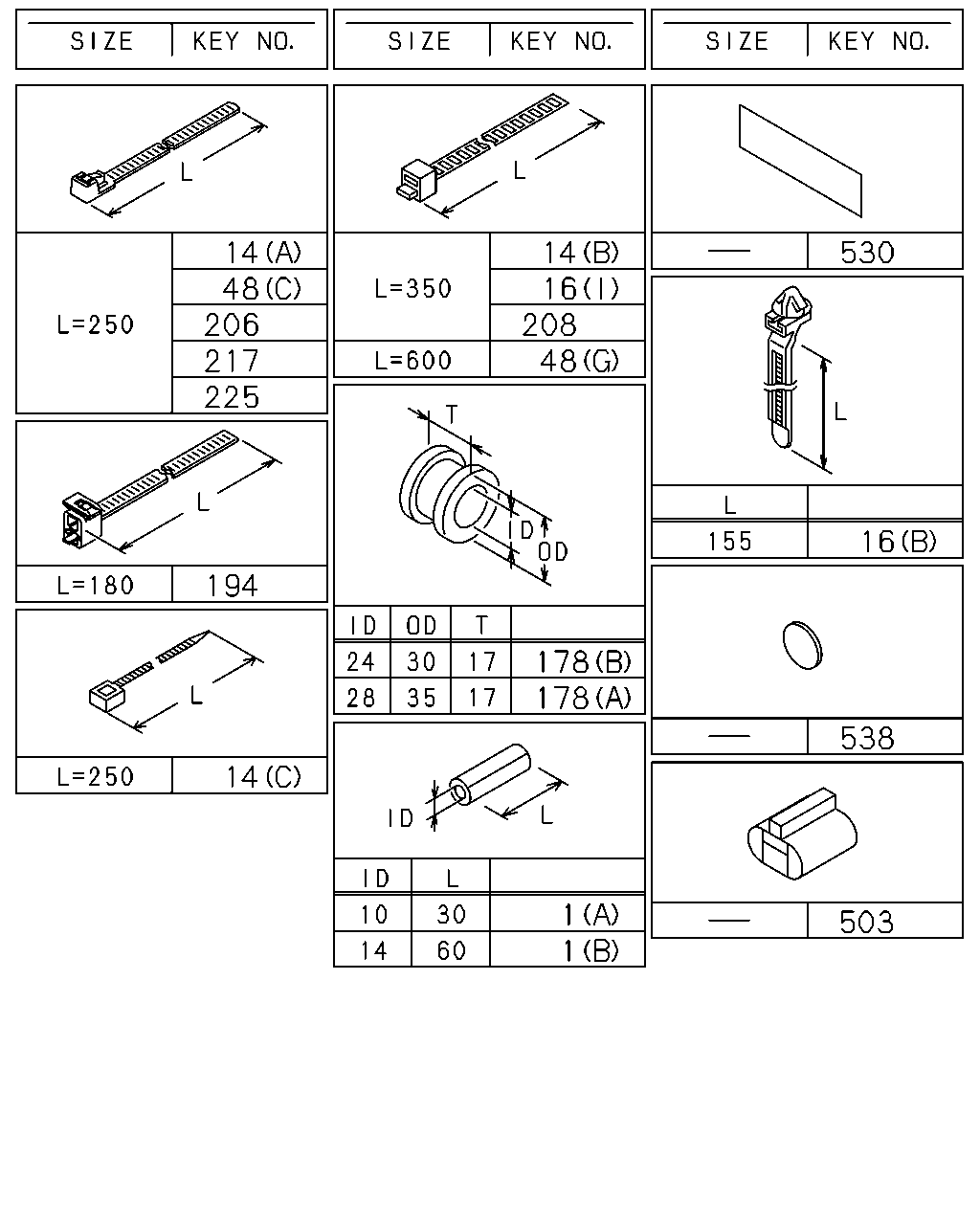

14 48 217 206 225 194 14 178 178 48 208 16 14 1 1 503 538 16 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1302-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1302-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1302-
14	CLIP; BAND,HARNESS (C) L=250	8-98216-430-0	08	1	1302-
14	CLIP; BAND,HARNESS FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> (A) L=250	5-09707-030-1	01	1	1302-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (C) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (F) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS REARWARD INNER SINGLE TIRE<YK3> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> (F) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (B) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (F) ID=14 L=44	9-09917-427-0	13	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1302-
194	CLIP; BAND DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> L=180	1-09707-162-1	01	1	1302-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1302-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1302-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1302-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1302-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	1302-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1302-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1302-

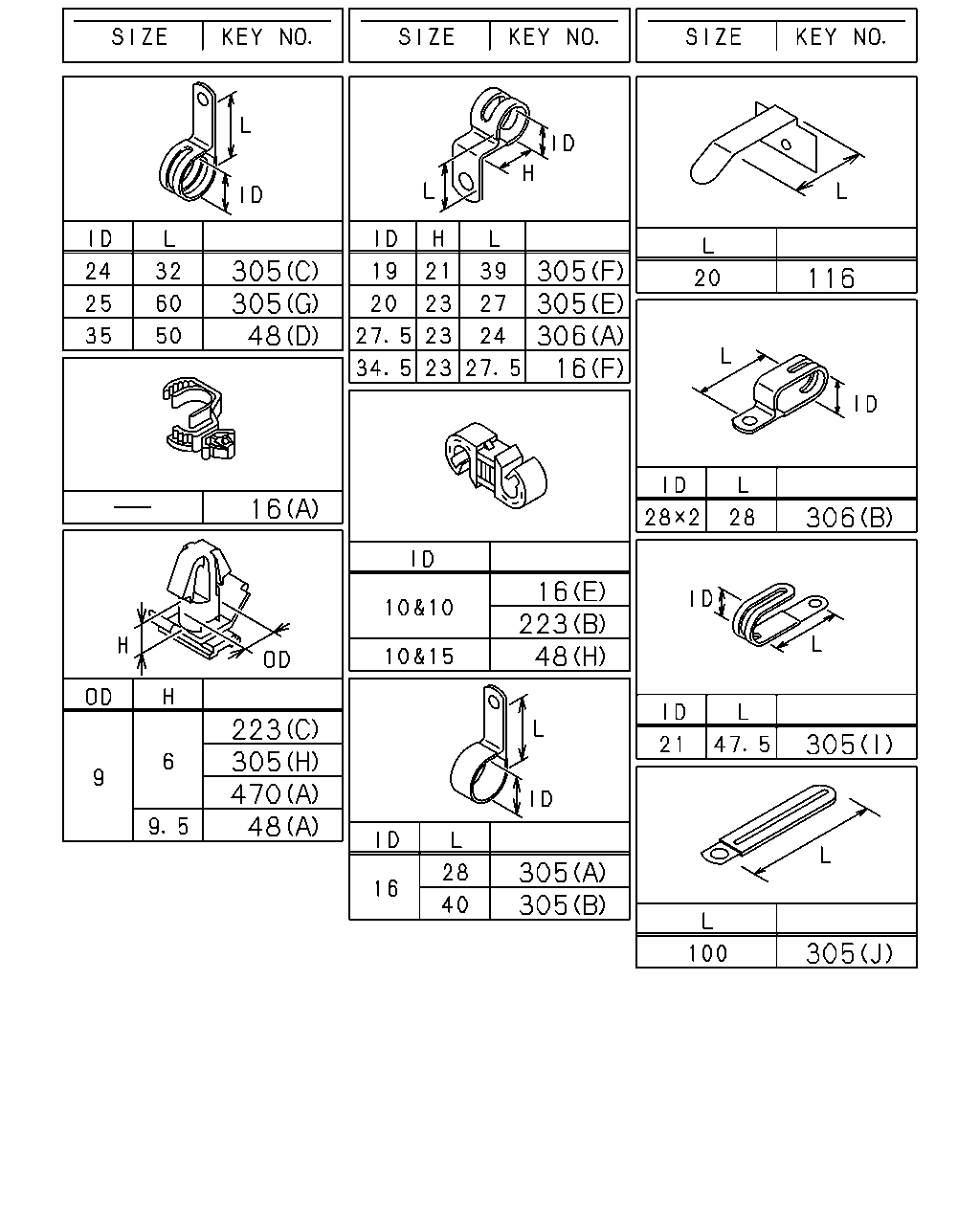

305 48 305 16 223 305 470 48 305 306 305 16 16 48 223 305 305 116 306 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1302-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1302-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	1302-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	1302-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1302-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1302-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	1302-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1302-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	1302-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1302-
48	CLIP; FRAME HARNESS (H) ID=10 & 15	1-09709-279-1	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	03	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) OD=9 H=9.5	1-09709-179-0	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (C) L=250	5-09707-030-1	01	1	1302-
48	CLIP; FRAME HARNESS DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (F) ID=14 L=44	9-09917-427-0	02	1	1302-
48	CLIP; FRAME HARNESS USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS REARWARD INNER SINGLE TIRE<YK3> (E) ID=11 L=41	1-09700-403-0	03	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> (F) ID=14 L=44	9-09917-427-0	10	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) (B) ID=20 L=50	9-09917-430-0	09	1	1302-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (F) ID=14 L=44	9-09917-427-0	13	1	1302-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1302-
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) OD=9 H=6	1-09709-178-0	01	1	1302-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	01	1	1302-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-
305	CLIP; ENG HARNESS (A) ID=16 L=28	0-95235-556-0	02	1	1302-
305	CLIP; ENG HARNESS (B) ID=16 L=40	0-95235-576-0	01	1	1302-
305	CLIP; ENG HARNESS (C) ID=24 L=32	1-09700-766-1	01	1	1302-
305	CLIP; ENG HARNESS (D) ID=24 L=27	1-09700-809-0	03	1	1302-
305	CLIP; ENG HARNESS (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1302-
305	CLIP; ENG HARNESS (G) ID=25 L=60	1-09701-041-1	01	1	1302-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1302-
305	CLIP; ENG HARNESS (I) ID=21 L=47.5	8-94178-108-0	01	1	1302-
305	CLIP; ENG HARNESS (J) L=100	8-94443-021-1	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1302-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1302-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-
470	CLIP; HARNESS,LICENSE LAMP PINTLE HOOK<PP7> (B) ID=11 L=41	1-09700-403-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
