Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#116041) — 270 parça

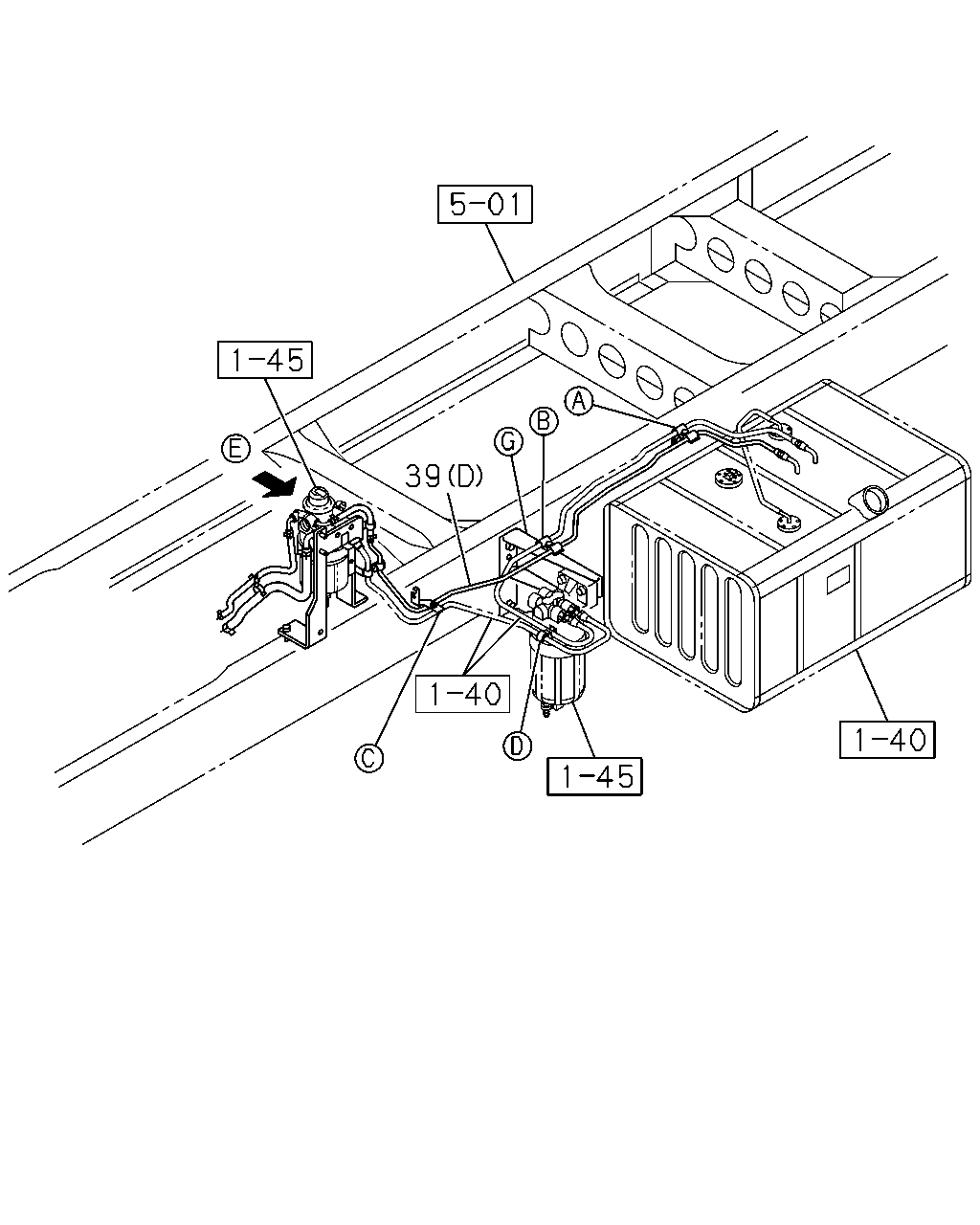

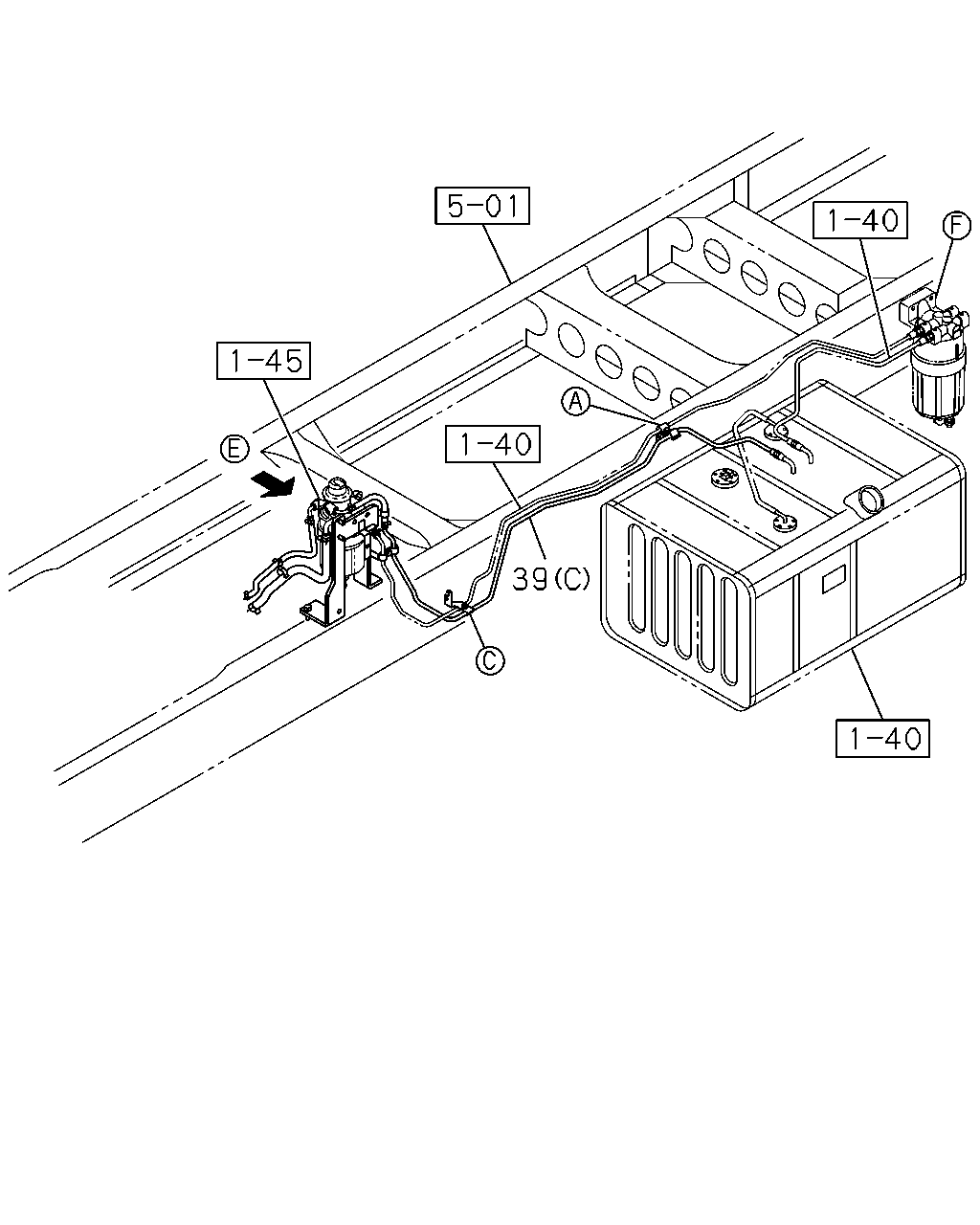

171 304 303 309 97 304 97 64 303 41 80 171 309 64 97 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
171	BOLT; CLIP WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
171	BOLT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
171	BOLT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) M8X40 FLANGE	0-28650-840-0	01	1	1302-
239	CLIP; FUEL PIPE WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-

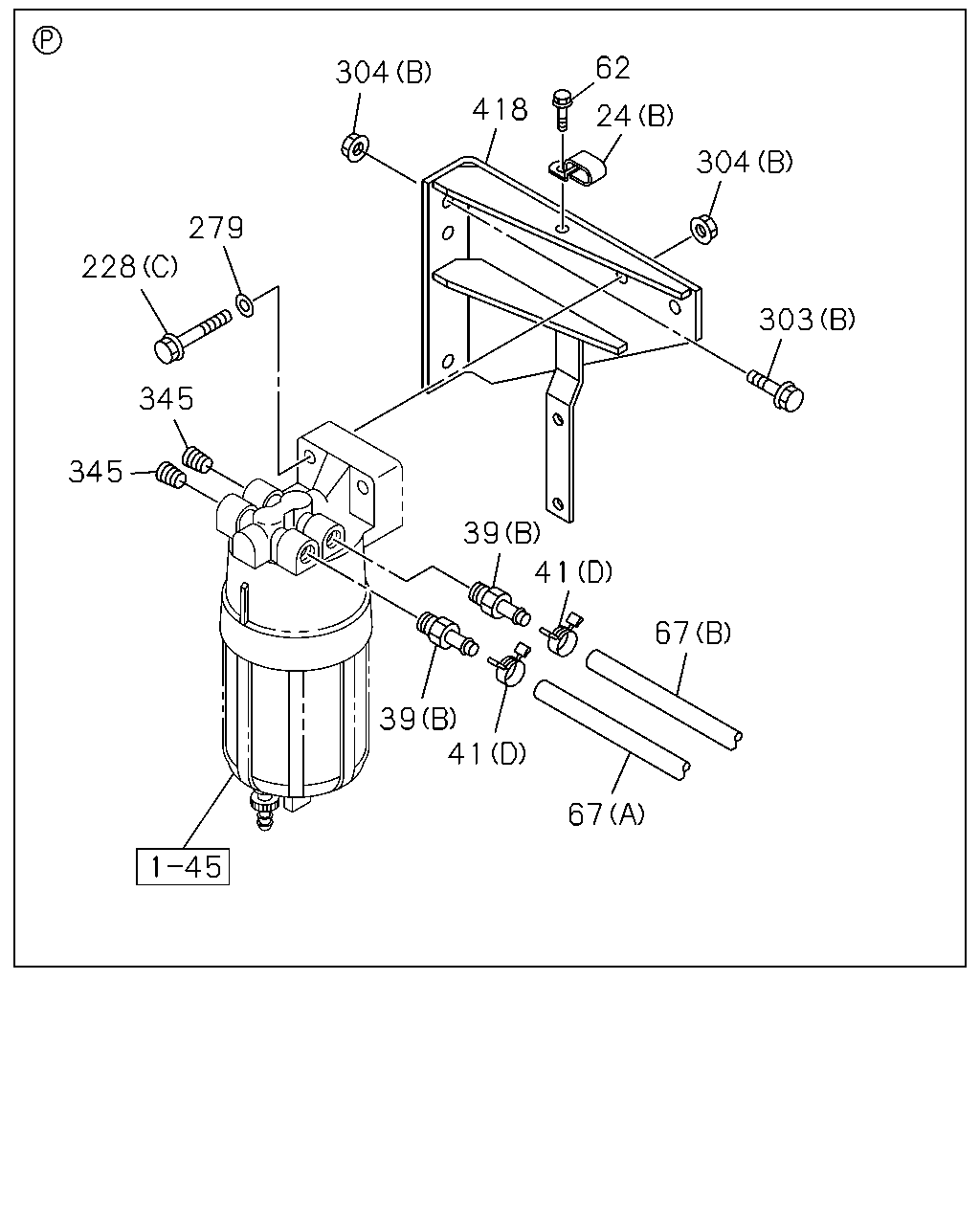

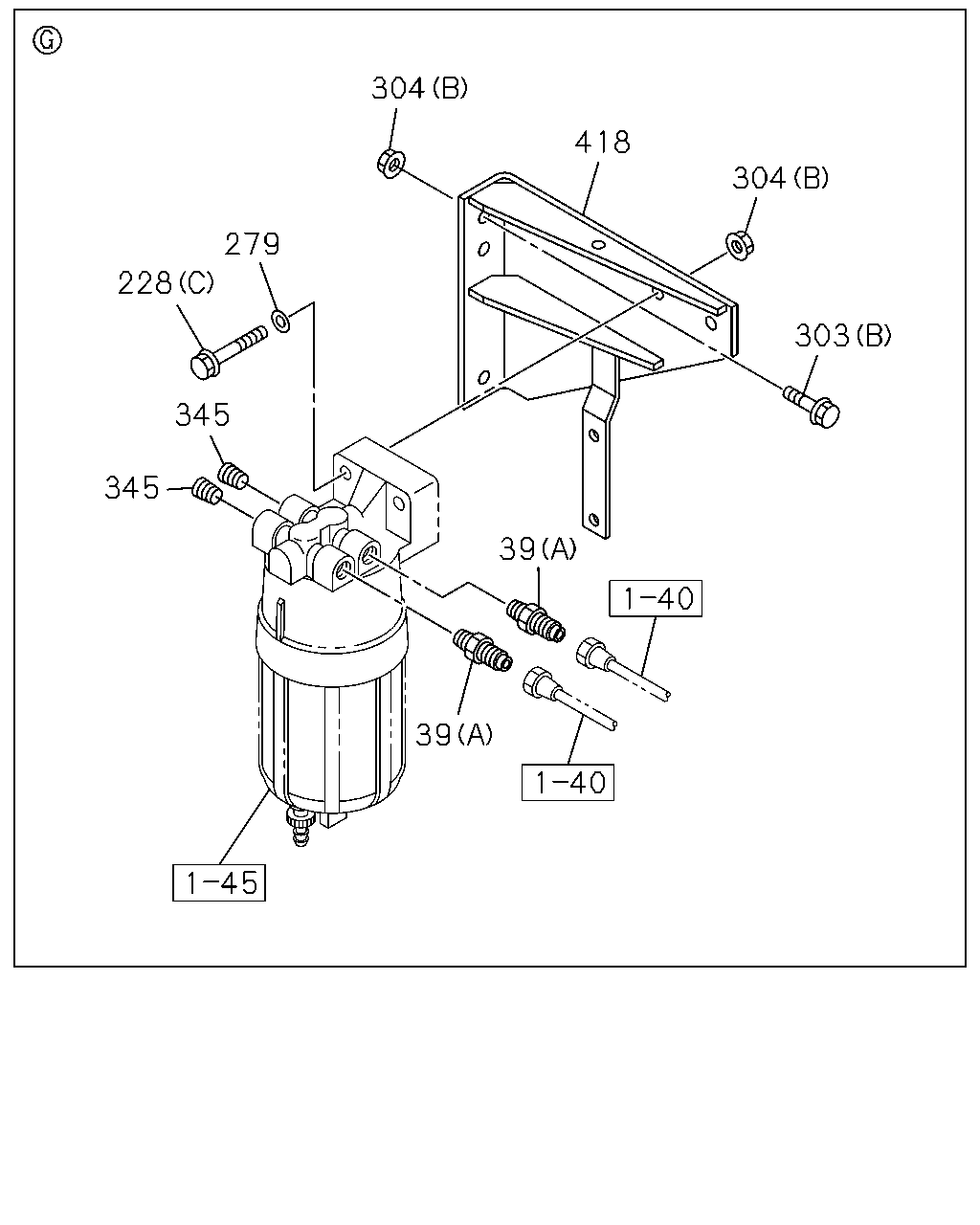

304 418 304 303 279 228 345 345 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER REARWARD INNER SINGLE TIRE<YK3>	8-98136-381-0	01	1	1302-

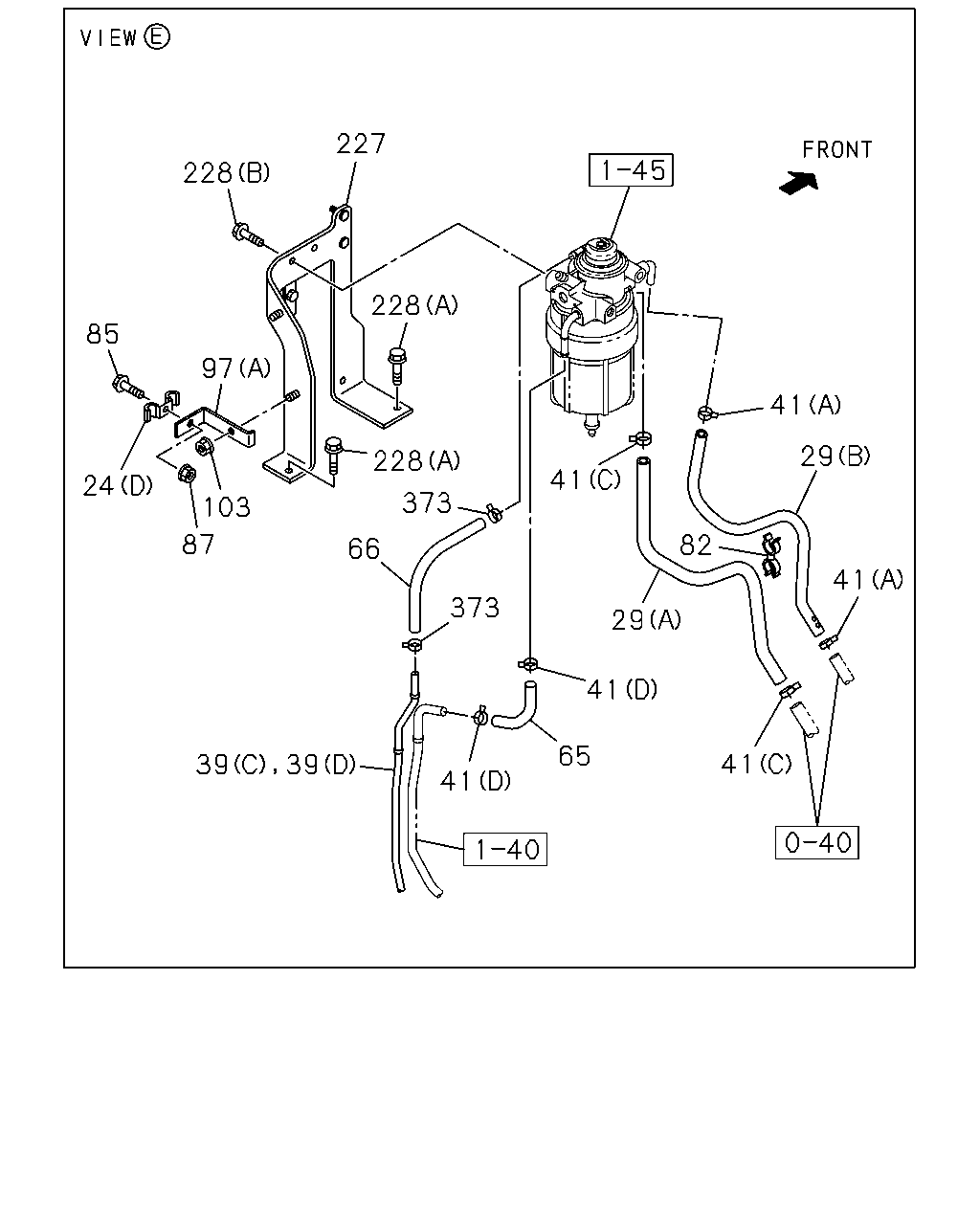

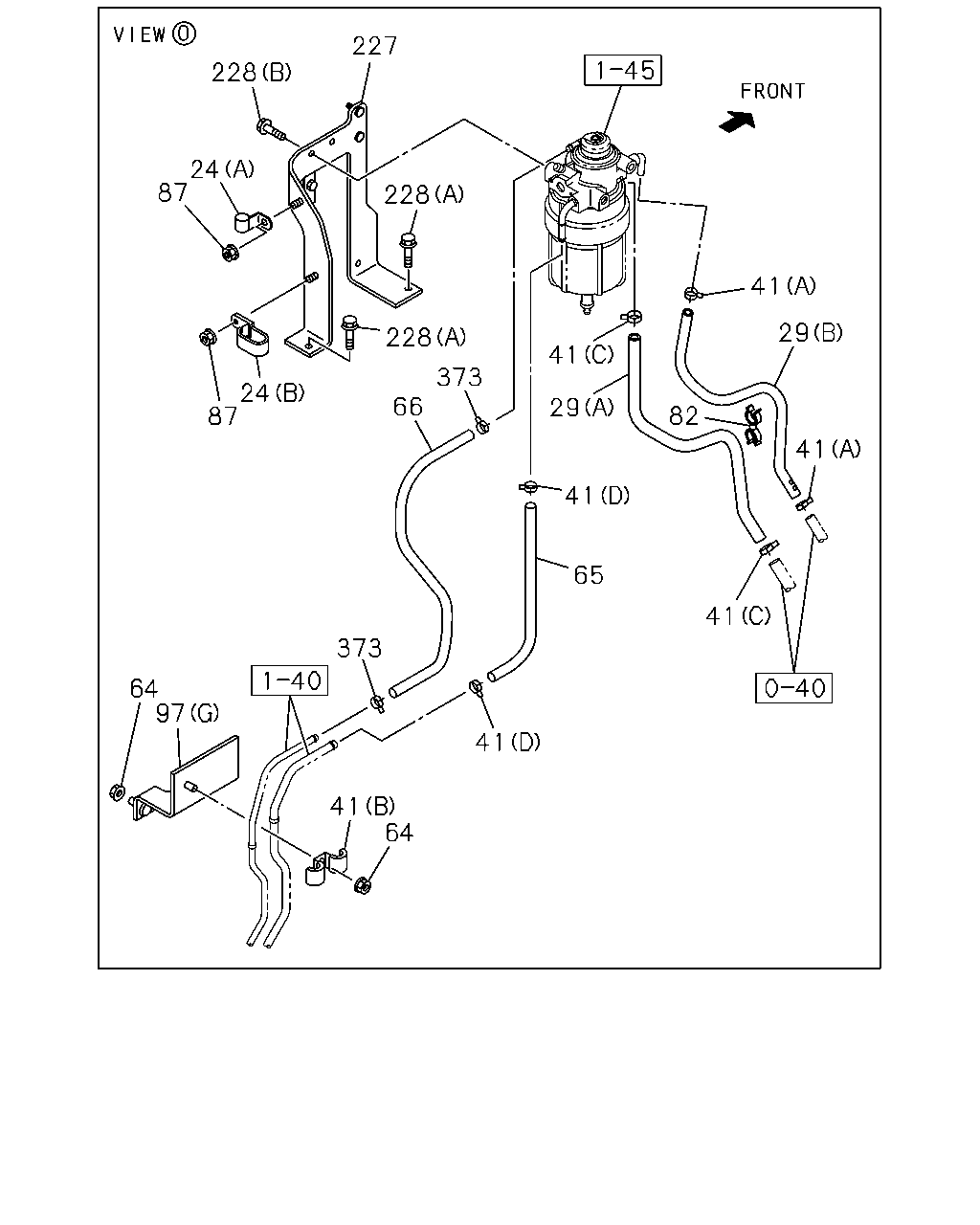

228 227 228 97 85 24 103 87 228 66 373 373 39 39 41 41 41 29 82 29 41 41 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1302-
85	BOLT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
103	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1302-

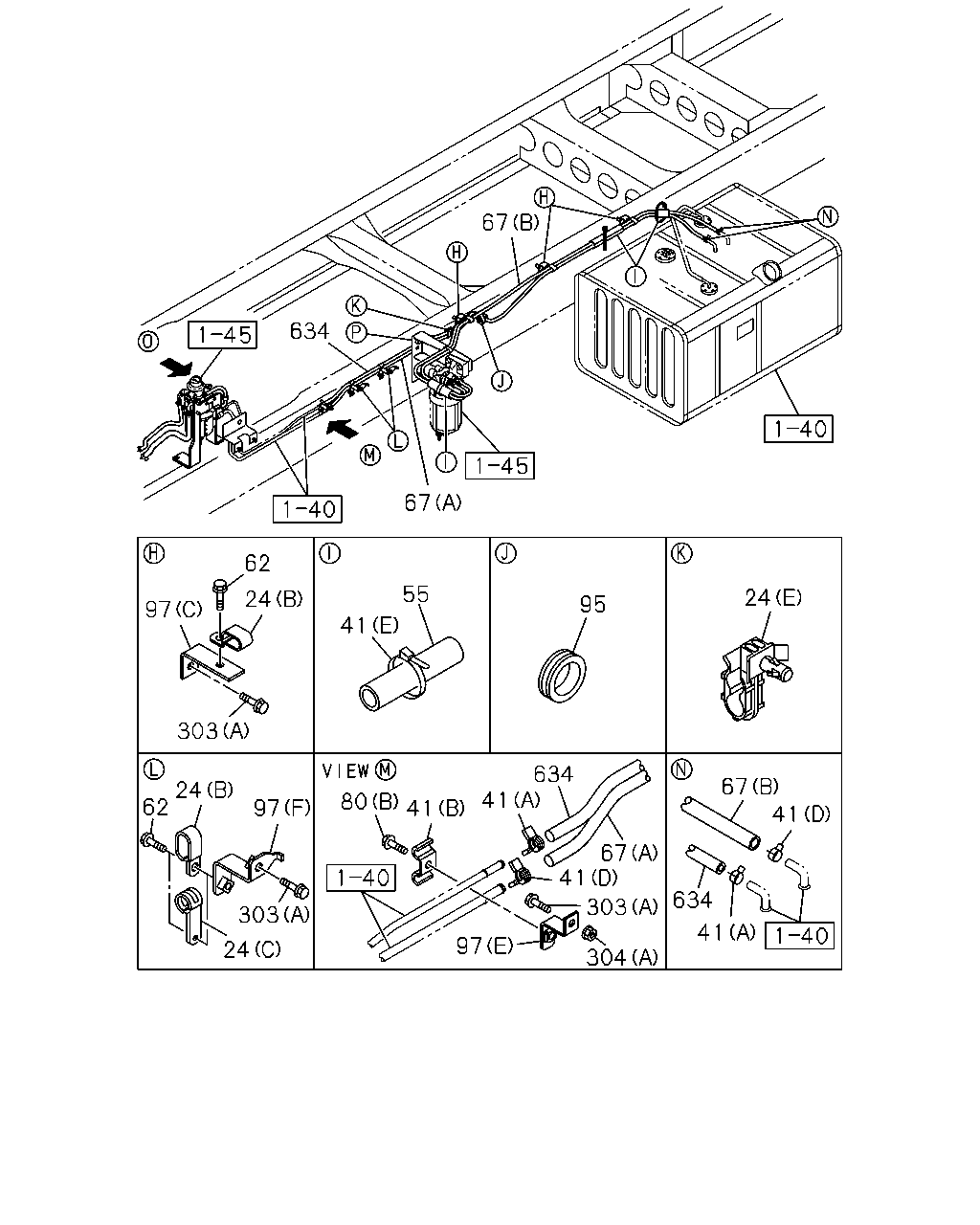

67 634 67 62 24 97 303 24 62 97 303 24 97 41 80 41 634 67 41 303 304 67 41 634 41 24 95 55 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
55	COVER; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	05	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=320 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28650-820-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	03	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

228 227 24 87 228 228 24 87 66 373 41 41 29 82 29 41 41 65 41 41 373 41 64 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
64	NUT; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1302-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) M8 FLANGE	0-91180-108-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B)	8-98164-234-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C)	8-98111-711-0	03	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	1-47475-427-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (C)	8-98111-711-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E)	1-47478-981-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	1302-
97	BRACKET; CLIP WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (G)	8-98115-316-1	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1302-

304 418 62 24 304 303 67 67 41 39 39 41 345 345 228 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=14.5 L=28	1-09701-013-0	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (C) ID=18 L=28	1-09701-067-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (E) L=250	5-09707-030-1	02	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	05	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) L=320 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (B) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
303	BOLT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1302-1302
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-1303
303	BOLT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-
303	BOLT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-1302
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER REARWARD INNER SINGLE TIRE<YK3>	8-98136-381-0	01	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-

304 345 39 345 39 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4100MM(41W) (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT REARWARD INNER SINGLE TIRE<YK3> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1302-1302
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1303-1303
304	NUT; BRKT WHEEL BASE 3600MM(36W),WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	01	1	1304-
304	NUT; BRKT WHEEL BASE 4200MM(42W) EXC. FUEL PIPE STEEL<E2N> (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (A) M16 & NPT3/8	1-09650-327-1	02	1	1302-
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL WHEEL BASE 3600MM(36W) FUEL PIPE STEEL<E2N> (C)	8-98216-393-0	01	1	1302-
39	PIPE; FUEL WHEEL BASE 4100MM(41W) FUEL PIPE STEEL<E2N> (D)	8-98164-238-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
