Sayfa 4-25 - Isuzu EPC

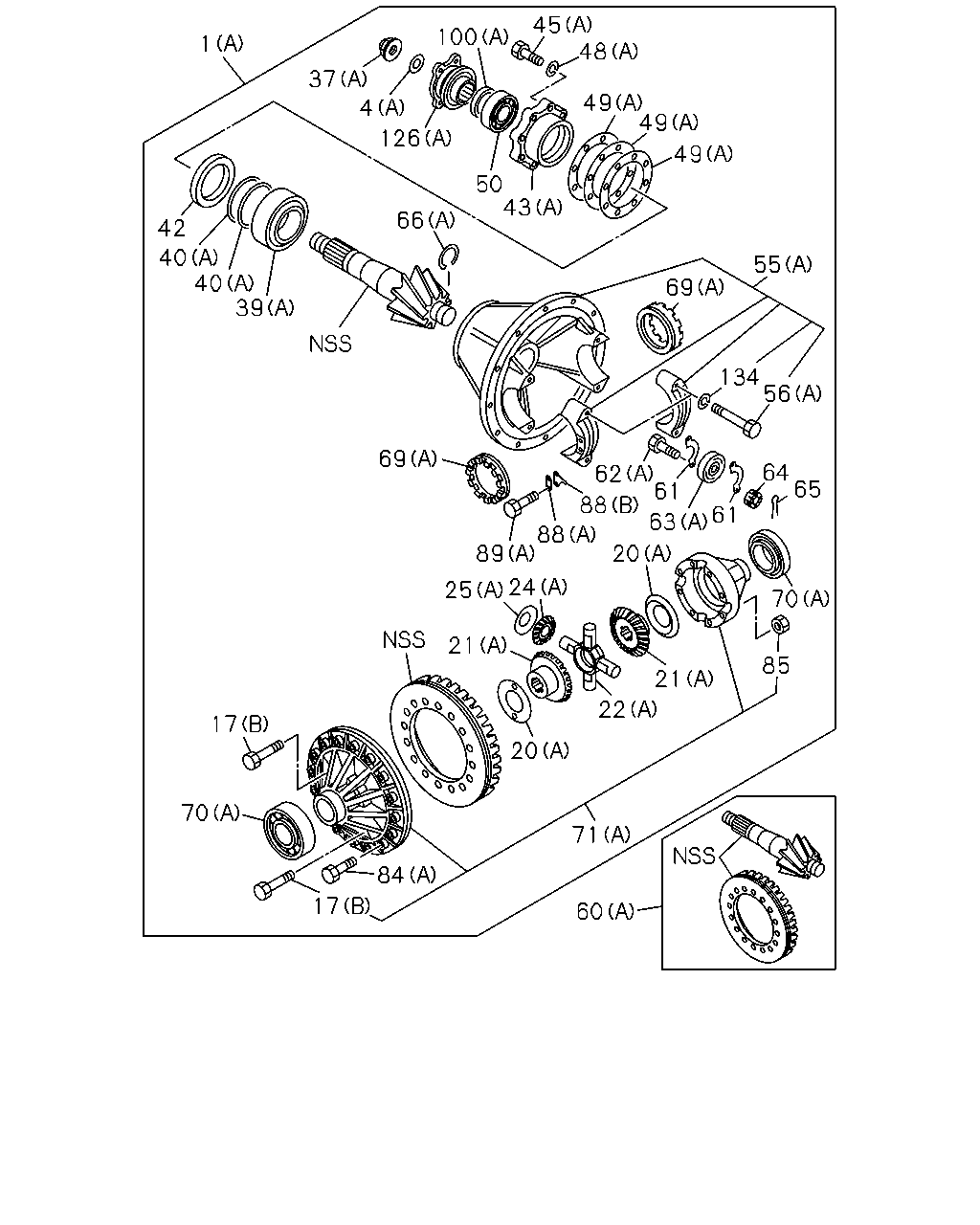

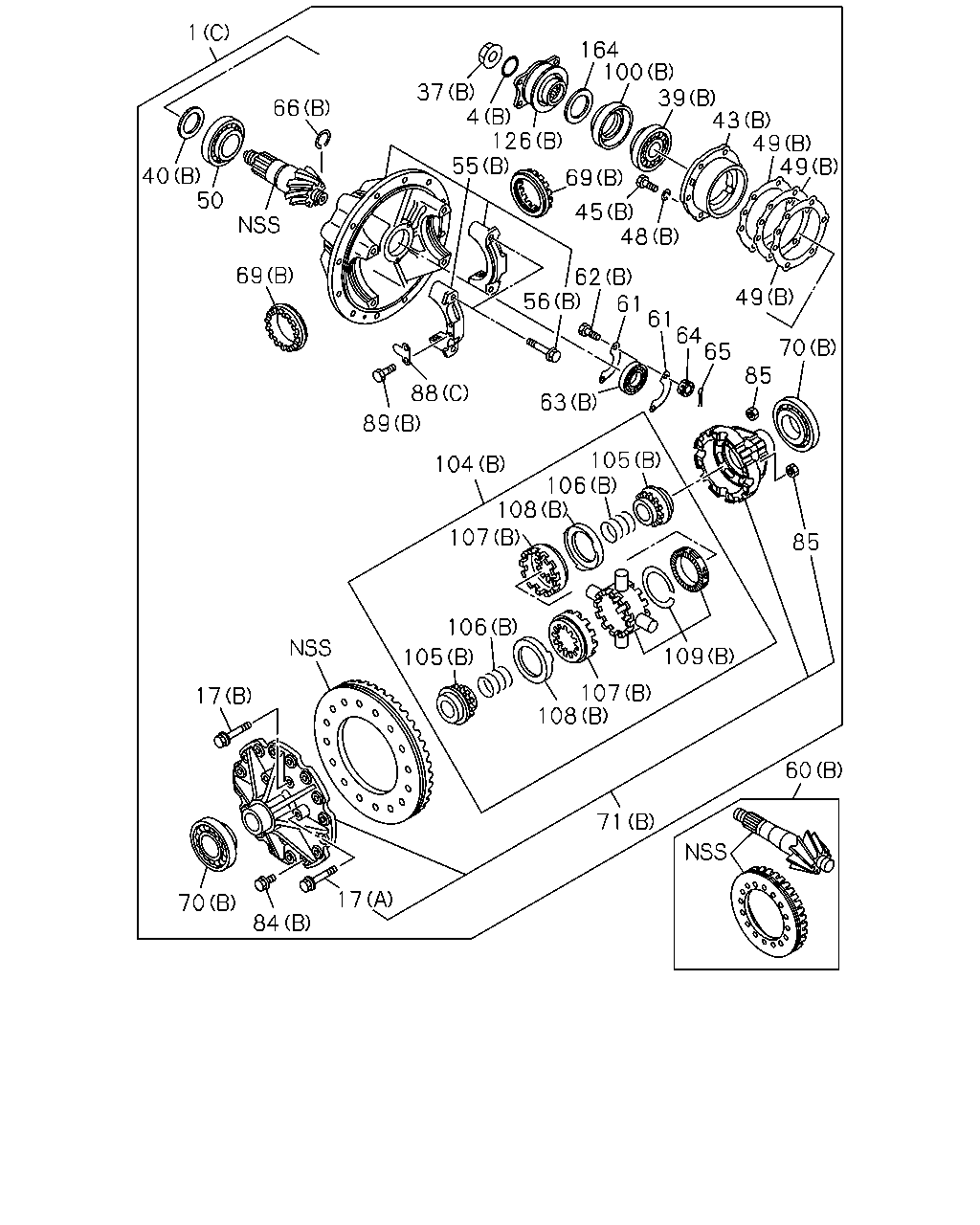

4-25 — REAR FINAL DRIVE (#116035) — 547 parça

105 106 85 109 107 108 106 105 104 17 70 84 17 71 60 66 39 40 40 42 1 37 4 126 50 100 45 48 49 43 49 49 69 55 134 56 65 64 70 61 63 61 62 88 88 89 69 108 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-		●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-		●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-		●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-		●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-		●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-		●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-		●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-		●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-		●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-		●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-		●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-		●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-		●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-		●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-		●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-		●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-		●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-		●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-		●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1302-	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1302-		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1302-	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1302-		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1302-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1302-		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1302-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1302-		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1302-	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1302-		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1302-	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1302-		●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-		●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-		●

49 49 49 43 39 100 164 37 126 4 45 55 48 69 63 61 62 56 64 61 85 65 70 20 25 24 24 21 85 89 88 439 438 440 253 441 416 413 46 17 222 70 408 84 17 71 60 411 20 25 437 444 252 443 356 47 339 442 40 69 24 21 25 22 24 25 50 66 1 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-		●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-		●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	1302-		●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1302-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	1302-		●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1302-	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	1302-		●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1302-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	1302-		●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1302-	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	1302-		●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-		●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-		●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-		●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-		●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-		●
46	BOLT DIFF LOCK<C3N> M8X60 FLANGE	0-28050-860-0	03	1	1302-	●
47	WASHER; LK DIFF LOCK<C3N> ID=8.2	1-09985-177-0	04	1	1302-	●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-		●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-		●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-		●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-		●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-		●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-		●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-		●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-		●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-		●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-		●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-		●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-		●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-		●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-		●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●
194	PLUG DIFF LOCK<C3N> M12X9	9-99202-312-0	01	1	1302-1304	●
194	PLUG DIFF LOCK<C3N> M12X9	0-92002-412-0	01	1	1305-	●
222	RING; SNAP DIFF LOCK<C3N>	1-09588-186-0	01	1	1302-	●
252	GASKET; CARRIER DIFF LOCK<C3N> ID=14.2	8-94462-114-0	01	1	1302-	●
253	NUT DIFF LOCK<C3N> M12	0-91111-512-0	01	1	1302-	●
339	BOLT; COVER DIFF LOCK<C3N> M6X14,M8X17 L=42	5-09309-006-1	04	1	1302-	●
356	NIPPLE; SHIFT UNIT DIFF LOCK<C3N> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-025-0	01	1	1302-	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-027-0	01	1	1302-	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-021-0	01	1	1302-	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	1302-	●
437	FORK ASM; SHIFT,DIFF LK DIFF LOCK<C3N>	1-41271-015-0	01	1	1302-	●
438	ROD; SHIFTER,DIFF LK DIFF LOCK<C3N>	1-41271-014-0	01	1	1302-	●
439	SPRING; RETUN,DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	1302-	●
440	SCREW SET; DIFF LK DIFF LOCK<C3N> M12X31	1-09120-021-0	01	1	1302-	●
441	PISTON; CHAMBER,DIFF LK DIFF LOCK<C3N>	1-41279-020-0	01	1	1302-	●
442	COVER; CARRIER,DIFF LK DIFF LOCK<C3N>	1-41117-005-0	01	1	1302-	●
443	SWITCH; STROKE DIFF LOCK<C3N>	1-82340-534-0	01	1	1302-	●
444	BALL DIFF LOCK<C3N>	9-00097-010-0	01	1	1302-	●

1 66 40 50 69 37 4 126 55 164 100 39 43 49 49 69 45 48 49 70 85 65 64 61 61 62 56 88 89 63 104 105 106 108 107 106 105 109 107 108 85 60 71 17 70 17 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-		●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-		●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-		●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-		●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-		●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-		●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-		●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-		●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-		●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-		●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-		●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-		●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-		●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-		●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-		●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-		●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-		●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-		●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-		●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (B)	1-41530-053-0	01	1	1302-	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86> (A)	1-41530-040-0	01	1	1302-		●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-043-0	02	1	1302-	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86> (A)	1-41561-100-0	02	1	1302-		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-006-0	02	1	1302-	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-09580-314-0	02	1	1302-		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-003-0	02	1	1302-	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86> (A)	1-41532-003-0	02	1	1302-		●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-004-1	02	1	1302-	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86> (A)	1-41539-032-0	02	1	1302-		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41539-014-0	01	1	1302-	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-034-0	01	1	1302-		●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-		●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-	●

1 42 40 40 39 66 126 4 37 100 45 48 49 49 49 50 43 55 69 134 56 69 62 88 61 64 65 61 63 20 88 89 25 24 21 20 22 21 70 85 71 60 84 17 70 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (D) 39/6	1-41003-386-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (C) 39/6	1-41003-306-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> (B) 39/7	1-41001-547-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> (A) 39/7	1-41001-257-0	01	1	1302-		●
4	GASKET; FLANGE,FINAL PINION (B) ID=37.5 T=4	1-09623-582-0	01	1	1302-	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	1302-		●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING DIFF LOCK<C3N> (C) M14X112 FLANGE	1-09070-057-1	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR2<G86> (A) M14X121 FLANGE	1-09044-006-0	04	1	1302-	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	12	1	1302-		●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.80	1-41562-061-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.00	1-41562-062-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.20	1-41562-063-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.40	1-41562-064-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=2.90	1-41562-080-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.10	1-41562-081-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR DIFF LOCK<C3N> (B) T=3.30	1-41562-082-0	AR	1	1302-	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.75	1-41562-139-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.80	1-41562-140-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.85	1-41562-141-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.90	1-41562-142-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=2.95	1-41562-143-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.00	1-41562-144-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.05	1-41562-145-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.10	1-41562-146-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.15	1-41562-147-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.20	1-41562-148-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.25	1-41562-149-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.30	1-41562-150-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.35	1-41562-151-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.40	1-41562-152-0	AR	1	1302-		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=3.45	1-41562-153-0	AR	1	1302-		●
21	GEAR; SIDE,DIFF DIFF LOCK<C3N> (B) Z=16	1-41561-149-0	02	1	1302-	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=16	1-41561-159-1	02	1	1302-		●
22	SPIDER; DIFF PINION DIFF LOCK<C3N> (B)	1-41521-050-2	01	1	1302-	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41521-061-0	01	1	1302-		●
24	GEAR; PINION,DIFF DIFF LOCK<C3N> (B) Z=10	1-41551-049-0	04	1	1302-	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> (A) Z=10	1-41551-051-0	04	1	1302-		●
25	WASHER; THRUST,PINION DIFF LOCK<C3N> (B) ID=29 OD=60	1-41562-119-0	04	1	1302-	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> (A)	1-41552-012-0	04	1	1302-		●
37	NUT; DRIVING PINION (B) M36 FLANGE	1-09449-083-0	01	1	1302-	●
37	NUT; DRIVING PINION (A) M36 FLANGE	1-09449-067-0	01	1	1302-		●
39	BEARING; FINAL PINION (B) JTEKT	5-09812-062-1	01	1	1302-	●
39	BEARING; FINAL PINION (B) NSK	5-09812-063-0	01	1	1302-	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	1302-		●
40	SHIM; FINAL PINION (B) T=1.60	1-41229-179-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.61	1-41229-180-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.62	1-41229-181-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.63	1-41229-182-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.64	1-41229-183-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.65	1-41229-184-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.66	1-41229-185-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.67	1-41229-186-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.68	1-41229-187-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.69	1-41229-188-0	AR	1	1302-	●
40	SHIM; FINAL PINION (B) T=1.70	1-41229-189-0	AR	1	1302-	●
40	SHIM; FINAL PINION (A) T=3.50	1-41229-256-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.51	1-41229-257-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.52	1-41229-258-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.53	1-41229-259-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.54	1-41229-260-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.55	1-41229-261-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.56	1-41229-262-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.57	1-41229-263-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.58	1-41229-264-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.59	1-41229-265-0	AR	1	1302-		●
40	SHIM; FINAL PINION (A) T=3.60	1-41229-266-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1302-		●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1302-		●
43	CAGE; FINAL PINION (B)	1-41151-027-0	01	1	1302-	●
43	CAGE; FINAL PINION (A)	1-41151-028-1	01	1	1302-		●
45	BOLT; FINAL PINION CAGE (B) M12X40	9-02361-240-0	06	1	1302-	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	1302-		●
48	WASHER; LK,FINAL PINION (B) ID=12.2	0-91510-812-0	06	1	1302-	●
48	WASHER; LK,FINAL PINION (A) ID=14.2	0-91510-514-0	08	1	1302-		●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-021-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-051-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-052-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-053-1	AR	1	1302-	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-063-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-064-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=1.00	9-41154-013-0	AR	1	1302-		●
49	SHIM; FINAL PINION CAGE (A) T=0.50	9-41154-014-0	AR	1	1302-		●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1302-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1302-	●	●
55	CARRIER; DIFF DIFF LOCK<C3N> (C)	1-41110-122-0	01	1	1302-	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR2<G86> (B)	1-41110-129-0	01	1	1302-	●
55	CARRIER; DIFF (A)	1-41110-052-0	01	1	1302-		●
56	BOLT; BRG CAP (B) M16X100 FLANGE	1-09070-047-0	04	1	1302-	●
56	BOLT; BRG CAP (A) M18X107	1-09050-002-1	04	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR (B) 39/6	1-41210-394-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-280-3	01	1	1302-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1302-	●	●
62	BOLT; RET (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-	●
62	BOLT; RET (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-		●
63	BEARING; PINION PILOT (B) NSK	1-09810-073-2	01	1	1302-	●
63	BEARING; PINION PILOT (B) JTEKT	1-09810-074-1	01	1	1302-	●
63	BEARING; PINION PILOT (A) JTEKT	1-09810-229-2	01	1	1302-		●
63	BEARING; PINION PILOT (A) NSK	1-09810-230-1	01	1	1302-		●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●
66	RING; SNAP,PILOT BRG (B) OD=34.2	1-09588-214-0	01	1	1302-	●
66	RING; SNAP,PILOT BRG (A) OD=42	9-09950-179-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (B) M128 H=22	1-41121-013-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE DIFF LOCK<C3N> (B) M138 H=30	1-41121-054-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) M128 H=30	1-41121-015-0	01	1	1302-	●
69	NUT; ADJ,DIFF CAGE (A) M143 H=24	1-41121-005-0	01	1	1302-		●
69	NUT; ADJ,DIFF CAGE (A) M143 H=29	1-41121-006-0	01	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1302-	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR2<G86> (B) JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1302-	●
70	BEARING; DIFF CAGE (A) NSK	1-09812-150-0	02	1	1302-		●
70	BEARING; DIFF CAGE (A) NACHI	1-09812-151-0	02	1	1302-		●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-	●
70	BEARING; DIFF CAGE DIFF LOCK<C3N> (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE DIFF LOCK<C3N> (C)	1-41510-335-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF VAR2<G86> (B)	1-41510-343-0	01	1	1302-	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-127-0	01	1	1302-		●
84	BOLT; FINAL DRIVE GEAR (B) M16X34.5 FLANGE	9-09802-575-1	16	1	1302-	●
84	BOLT; FINAL DRIVE GEAR (A) M16X37.5 FLANGE	1-09020-167-0	16	1	1302-		●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1302-	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-		●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	02	1	1302-	●
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1302-		●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1302-		●
89	BOLT; LK PLATE (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-	●
89	BOLT; LK PLATE (A) M8X16	0-20850-816-0	04	1	1302-		●
100	SEAL; OIL,FINAL PINION (B) NOK	1-09625-484-1	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (B) TKK	1-09625-637-0	01	1	1302-	●
100	SEAL; OIL,FINAL PINION (A) NOK	1-09625-017-0	01	1	1302-		●
126	COUPLING; DRIVING PINION (B)	1-37245-414-0	01	1	1302-	●
126	COUPLING; DRIVING PINION (A)	1-37245-388-0	01	1	1302-		●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
