◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11515 - FTS(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#116031) — 18 parça

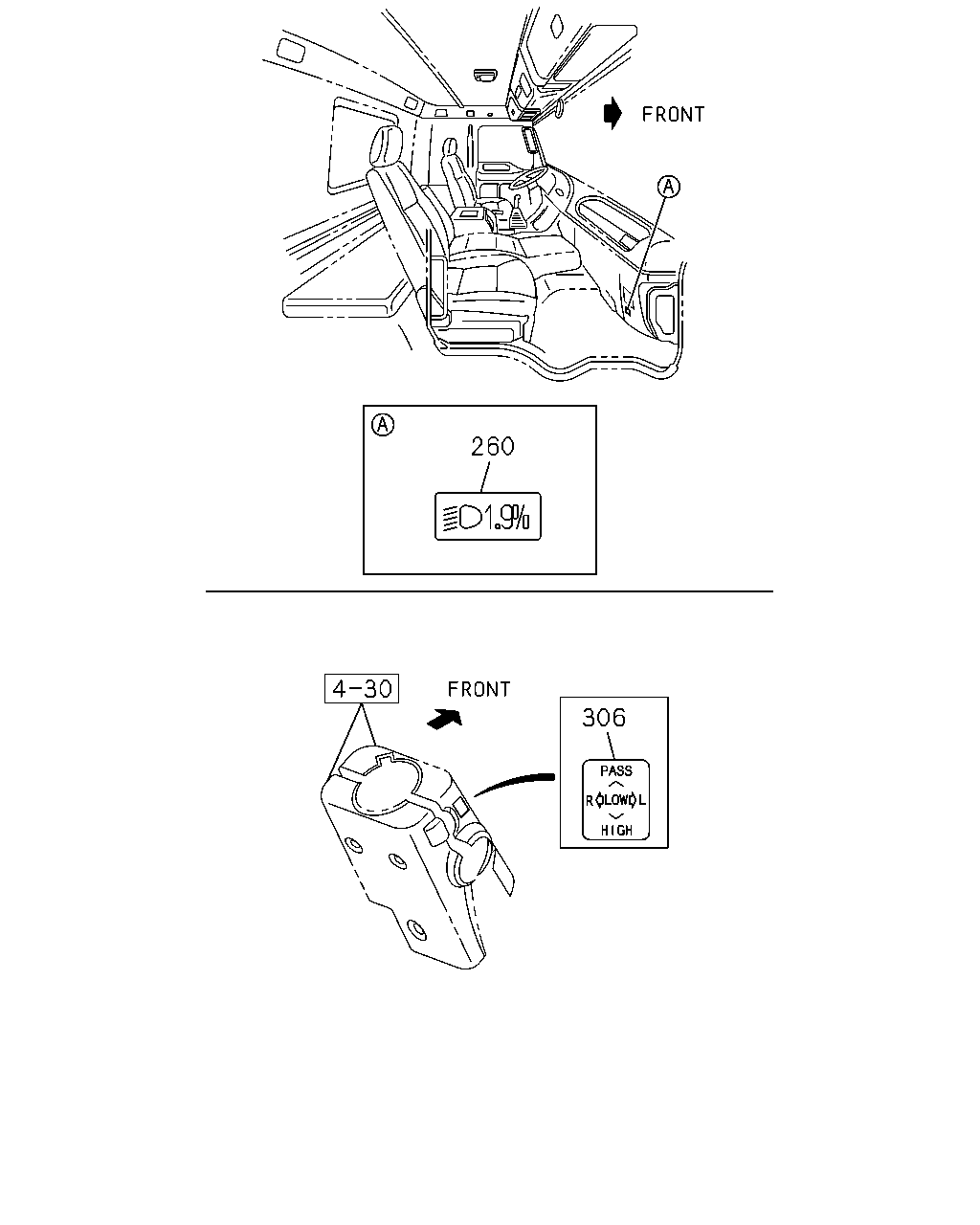

çizim 339328
306 260
BalonParca AdiParca NoAdetTipApplied Date
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1302-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1302-
çizim 339403
35 49 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 1302-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1302-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 1302-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1302-
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> 		8-98070-108-0 01 1 1302-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> LAMPS EXP PACKAGE<WL5> 		8-98138-601-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> EXC. LAMPS EXP PACKAGE<WL5> 		8-98127-559-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, LAMPS EXP PACKAGE<WL5>,CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> LAMPS EXP PACKAGE<WL5> 		8-98138-602-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> EXC. LAMPS EXP PACKAGE<WL5> 		8-98127-560-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> EXC. LAMPS EXP PACKAGE<WL5> 		8-98069-841-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
LAMPS EXP PACKAGE<WL5> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98138-600-0 01 1 1302-
49 PLATE; CAUTION,FUSE BOX
LAMPS EXP PACKAGE<WL5> CAUTIONS SPANISH<YN1> 		8-98138-603-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
