Sayfa 8-28 - Isuzu EPC

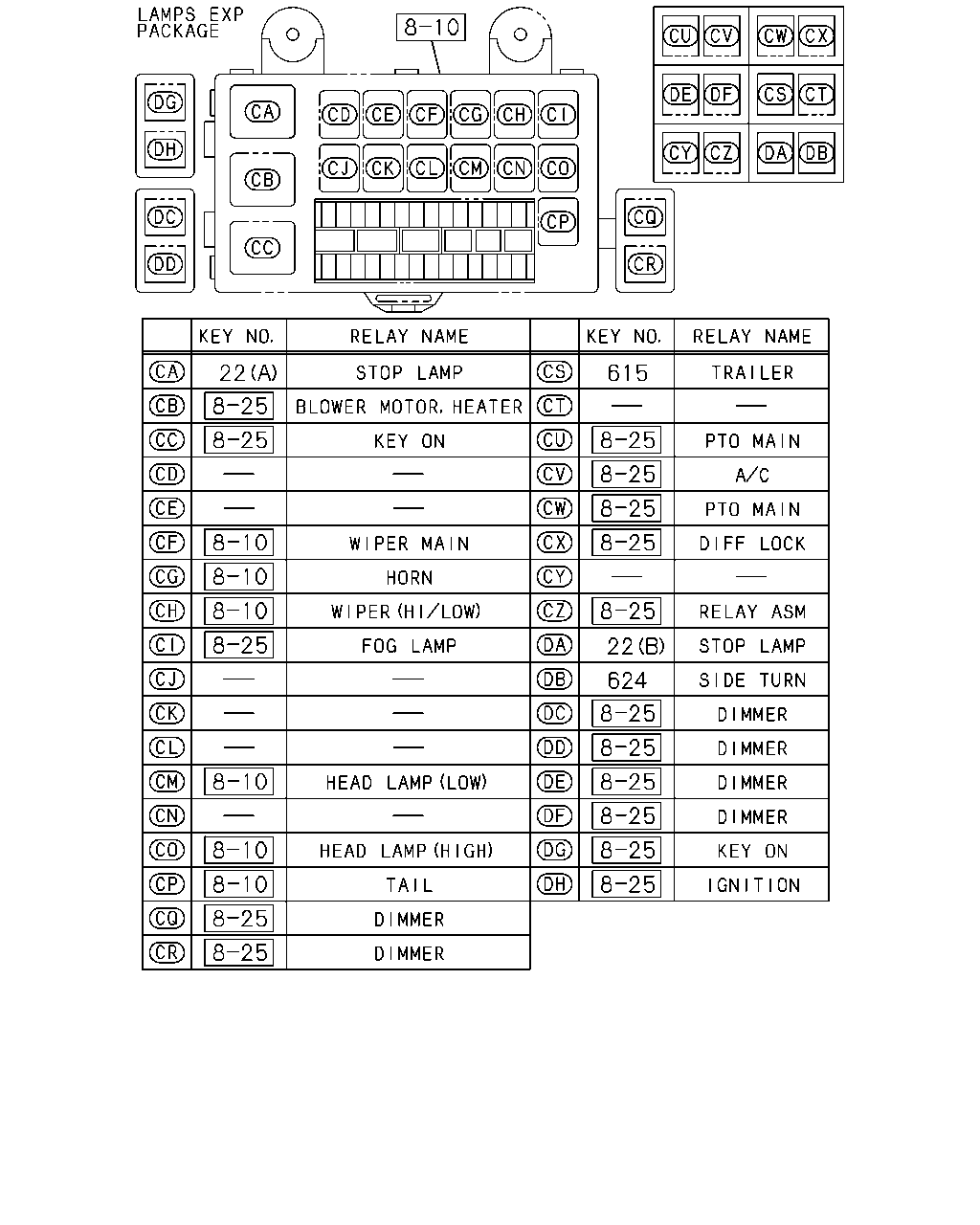

22 22 624 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
624	RELAY; SIDE TURN LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC	8-97173-035-1	01	1	1302-

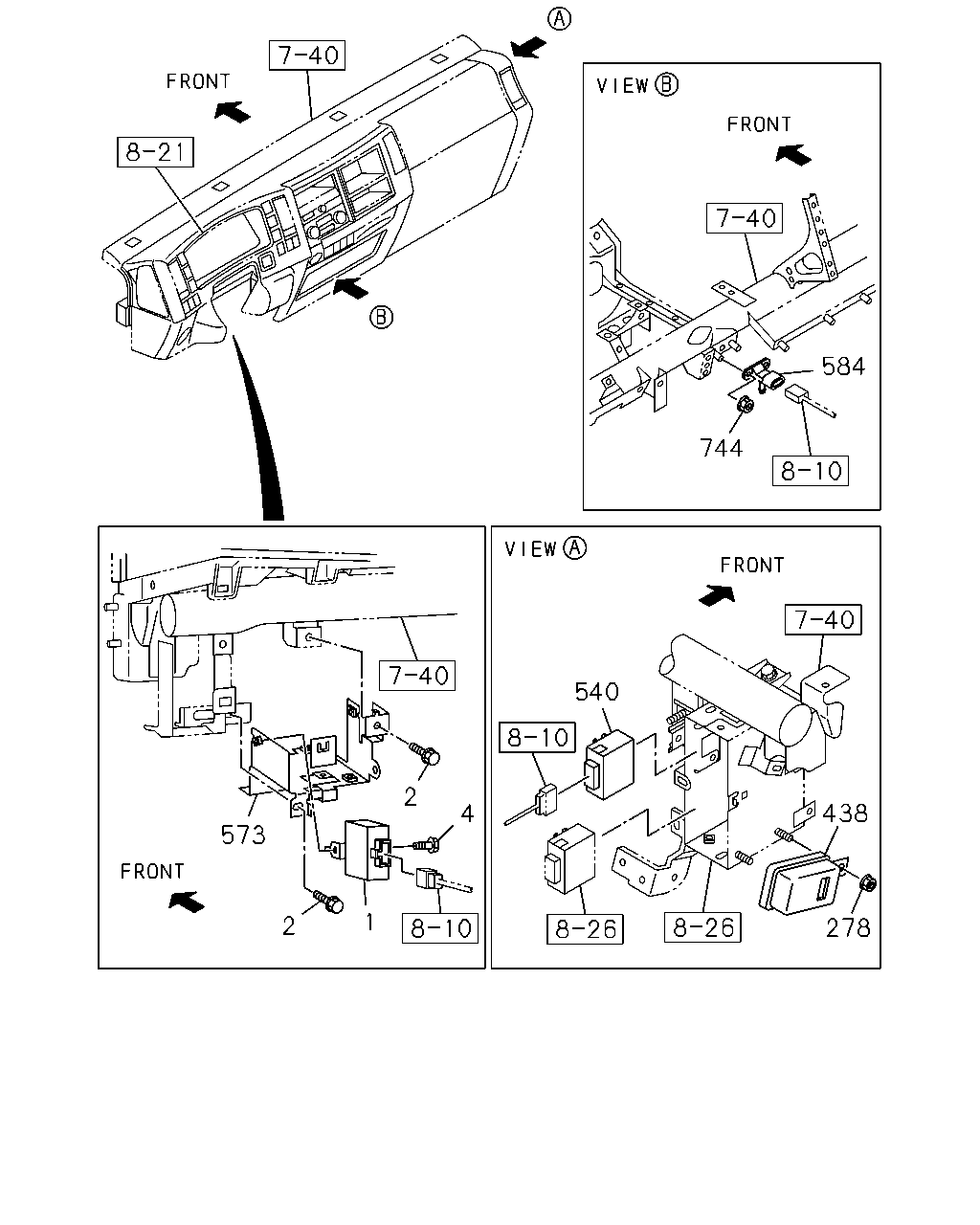

744 584 540 278 438 1 2 2 4 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1302-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1302-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1302-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1302-
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1302-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1302-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1302-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1302-

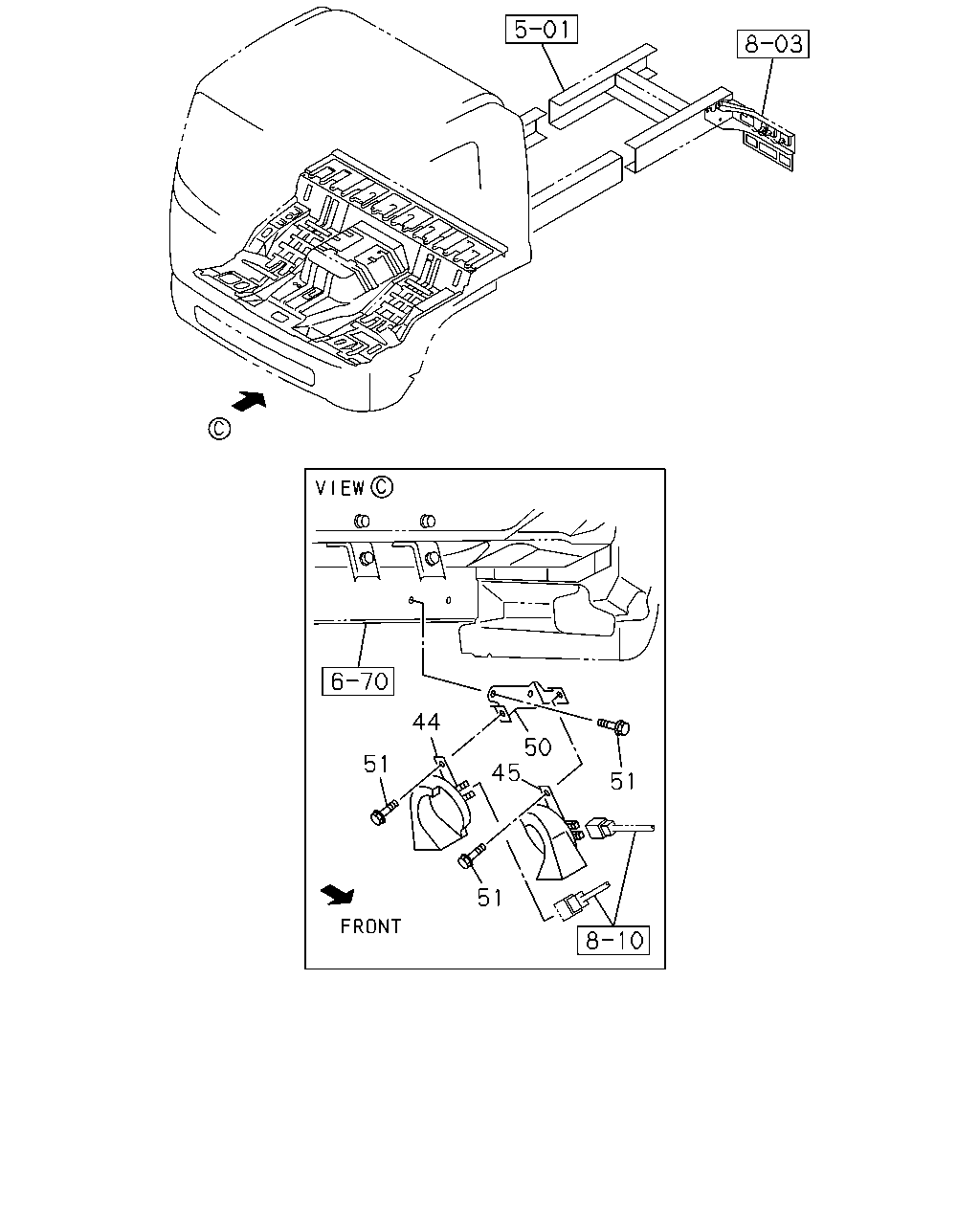

44 51 50 51 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	1302-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1302-
50	BRACKET; HORN	8-97616-529-2	01	1	1302-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1302-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-

34 36 33 34 261 35 34 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	1-82563-871-2	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
35	BRACKET; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>	8-98034-702-0	01	1	1302-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE	0-28651-030-0	02	1	1302-
39	BOLT; BRKT,MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-

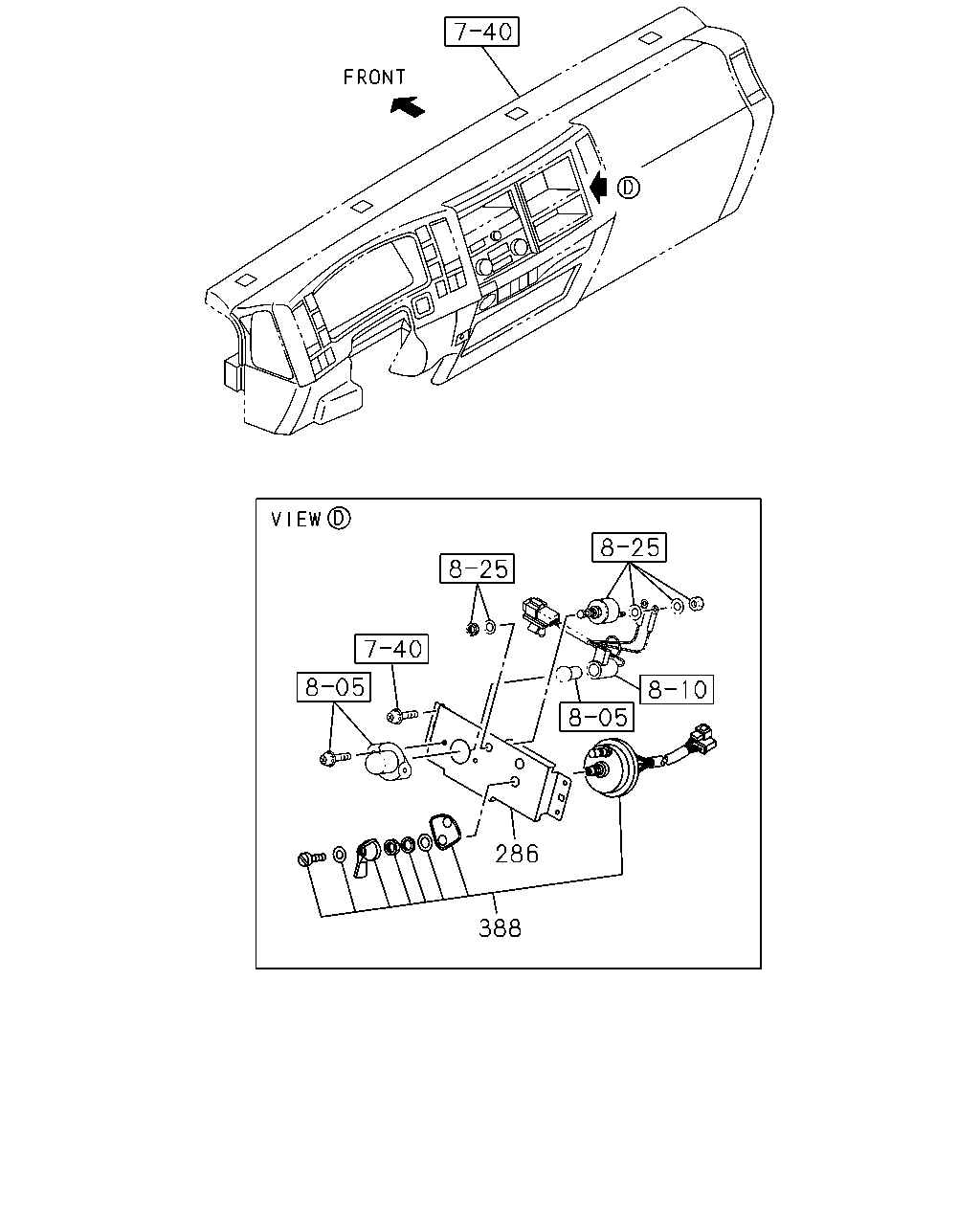

286 388

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	286	BRACKET LAMPS EXP PACKAGE<WL5>	8-97623-460-2	01	1	1302-
	388	SWITCH; ROTARY LAMPS EXP PACKAGE<WL5>	1-82430-003-0	01	1	1302-

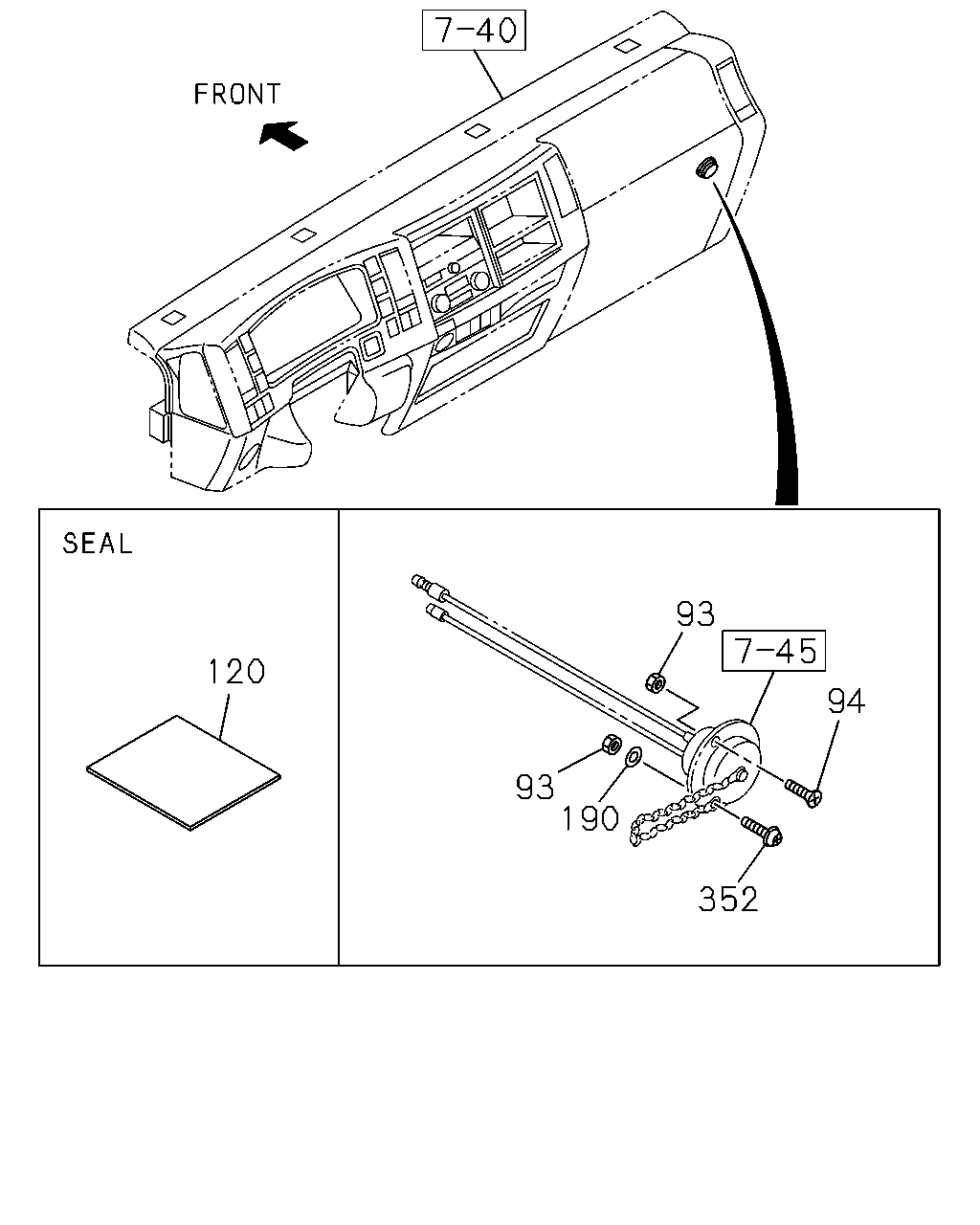

120 93 190 352 94 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	NUT; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3	9-99110-403-0	03	1	1302-
94	SCREW; CONSENT TO BLIND PNL ACCESSORY SOCKET<KC5> M3X10 CK-HEAD	9-93090-310-0	02	1	1302-
120	SEAL ACCESSORY SOCKET<KC5> 100X40	1-72498-022-1	01	1	1302-
190	WASHER ACCESSORY SOCKET<KC5> ID=3.1	0-91510-503-0	01	1	1302-
352	SCREW; BRKT ACCESSORY SOCKET<KC5> M3X10	9-93490-310-0	01	1	1302-

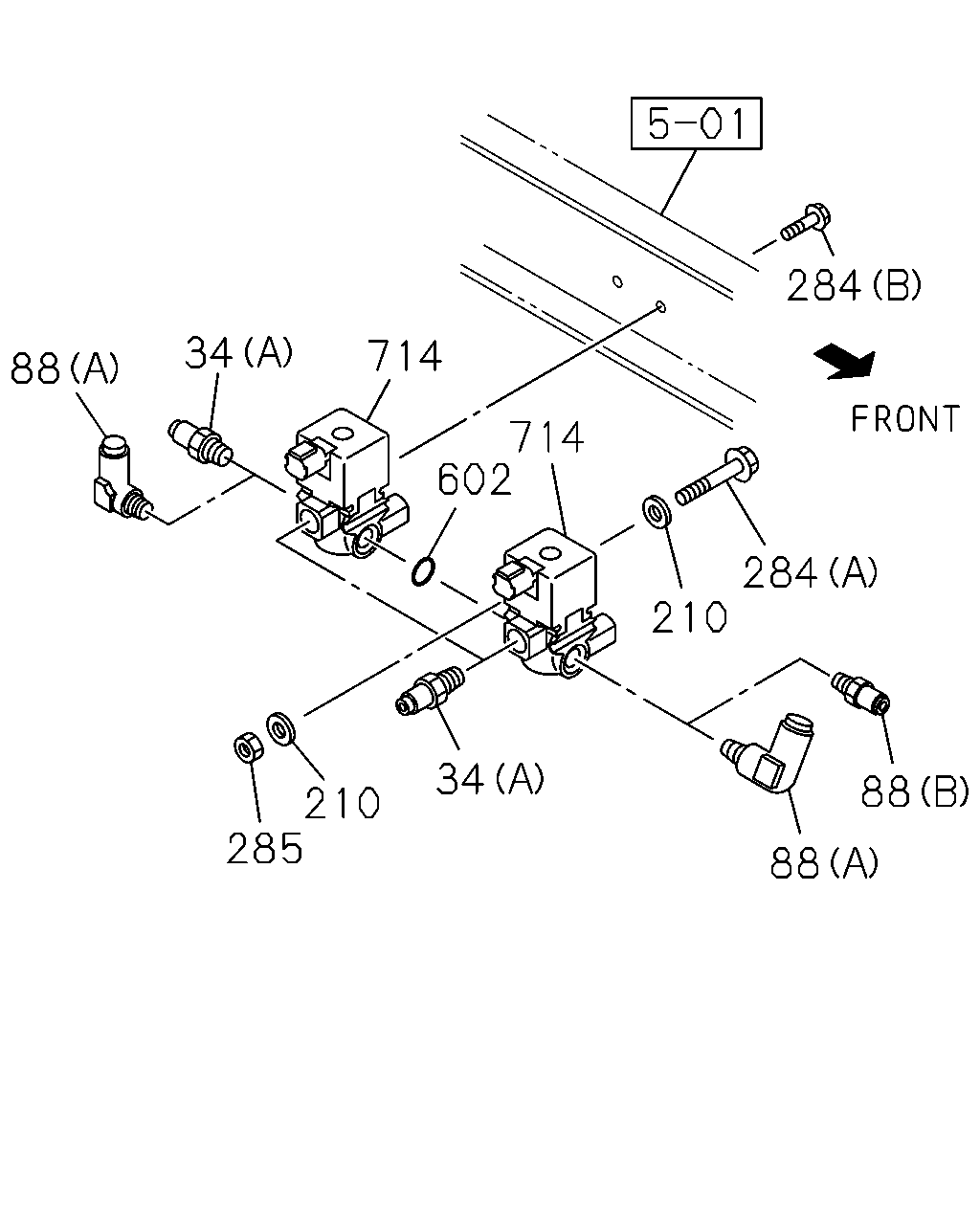

88 34 714 602 285 34 210 210 714 284 284 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 ELBOW	1-48629-258-0	02	1	1302-1503
88	CONNECTOR; MAG VLV WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 ELBOW	8-98299-777-0	02	1	1504-
88	CONNECTOR; MAG VLV WHEEL BASE 4100MM(41W) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1302-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1302-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1302-

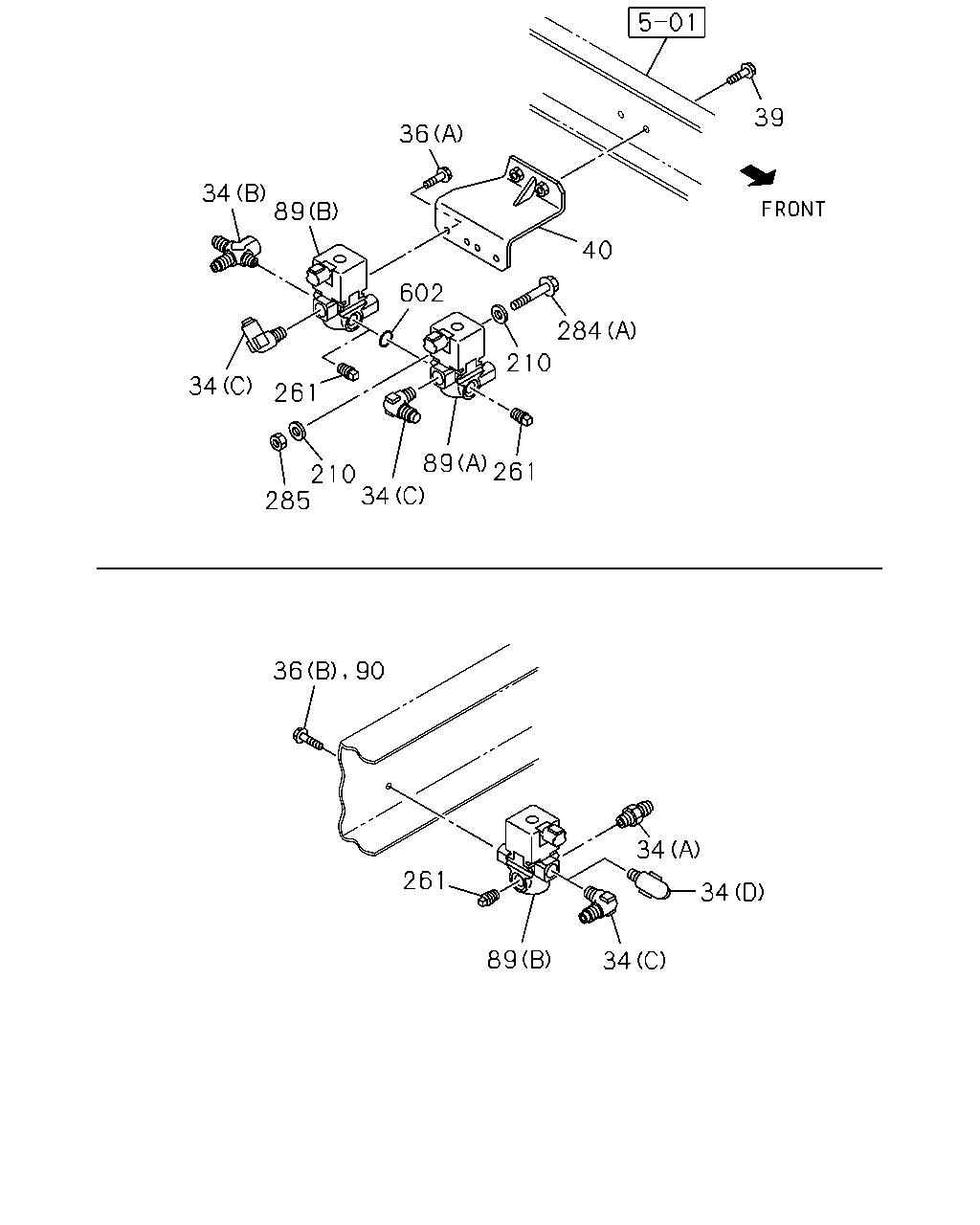

36 40 284 210 89 261 34 210 285 34 261 89 34 602 39 36 90 261 89 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1302-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT REARWARD INNER SINGLE TIRE<YK3> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1302-
34	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4100MM(41W) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1302-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT REARWARD INNER SINGLE TIRE<YK3> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
36	BOLT; MAG VLV,PTO CONT DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
39	BOLT; BRKT,MAG VLV REARWARD INNER SINGLE TIRE<YK3> M10X30 FLANGE	0-28651-030-0	02	1	1302-
39	BOLT; BRKT,MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1302-
40	BRACKET; MAG VLV REARWARD INNER SINGLE TIRE<YK3>	8-98034-702-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> (B)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK REARWARD INNER SINGLE TIRE<YK3> (B)	8-97641-594-0	01	1	1302-
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A)	1-82563-871-2	01	1	1302-
90	BOLT; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X25 FLANGE	0-28650-825-0	02	1	1302-
210	WASHER; PL,BRKT PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3>	1-82569-266-0	02	1	1302-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV DOUBLE TIRE REARWARD<SR6> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1302-
261	PLUG; MAG VLV REARWARD INNER SINGLE TIRE<YK3> PT1/4	9-99204-513-0	01	1	1302-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1302-
284	BOLT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1302-
285	NUT; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> M6 FLANGE	0-91180-106-0	01	1	1302-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1302-
602	GASKET; MAG VLV PTO CONTROL<SV6> REARWARD INNER SINGLE TIRE<YK3> ID=16.8	9-09565-117-0	01	1	1302-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1302-

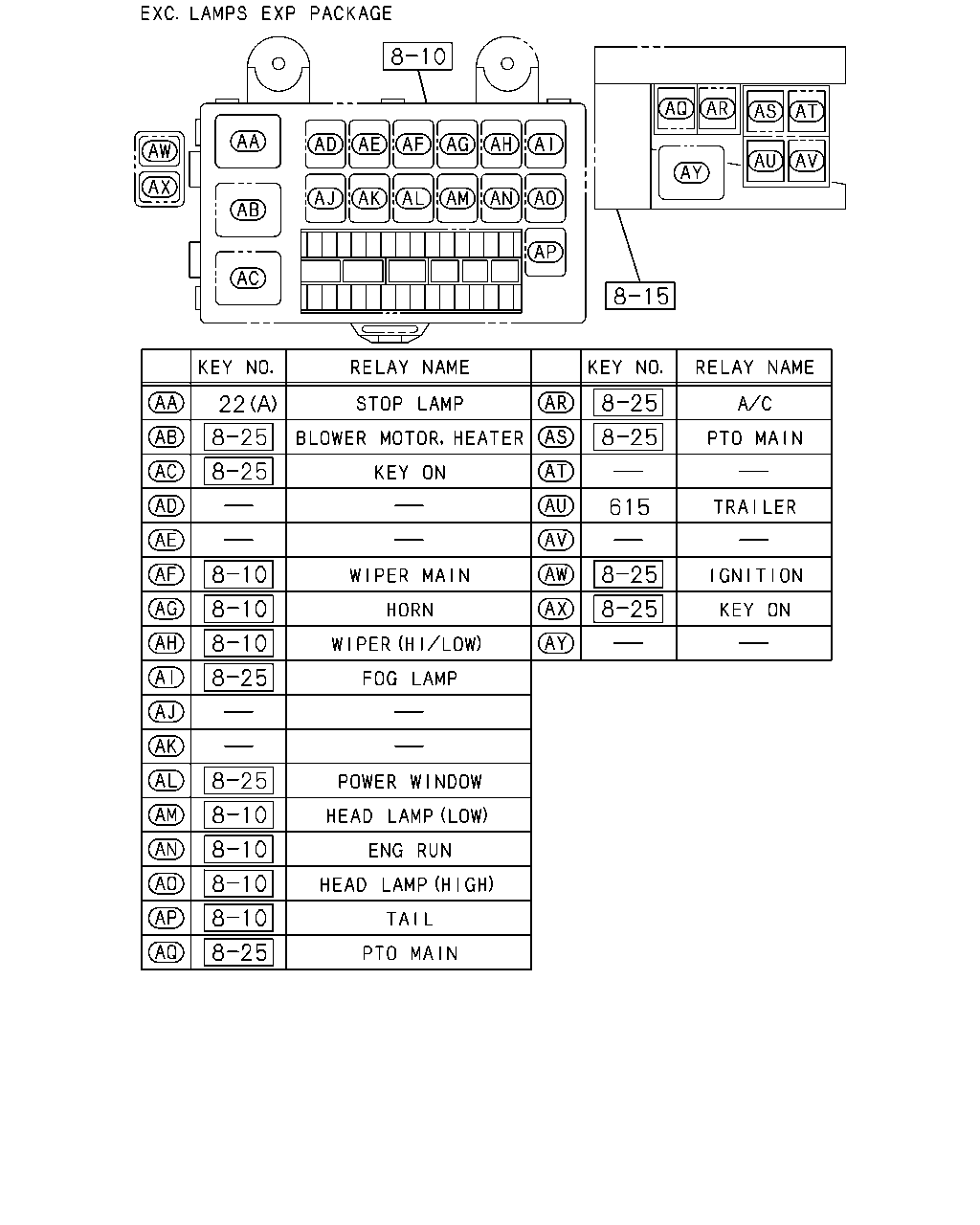

22 615

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1302-
22	RELAY; STOP LAMP LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1302-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1302-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1302-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
