◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11515 - FTS(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#116026) — 156 parça

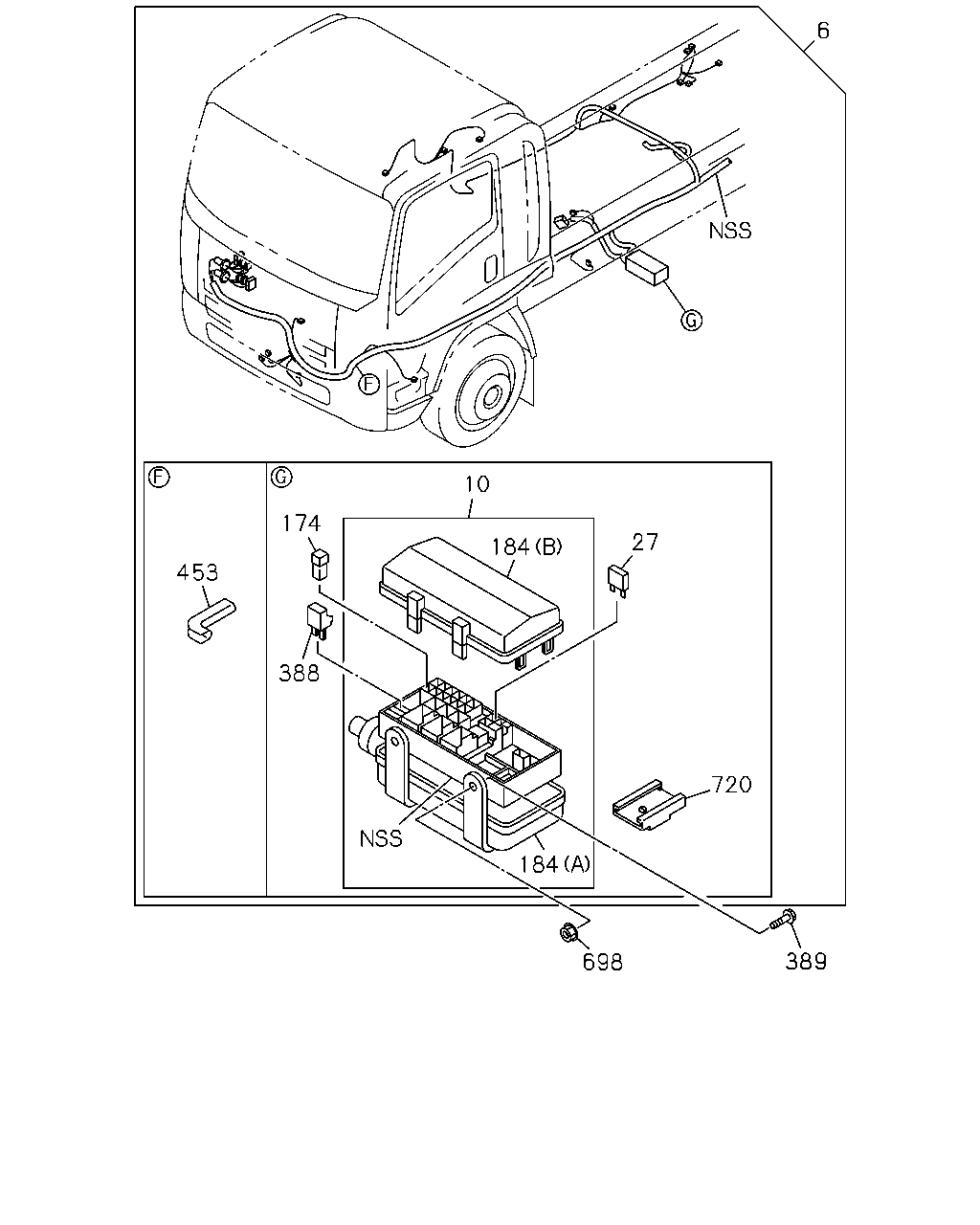

çizim 339186
6 10 27 184 174 453 388 184 720 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-981-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-982-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-983-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-980-0 01 1 1302-
10 BOX; FUSE,HARNESS
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 		8-98030-762-0 01 1 1302-
10 BOX; FUSE,HARNESS
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98030-762-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 10A RED 		8-98054-257-0 01 1 1302-
27 FUSE UNIT
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 15A BLUE 		8-98054-258-0 02 1 1302-
27 FUSE UNIT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 15A BLUE 		8-98054-258-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 60A YELLOW 		8-97219-407-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 30A PINK 		8-98079-191-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 40A GREEN 		8-98079-192-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 40A GREEN 		8-98079-192-0 01 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 50A RED 		8-98079-193-0 03 1 1302-
174 FUSE; SLOW BLOW
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 50A RED 		8-98079-193-0 03 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (A) 		8-98030-766-0 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98030-767-1 01 1 1302-
184 COVER; RELAY & FUSE BOX
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> (B) 		8-98030-767-1 01 1 1302-
388 DIODE; RELAY BOX
REARWARD INNER SINGLE TIRE<YK3> BLACK 2P-1.5A 		8-94422-639-1 02 1 1302-
388 DIODE; RELAY BOX
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> BLACK 2P-1.5A 		8-94422-639-1 01 1 1302-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1302-
453 PROTECTOR; HARNESS
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 		1-82699-709-0 01 1 1302-
453 PROTECTOR; HARNESS
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		1-82699-709-0 01 1 1302-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1302-
720 ATTACHMENT; CONNECTOR
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> 		1-82699-688-0 03 1 1302-
720 ATTACHMENT; CONNECTOR
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		1-82699-688-0 03 1 1302-

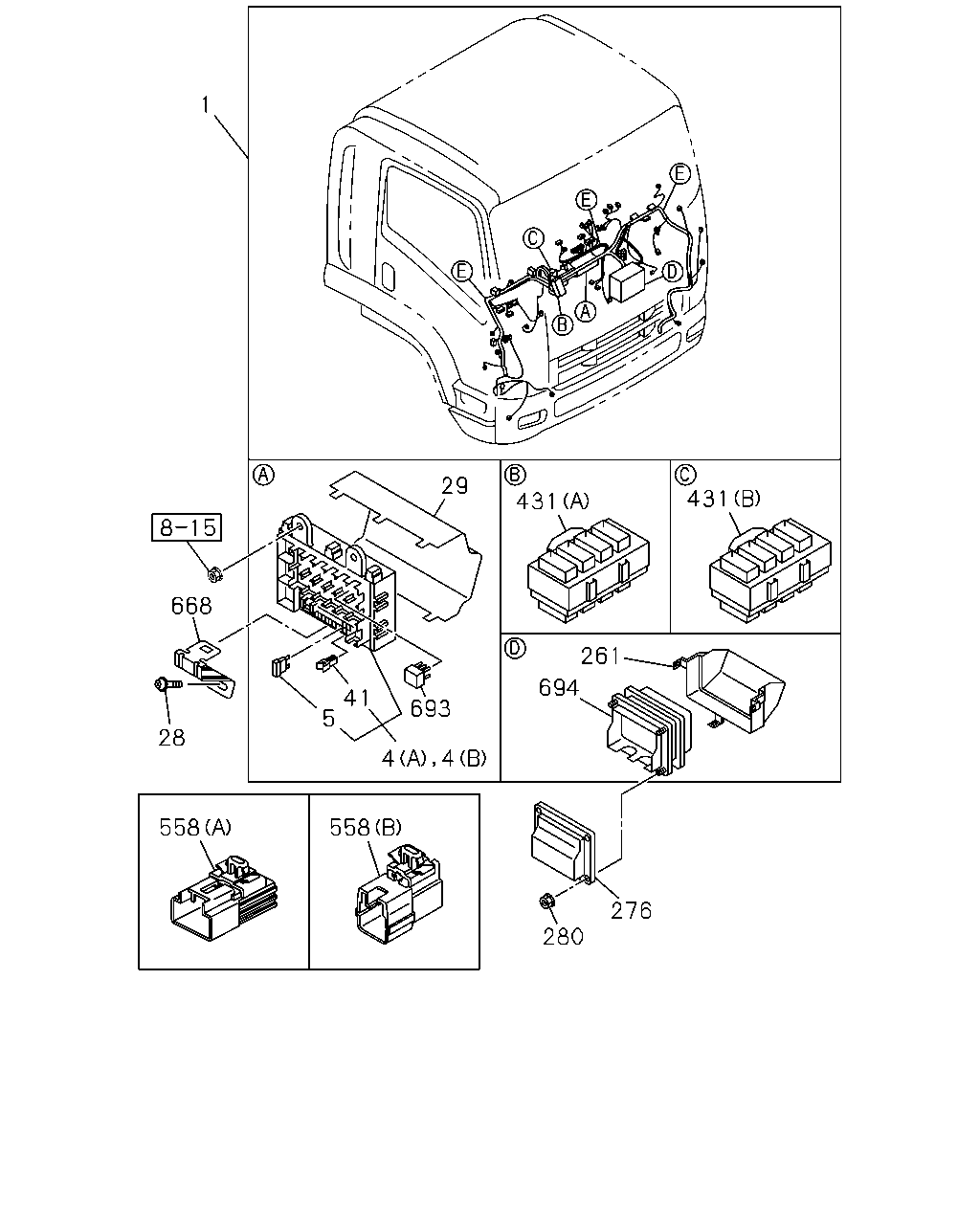

çizim 339207
431 431 29 668 28 5 4 4 41 693 694 261 276 280 558 558 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-231-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-232-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-233-1 01 1 1302-
4 BOX ASM; FUSE,HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98081-164-0 01 1 1302-
5 FUSE; FACIA HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 10A RED 		8-98054-257-0 AR 1 1302-
5 FUSE; FACIA HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 15A BLUE 		8-98054-258-0 AR 1 1302-
5 FUSE; FACIA HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 20A YELLOW 		8-98054-259-0 AR 1 1302-
5 FUSE; FACIA HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 25A WHITE 		8-98062-982-0 AR 1 1302-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
29 COVER; FUSE BOX
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98056-968-0 01 1 1302-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 		8-98056-968-0 01 1 1302-
41 PULLER; FUSE
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98054-260-0 01 1 1302-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 		8-98054-260-0 01 1 1302-
261 COVER; CONNECTOR BOX
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98065-986-1 01 1 1302-
261 COVER; CONNECTOR BOX
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 		8-98065-986-1 01 1 1302-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1302-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1302-
431 CONNECTOR; JOINT
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (A) WHITE 		8-98056-374-0 01 1 1302-
431 CONNECTOR; JOINT
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (B) WHITE 		8-98056-375-0 01 1 1302-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (B) WHITE 		8-98056-375-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1302-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1302-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1302-
693 RELAY; FUSE BOX
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
694 BOX ASM; CONNECTOR
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98057-771-0 01 1 1302-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 		8-98057-771-0 01 1 1302-
çizim 339224
1 253 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-231-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-232-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-233-1 01 1 1302-
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN(6KK) 		8-98074-080-3 01 1 1302-
253 HARNESS; EXT,HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 		8-98159-227-2 01 1 1302-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1302-

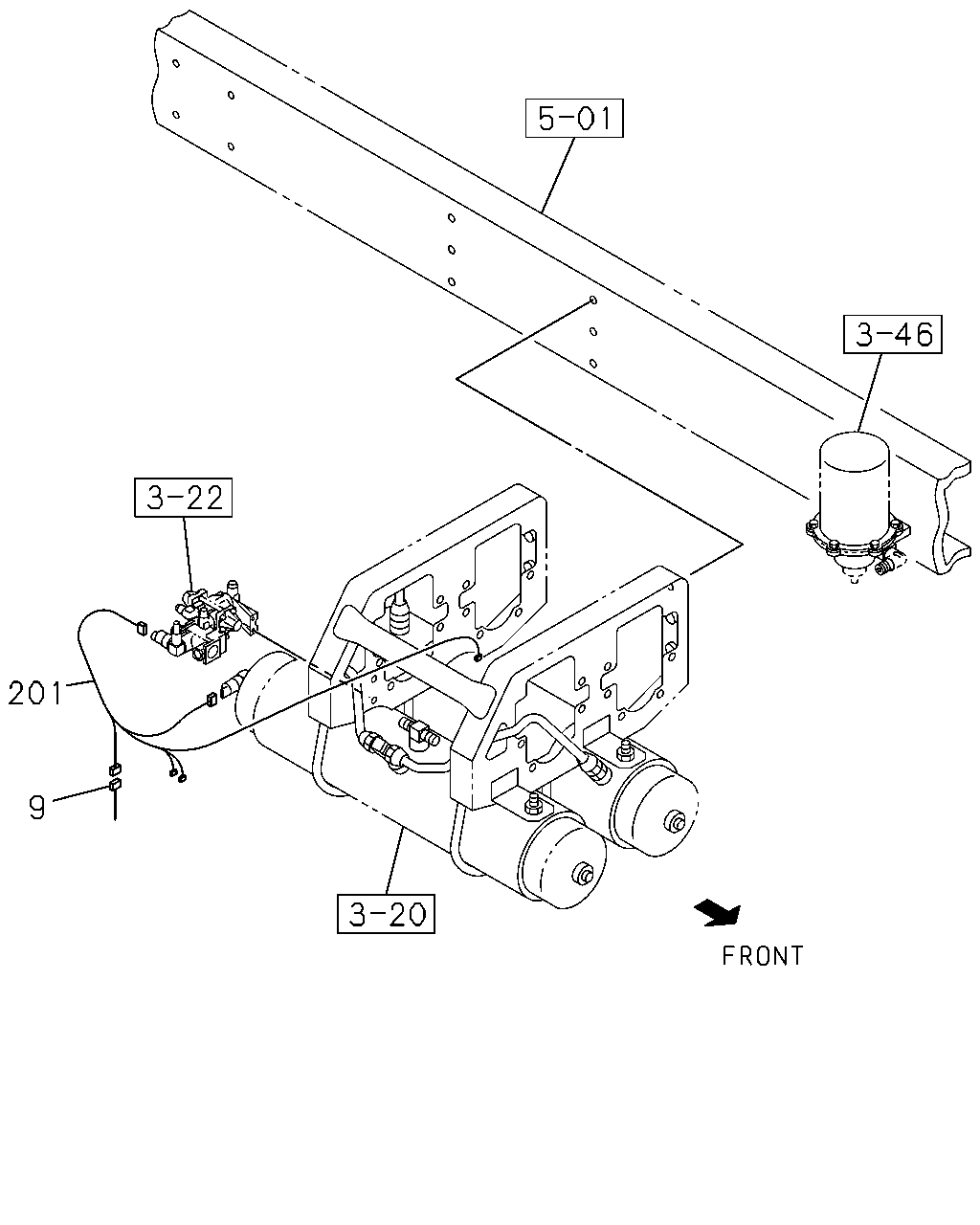

çizim 339227
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98168-686-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> 		8-98137-360-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98168-687-0 01 1 1302-
201 HARNESS; AIR TANK 8-98221-273-0 01 1 1302-

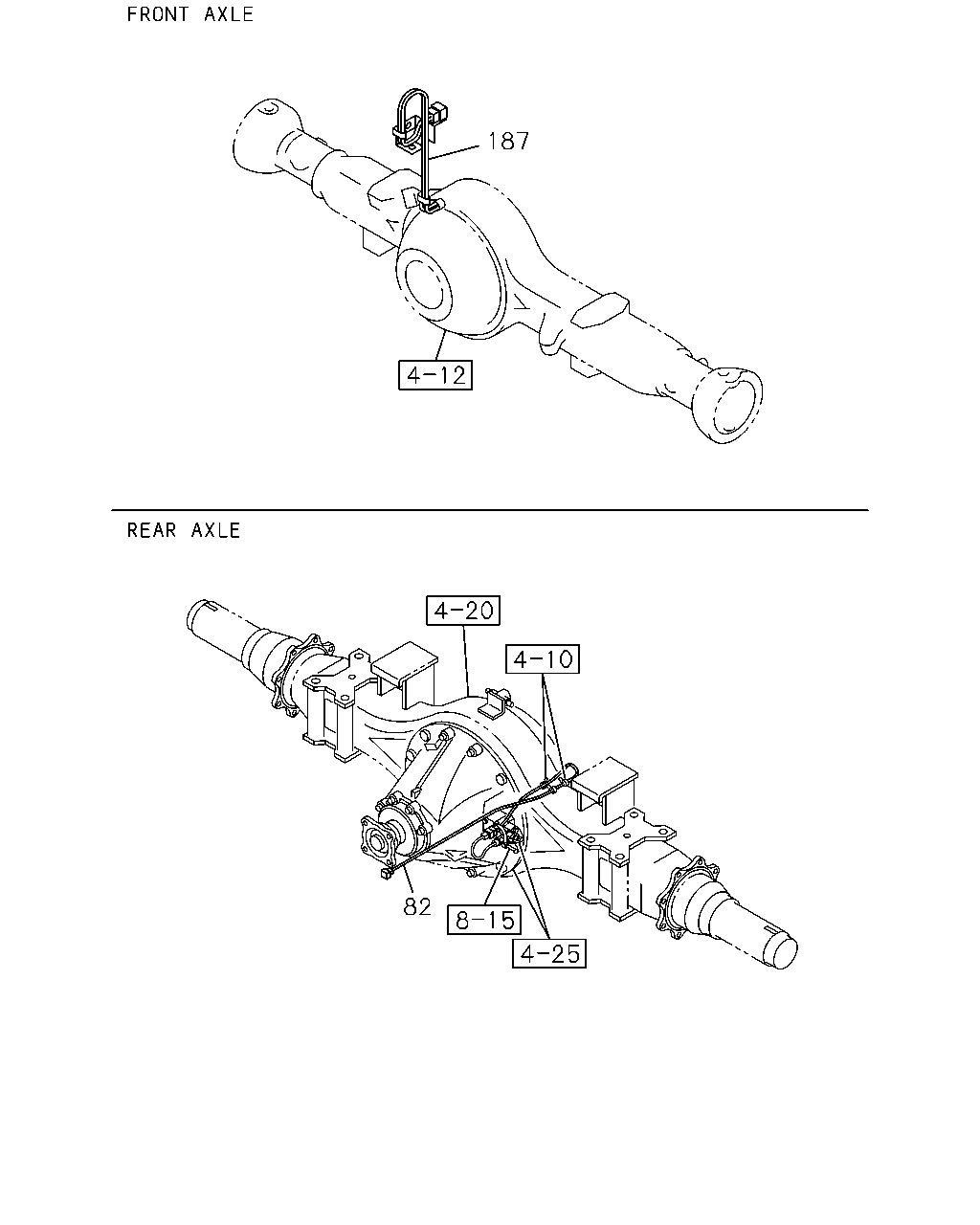

çizim 339228
187 82
BalonParca AdiParca NoAdetTipApplied Date
82 HARNESS; DIFF LOCK
FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> 		8-98145-727-1 01 1 1302-
187 HARNESS; AXLE
REARWARD INNER SINGLE TIRE<YK3> 		8-98138-762-1 01 1 1302-

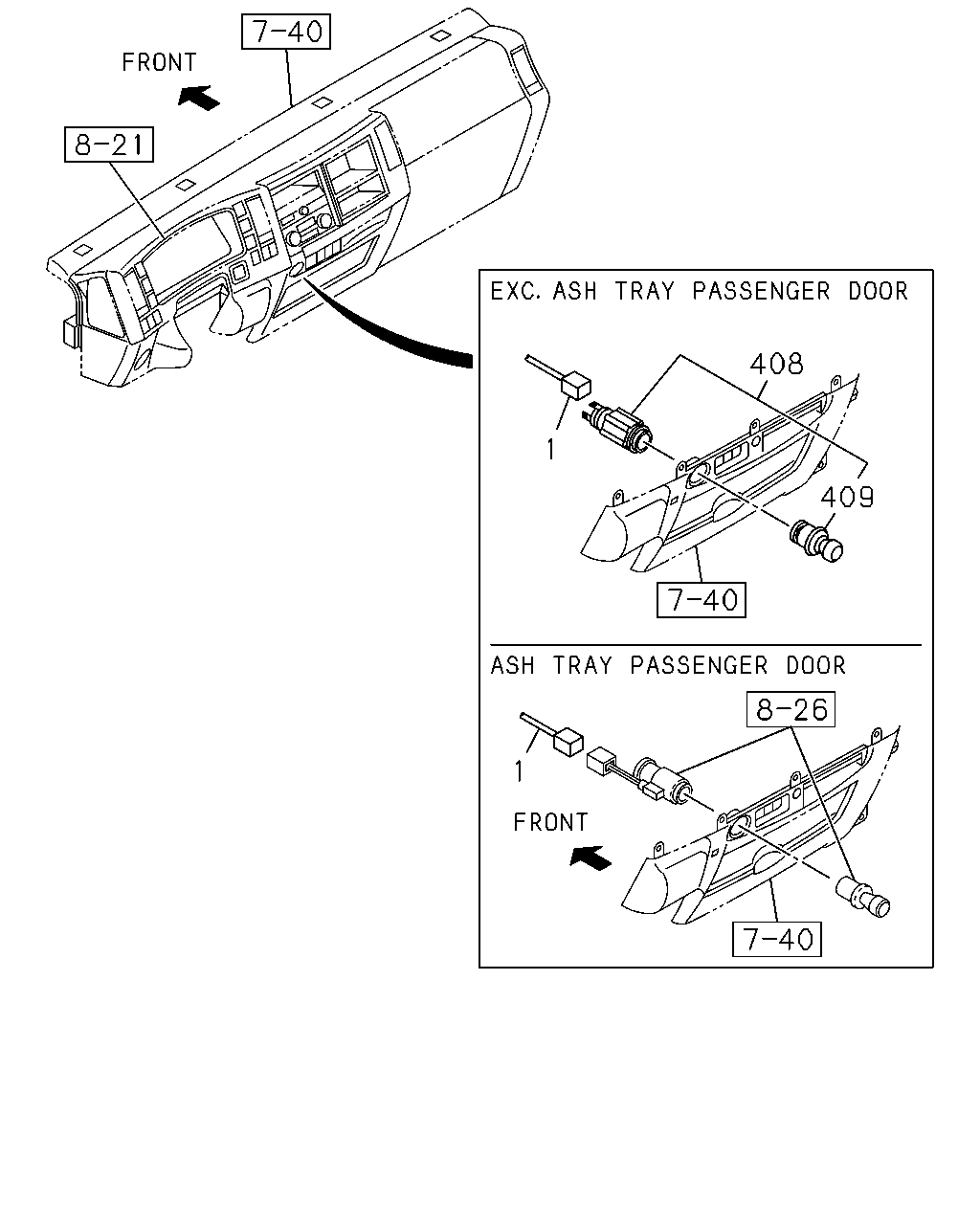

çizim 339230
1 408 409 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-231-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-232-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-233-1 01 1 1302-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1302-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1302-

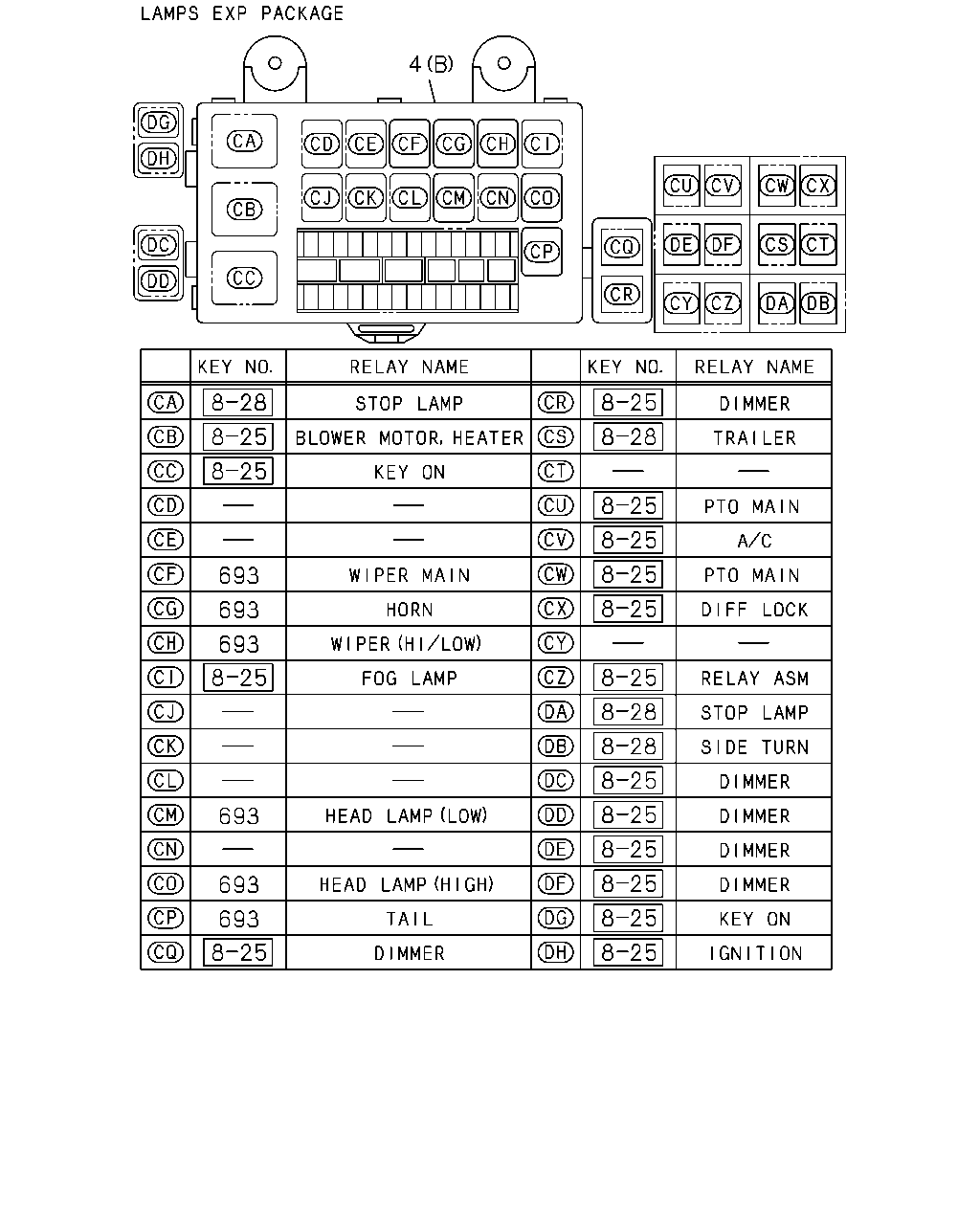

çizim 339232
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98081-164-0 01 1 1302-
693 RELAY; FUSE BOX
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
çizim 339233
533 533 533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
(E) ID=15 L=28 		1-09701-216-0 03 1 1302-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 1302-
533 CLIP
EXC. INTERMITTENT WIPER<C13> (A) L=100 		5-09707-036-1 01 1 1302-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> (D) ID=11 L=16 		0-95235-025-0 04 1 1302-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> (F) OD=9 H=9.5 		1-09709-179-0 01 1 1302-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1302-
533 CLIP
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1302-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> (C) ID=5-12 L=18 		1-09709-287-0 01 1 1302-
533 CLIP
USER EXP GOVERNMENT<D6M> DOUBLE TIRE REARWARD<SR6> (G) ID=10 & 10 		1-09709-277-1 01 1 1302-
533 CLIP
REARWARD INNER SINGLE TIRE<YK3> (G) ID=10 & 10 		1-09709-277-1 01 1 1302-

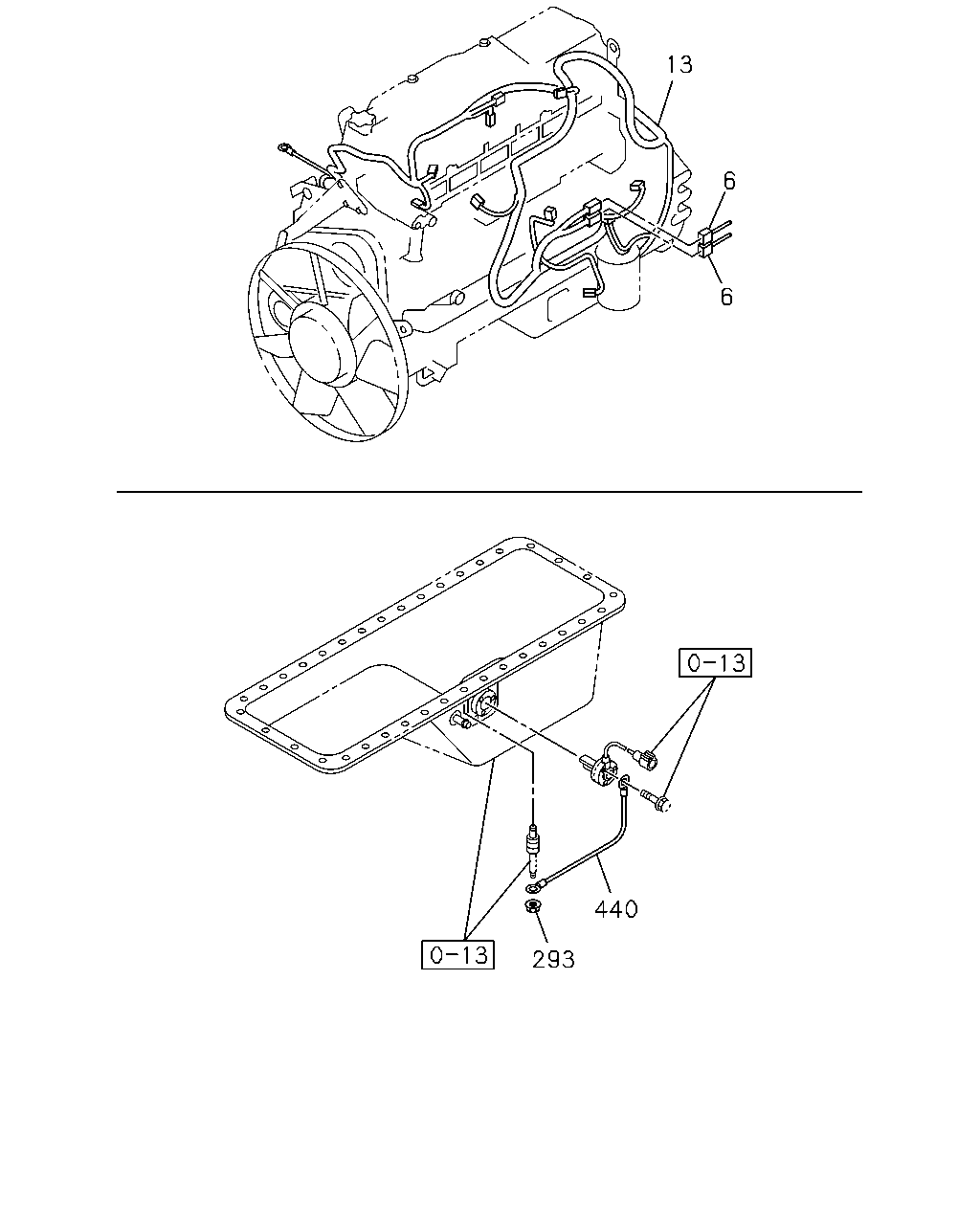

çizim 339236
13 6 6 440 293
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-981-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-982-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-983-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-980-0 01 1 1302-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 1302-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 1302-
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1302-
440 CABLE; EARTH 8-97606-639-0 01 1 1302-
çizim 339250
638 666 666 666 639 267 639 267 535 290 536 640
BalonParca AdiParca NoAdetTipApplied Date
267 BOLT; BRKT
REARWARD INNER SINGLE TIRE<YK3> (B) M8X16 FLANGE 		0-28050-816-0 03 1 1302-
267 BOLT; BRKT
REARWARD INNER SINGLE TIRE<YK3> (A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
290 NUT; BRKT
REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1302-
535 BOLT; BRKT FIX
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8X30 FLANGE 		0-28650-830-0 01 1 1302-
536 NUT; BRKT FIX
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1302-
638 BRACKET; SPD SENSOR
DIFF LOCK<C3N> REARWARD INNER SINGLE TIRE<YK3> 		1-82698-167-0 01 1 1302-
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
639 BOLT; CLIP
REARWARD INNER SINGLE TIRE<YK3> (A) M8X12 FLANGE 		0-28050-812-0 02 1 1302-
639 BOLT; CLIP
REARWARD INNER SINGLE TIRE<YK3> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
640 NUT; CLIP
REARWARD INNER SINGLE TIRE<YK3> M8 FLANGE 		0-91180-108-0 01 1 1302-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (B) L=145 		1-47475-655-0 01 1 1302-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (C) 		8-98140-841-1 01 1 1302-
666 BRACKET; CLIP
REARWARD INNER SINGLE TIRE<YK3> (A) 		8-98140-891-1 01 1 1302-

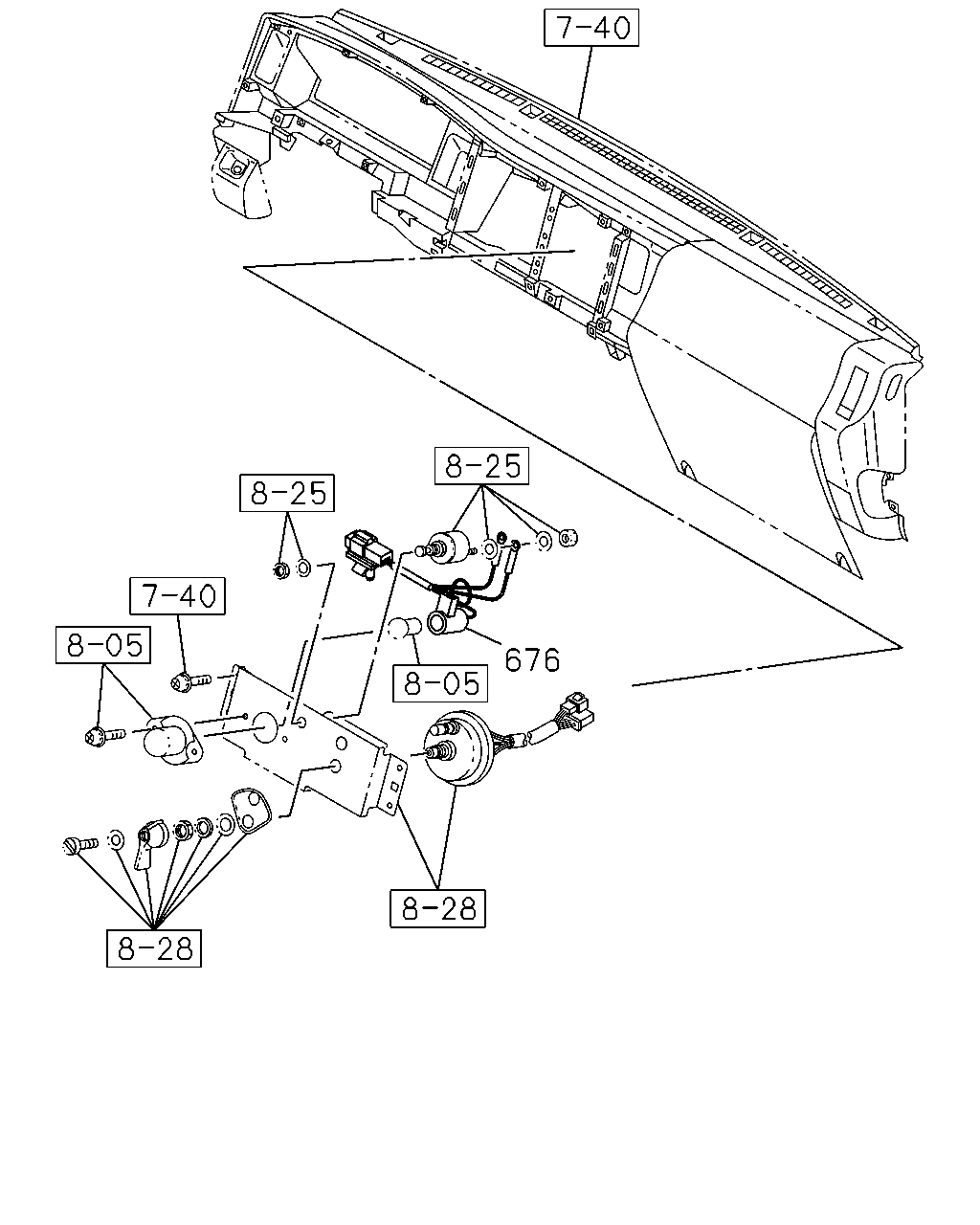

çizim 339267
676
BalonParca AdiParca NoAdetTipApplied Date
676 HARNESS; EXT,MAP LAMP
USER EXP GOVERNMENT<D6M> 		8-98140-101-0 01 1 1302-

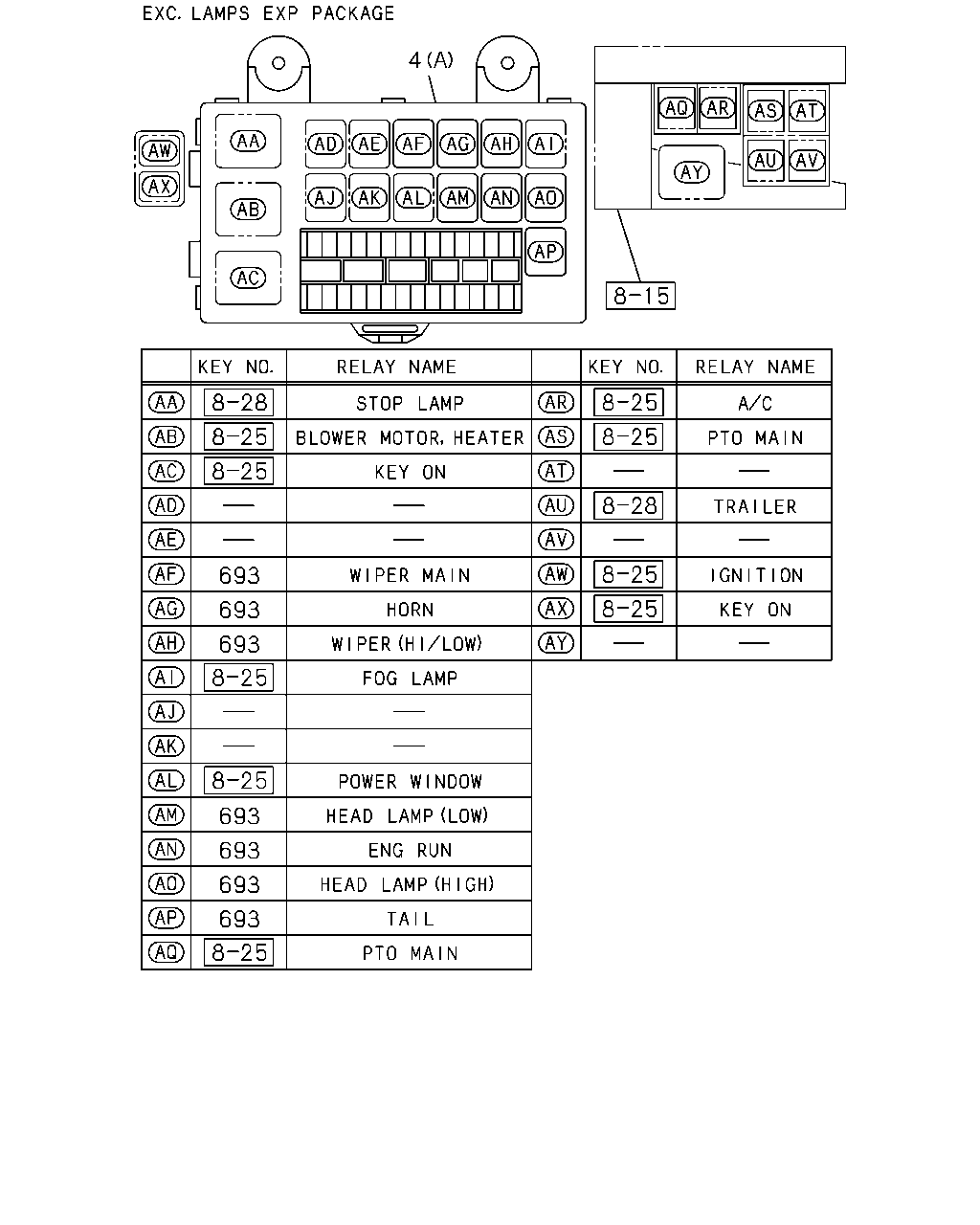

çizim 339376
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> (A) 		8-98065-666-0 01 1 1302-
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> (B) 		8-98081-164-0 01 1 1302-
693 RELAY; FUSE BOX
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1302-

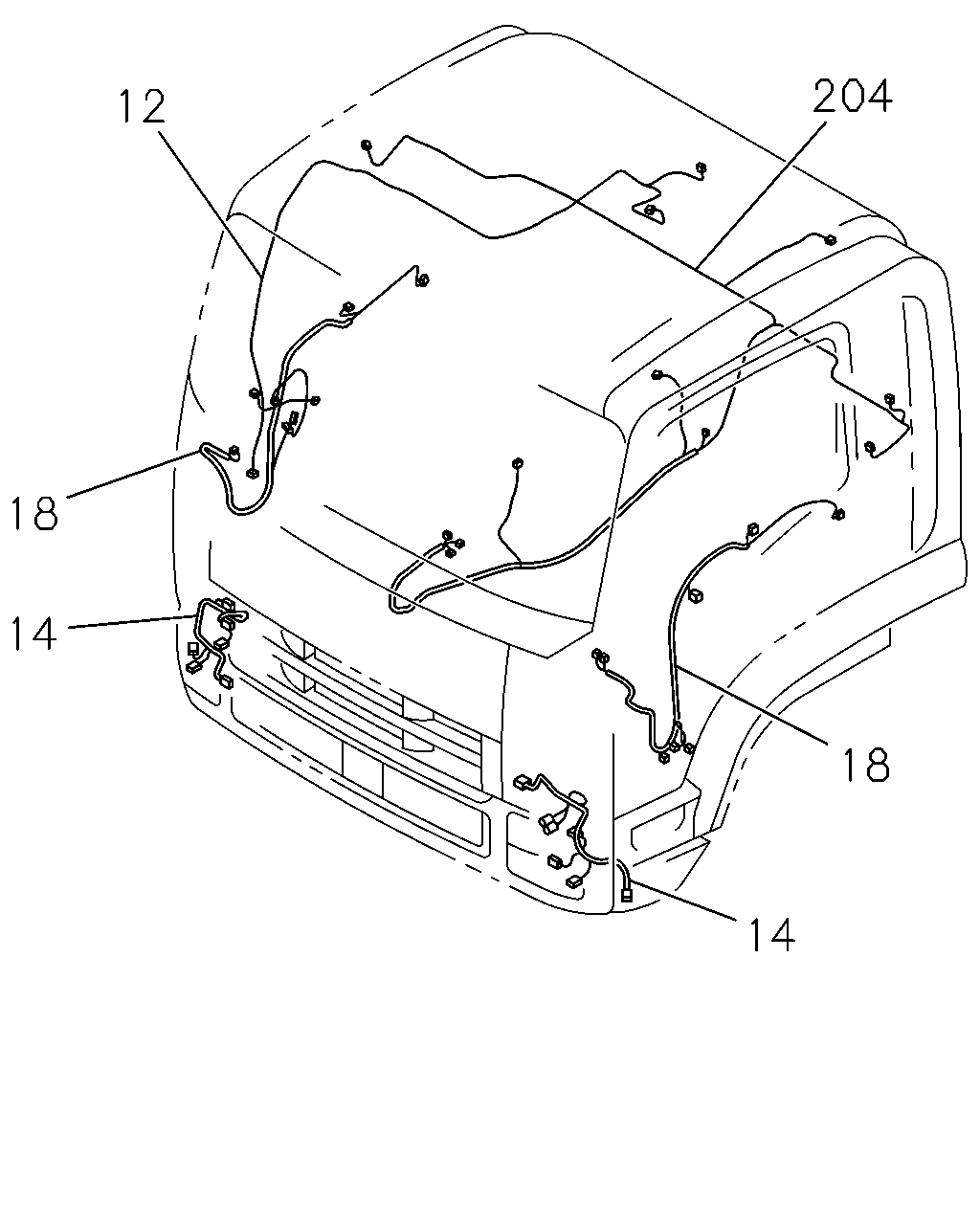

çizim 339385
12 204 18 14 18 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-442-0 01 1 1302-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-335-1 01 1 1302-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 1302-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-97622-119-0 02 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-803-0 01 1 1302-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98178-804-0 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-801-0 01 1 1302-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98178-802-0 01 1 1302-
204 HARNESS; CABLE,FLOOR 8-98085-307-1 01 1 1302-

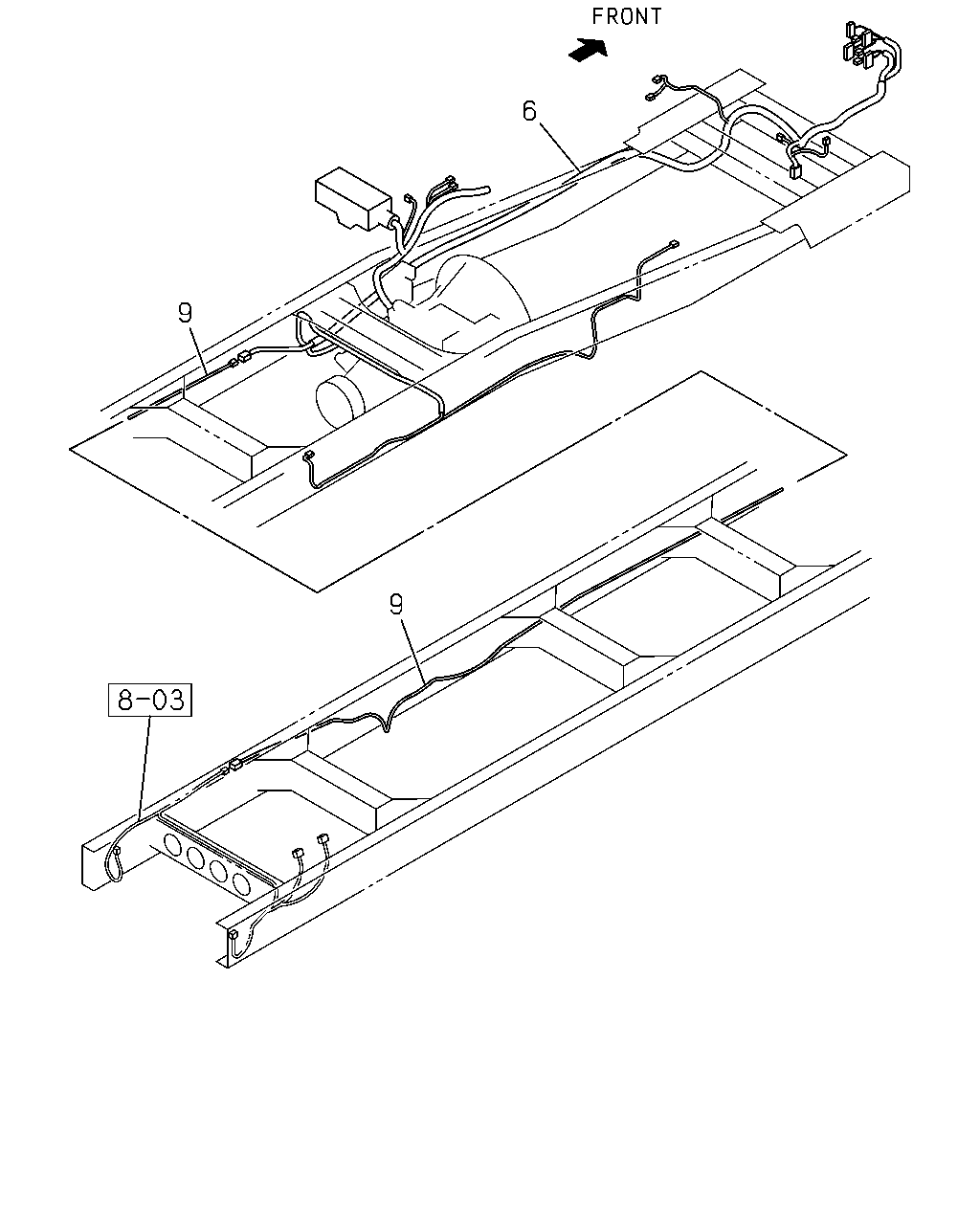

çizim 339408
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-981-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-982-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-983-0 01 1 1302-
6 HARNESS; FRAME
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M> 		8-98216-980-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 3600MM(36W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98168-686-0 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) REARWARD INNER SINGLE TIRE<YK3> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98137-474-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6>,REARWARD INNER SINGLE TIRE<YK3> 		8-98137-360-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) USER EXP GOVERNMENT<D6M> REARWARD INNER SINGLE TIRE<YK3> EXC. PINTLE HOOK<PP7> 		8-98140-351-2 01 1 1302-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) DOUBLE TIRE REARWARD<SR6> EXC. USER EXP GOVERNMENT<D6M>,PINTLE HOOK<PP7> 		8-98168-687-0 01 1 1302-
çizim 339419
2 2 2 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-231-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> LAMPS EXP PACKAGE<WL5> REARWARD INNER SINGLE TIRE<YK3> 		8-98216-232-1 01 1 1302-
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> EXC. LAMPS EXP PACKAGE<WL5> 		8-98216-233-1 01 1 1302-
2 DIODE; CABLE HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (A) BLACK 10P 		1-82699-703-0 01 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (A) BLACK 10P 		1-82699-703-0 01 1 1302-
2 DIODE; CABLE HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1302-
2 DIODE; CABLE HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (B) BLACK 2P-1.5A 		8-94422-639-1 03 1 1302-
2 DIODE; CABLE HARNESS
BUMPER W/HEADLAMPS<SLB> DOUBLE TIRE REARWARD<SR6> HALOGEN HEADLAMPS<TT5> EXC. LAMPS EXP PACKAGE<WL5> (C) BLACK 3P-1.5A 		8-94422-640-1 01 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1302-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> REARWARD INNER SINGLE TIRE<YK3> (C) BLACK 3P-1.5A 		8-94422-640-1 02 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
