Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#116025) — 144 parça

124 129 125 331 127 432 355 431 331 399 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
124	BULB; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB> 24V 21W	8-98051-496-0	02	1	1302-
125	GASKET; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94334-881-0	02	1	1302-
127	LENS; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94117-030-0	01	1	1302-
127	LENS; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	8-94112-723-0	01	1	1302-
129	SCREW; FRT TURN SIGNAL BUMPER W/HEADLAMPS<SLB>	0-91190-435-0	04	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-896-0	01	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-895-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-459-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-458-0	01	1	1302-
355	SCREW; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-428-0	04	1	1302-
357	BULB; TURN SIGNAL REINFORCEMENT BUMPER<VG7> 24V 21W AMBER	8-97323-806-0	02	1	1302-
399	SOCKET; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-387-0	02	1	1302-
431	CAP; TURN SIGNAL,LAMP REINFORCEMENT BUMPER<VG7>	8-97378-874-0	02	1	1302-
432	FASTENER; TURN SIGNAL,LAMP REINFORCEMENT BUMPER<VG7>	8-98051-431-0	04	1	1302-

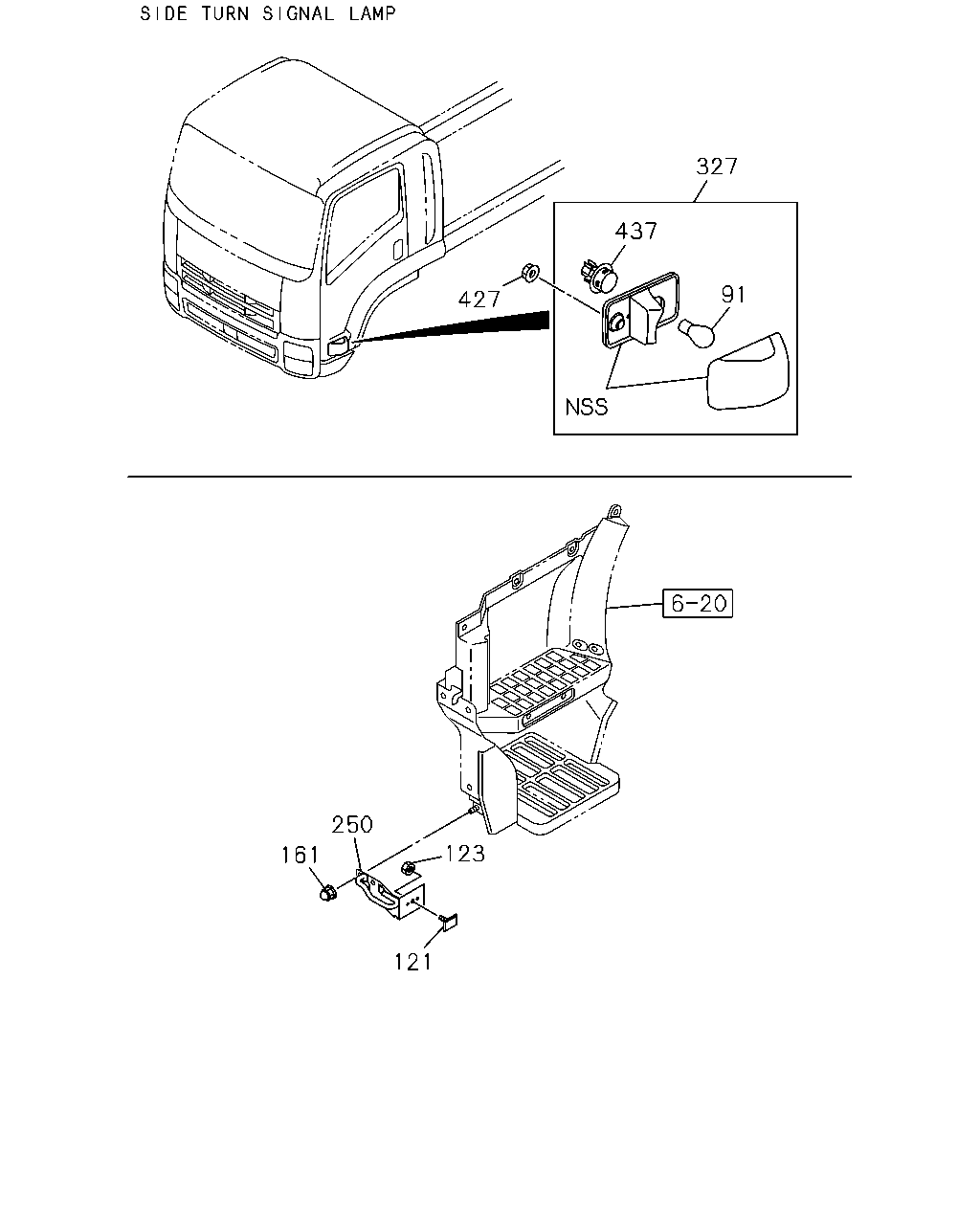

327 437 91 427 250 123 161 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1302-
121	REFLECTOR; REFLEX	1-82290-066-0	02	1	1302-
123	NUT; REFLECTOR M6 FLANGE	0-91180-106-0	02	1	1302-
161	NUT; BRKT M8 CAP NUT FLANGE	8-97372-242-0	04	1	1302-1312
161	NUT; BRKT M8 CAP NUT FLANGE	8-98261-347-0	04	1	1401-
250	BRACKET ASM	8-98070-243-1	01	1	1302-
250	BRACKET ASM	8-98070-242-1	01	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1302-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP REINFORCEMENT BUMPER<VG7> M6 FLANGE	0-91180-106-0	02	1	1302-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1302-

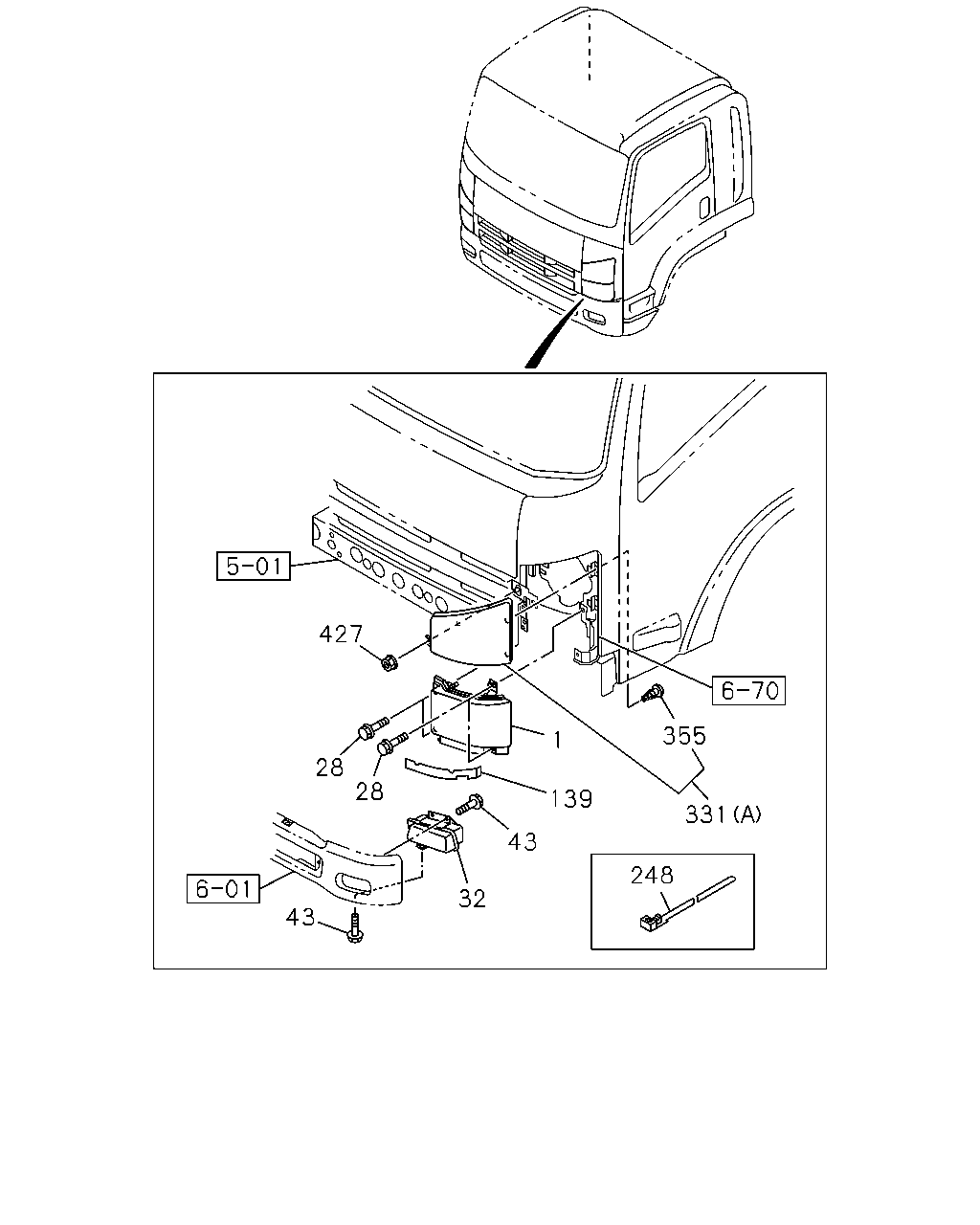

427 1 139 43 32 28 28 355 331 248 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-625-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-624-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-623-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-315-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-622-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-314-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-324-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-323-0	01	1	1306-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1302-
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-059-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-058-1	01	1	1302-
43	BOLT; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1302-
139	COVER; HEADLAMP	8-98054-342-0	02	1	1302-
248	CLIP; HARNESS REINFORCEMENT BUMPER<VG7> EXC. FOG LAMP<T96> L=140	5-09707-031-1	02	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-896-0	01	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-895-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-459-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-458-0	01	1	1302-
355	SCREW; TURN SIGNAL REINFORCEMENT BUMPER<VG7>	8-98051-428-0	04	1	1302-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1302-
427	NUT; TURN SIGNAL LAMP REINFORCEMENT BUMPER<VG7> M6 FLANGE	0-91180-106-0	02	1	1302-

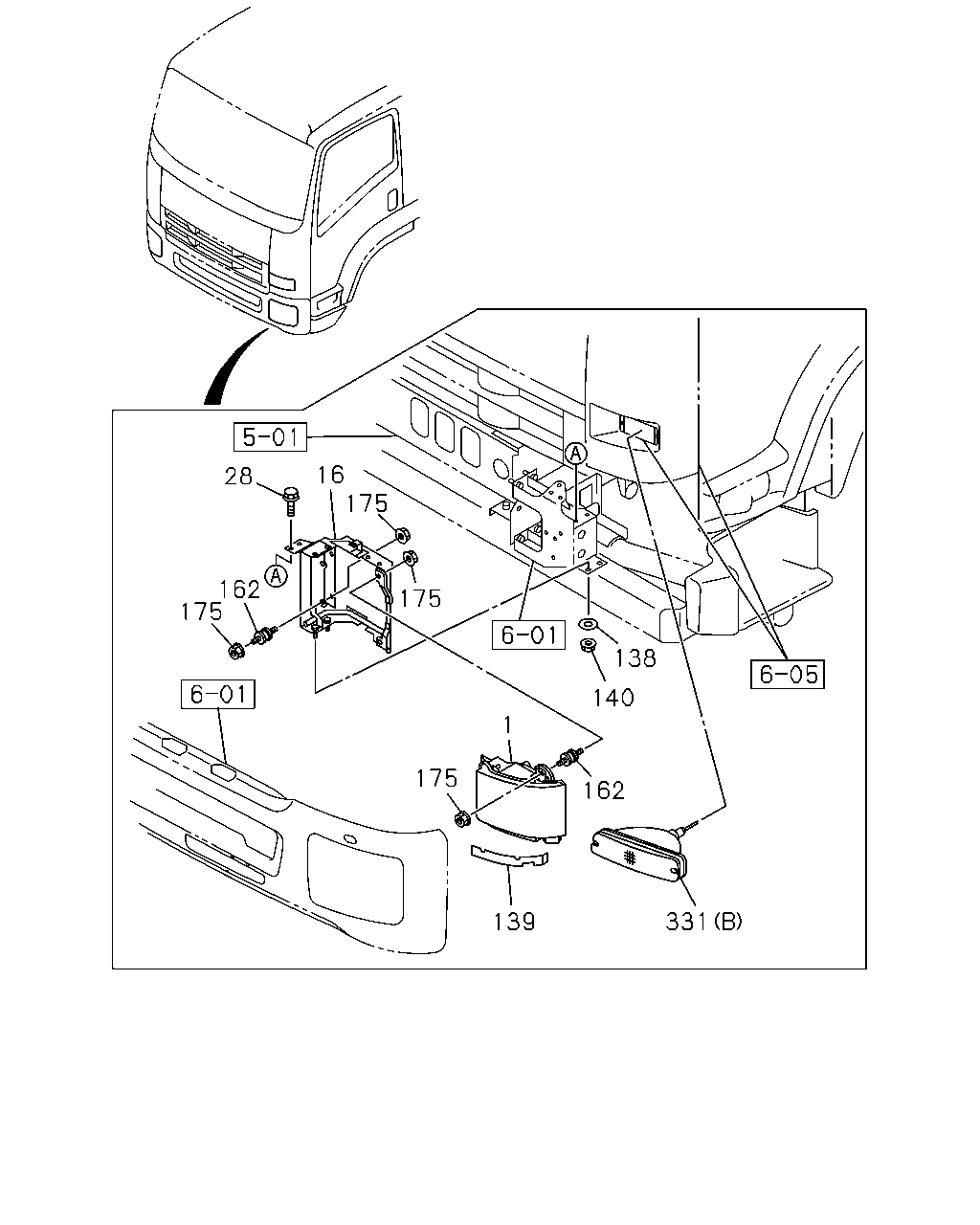

16 28 175 175 138 140 162 1 175 139 331 162 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-625-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-624-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-623-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-315-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-622-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-314-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-324-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-323-0	01	1	1306-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98086-432-1	01	1	1302-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98086-431-1	01	1	1302-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1302-
28	BOLT; HEADLAMP REINFORCEMENT BUMPER<VG7> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1302-
138	WASHER; LK BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=26	0-91614-710-0	04	1	1302-
139	COVER; HEADLAMP	8-98054-342-0	02	1	1302-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	08	1	1302-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	1302-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-896-0	01	1	1302-
331	LAMP; TURN SIGNAL BUMPER W/HEADLAMPS<SLB> (B)	8-98079-895-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-459-0	01	1	1302-
331	LAMP; TURN SIGNAL REINFORCEMENT BUMPER<VG7> (A)	8-98155-458-0	01	1	1302-

36 15 32 44 47 49 448 5 5 408 420 23 457 382 338 339 4 4 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-571-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-570-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98199-569-0	01	1	1302-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98199-568-0	01	1	1302-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-189-0	01	1	1302-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-188-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98226-185-0	01	1	1302-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98226-184-0	01	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (B) 24V 5W	1-82194-042-0	02	1	1302-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W	1-82194-063-0	02	1	1302-
15	BULB; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> 24V 70W	1-82194-106-0	02	1	1302-
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-871-0	06	1	1302-
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97232-491-0	02	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-059-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98232-058-1	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	1-82118-016-0	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	1-82118-015-0	01	1	1302-
44	NUT; FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> M6	8-98217-430-0	02	1	1302-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-98217-429-0	02	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-435-0	01	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-436-0	01	1	1302-
49	BRACKET; LAMP REINFORCEMENT BUMPER<VG7> (B)	8-98164-818-0	01	1	1302-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1302-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1302-
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98225-685-0	02	1	1302-
408	CAP; BREATHER,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-874-0	02	1	1302-
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98218-601-0	02	1	1302-
448	CAP ASM; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7>	8-97378-874-0	02	1	1302-
457	GRIP; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98241-354-0	02	1	1306-

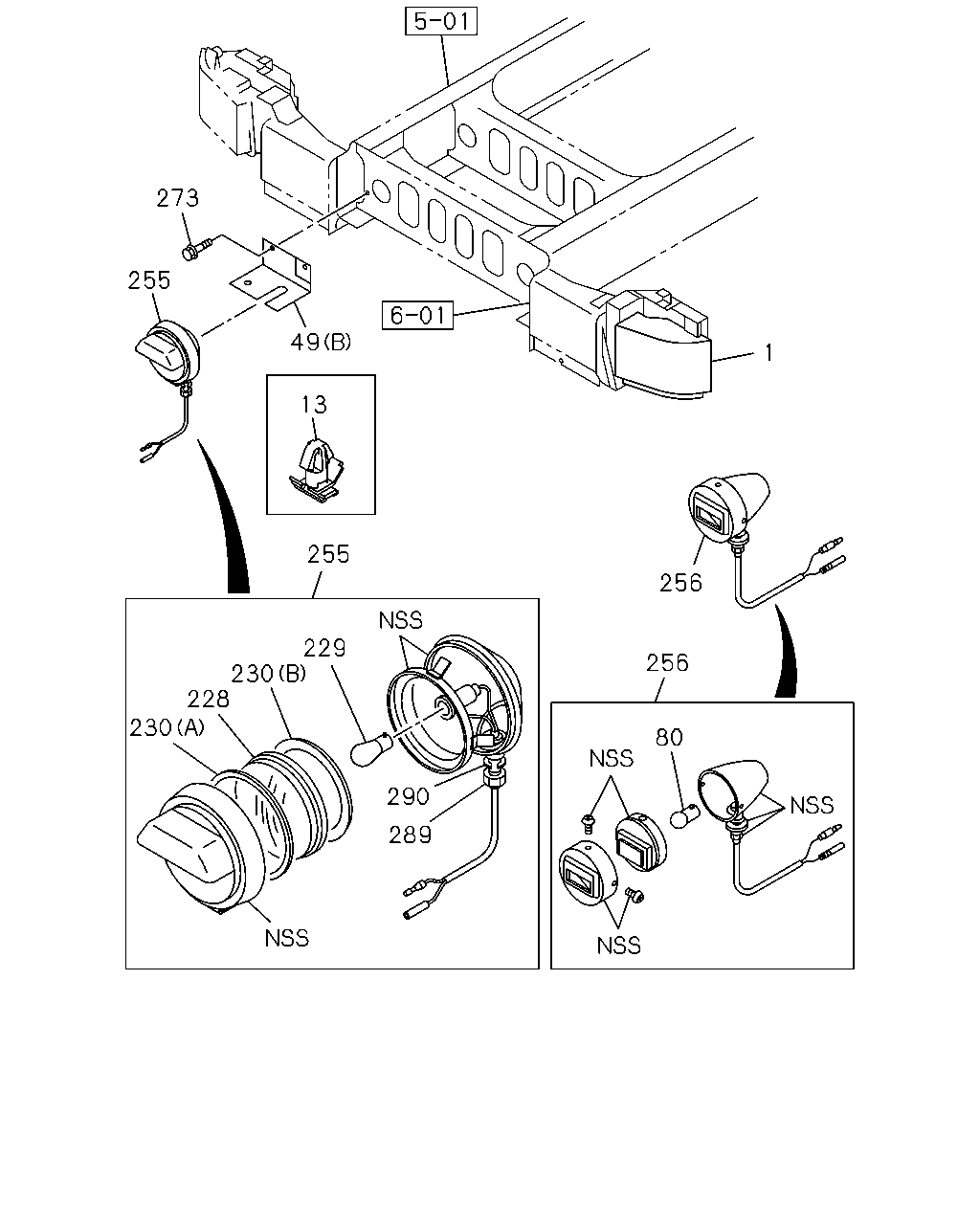

256 256 80 1 49 255 255 273 229 230 228 230 290 289 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-625-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-624-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-623-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-315-0	01	1	1306-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-622-0	01	1	1302-1305
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-314-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-324-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> REINFORCEMENT BUMPER<VG7>	8-98241-323-0	01	1	1306-
13	CLIP; HEADLAMP LAMPS EXP PACKAGE<WL5> OD=9 H=6	1-09709-178-0	03	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-435-0	01	1	1302-
49	BRACKET; LAMP FOG LAMP<T96> REINFORCEMENT BUMPER<VG7> (A)	8-98051-436-0	01	1	1302-
49	BRACKET; LAMP REINFORCEMENT BUMPER<VG7> (B)	8-98164-818-0	01	1	1302-
80	BULB; MARKER LAMP LAMPS EXP PACKAGE<WL5> 24V 6W	9-82691-306-0	02	1	1302-
228	LENS; DRIVING LAMP LAMPS EXP PACKAGE<WL5>	9-82611-231-0	01	1	1302-
229	BULB; DRIVING LAMP LAMPS EXP PACKAGE<WL5> 24V 25W	9-82691-347-0	01	1	1302-
230	GASKET; DRIVING LAMP LAMPS EXP PACKAGE<WL5> (A)	9-82611-752-0	01	1	1302-
230	GASKET; DRIVING LAMP LAMPS EXP PACKAGE<WL5> (B)	9-82611-753-0	01	1	1302-
255	LAMP; DRIVING LAMPS EXP PACKAGE<WL5>	1-82210-239-1	01	1	1302-
256	LAMP; MARKER LAMPS EXP PACKAGE<WL5>	1-82210-240-1	02	1	1302-
273	BOLT; BRKT REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	02	1	1302-
289	NUT; DRIVING LAMP LAMPS EXP PACKAGE<WL5> M12	9-99110-412-0	01	1	1302-
290	WASHER; DRIVING LAMP LAMPS EXP PACKAGE<WL5> ID=12.2	9-09150-612-0	01	1	1302-
