5-01 — FRAME AND OTHER PARTS (#116020) — 63 parça

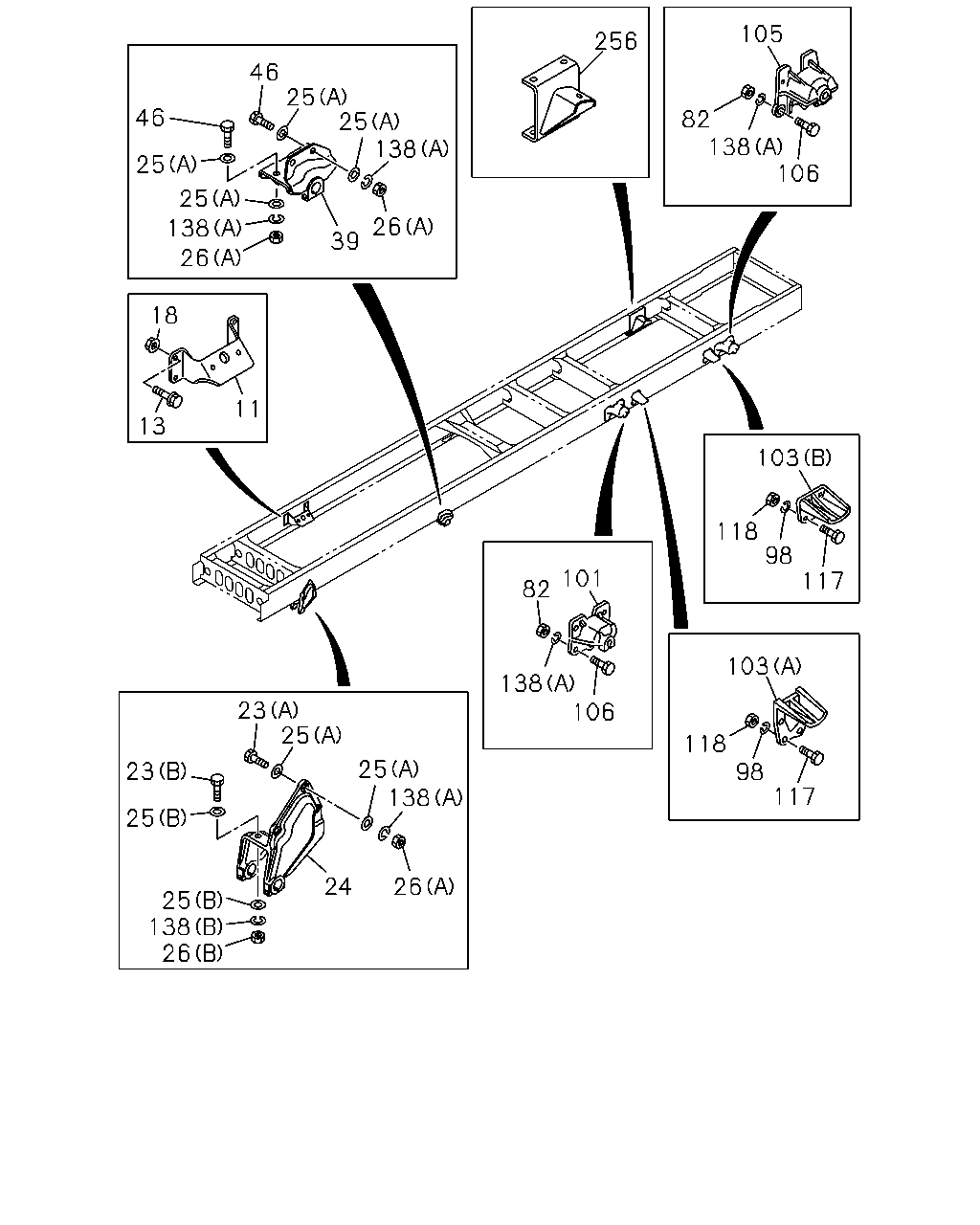

çizim 339380
46 25 25 138 26 46 25 25 138 26 39 256 105 82 138 106 103 118 98 117 103 118 98 117 101 82 138 106 23 25 25 138 26 24 23 25 13 18 11 25 138 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1302- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1302- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1302- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1302- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1302- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-259-0 01 1 1302- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-260-0 01 1 1302- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1302- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1302- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1302- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1302- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 1302- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 1302- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1302- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1302- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1302- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1302- ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1302- ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1302- ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1302- ● ● ●
106 BOLT; BRKT
M14X50 		0-20851-450-0 20 1 1302- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 1302- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1302- ● ● ●
138 WASHER; LK,BRKT
(A) ID=14.2 		0-91510-814-0 34 1 1302- ● ● ●
138 WASHER; LK,BRKT
(B) ID=16.2 		0-91510-816-0 04 1 1302- ● ● ●
256 BRACKET; S/ABS 8-98050-122-0 01 1 1302- ●
256 BRACKET; S/ABS 8-98050-123-0 01 1 1302- ●

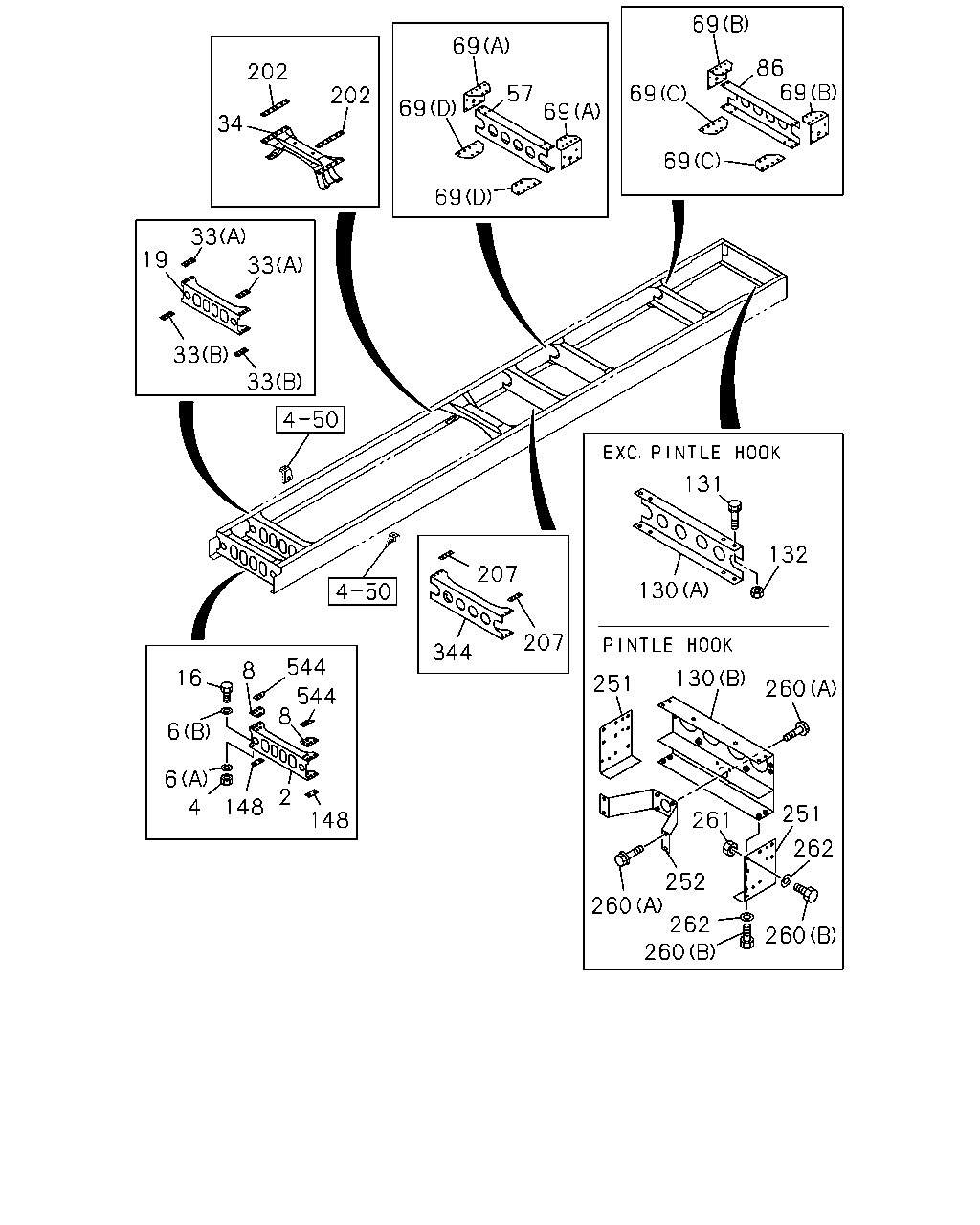

çizim 339396
202 34 202 69 69 57 69 69 69 86 69 69 69 33 33 19 33 33 16 8 544 544 8 2 148 148 4 6 6 207 344 207 131 132 130 251 130 260 261 251 262 252 260 262 260 260
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97626-850-2 01 1 1302- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
REINFORCEMENT BUMPER<VG7> M14 		0-91110-514-0 02 1 1302- ● ● ●
6 WASHER; LK,1ST C/MBR
REINFORCEMENT BUMPER<VG7> (A) ID=14.2 		0-91510-814-0 02 1 1302- ● ● ●
6 WASHER; LK,1ST C/MBR
REINFORCEMENT BUMPER<VG7> (B) ID=15 		8-98010-627-1 02 1 1302- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1302- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
REINFORCEMENT BUMPER<VG7> M14X40 		0-20851-440-0 02 1 1302- ● ● ●
19 MEMBER; CROSS,2ND 8-97629-721-2 01 1 1302- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		8-97611-040-0 02 1 1302- ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		8-97616-640-0 02 1 1302- ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1302- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1302- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97637-015-0 01 1 1302- ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-865-0 02 1 1302- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97610-866-0 02 1 1302- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1302- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1302- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-266-1 01 1 1302- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97612-267-1 01 1 1302- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97620-884-5 01 1 1302- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1302- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> (A) 		8-97610-869-1 01 1 1302- ● ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> (B) 		8-97618-608-1 01 1 1302- ● ● ●
131 BOLT; END C/MBR
EXC. PINTLE HOOK<PP7> M12X30 W/LK WASHER 		0-50541-230-0 04 1 1302- ● ● ●
132 NUT; END C/MBR
EXC. PINTLE HOOK<PP7> M12 		0-91110-512-0 04 1 1302- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1302- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1302- ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1302- ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-611-0 01 1 1302- ● ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-612-0 01 1 1302- ● ● ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		8-97618-613-0 01 1 1302- ● ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (B) M14X35 		0-20951-435-0 24 1 1302- ● ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M12X35 FLANGE 		0-28051-235-0 08 1 1302- ● ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> M14 		0-91110-514-0 16 1 1302- ● ● ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> ID=14.2 		0-91510-814-0 24 1 1302- ● ● ●
344 MEMBER; CROSS,4TH 8-97616-641-4 01 1 1302- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1302- ● ● ●
