Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
5 - Frame, Cab Mounting
▶

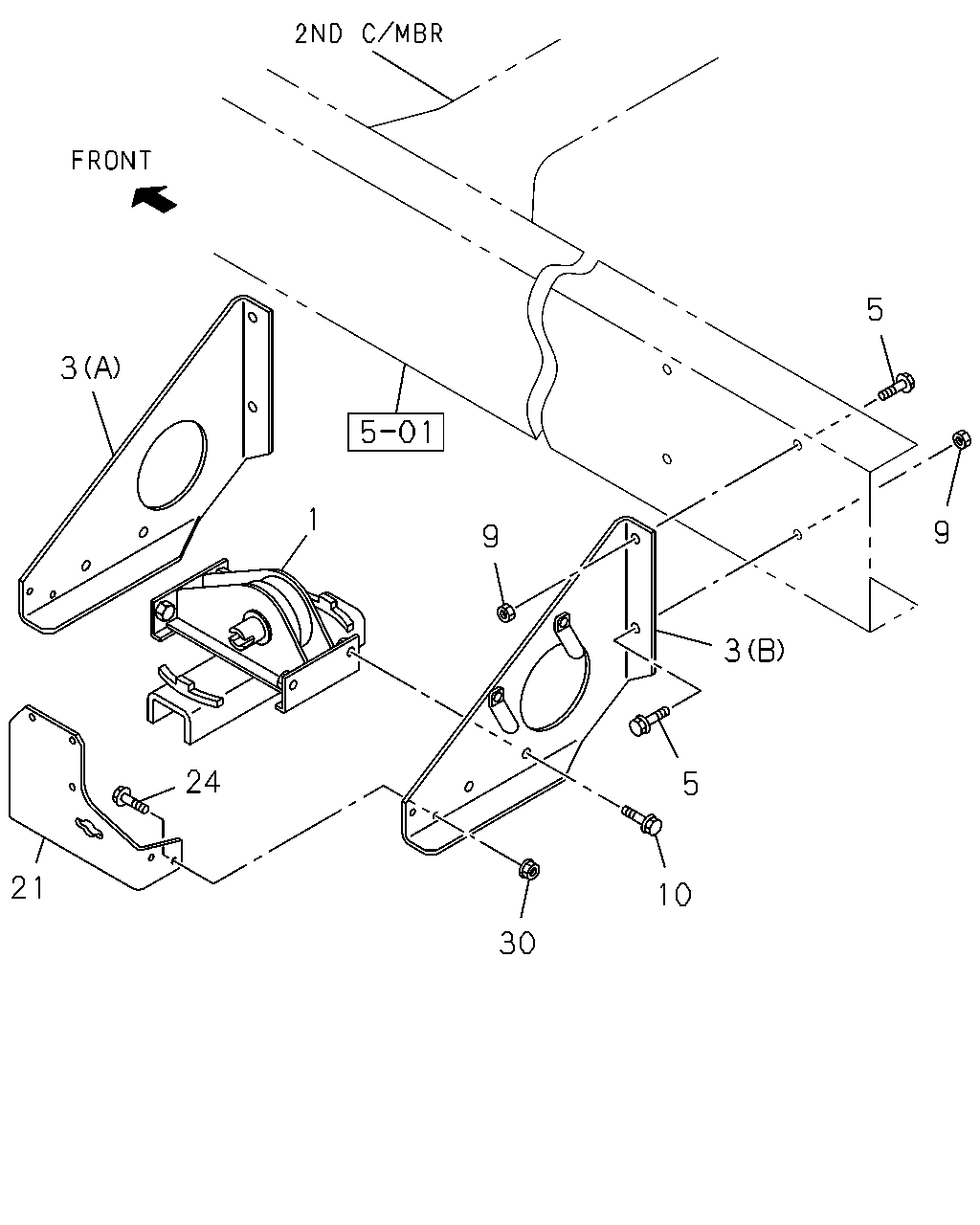

5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#11602) — 14 parça
5
9
3
5
10
30
24
21
3
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-1
01
1
0105-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-323-2
01
1
0105-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-324-0
01
1
0105-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE
0-28681-235-0
04
1
0105-0512
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE
0-28651-235-0
04
1
0601-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
02
1
0105-0512
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
02
1
0601-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
04
1
0105-0512
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
0601-
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-428-0
01
1
0105-
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE
0-28680-825-0
04
1
0105-0512
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE
0-28650-825-0
04
1
0601-
30
NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91150-108-0
04
1
0105-0602
30
NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
