4-20 — REAR AXLE CASE AND SHAFT (#116019) — 132 parça

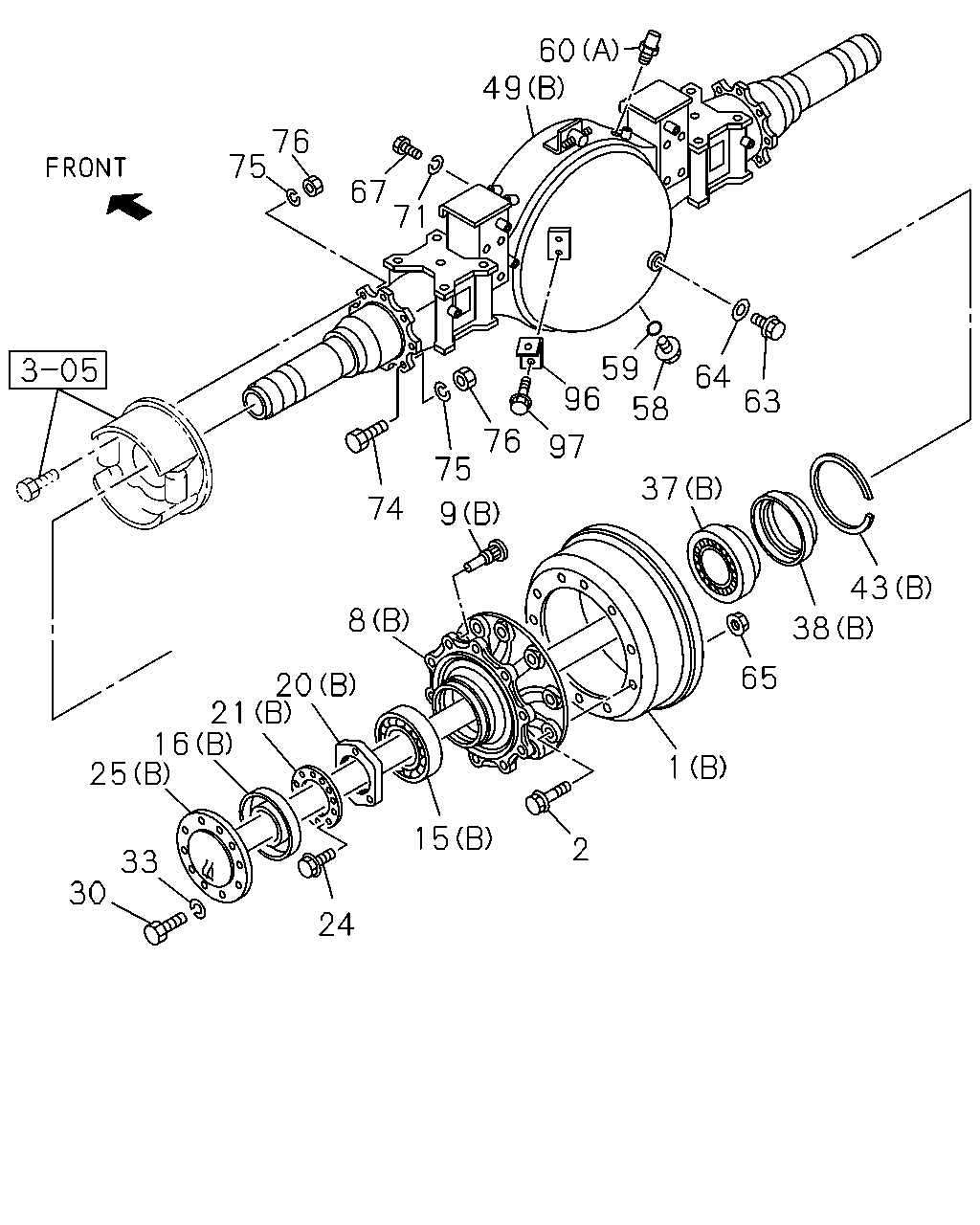

76 75 71 67 60 49 59 96 97 76 75 74 8 58 64 37 63 43 38 65 1 2 15 24 33 30 25 20 21 16 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-380-0	02	1	1302-
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (A) H=195	1-42315-208-2	02	1	1302-
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-355-0	02	1	1302-
2	BOLT; BRK DRUM FINAL GEAR 39/6 14.5"(W1J) M22X54	1-09000-275-1	20	1	1302-
8	HUB; RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B)	8-98136-844-0	02	1	1302-
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) M22X67 RH THREAD	1-42337-097-1	20	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-153-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09812-154-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-256-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) BEST VALUE PARTS	1-87610-136-0	02	1	1302-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 14.5"(W1J) (B) NOK	9-09924-468-0	02	1	1302-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1302-
20	NUT; BRG,RR HUB FINAL GEAR 39/6 14.5"(W1J) (B) M74.6	9-09843-064-2	02	1	1302-
20	NUT; BRG,RR HUB FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1302-
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 14.5"(W1J) (B) ID=74.6	1-09533-008-0	02	1	1302-
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1302-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) (B) L=1049	8-98139-716-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> (B) L=1137	8-98139-718-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B) L=1137	8-98139-717-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1302-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1302-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) BEST VALUE PARTS	1-87610-138-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-150-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NACHI	1-09812-151-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-257-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 14.5"(W1J) (B) TKK	9-09924-415-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1302-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) OD=150	9-09950-147-0	02	1	1302-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> (B)	8-98138-995-1	01	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B)	8-98138-996-0	01	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	8-98053-661-3	01	1	1302-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1302-
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	1302-
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1302-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1302-
65	NUT FINAL GEAR 39/6 14.5"(W1J) M22 FLANGE	1-09440-065-0	20	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1302-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) ID=12.2	0-91510-812-0	12	1	1302-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 14.5"(W1J) M14X50	1-09040-066-0	16	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	16	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M14X52	1-09000-310-0	04	1	1302-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1302-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1302-
96	BRACKET; LSPV,AXLE CASE FINAL GEAR 39/6 14.5"(W1J)	1-47475-073-0	01	1	1302-
97	BOLT; BRKT,LSPV FINAL GEAR 39/6 14.5"(W1J) M8X16 FLANGE	0-28050-816-0	02	1	1302-

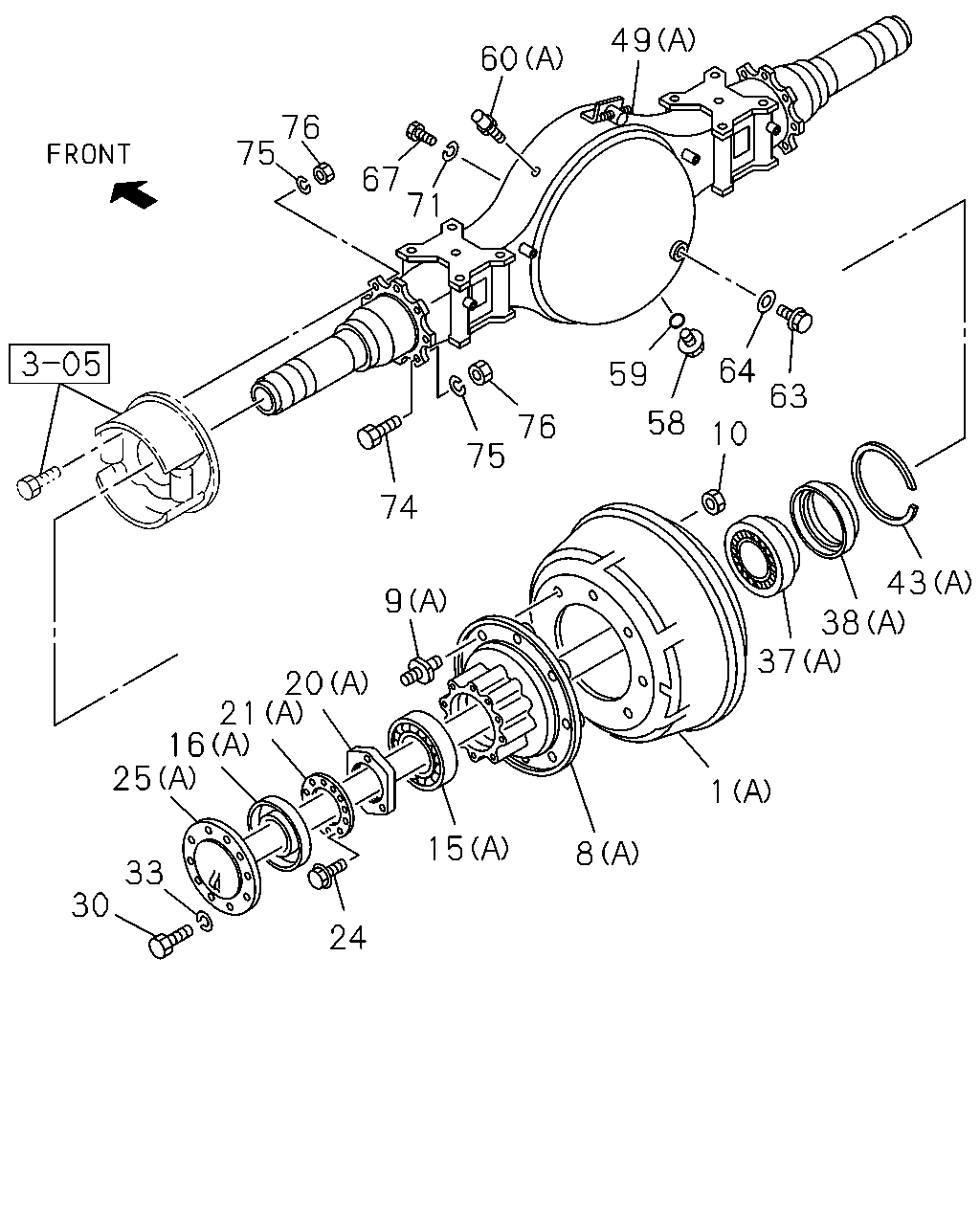

76 71 67 75 60 49 64 59 76 75 74 9 58 63 10 43 38 37 1 8 15 24 30 25 33 16 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 39/6 14.5"(W1J) (B)	1-42315-380-0	02	1	1302-
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (A) H=195	1-42315-208-2	02	1	1302-
1	DRUM; BRK,RR FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-42315-355-0	02	1	1302-
8	HUB; RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B)	8-98136-844-0	02	1	1302-
8	HUB; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-42311-104-0	02	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) M22X67 RH THREAD	1-42337-097-1	20	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5,M22X53.5 RH THREAD	1-42331-117-2	08	1	1302-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-2	08	1	1302-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/7 15.5"(W3K) M22 FLANGE	1-09440-065-0	16	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-153-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09812-154-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-232-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-256-0	02	1	1302-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) BEST VALUE PARTS	1-87610-136-0	02	1	1302-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 14.5"(W1J) (B) NOK	9-09924-468-0	02	1	1302-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-444-0	02	1	1302-
20	NUT; BRG,RR HUB FINAL GEAR 39/6 14.5"(W1J) (B) M74.6	9-09843-064-2	02	1	1302-
20	NUT; BRG,RR HUB FINAL GEAR 39/7 15.5"(W3K) (A) M88	9-09843-062-2	02	1	1302-
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 14.5"(W1J) (B) ID=74.6	1-09533-008-0	02	1	1302-
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 15.5"(W3K) (A) ID=88	9-09854-112-0	02	1	1302-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) (B) L=1049	8-98139-716-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> (B) L=1137	8-98139-718-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B) L=1137	8-98139-717-0	01	1	1302-
25	SHAFT; AXLE,RR FINAL GEAR 39/7 15.5"(W3K) (A) L=1020	1-42171-434-0	02	1	1302-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1302-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) BEST VALUE PARTS	1-87610-138-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09812-150-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) NACHI	1-09812-151-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT	1-09812-233-0	02	1	1302-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) SKF	1-09812-257-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 14.5"(W1J) (B) TKK	9-09924-415-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) NOK	1-09625-265-0	02	1	1302-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 15.5"(W3K) (A) TKK	1-09625-350-0	02	1	1302-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/6 14.5"(W1J) (B) OD=150	9-09950-147-0	02	1	1302-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A) OD=179	1-09587-057-0	02	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> (B)	8-98138-995-1	01	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> (B)	8-98138-996-0	01	1	1302-
49	CASE; RR AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	8-98053-661-3	01	1	1302-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1302-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1302-
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	1302-
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1302-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) M12X60	0-10956-260-0	04	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M12X35	0-20951-235-0	06	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) DIFF LOCK<C3N> M12X105	8-97029-869-0	02	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) EXC. DIFF LOCK<C3N> M12X35	0-20951-235-0	08	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X40	0-20951-440-0	08	1	1302-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) M14X65	9-92061-465-0	04	1	1302-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 14.5"(W1J) ID=12.2	0-91510-812-0	12	1	1302-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 15.5"(W3K) ID=14.2	0-91510-814-0	12	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 14.5"(W1J) M14X50	1-09040-066-0	16	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	16	1	1302-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M14X52	1-09000-310-0	04	1	1302-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1302-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1302-

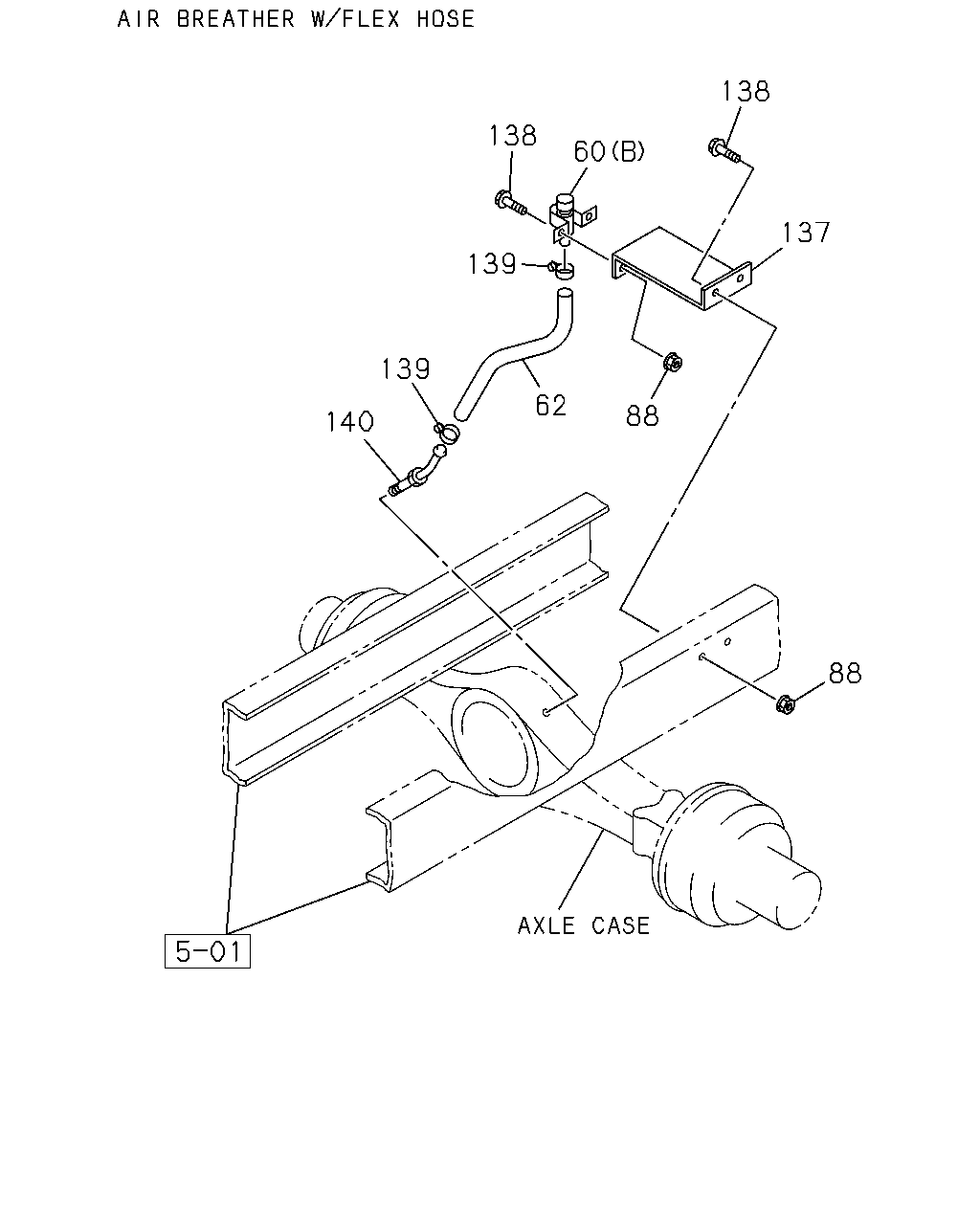

138 137 60 138 139 62 139 140 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BREATHER; RR AXLE CASE AIR BREATHER W/FLEX HOSE<C4M> (B)	1-09893-009-0	01	1	1302-
60	BREATHER; RR AXLE CASE EXC. AIR BREATHER W/FLEX HOSE<C4M> (A)	9-36122-015-1	01	1	1302-
62	HOSE; RUBBER,BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	0-02811-400-0	01	1	1302-
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-
88	NUT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8 FLANGE	0-91180-108-0	02	1	1302-
137	BRACKET; BREATHER,RR AXLE AIR BREATHER W/FLEX HOSE<C4M>	1-42129-122-0	01	1	1302-
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X20 FLANGE	0-28050-820-0	02	1	1302-
138	BOLT; BRKT AIR BREATHER W/FLEX HOSE<C4M> M8X25 FLANGE	0-28650-825-0	02	1	1302-
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	01	1	1302-
139	CLIP; WIRE AIR BREATHER W/FLEX HOSE<C4M> ID=18	1-09707-011-1	01	1	1302-
140	CONNECTOR; AXLE CASE AIR BREATHER W/FLEX HOSE<C4M>	1-09669-080-2	01	1	1302-
