Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10870 - CXZ(51) RHD AUSTRALIA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

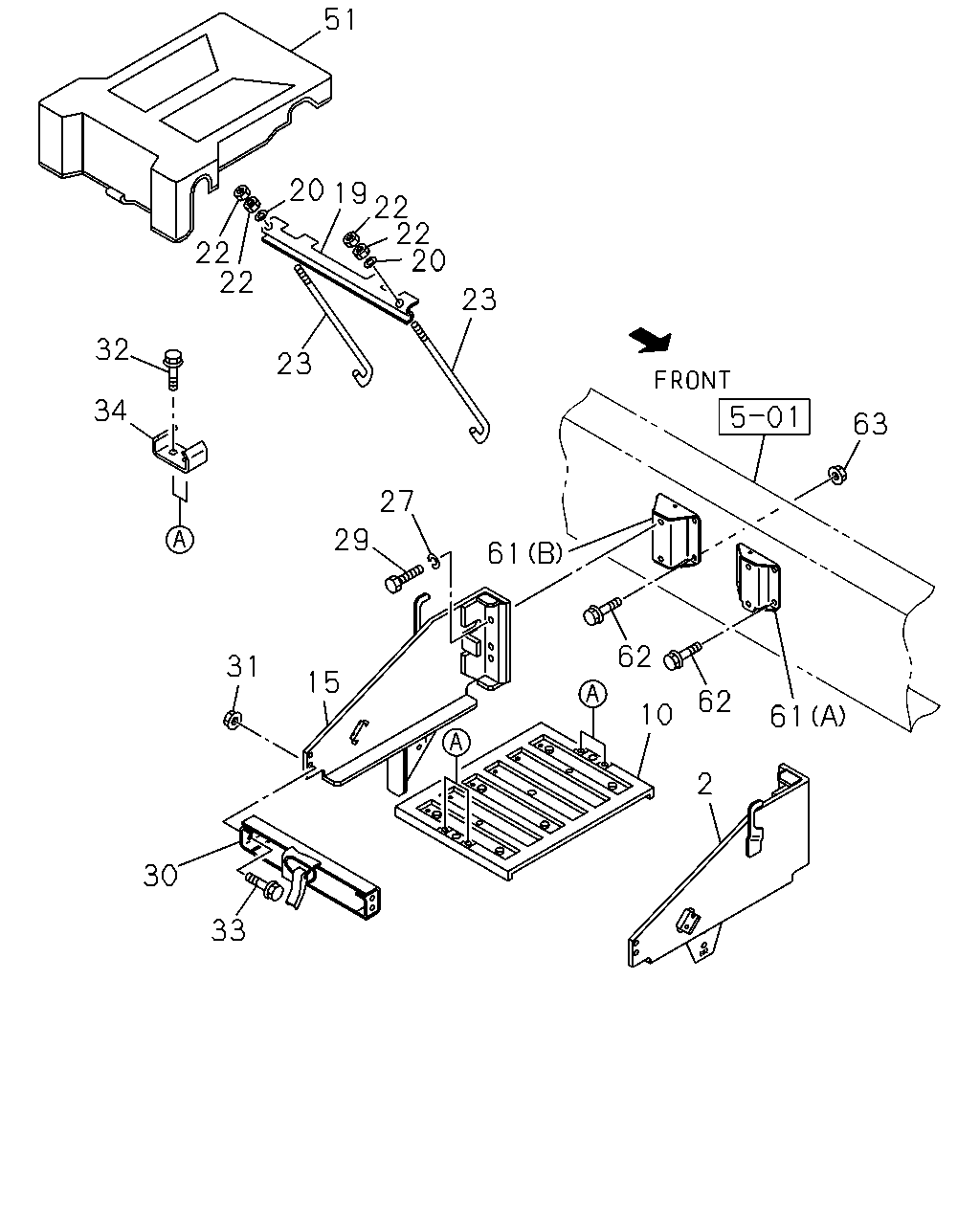

5-20 — BATTERY CARRIER
(#11601) — 27 parça
51
20
19
22
22
20
23
22
22
23
32
34
27
29
15
31
30
33
2
61
62
10
62
61
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BRACKET; BATTERY
1-53613-379-2
01
1
0105-
10
COVER; BATTERY
1-53612-042-0
01
1
0105-
15
BRACKET; BATTERY
1-53613-347-1
01
1
0105-
19
STAY; BATTERY
1-53618-039-2
01
1
0105-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0105-
22
NUT; STAY
M8
9-09110-408-0
04
1
0105-0512
22
NUT; STAY
M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
L=250
1-53616-108-0
02
1
0105-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0105-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
04
1
0105-0512
29
BOLT; BRKT TO FRAME
M14X40
0-20851-440-0
04
1
0601-
30
PLATE; BATTERY
1-53619-085-0
01
1
0105-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0105-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0105-0512
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
04
1
0105-0203
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0204-0512
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0601-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0105-
51
COVER; BATTERY
1-53612-040-1
01
1
0105-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-427-1
01
1
0105-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-439-0
01
1
0105-
62
BOLT; DIST TO FRAME,BATTERY
M12X35 FLANGE
0-28681-235-0
08
1
0105-0512
62
BOLT; DIST TO FRAME,BATTERY
M12X35 FLANGE
0-28651-235-0
08
1
0601-
63
NUT; DIST TO FRAME
M12 FLANGE
0-91150-212-0
04
1
0105-0602
63
NUT; DIST TO FRAME
M12 FLANGE
0-91180-212-0
04
1
0603-
