Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#116009) — 35 parça
◀

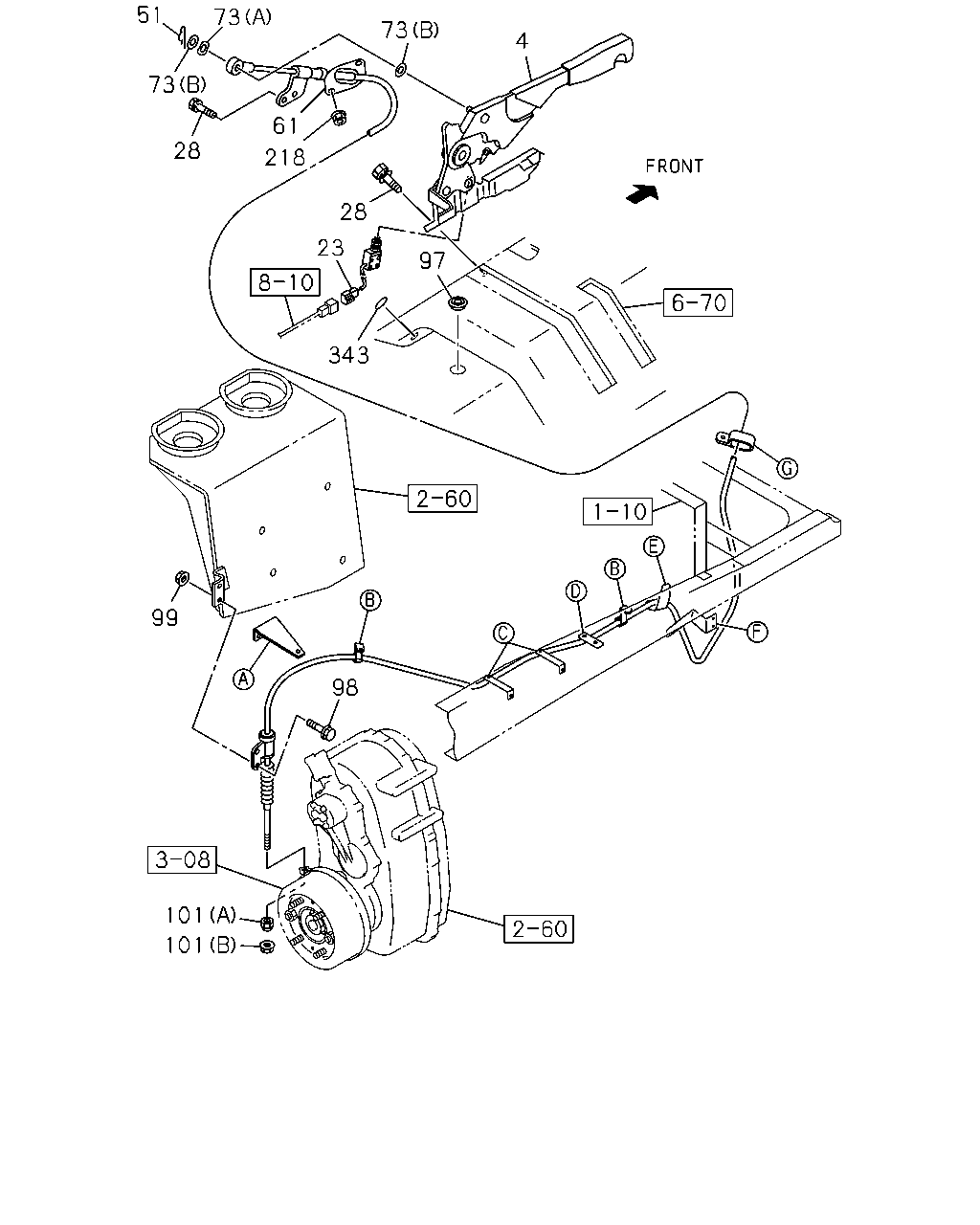

[311A] NO.1 (16 parça)
[311A] NO.2 (19 parça)
▶
51
73
73
73
28
61
218
28
4
23
97
343
99
98
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-697-0
01
1
1302-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1302-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1302-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1302-
61
CABLE; PARKING BRK
DOUBLE TIRE REARWARD<SR6> L=6080
8-98074-268-8
01
1
1302-
61
CABLE; PARKING BRK
REARWARD INNER SINGLE TIRE<YK3> L=6165
8-98107-853-5
01
1
1302-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1302-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1302-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1302-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1302-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1302-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1302-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1302-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1302-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1302-
343
SEAL
OD=25 BLACK
1-76798-019-0
07
1
1302-
228
227
87
227
236
235
336
228
227
228
228
227
87
235
237
236
236
235
227
237
228
236
235
227
87
351
46
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1302-
87
NUT
M8 FLANGE
0-91180-108-0
04
1
1302-
227
CLIP; RAD
(C) ID=13 L=20
0-95235-235-0
03
1
1302-
227
CLIP; RAD
(A) ID=12 L=70
1-09700-097-1
01
1
1302-
227
CLIP; RAD
(D) ID=13 H=50 L=25
1-09700-529-0
02
1
1302-
227
CLIP; RAD
(D) ID=16 H=30 L=30
1-09701-080-0
01
1
1302-
227
CLIP; RAD
(B) ID=9.5
5-09709-020-0
04
1
1302-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28050-816-0
02
1
1302-
228
BOLT; CLIP RAD MTG
M8X25 FLANGE
0-28650-825-0
05
1
1302-
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1302-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98099-142-0
01
1
1302-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98105-194-0
02
1
1302-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98123-954-1
01
1
1302-
235
BRACKET; CONT CABLE TO FRAME
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) (D)
8-98123-955-0
01
1
1302-
235
BRACKET; CONT CABLE TO FRAME
WHEEL BASE 4100MM(41W) (D)
8-98138-447-0
01
1
1302-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28650-825-0
06
1
1302-
237
NUT; BRKT TO FRAME
M8 FLANGE
0-91180-108-0
05
1
1302-
336
BRACKET; RADIATOR
8-98123-953-2
01
1
1302-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
