3-05 — REAR WHEEL BRAKE (#116008) — 183 parça

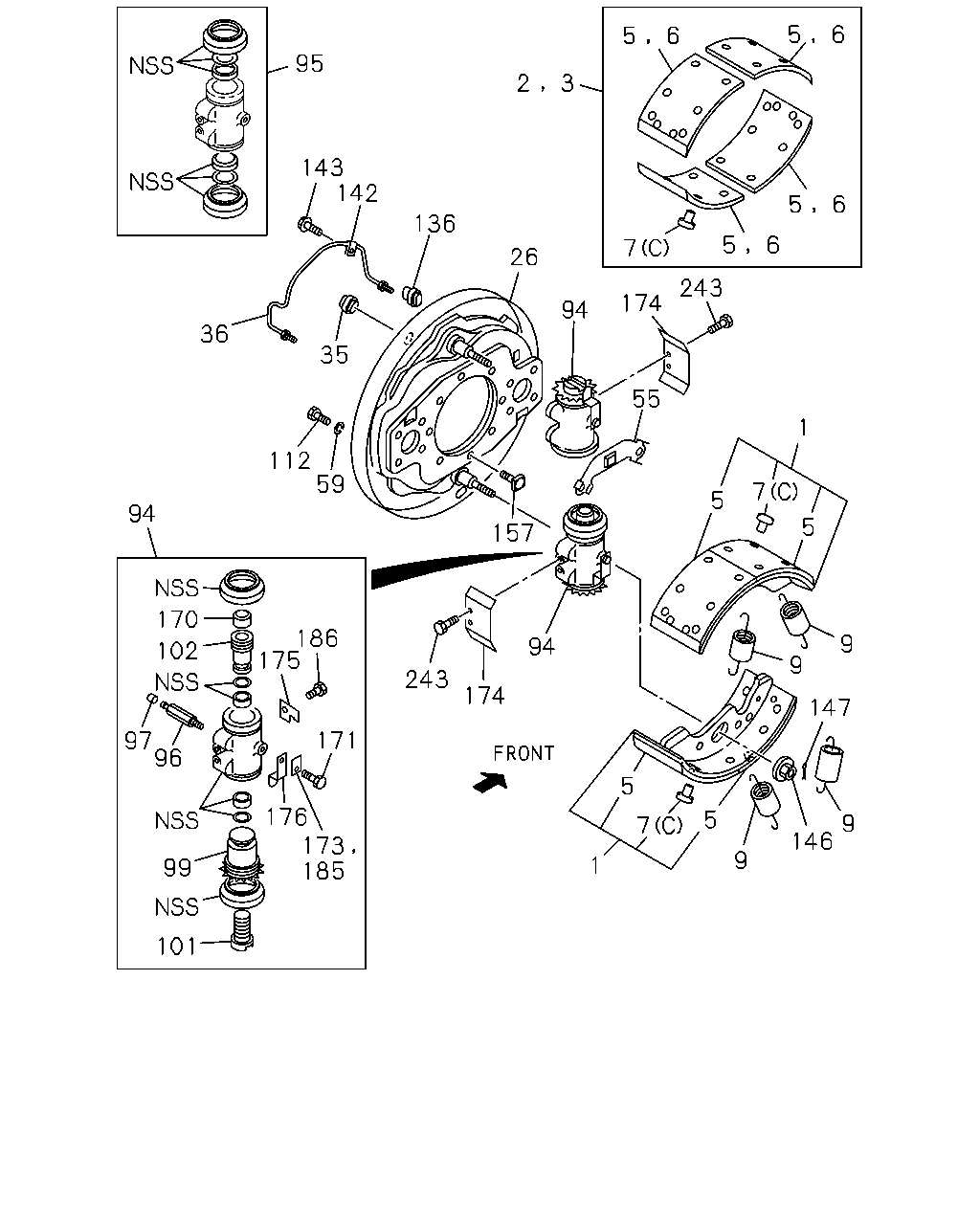

çizim 339327
95 2 3 5 6 5 6 6 5 6 5 7 243 174 1 5 7 5 9 9 147 9 146 9 5 7 5 1 94 55 94 26 136 142 143 36 35 59 112 157 174 243 186 175 171 176 173 185 101 99 96 97 102 170 94
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-496-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-497-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-498-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-499-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47120-632-0 04 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-88311-390-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-88311-394-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-527-0 02 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-88311-391-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-88311-395-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-528-0 02 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 14.5"(W1J) 		1-47126-812-0 08 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-809-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) 		1-47126-813-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-810-0 08 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 14.5"(W1J) (B) TRAILING L=18.5 		1-09732-034-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5 		1-09732-034-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 14.5"(W1J) (A) LEADING L=15.5 		1-09732-053-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) LEADING L=15.5 		1-09732-053-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) D6X11.5 		1-09732-019-0 96 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 14.5"(W1J) 		1-09583-359-0 04 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-359-0 04 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09583-167-0 08 1 1302-
26 PLATE; BACK,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47150-456-0 01 1 1302-
26 PLATE; BACK,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47150-457-0 01 1 1302-
35 GROMMET; CHECK HOLE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09333-066-1 04 1 1302-
36 PIPE; OIL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47416-356-0 02 1 1302-
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47139-068-0 04 1 1302-
59 WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-786-0 16 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47601-183-0 02 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-183-0 02 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> FORWARD 		8-98188-494-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> FORWARD 		8-98188-495-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BACKWARD 		8-98188-496-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BACKWARD 		8-98188-497-0 01 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-87830-985-0 02 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-985-0 02 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-87831-413-0 04 1 1302-
96 SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> L=44 		1-47615-007-0 02 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) OD=12 		1-47619-011-0 02 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 02 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-47624-371-0 04 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-371-0 04 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-753-0 02 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-754-0 02 1 1302-
101 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47622-022-0 02 1 1302-
101 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47622-023-0 02 1 1302-
102 PISTON; REAR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-766-0 04 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 14.5"(W1J) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		0-23951-435-0 16 1 1302-
136 GROMMET
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09333-065-2 04 1 1302-
142 CLAMP; OIL PIPE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09700-454-0 02 1 1302-
143 BOLT; CLAMP,OIL PIPE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-788-0 02 1 1302-
146 NUT; HOLDER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09440-009-0 04 1 1302-
147 PIN; HOLDER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20 		0-81122-020-0 04 1 1302-
157 BOLT; RR BRK SET
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M14X56 		1-09060-004-0 12 1 1302-
170 PIECE; ANCHOR,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47619-019-0 04 1 1302-
171 BOLT; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M6X10 		8-98030-649-0 04 1 1302-
173 PLATE; LK,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-009-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-47159-197-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47619-016-0 04 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47619-145-0 02 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47118-084-0 08 1 1302-
176 STOPPER; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-008-0 04 1 1302-
185 PLATE; LK,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-009-0 02 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/6 14.5"(W1J) M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-787-0 08 1 1302-
243 BOLT; WHEEL CYL COVER SETTING
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-788-0 08 1 1302-

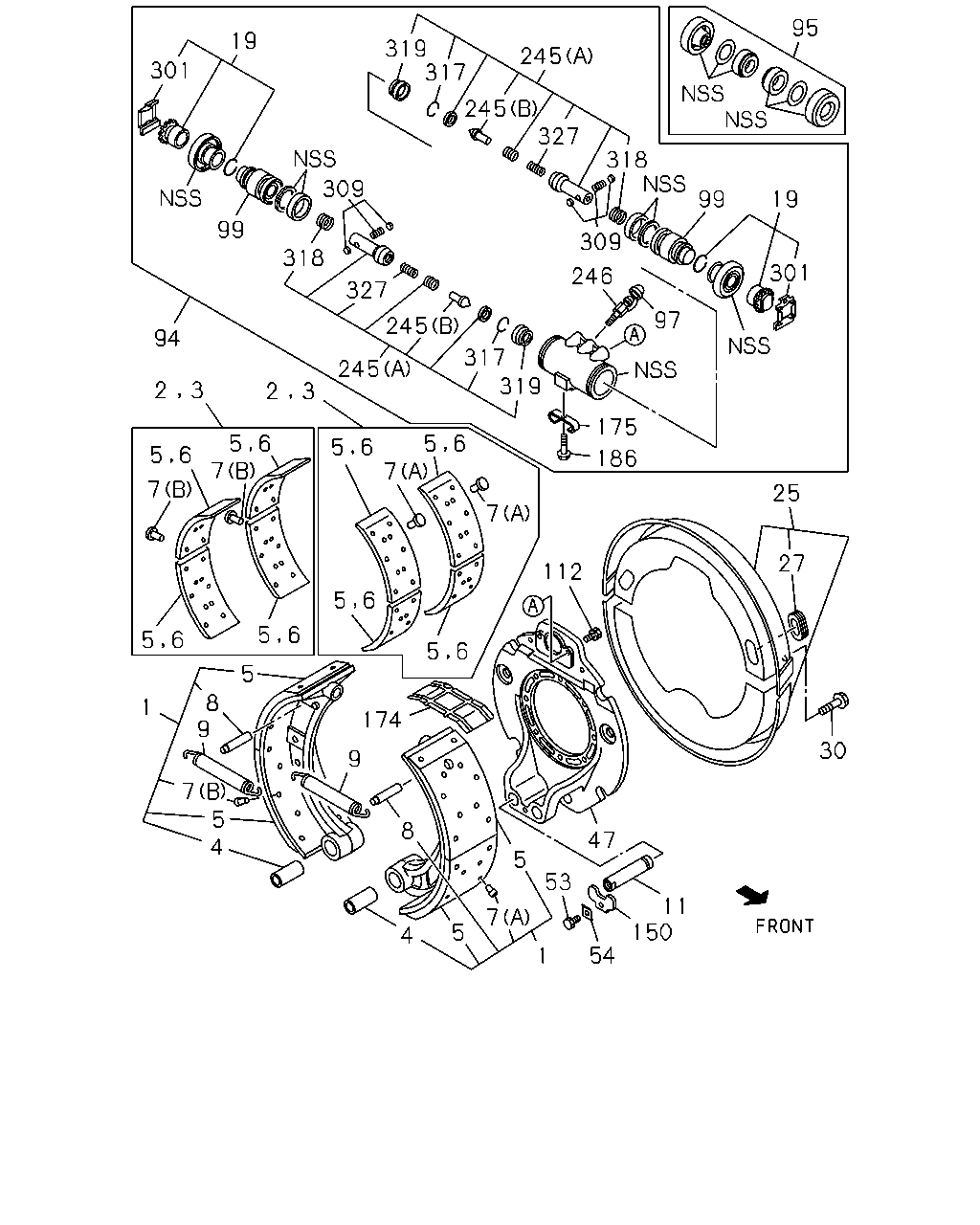

çizim 339384
95 19 301 99 318 327 245 245 317 319 97 309 246 175 186 25 27 30 11 150 54 1 53 47 5 7 5 4 8 112 6 5 6 5 174 9 4 5 7 9 8 1 5 5 6 6 5 7 5 6 5 6 7 3 2 94 301 19 309 318 99 2 3 5 6 7 5 6 7 319 317 245 327 245
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-496-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-497-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-498-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-499-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 1302-
1 SHOE; BRK,RR
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47120-632-0 04 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-88311-390-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-88311-394-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 1302-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-527-0 02 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-88311-391-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-88311-395-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 1302-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-528-0 02 1 1302-
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/6 14.5"(W1J) 		1-47112-011-0 04 1 1302-
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47112-011-0 04 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/6 14.5"(W1J) 		1-47126-812-0 08 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 1302-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-809-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/6 14.5"(W1J) 		1-47126-813-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 1302-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-810-0 08 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 14.5"(W1J) (B) TRAILING L=18.5 		1-09732-034-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5 		1-09732-034-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/6 14.5"(W1J) (A) LEADING L=15.5 		1-09732-053-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) LEADING L=15.5 		1-09732-053-0 40 1 1302-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) D6X11.5 		1-09732-019-0 96 1 1302-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/6 14.5"(W1J) 		1-47119-134-0 04 1 1302-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/6 14.5"(W1J) 		1-09583-359-0 04 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-359-0 04 1 1302-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09583-167-0 08 1 1302-
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/6 14.5"(W1J) L=106.5 		1-47131-038-0 04 1 1302-
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> L=106.5 		1-47131-038-0 04 1 1302-
19 ADJUSTER; RR BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47621-015-0 04 1 1302-
19 ADJUSTER; RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-015-0 04 1 1302-
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/6 14.5"(W1J) 		1-47151-458-1 02 1 1302-
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47151-458-1 02 1 1302-
27 COVER; CHECK HOLE,DRUM COVER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-151-0 04 1 1302-
30 BOLT; DRUM COVER
FINAL GEAR 39/6 14.5"(W1J) M10X12 		1-47159-187-0 12 1 1302-
30 BOLT; DRUM COVER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M10X12 		1-47159-187-0 12 1 1302-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47137-577-0 02 1 1302-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47137-577-0 02 1 1302-
53 BOLT; LOCK PLATE
FINAL GEAR 39/6 14.5"(W1J) M10X16 		0-20851-016-0 02 1 1302-
53 BOLT; LOCK PLATE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M10X16 		0-20851-016-0 02 1 1302-
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47133-011-0 02 1 1302-
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-011-0 02 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47601-183-0 02 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-183-0 02 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> FORWARD 		8-98188-494-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> FORWARD 		8-98188-495-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BACKWARD 		8-98188-496-0 01 1 1302-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BACKWARD 		8-98188-497-0 01 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-87830-985-0 02 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-985-0 02 1 1302-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-87831-413-0 04 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) OD=12 		1-47619-011-0 02 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1302-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 02 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-47624-371-0 04 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-371-0 04 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-753-0 02 1 1302-
99 PISTON; RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-754-0 02 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/6 14.5"(W1J) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER 		0-50551-232-0 04 1 1302-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		0-23951-435-0 16 1 1302-
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 39/6 14.5"(W1J) 		1-47133-005-0 02 1 1302-
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-005-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/6 14.5"(W1J) 		1-47159-197-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 1302-
174 COVER; CYL,RR WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47619-016-0 04 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/6 14.5"(W1J) 		1-47619-145-0 02 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 1302-
175 HANGER; RR WHEEL BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47118-084-0 08 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/6 14.5"(W1J) M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
186 BOLT; HANGER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-787-0 08 1 1302-
245 SHAFT
FINAL GEAR 39/6 14.5"(W1J) (A) 		1-47623-027-1 04 1 1302-
245 SHAFT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-47623-027-1 04 1 1302-
245 SHAFT
FINAL GEAR 39/6 14.5"(W1J) (B) 		1-47629-121-0 04 1 1302-
245 SHAFT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47629-121-0 04 1 1302-
246 BLEEDER
FINAL GEAR 39/6 14.5"(W1J) 		1-47615-002-0 02 1 1302-
246 BLEEDER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-002-0 02 1 1302-
301 CLIP; ANTI LOTATION
FINAL GEAR 39/6 14.5"(W1J) 		1-47621-016-0 04 1 1302-
301 CLIP; ANTI LOTATION
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 1302-
309 SPRING; ADJUSTER SHAFT
FINAL GEAR 39/6 14.5"(W1J) 		1-09580-544-0 04 1 1302-
309 SPRING; ADJUSTER SHAFT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-544-0 04 1 1302-
317 RING; RETAINER
FINAL GEAR 39/6 14.5"(W1J) 		1-47629-119-0 04 1 1302-
317 RING; RETAINER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47629-119-0 04 1 1302-
318 SPRING; ADJ
FINAL GEAR 39/6 14.5"(W1J) 		1-09580-542-0 04 1 1302-
318 SPRING; ADJ
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-542-0 04 1 1302-
319 RING; DRIVE
FINAL GEAR 39/6 14.5"(W1J) 		1-47629-120-0 04 1 1302-
319 RING; DRIVE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47629-120-0 04 1 1302-
327 SPRING; ADJ
FINAL GEAR 39/6 14.5"(W1J) 		1-09580-543-0 04 1 1302-
327 SPRING; ADJ
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-543-0 04 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
