Isuzu WW
▶
TRUCKS
▶
FTS
▶
11515 - FTS(LHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

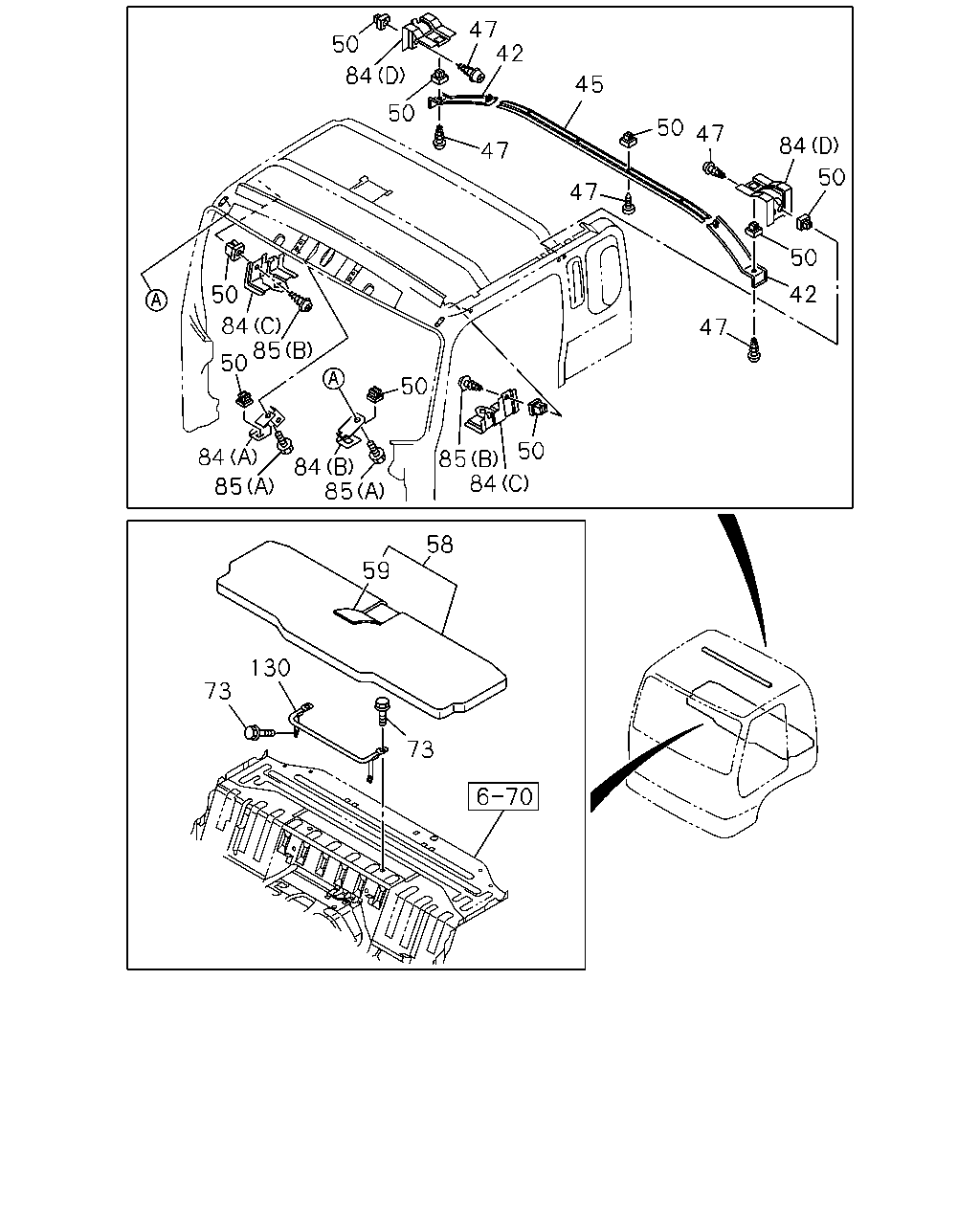

7-70 — SEPARATER AND BED
(#116002) — 22 parça
73
130
73
9
58
85
84
85
84
85
84
50
50
50
50
85
84
84
84
50
50
50
50
50
47
42
47
47
47
42
47
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1302-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1302-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1302-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1302-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1302-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1302-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
12
1
1406-1406
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
10
1
1406-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97407-384-2
01
1
1302-
58
BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-894-1
01
1
1302-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97412-043-1
01
1
1302-
59
COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-135-0
01
1
1302-
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1302-
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1302-1405
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
04
1
1302-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-289-1
01
1
1302-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98074-739-0
01
1
1302-
85
SCREW; BRKT
(A) M5X20
5-09981-059-0
06
1
1302-1405
85
SCREW; BRKT
(A) M5X20
5-09981-059-0
04
1
1406-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) M6X12 FLANGE
8-97108-669-0
01
1
1302-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) M6X12 FLANGE
8-97108-669-0
01
1
1302-
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1302-
