8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#116) — 58 parça

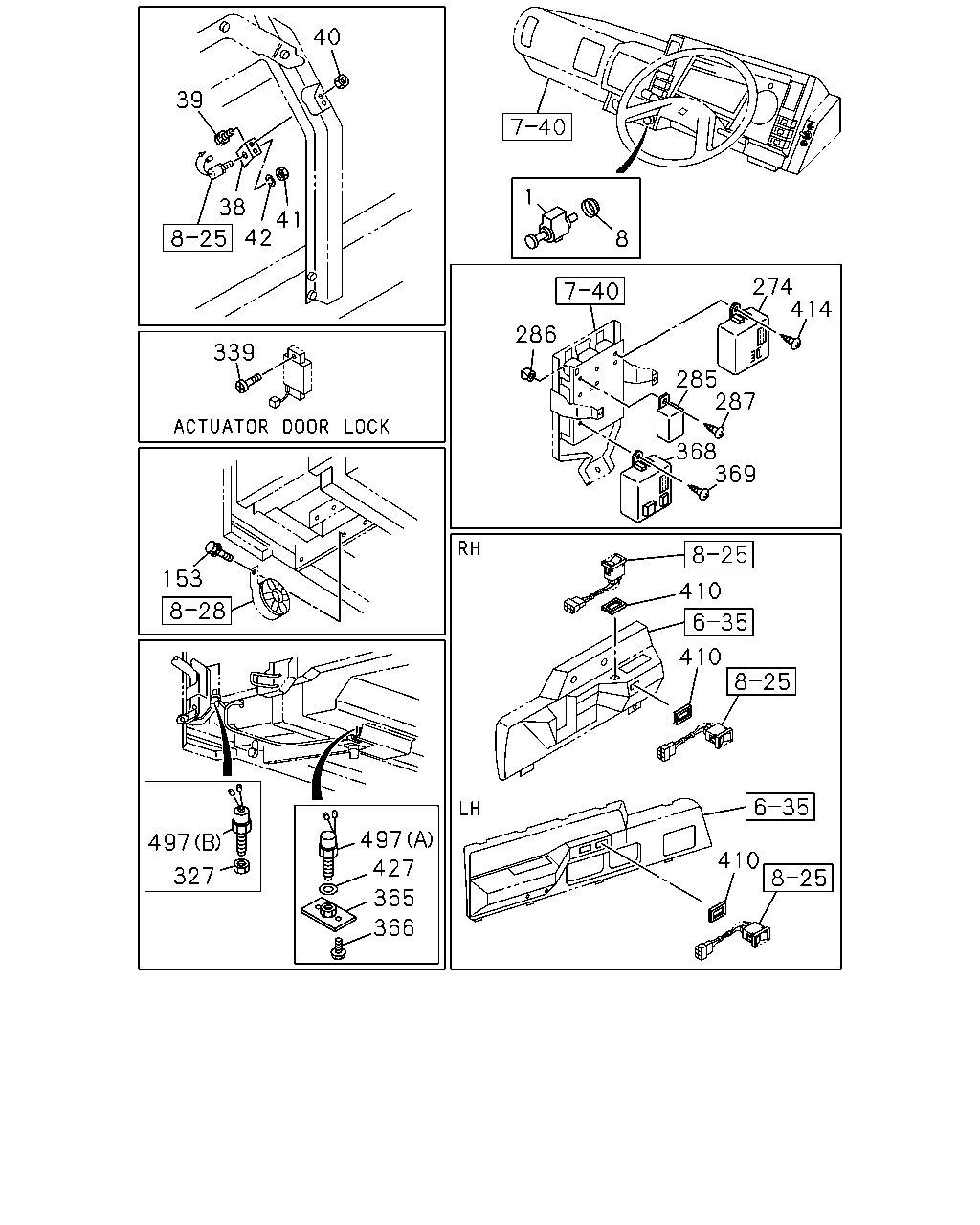

40 39 1 38 41 42 8 274 414 286 339 285 287 368 369 153 410 410 497 497 410 427 327 365 366

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LIGHTER; CIGAR	1-84190-023-0	01	1	9202-	●	●
8	PANEL; GUIDE,CIGAR LIGHTER	8-94232-213-1	01	1	9202-	●	●
38	BRACKET; SW,STARTER SUB EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-82699-137-0	01	1	9202-9203	●
38	BRACKET; SW,STARTER SUB	1-82699-137-0	01	1	9202-9203		●
38	BRACKET; SW,STARTER SUB EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-82699-351-0	01	1	9204-	●
38	BRACKET; SW,STARTER SUB	1-82699-351-0	01	1	9204-		●
39	BOLT; BRKT,STARTER SUB SW M8X18	0-28010-818-0	02	1	9202-9204	●	●
39	BOLT; BRKT,STARTER SUB SW M8X18 FLANGE	0-28080-818-0	02	1	9205-9205	●	●
39	BOLT; BRKT,STARTER SUB SW M8X20 FLANGE	0-28080-820-0	02	1	9206-	●	●
40	NUT; BRKT,STARTER SUB SWITCH M8	9-09110-408-0	02	1	9202-		●
41	NUT; SUB STARTER SW	9-82755-020-0	01	1	9202-	●	●
42	WASHER; LK,SUB STARTER SW ID=14.2	9-09150-514-0	01	1	9202-	●	●
153	BOLT; BUZZER FIX M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9202-		●
274	UNIT; CORNERING LAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-83470-044-1	01	1	9308-	●
285	BUZZER ASM; ALARM CLOCK RADIO AM/FM<U69>	1-83460-053-0	01	1	9202-	●	●
286	GROMMET; SCREW,BUZZER RADIO AM/FM<U69> D=7X7 L=7.5	5-09983-007-0	01	1	9202-	●	●
287	SCREW; BUZZER RADIO AM/FM<U69> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9202-	●	●
327	NUT; SWITCH M16	9-99111-416-0	01	1	9202-		●
339	SCREW; ACTUATOR POWER WINDOW<A30> M6X16 W/PL WASHER	1-09981-176-0	02	1	9211-9302	●
339	SCREW; ACTUATOR POWER WINDOW<A30> M4X30	8-94279-360-0	02	1	9303-	●
365	PLATE ASM; SW,CAB TILT	1-71998-393-1	01	1	9202-		●
366	BOLT; PLATE,SW,CAB TILT	1-09980-480-0	02	1	9202-		●
368	CONTROL UNIT; DOOR LOCK AUTO DOOR LOCK<AU4>	8-94437-633-1	01	1	9208-	●
369	SCREW; DOOR CONT UNIT AUTO DOOR LOCK<AU4> M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9208-	●
410	BEZEL; SWITCH,POWER WINDOW POWER WINDOW<A30>	1-73337-381-0	03	1	9206-	●
414	SCREW; CORNERING LAMP UNIT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09981-141-0	01	1	9310-	●
427	WASHER; PL,SWITCH ID=17	9-09160-516-0	01	1	9202-		●
497	SWITCH; CAB TILT (A)	1-82380-070-1	01	1	9202-		●
497	SWITCH; CAB TILT (B)	1-82380-074-0	01	1	9202-		●

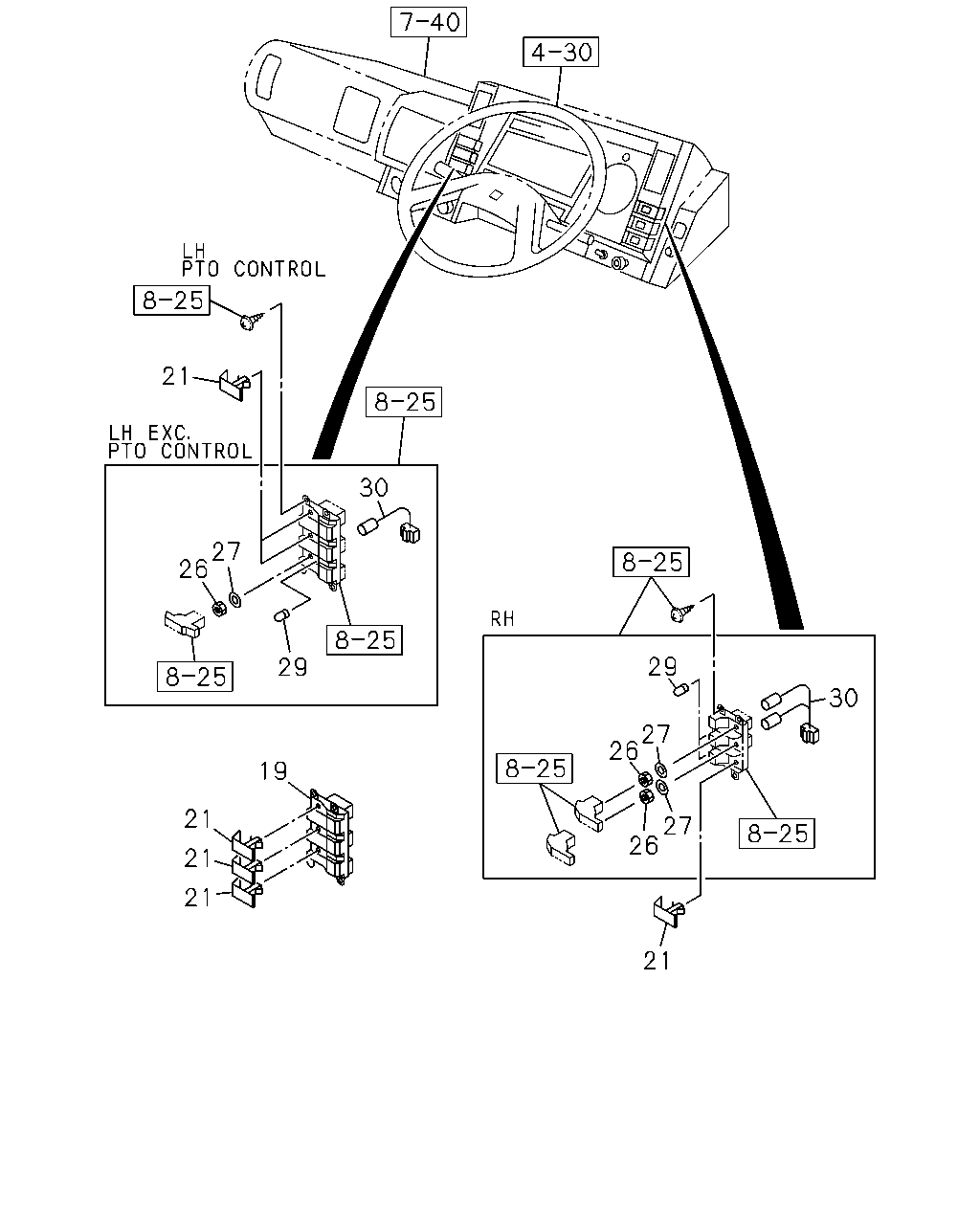

21 30 27 26 29 29 30 27 26 19 21 27 26 21 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BASE; SW,METER CLUSTER EXC. PTO CONTROL<SV6> BLACK	1-82353-008-0	01	1	9202-	●	●
21	COVER; HOLE EXC. BUMPER W/HEADLAMPS<SLB>	1-82359-038-0	01	1	9202-9404	●	●
21	COVER; HOLE EXC. LIGHTING SYSTEM ECE<SLC>	1-82359-038-0	01	1	9405-	●	●
21	COVER; HOLE PTO CONTROL<SV6>	1-82359-038-0	02	1	9202-	●	●
21	COVER; HOLE LIGHTING SYSTEM ECE<SLC>	1-82359-038-0	02	1	9202-	●	●
21	COVER; HOLE EXC. PTO CONTROL<SV6>	1-82359-038-0	03	1	9202-	●	●
26	NUT; METER SW BUMPER W/HEADLAMPS<SLB> M12	1-09400-066-0	01	1	9202-9404	●	●
26	NUT; METER SW TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	1-09400-066-0	01	1	9202-9404	●	●
26	NUT; METER SW PTO CONTROL<SV6> M12	1-09400-066-0	01	1	9405-	●	●
26	NUT; METER SW LIGHTING SYSTEM ECE<SLC> M12	1-09400-066-0	01	1	9405-	●	●
26	NUT; METER SW EXC. BUMPER W/HEADLAMPS<SLB> M12	1-09400-066-0	03	1	9202-9404	●	●
26	NUT; METER SW EXC. LIGHTING SYSTEM ECE<SLC> M12	1-09400-066-0	03	1	9405-	●	●
27	WASHER; WAVE,SW BUMPER W/HEADLAMPS<SLB>	1-09550-006-0	01	1	9202-9404	●	●
27	WASHER; WAVE,SW TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09550-006-0	01	1	9202-9404	●	●
27	WASHER; WAVE,SW PTO CONTROL<SV6>	1-09550-006-0	01	1	9405-	●	●
27	WASHER; WAVE,SW LIGHTING SYSTEM ECE<SLC>	1-09550-006-0	01	1	9405-	●	●
27	WASHER; WAVE,SW EXC. BUMPER W/HEADLAMPS<SLB>	1-09550-006-0	03	1	9202-9404	●	●
27	WASHER; WAVE,SW EXC. LIGHTING SYSTEM ECE<SLC>	1-09550-006-0	03	1	9405-	●	●
29	BULB; METER SW BUMPER W/HEADLAMPS<SLB> 24V 1.2W	1-82194-027-0	01	1	9202-9404	●	●
29	BULB; METER SW TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 1.2W	1-82194-027-0	01	1	9202-9404	●	●
29	BULB; METER SW PTO CONTROL<SV6> 24V 1.2W	1-82194-027-0	01	1	9405-	●	●
29	BULB; METER SW LIGHTING SYSTEM ECE<SLC> 24V 1.2W	1-82194-027-0	01	1	9405-	●	●
29	BULB; METER SW EXC. BUMPER W/HEADLAMPS<SLB> 24V 1.2W	1-82194-027-0	03	1	9202-9404	●	●
29	BULB; METER SW EXC. LIGHTING SYSTEM ECE<SLC> 24V 1.2W	1-82194-027-0	03	1	9405-	●	●
30	CORD ASM; METER SW BUMPER W/HEADLAMPS<SLB>	1-82359-065-0	01	1	9202-9404	●	●
30	CORD ASM; METER SW LIGHTING SYSTEM ECE<SLC>	1-82359-065-0	01	1	9405-	●	●
30	CORD ASM; METER SW EXC. BUMPER W/HEADLAMPS<SLB>	1-82359-058-0	01	1	9202-9404	●	●
30	CORD ASM; METER SW EXC. LIGHTING SYSTEM ECE<SLC>	1-82359-058-0	01	1	9405-	●	●
30	CORD ASM; METER SW PTO CONTROL<SV6>	1-82359-024-0	01	1	9202-	●	●
