◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#11599) — 86 parça

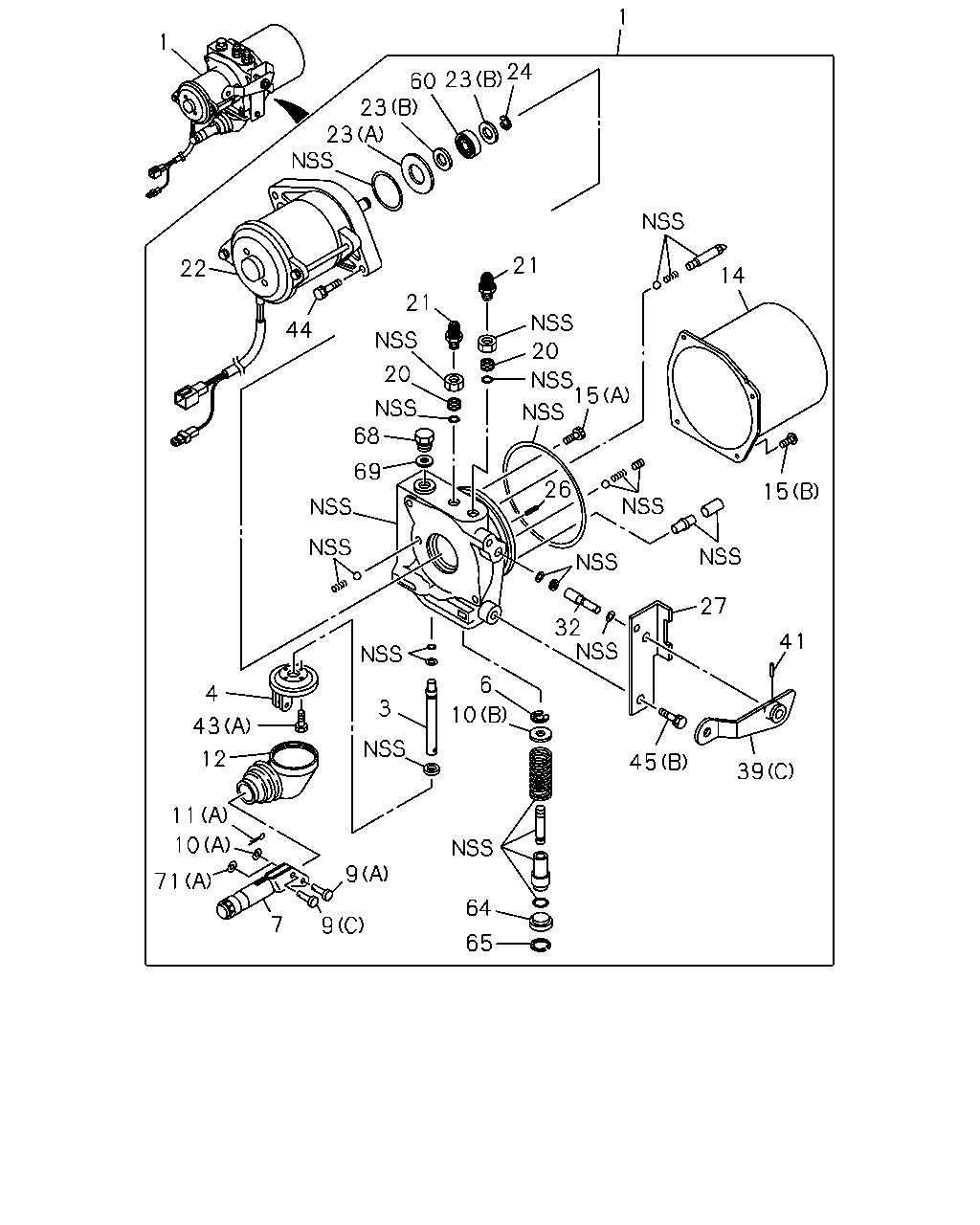

çizim 20917
1 1 24 23 60 23 23 22 44 21 21 14 20 15 26 15 27 41 39 45 32 6 3 4 43 12 11 10 71 7 9 65 9 64 69 68 20
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53458-927-0 01 1 0105-
3 PISTON; MANUAL 1-53458-842-0 01 1 0105-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0105-
6 RING; SNAP 1-53458-411-0 01 1 0105-
7 SOCKET; OIL PUMP 1-53458-565-1 01 1 0105-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0105-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0105-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0105-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0105-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0105-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0105-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0105-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0105-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0105-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0105-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0105-
20 FILTER; OIL PUMP 1-53458-048-0 02 1 0105-
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 0105-
22 MOTOR; OIL PUMP 1-53458-731-0 01 1 0105-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0105-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0105-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0105-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0105-
27 COVER; OIL PUMP 1-53458-568-0 01 1 0105-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0105-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0105-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0105-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0105-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0105-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0105-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0105-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0105-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0105-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0105-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0105-
68 PLUG; FILLER 1-53458-428-0 01 1 0105-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0105-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0105-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105-

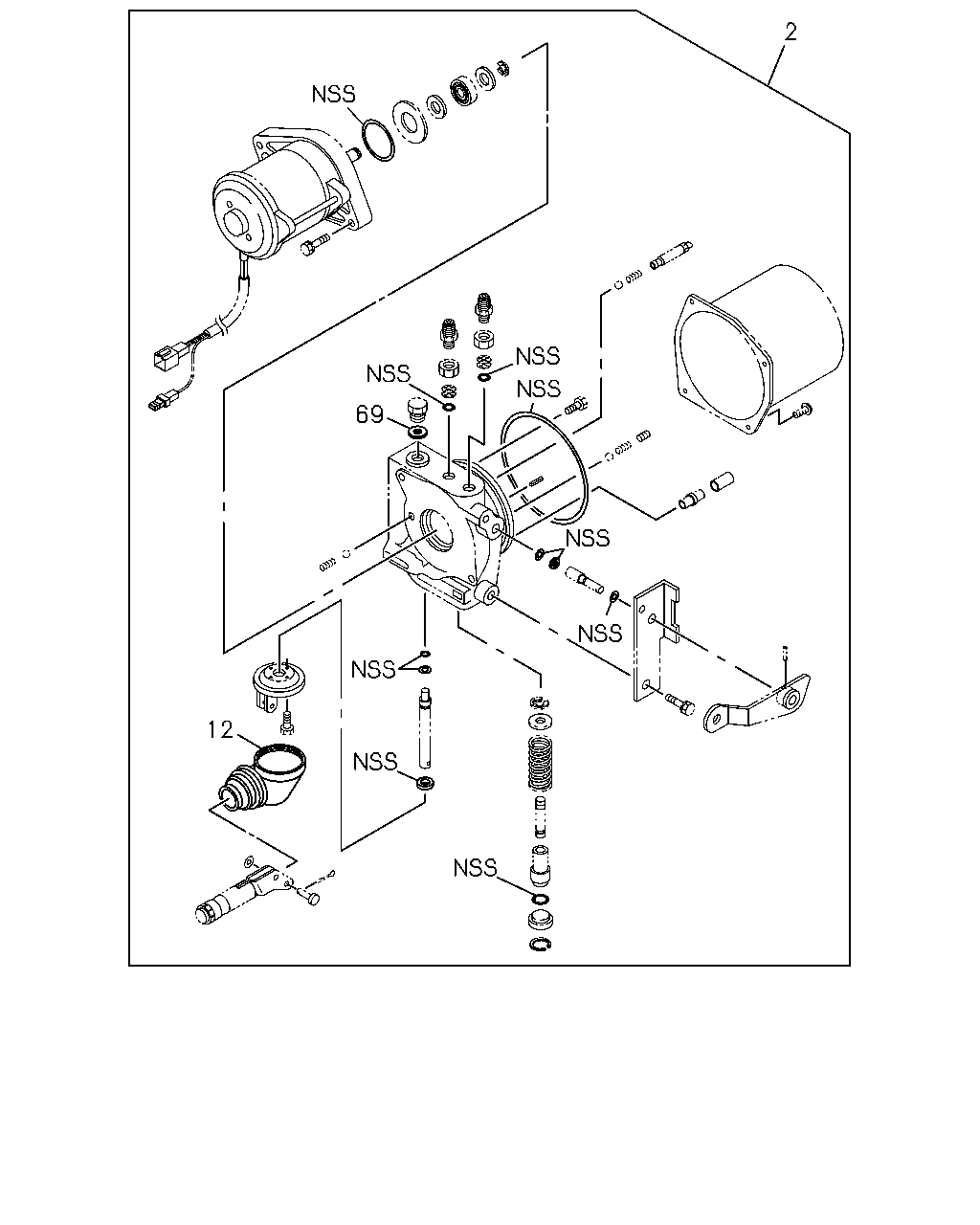

çizim 21438
2 69 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0105-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0105-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0105-

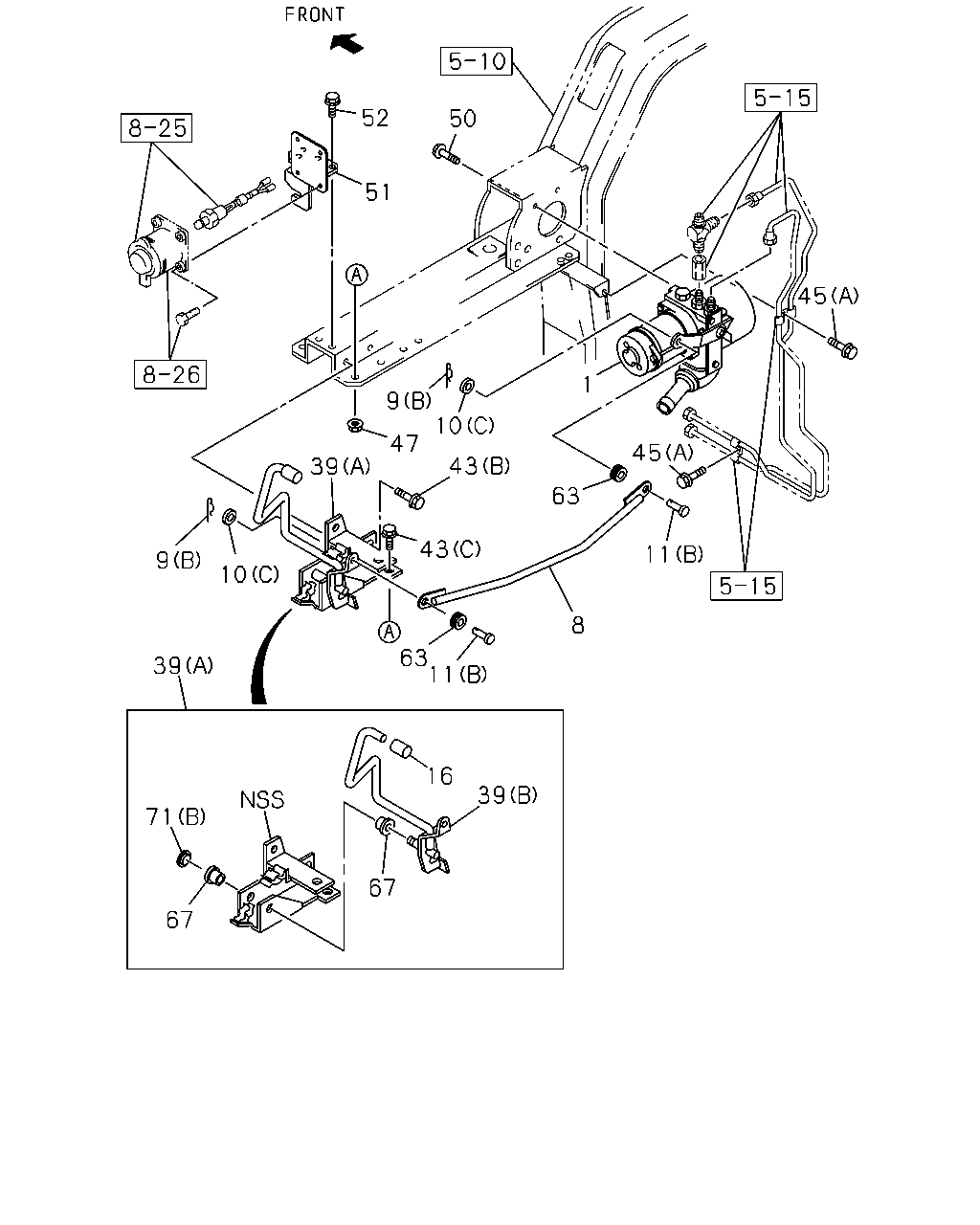

çizim 75617
50 52 51 9 10 1 45 45 11 63 43 47 39 43 8 11 63 10 9 39 71 67 67 39 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53458-927-0 01 1 0105-
8 LINK; OIL PUMP 1-53458-726-0 01 1 0105-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0105-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0105-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0105-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0105-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0105-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0105-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0105-
16 CAP
ID=9.0 		8-94207-303-0 01 1 0105-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0105-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0105-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0105-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0105-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-0512
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0105-
47 NUT; LEVER
M10 FLANGE 		0-91150-210-0 01 1 0105-0602
47 NUT; LEVER
M10 FLANGE 		0-91180-210-0 01 1 0603-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 0105-0512
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 0601-
51 BRACKET; OIL PUMP 1-53458-690-0 01 1 0105-
52 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
52 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0105-
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 0105-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0105-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105-
