5-01 — FRAME AND OTHER PARTS
(#11596) — 56 parça
◀
[501A] CROSS MEMBER (11 parça)

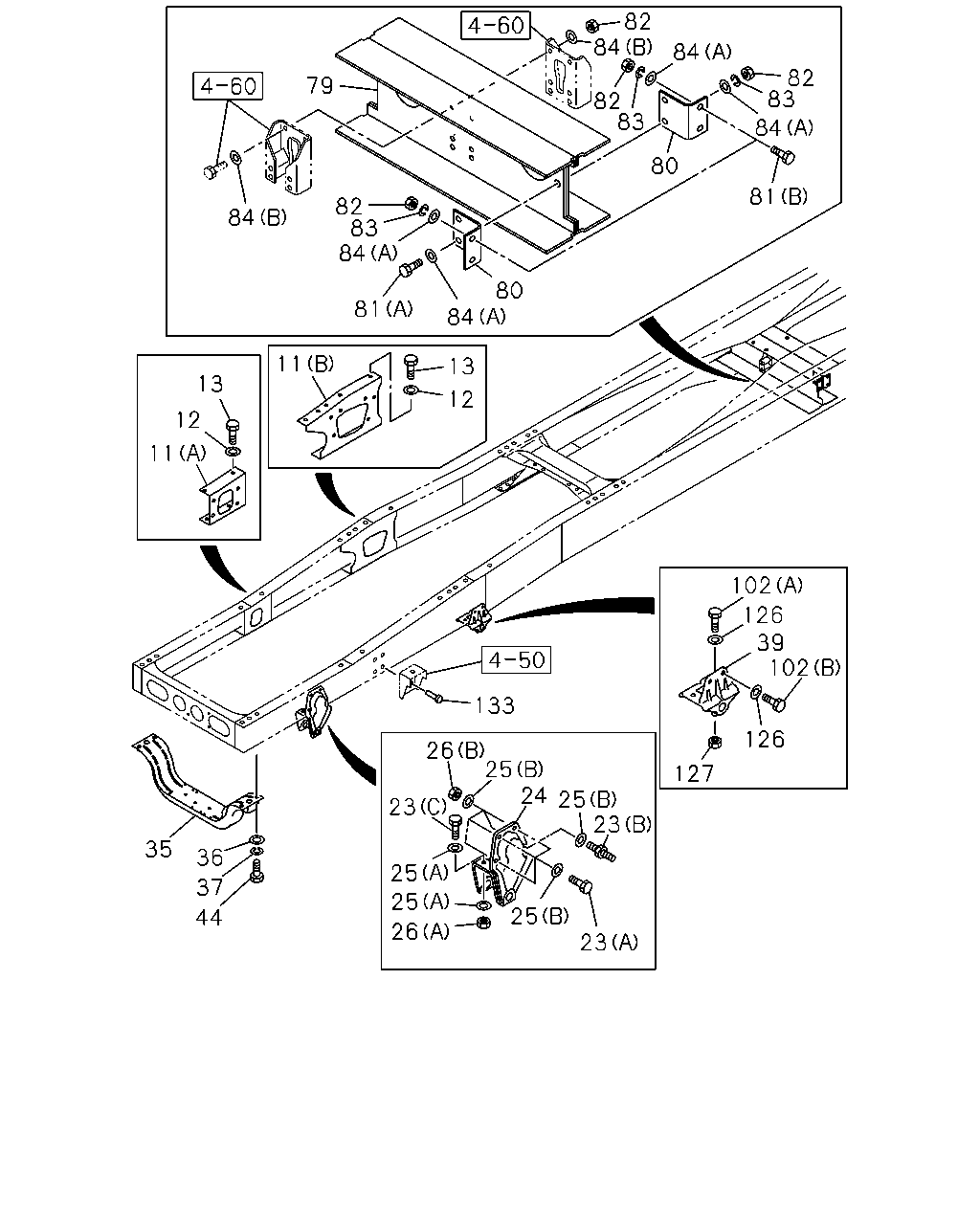

[501A] BRACKET AND UNDER MEMBER (45 parça)
▶
86
79
19
21
21
194
197
71
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0105-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0105-
21
GUSSET; 2ND CROSS
1-53164-227-0
01
1
0105-
21
GUSSET; 2ND CROSS
1-53164-226-0
01
1
0105-
71
NUT; 2ND C/MBR
M14
9-99110-514-0
AR
1
0105-0512
71
NUT; 2ND C/MBR
M14
0-91110-514-0
AR
1
0601-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0105-
86
MEMBER; CROSS,RR SUSP RR
1-53181-646-7
01
1
0105-
194
BOLT; 2ND C/MBR
M14X50
9-92061-450-0
AR
1
0105-0512
194
BOLT; 2ND C/MBR
M14X50
0-20951-450-0
AR
1
0601-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
AR
1
0105-
81
84
83
82
84
82
84
82
83
80
80
84
81
84
83
82
79
84
13
12
11
11
13
12
102
126
39
102
126
127
23
25
24
25
26
133
35
36
37
44
23
25
25
26
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-778-1
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-942-1
01
1
0105-
11
BRACKET; ENG MTG
(A)
1-53219-777-1
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-941-0
01
1
0105-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0105-
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0105-0512
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
AR
1
0601-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0105-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0105-0512
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0105-0512
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
AR
1
0601-
23
BOLT; BRKT,SPR
(C) M16X50
0-20951-650-0
AR
1
0601-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0105-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0105-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
AR
1
0105-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0105-
26
NUT; BRKT,SPR
(A) M16
9-99110-516-0
AR
1
0105-0512
26
NUT; BRKT,SPR
(A) M16
0-91110-516-0
AR
1
0601-
26
NUT; BRKT,SPR
(B) M14
9-99110-514-0
AR
1
0105-0512
26
NUT; BRKT,SPR
(B) M14
0-91110-514-0
AR
1
0601-
35
MEMBER; UNDER
1-53174-263-2
01
1
0105-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0105-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0105-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0105-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0105-
80
BRACKET; C/MBR
1-53167-610-0
04
1
0105-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
AR
1
0105-
81
BOLT; BRKT
(B) M14X38
9-92061-438-0
AR
1
0105-0312
81
BOLT; BRKT
(B) M14X40
9-92061-440-0
AR
1
0401-0512
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
AR
1
0601-
82
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-0512
82
NUT; BRKT
M14
0-91110-514-0
AR
1
0601-
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
AR
1
0105-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
AR
1
0105-
84
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0105-
102
BOLT; BRKT,RR SPR
(B) M14X40
9-92061-440-0
AR
1
0105-0512
102
BOLT; BRKT,RR SPR
(A) M14X50
9-92061-450-0
AR
1
0105-0512
102
BOLT; BRKT,RR SPR
(B) M14X40
0-20951-440-0
AR
1
0601-
102
BOLT; BRKT,RR SPR
(A) M14X50
0-20951-450-0
AR
1
0601-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
127
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-0512
127
NUT; BRKT
M14
0-91110-514-0
AR
1
0601-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0105-
