4-55 — FRONT LEAF SPRING (#11592) — 34 parça

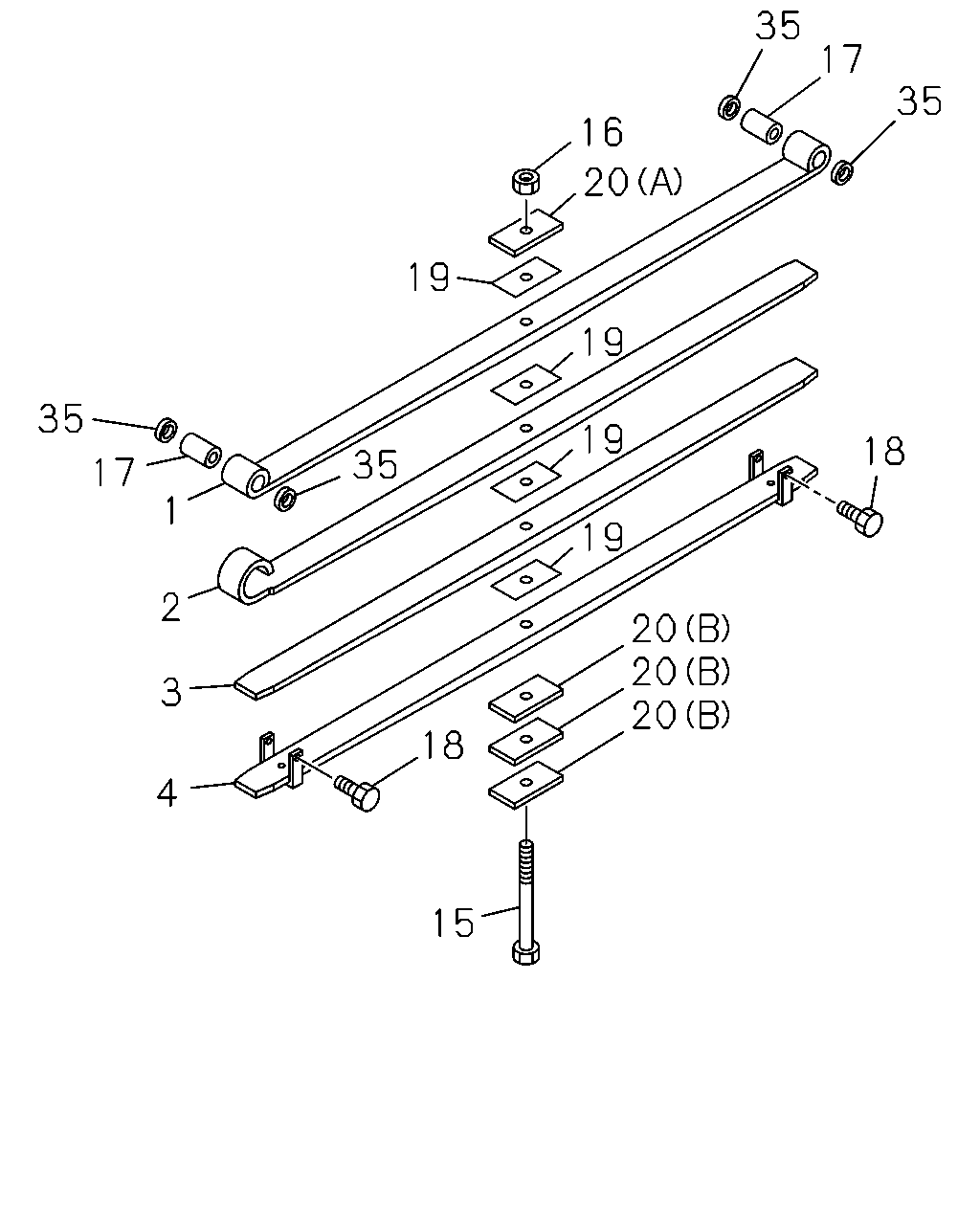

35 17 35 16 20 19 19 35 19 18 35 17 1 19 2 20 20 20 3 18 4 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-801-0	1-51131-801-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-939-0	1-51131-939-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-801-0	1-51132-801-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-939-0	1-51132-939-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-801-0	1-51133-801-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-939-0	1-51133-939-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-801-0	1-51134-801-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-939-0	1-51134-939-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-801-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-801-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 1-51130-939-0	1-51177-346-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51177-321-0	04	1	-

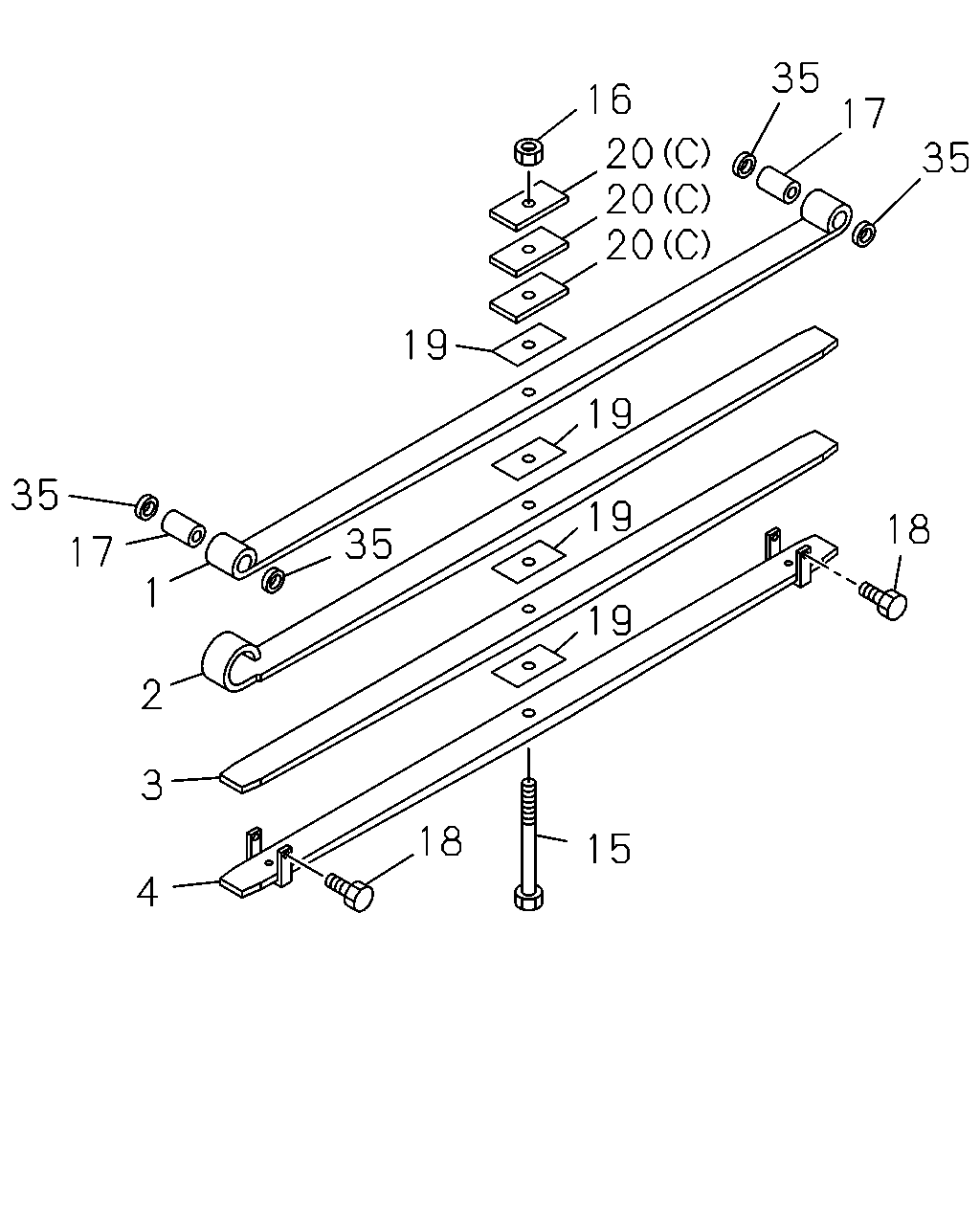

35 16 17 20 20 20 35 19 19 35 19 18 35 17 1 19 2 3 18 15 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-801-0	1-51131-801-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-939-0	1-51131-939-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-801-0	1-51132-801-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-939-0	1-51132-939-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-801-0	1-51133-801-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-939-0	1-51133-939-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-801-0	1-51134-801-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-939-0	1-51134-939-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51156-336-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-801-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=9 ASM PART: A = 1-51130-801-0	1-51177-114-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=13 ASM PART: B = 1-51130-939-0	1-51177-346-0	03	1	-
35	SEAL; DUST ASM PART: A = 1-51130-801-0, B = 1-51130-939-0	1-51177-321-0	04	1	-
