◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10870 - CXZ(51) RHD AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#11582) — 90 parça

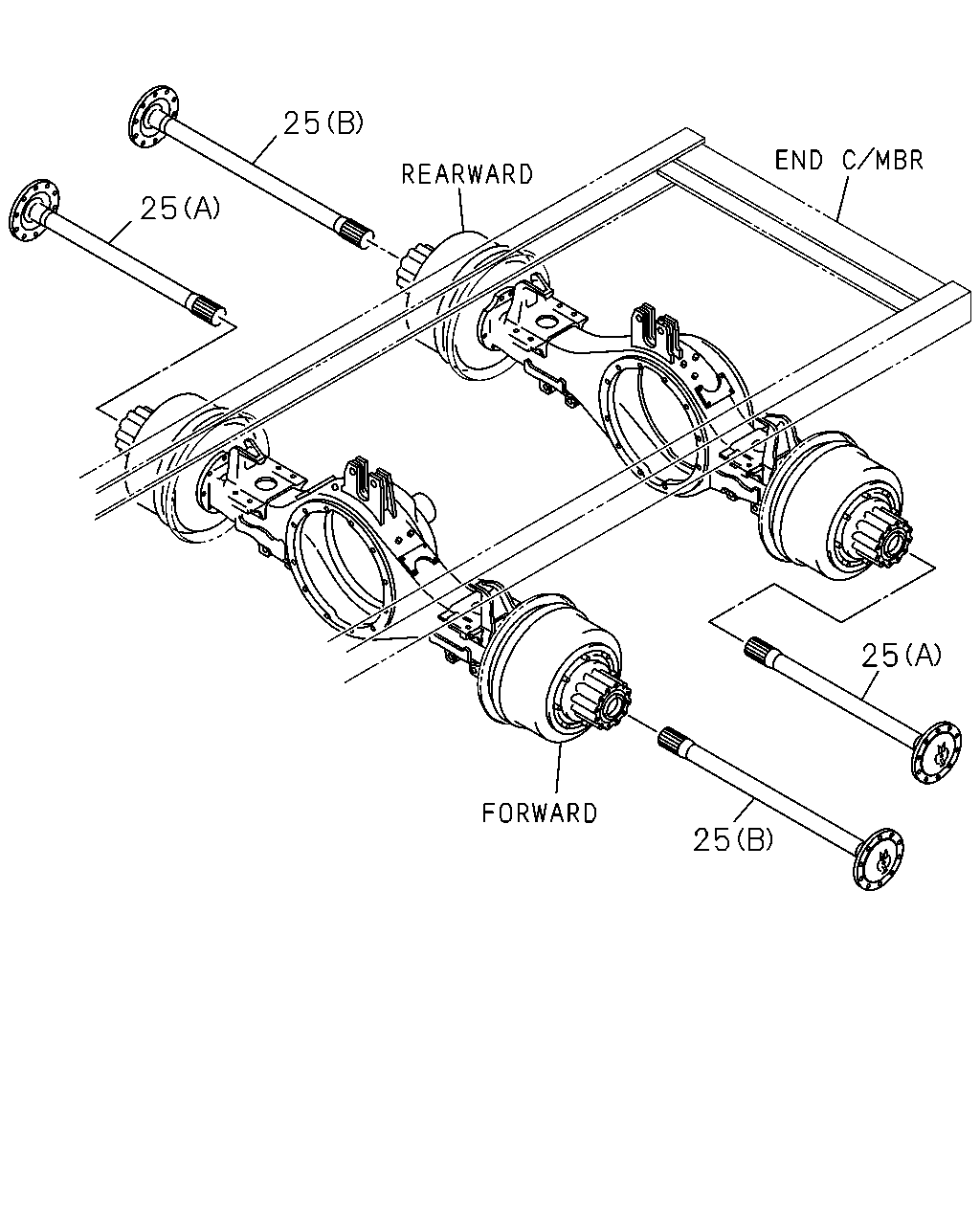

çizim 20885
25 25 25 25
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-

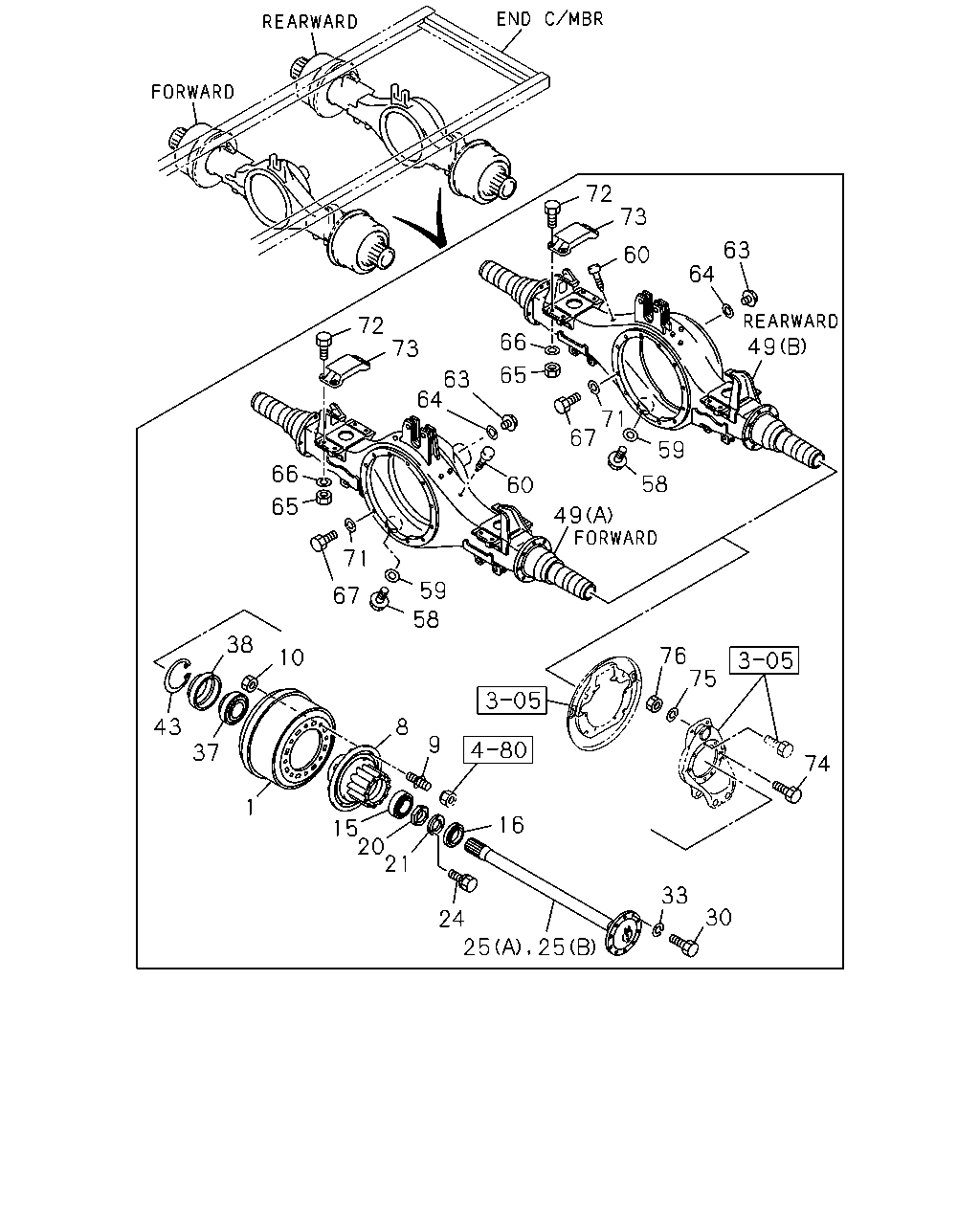

çizim 23679
72 73 63 64 60 49 72 73 66 65 63 64 71 67 59 66 58 60 65 49 71 59 67 58 38 76 75 10 43 8 9 37 74 1 16 15 20 21 33 30 24 25 25
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
1 DRUM; BRK,RR 1-42315-220-4 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
8 HUB; RR AXLE 1-42311-085-0 02 1 0105-
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0105-0208
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0209-
9 PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0209-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0105-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0105-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0105-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0105-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0105-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> (B) 		1-42160-979-1 01 1 0105-0301
49 CASE; RR AXLE
(B) 		1-42160-979-1 01 1 0302-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-939-1 01 1 0105-0301
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-939-1 01 1 0302-
49 CASE; RR AXLE
REAR AXLE RT210<C2A> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-934-1 01 1 0105-0301
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-934-1 01 1 0302-
49 CASE; RR AXLE
REAR AXLE RT260<C2B> (B) 		1-42160-978-1 01 1 0105-0301
49 CASE; RR AXLE
REAR AXLE RT260<C2B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-940-1 01 1 0105-0301
49 CASE; RR AXLE
REAR AXLE RT260<C2B> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42160-935-1 01 1 0105-0301
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0105-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0105-
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		9-99110-514-0 08 1 0105-0512
65 NUT
M14 		0-91110-514-0 08 1 0601-
65 NUT
M14 		0-91110-514-0 08 1 0601-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0105-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0105-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0105-0301
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0302-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0105-0301
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0302-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0105-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0105-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0105-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0105-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0105-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0105-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
