2-30B — GEAR SHIFTER AND QUADRANT BOX (#11580) — 198 parça

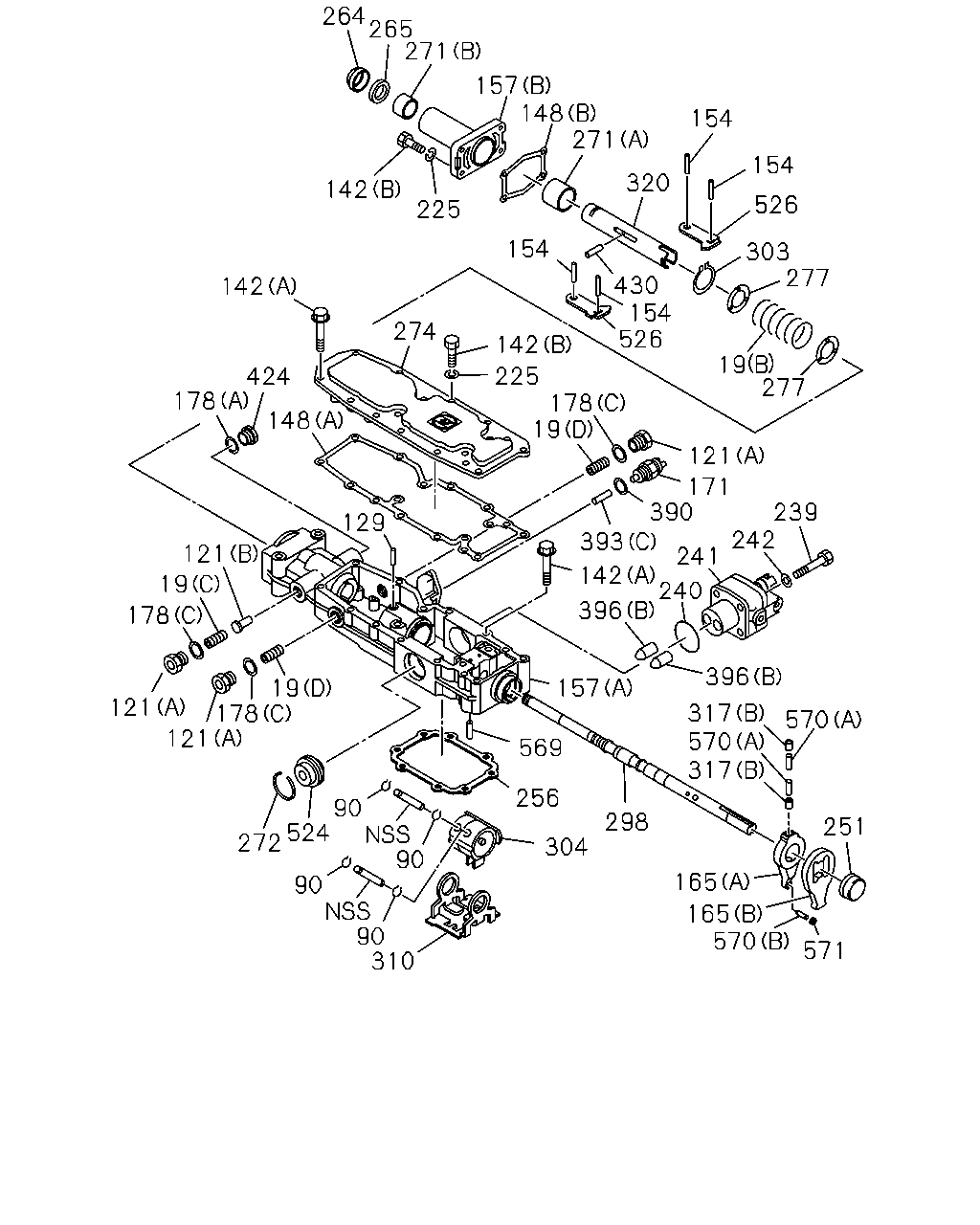

çizim 20602
264 265 271 157 148 271 154 154 320 142 526 225 154 303 277 430 154 526 142 142 274 19 277 225 424 178 178 19 148 121 171 390 393 129 239 242 121 241 142 240 396 19 178 396 157 19 178 121 121 317 570 317 570 569 256 90 272 90 298 251 304 165 90 90 310 165 570 571 524
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 0105-
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 0105-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 0105-
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 0105-
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 0105-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 04 1 0105-
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 0105-
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 0105-
129 PIN; SPR,SHIFT 1-33529-107-0 01 1 0105-
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 0105-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 0105-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33544-044-0 01 1 0105-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-319-0 01 1 0105-
154 PIN; SELECT LEVER 1-33529-040-0 04 1 0105-
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 0105-
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 0105-
165 LEVER; SHIFT
(A) 		1-33549-321-0 01 1 0105-
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 0105-
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 0105-
225 WASHER; LK,QUAD BOX 1-33549-159-0 09 1 0105-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 0105-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 0105-
241 VALVE; CUT OFF 1-33549-334-0 01 1 0105-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 0105-
251 COVER; SIDE 1-33549-330-0 01 1 0105-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-057-0 01 1 0105-
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 0105-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-328-0 01 1 0105-
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 0105-
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 0105-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 0105-
274 COVER; SHAFT,QUAD BOX 1-33549-320-0 01 1 0105-
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 0105-
298 SHAFT; SHIFT LEVER 1-33549-314-0 01 1 0105-
303 RING; SNAP,SHAFT 1-33539-040-0 01 1 0105-
304 BLOCK; SHIFT SHAFT 1-33549-315-0 01 1 0105-
310 PLATE; LOCK,SHIFT LEVER 1-33549-316-0 01 1 0105-
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 0105-
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 0105-
320 SHAFT; LEVER 1-33549-317-0 01 1 0105-
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0105-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0105-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0105-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(C) 		1-33519-118-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0105-
424 PLUG; NEUTRAL SW HOLE 1-33119-171-0 01 1 0105-
430 PIN; SPR,SHIFT ROD 1-33529-108-0 02 1 0105-
524 DETENT; QUAD BOX 1-33549-197-0 01 1 0105-
526 LEVER; DETENT 1-33549-298-0 02 1 0105-
569 PIN; QUADRANT BOX 1-33529-106-0 01 1 0105-
570 PIN; SHIFT LEVER
(A) 		1-33529-110-0 02 1 0105-
570 PIN; SHIFT LEVER
(B) 		1-33529-111-0 01 1 0105-
571 ROLLER; LEVER 1-33549-324-0 01 1 0105-

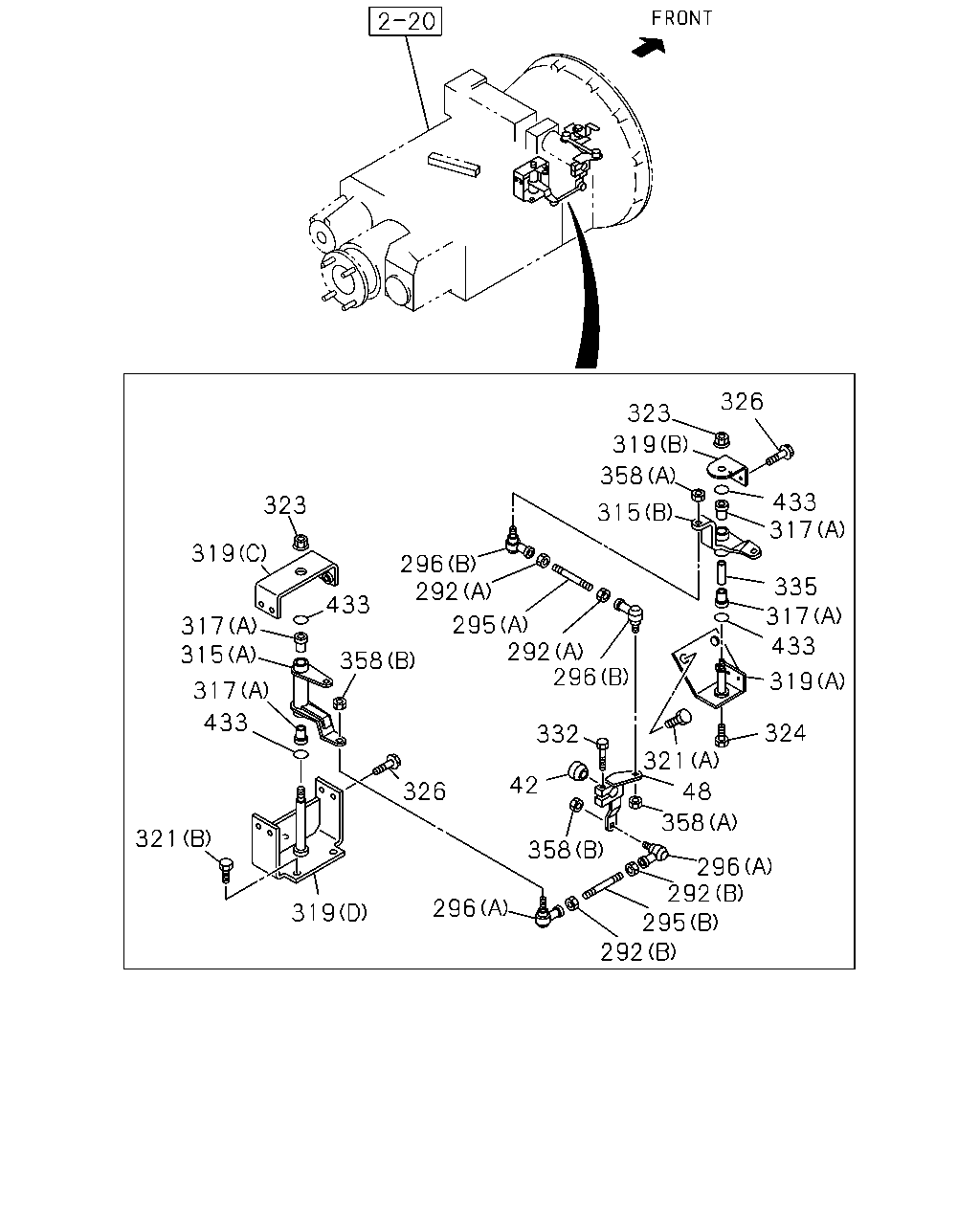

çizim 21699
326 323 319 358 433 317 323 315 319 296 292 335 317 433 295 292 296 317 315 433 358 319 317 433 324 332 321 42 326 48 358 321 358 296 292 295 292 296 319
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-111-0 01 1 0105-
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 0105-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 0105-
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 0105-
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 0105-
296 ROD END
(A) 		1-09760-108-0 02 1 0105-
296 ROD END
(B) 		1-09760-124-0 02 1 0105-
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 0105-
315 LEVER; SELECT
(B) 		1-33651-774-0 01 1 0105-
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 0105-
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 0105-
319 BRACKET; SELECT LEVER
(A) 		1-33657-717-0 01 1 0105-
319 BRACKET; SELECT LEVER
(B) 		1-33657-718-0 01 1 0105-
319 BRACKET; SELECT LEVER
(C) 		1-33657-741-0 01 1 0105-
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 0105-
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 0105-
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 0105-
323 NUT; LK,SELECT LEVER 1-33659-219-0 02 1 0105-
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 0105-
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 06 1 0105-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0105-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-221-0 01 1 0105-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0105-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0105-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0105-
433 GASKET; BUSHING 1-09623-636-0 04 1 0105-

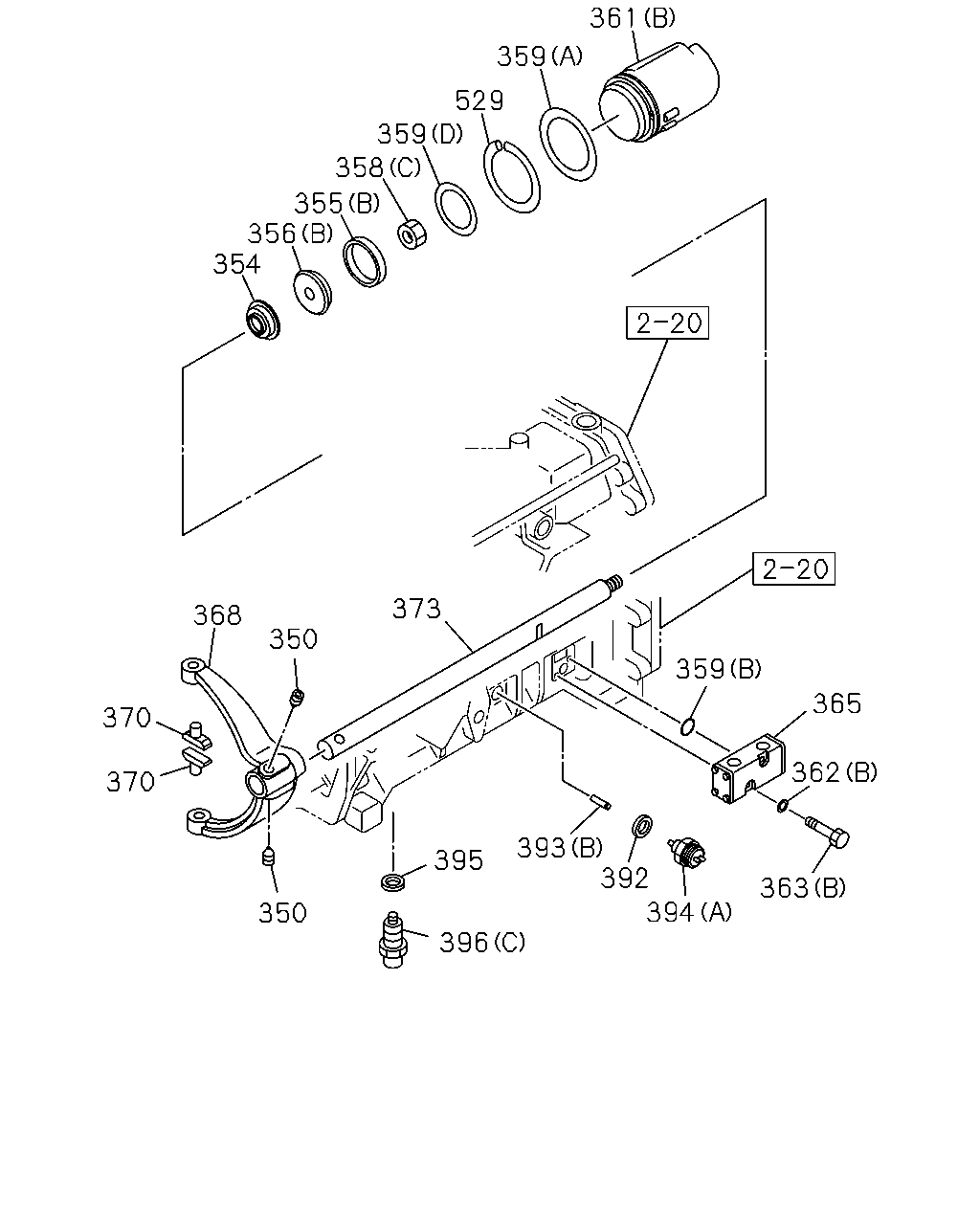

çizim 73041
361 359 529 359 358 355 356 354 373 368 350 359 365 370 362 370 393 392 395 363 394 350 396
BalonParca AdiParca NoAdetTipApplied Date
350 SCREW; SHIFT ARM 1-33519-065-0 02 1 0105-
354 SEAL; AIR CYL 1-33519-068-0 02 1 0105-
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 0105-
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 0105-
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 0105-
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 0105-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0105-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0105-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0105-
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 0105-
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 0105-
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 0105-
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 0105-
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 0105-
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 0105-
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 0105-
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 0105-
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 0105-
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 0105-
365 VALVE; AIR CYL 1-33519-074-0 01 1 0105-0109
365 VALVE; AIR CYL 1-33519-136-0 01 1 0110-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-508-0 01 1 0105-
370 BLOCK; SHIFT,SPLITTER GEAR 1-33519-053-0 02 1 0105-
373 ROD; SHIFT,SPLITTER GEAR 1-33531-450-0 01 1 0105-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 0105-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0105-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0105-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0105-
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 0105-
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 0105-
395 GASKET; PLUNGER 1-33549-167-0 02 1 0105-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(C) 		1-33519-118-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0105-
529 SPRING; AIR CYL 1-33519-078-0 01 1 0105-

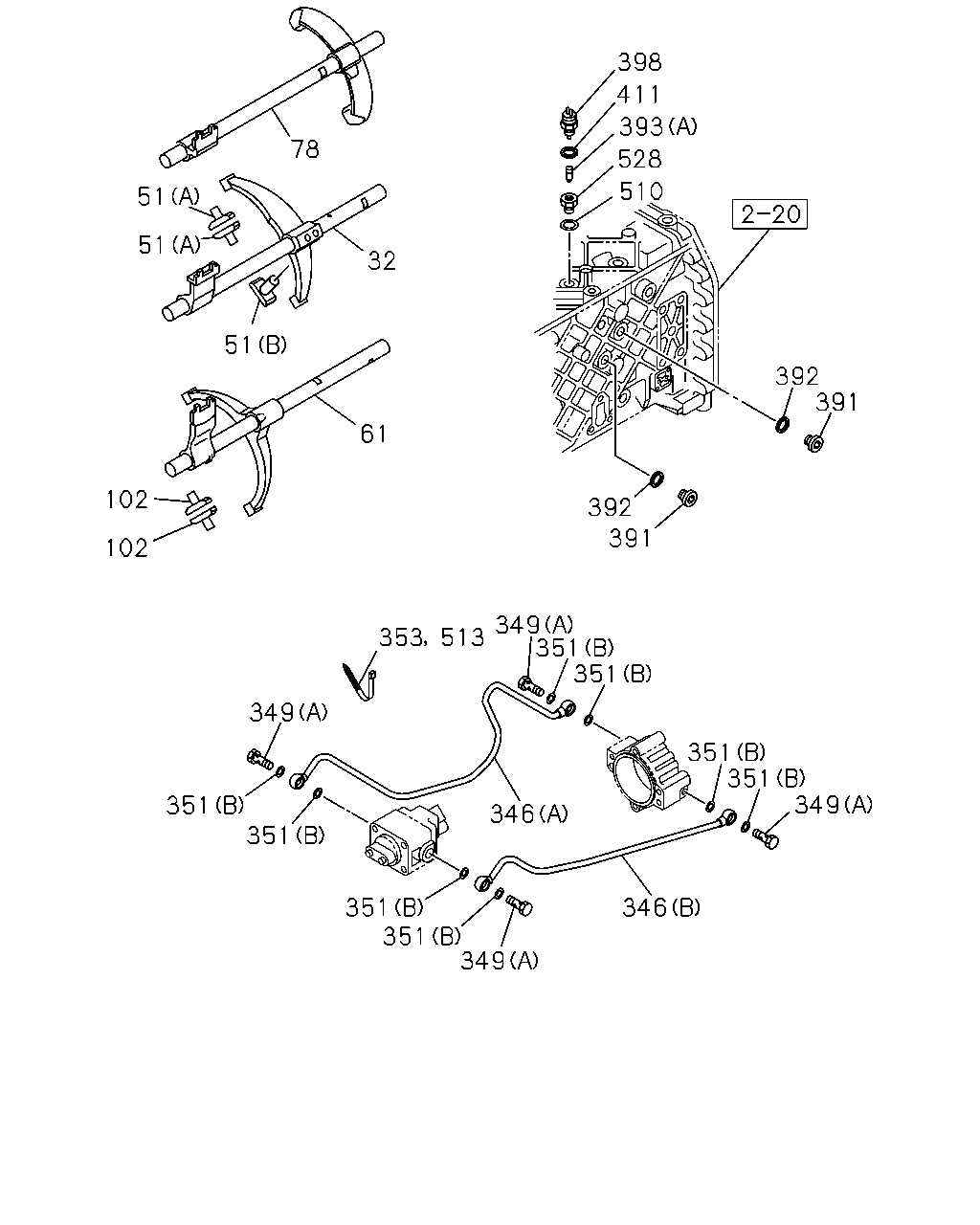

çizim 74455
398 411 393 78 528 510 51 51 32 51 392 391 61 102 392 391 102 349 513 351 351 353 349 351 351 349 351 351 346 351 351 349 346
BalonParca AdiParca NoAdetTipApplied Date
32 ARM; SHIFT,1ST & 2ND 1-33511-565-0 01 1 0105-
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33519-053-0 02 1 0105-
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33519-116-0 01 1 0105-
61 ARM; SHIFT,3RD & 4TH 1-33511-522-0 01 1 0105-
78 ARM; SHIFT,REV 1-33511-523-0 01 1 0105-
102 BLOCK; SHIFT,3RD & 4TH 1-33519-053-0 02 1 0105-
346 HOSE; AIR
(A) 		1-33549-336-0 01 1 0105-
346 HOSE; AIR
(B) 		1-33549-337-0 01 1 0105-
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 0105-
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 0105-
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0105-
351 GASKET; CONNECTOR
(A) 		1-33549-307-0 04 1 0105-
353 CLIP; AIR HOSE 1-33549-142-0 01 1 0105-
391 PLUG; SW HOLE 1-33119-171-0 02 1 0105-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 0105-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0105-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0105-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0105-
398 SWITCH; REV LAMP 1-82440-095-0 01 1 0105-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). T=2.0 		1-82449-010-0 01 1 0105-
510 GASKET; ADAPTER
T=2.0 		1-82449-010-0 01 1 0105-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0105-
528 ADAPTER; SWITCH 1-33119-278-0 01 1 0105-

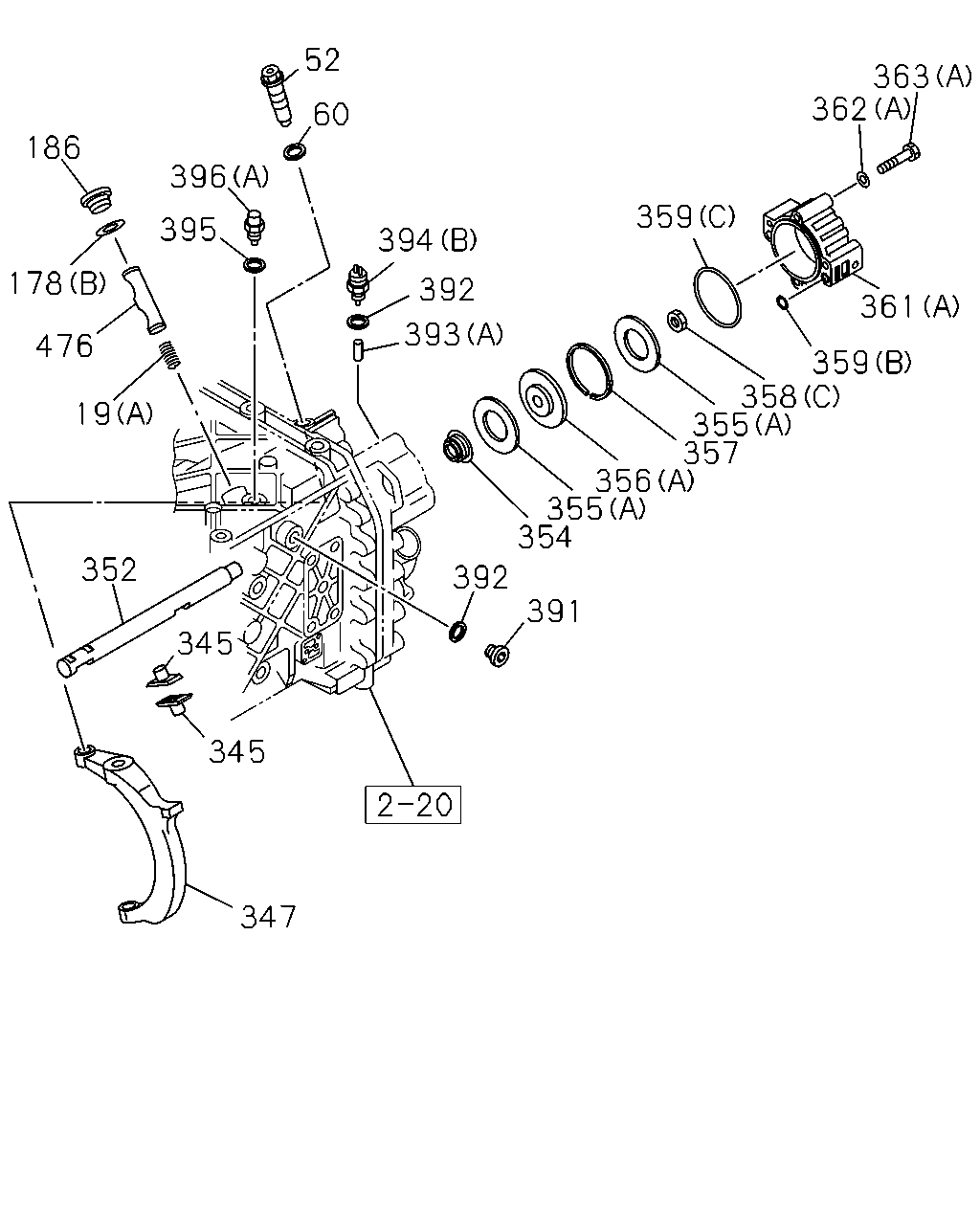

çizim 74778
52 363 362 60 186 396 359 395 394 178 392 361 393 476 359 358 355 357 19 356 355 354 352 392 391 345 345 347
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 0105-
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 0105-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 0105-
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 0105-
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 0105-
52 BOLT; SHIFT ARM 1-33519-058-0 02 1 0105-
60 WASHER; LK 1-33519-059-0 02 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 0105-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 0105-
186 PLUG; SHIFTER ROD 1-33519-056-0 01 1 0105-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-037-0 02 1 0105-
347 ARM; SHIFT,RANGE CHANGE 1-33511-566-0 01 1 0105-
352 ROD; SHIFT,RANGE CHANGE 1-33511-524-0 01 1 0105-
354 SEAL; AIR CYL 1-33519-068-0 02 1 0105-
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 0105-
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 0105-
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 0105-
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 0105-
357 RING; GUIDE,AIR CYL 1-33519-032-0 01 1 0105-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0105-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0105-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0105-
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 0105-
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 0105-
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 0105-
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 0105-
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 0105-
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 0105-
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 0105-
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 0105-
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 0105-
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 0105-
391 PLUG; SW HOLE 1-33119-171-0 02 1 0105-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 0105-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0105-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0105-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0105-
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 0105-
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 0105-
395 GASKET; PLUNGER 1-33549-167-0 02 1 0105-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(C) 		1-33519-118-0 01 1 0105-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0105-
476 PIN; SHIFT ROD 1-33519-040-0 01 1 0105-

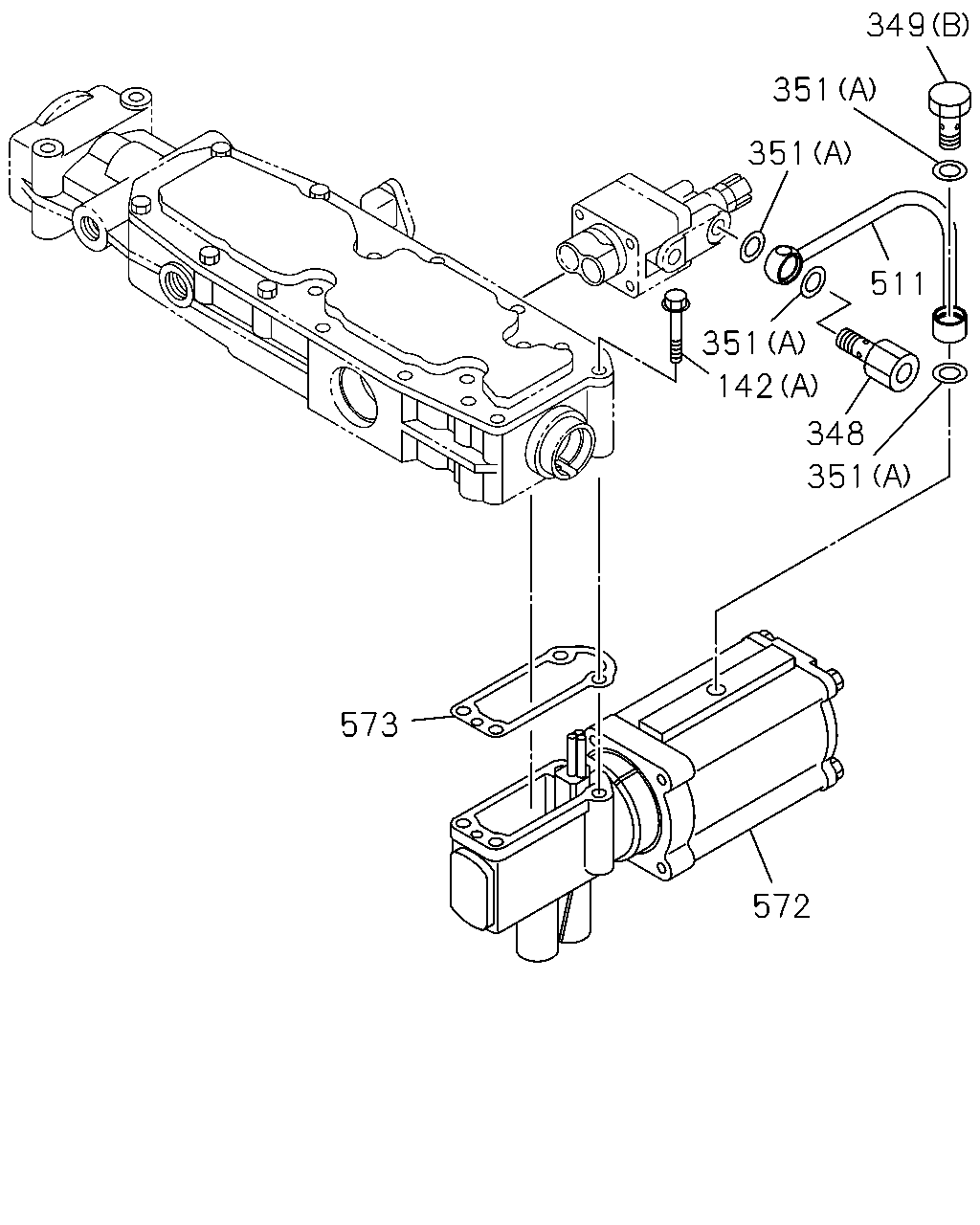

çizim 74780
349 351 351 511 351 142 348 351 573 572
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 0105-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 0105-
348 CONNECTOR; AIR HOSE 1-33549-333-0 01 1 0105-
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 0105-
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 0105-
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0105-
351 GASKET; CONNECTOR
(A) 		1-33549-307-0 04 1 0105-
511 PIPE; AIR 1-33529-112-0 01 1 0105-
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 0105-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
