◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#1158) — 15 parça

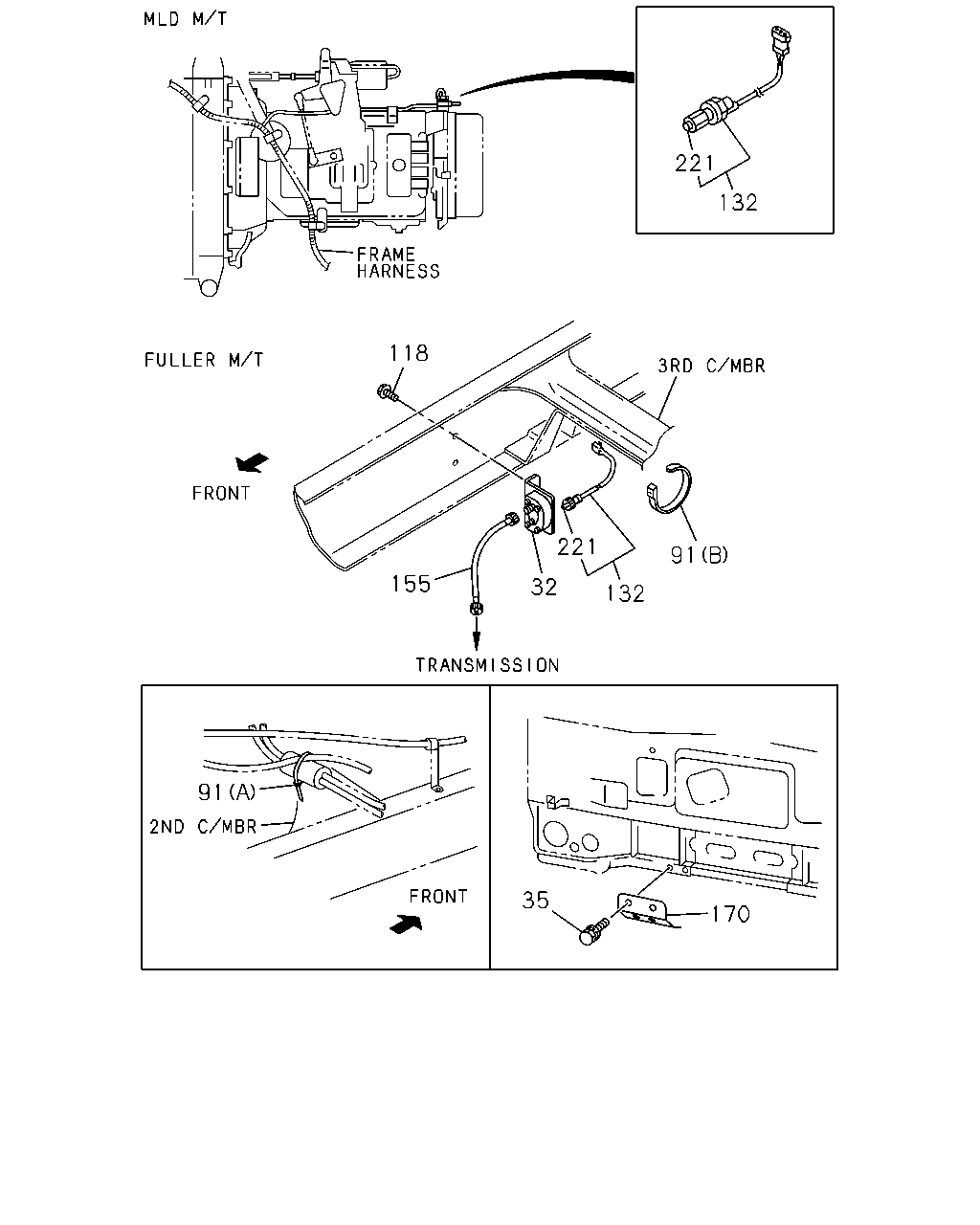

çizim 95800
221 132 118 221 91 155 32 132 91 35 170
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOX; GEAR,FLEX SHAFT
FULLER M/T<X9B> 		1-83126-248-0 01 1 9202-9404 ● ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 37/8 17" EATON(W5A) 		1-83126-248-0 01 1 9405- ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 39/9 17" EATON(W5K) 1/1.0513 		1-83126-253-0 01 1 9405- ●
35 BOLT; BRKT,METER CABLE
EXC. AUTO ENG SHUTOFF(KB6) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
91 CLIP; BAND
(A) L=250 		1-09707-126-0 01 1 9211- ●
91 CLIP; BAND
6SA1 STD ENG(06L),6SA1TC ENG(28L) AUTO ENG SHUTOFF(KB6) (A) L=250 		1-09707-126-0 01 1 9211- ●
91 CLIP; BAND
FULLER RT7608LL M/T(X8P) (B) L=140 		5-09707-031-0 01 1 9210- ●
118 BOLT; GEAR BOX
FULLER M/T<X9B> M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
118 BOLT; GEAR BOX
FULLER M/T<X9B> M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
132 SENSOR; SPD,SPEEDOMETER
TACHOGRAPH 140KM/H<WC7> 		1-83127-055-6 01 1 9202- ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83127-046-3 01 1 9202-9205 ● ●
132 SENSOR; SPD,SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-83127-115-0 01 1 9206- ● ●
155 SHAFT; FLEX,CONN TO TRANS
FULLER M/T<X9B> 		1-83124-086-0 01 1 9202- ● ●
170 BRACKET; METER CABLE
EXC. AUTO ENG SHUTOFF(KB6) 		1-71118-361-0 01 1 9202- ● ●
221 KEY; SPEED SENSOR
TACHOGRAPH 140KM/H<WC7> 		1-83129-126-0 01 1 9202- ● ●
