Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#1157) — 276 parça

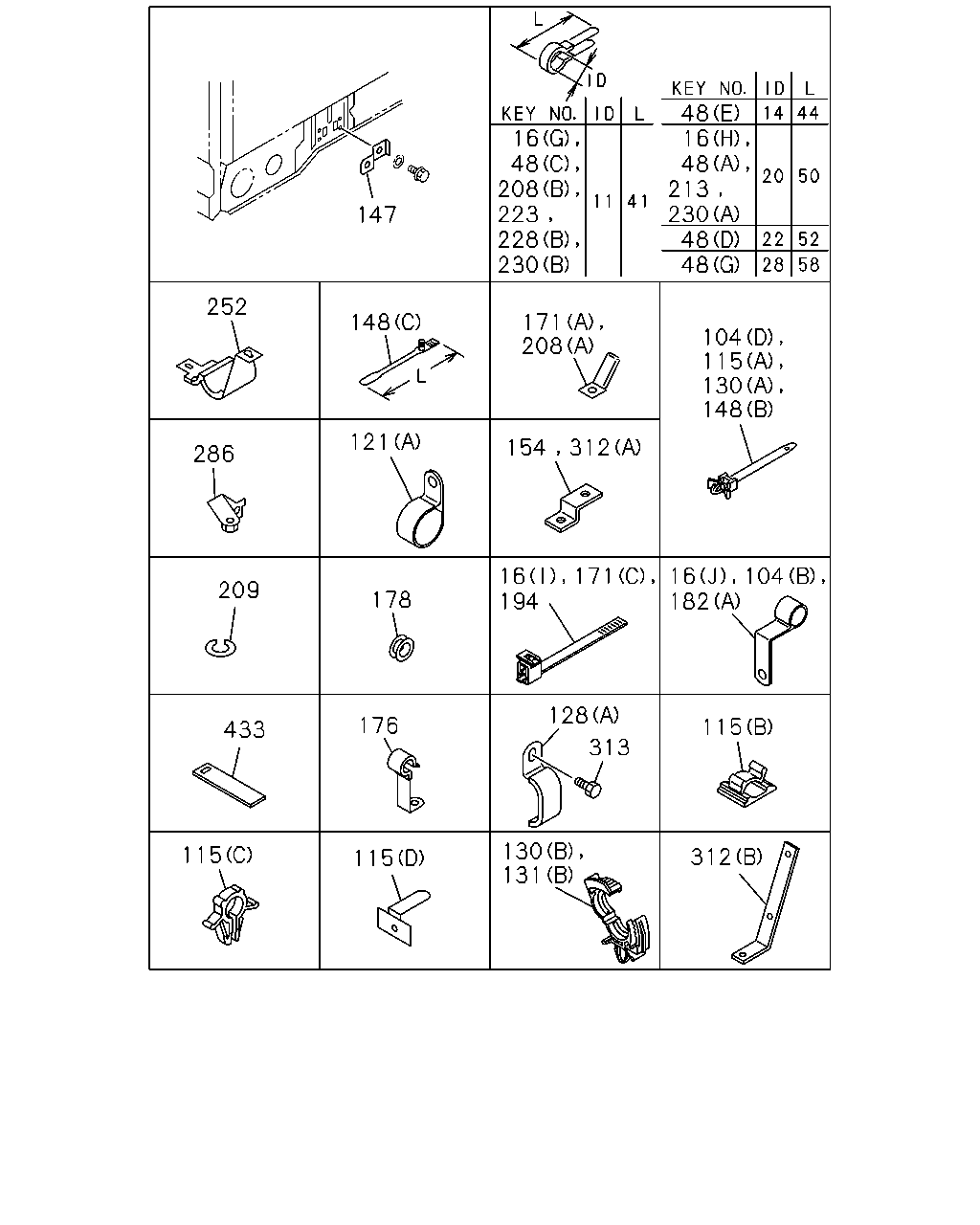

48 16 48 213 230 48 48 16 48 208 223 228 230 147 252 171 208 148 104 115 130 148 121 154 312 286 16 194 171 16 104 182 209 178 128 176 115 433 313 130 131 115 312 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	05	1	9202-	●	●
16	CLIP; HARNESS (E) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (I) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS FULLER M/T<X9B> (F) ID=11 L=20	9-09525-035-0	03	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (D) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (J) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (K) ID=19 L=32	9-09525-866-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (H) ID=20 L=50	9-09917-430-0	01	1	9202-		●
48	CLIP; FRAME HARNESS (J) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXHAUST BRAKE<NF8> (J) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (C) ID=11 L=41	1-09700-403-0	09	1	9202-9205	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (C) ID=11 L=41	1-09700-403-0	07	1	9206-9208	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20 L=50	9-09917-430-0	07	1	9202-9208	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (A) ID=20 L=50	9-09917-430-0	11	1	9202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	07	1	9202-9205	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	08	1	9202-9206		●
48	CLIP; FRAME HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	9207-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> (C) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	06	1	9202-9202	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	06	1	9202-9202		●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	06	1	9203-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	10	1	9206-9206	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	04	1	9207-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	12	1	9202-9203	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	13	1	9204-	●
48	CLIP; FRAME HARNESS (M) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	02	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (K) D=24 L=21	1-09700-380-0	01	1	9202-9208	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (L) ID=11 L=20	9-09525-035-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	01	1	9203-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	14	1	9202-9202		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=20 L=50	9-09917-430-0	03	1	9203-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	19	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	21	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=11 L=41	1-09700-403-0	06	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (H)	1-09700-605-0	01	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (F) L=250	5-09707-030-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (E) ID=14 L=44	9-09917-427-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (D) ID=22 L=52	9-09917-431-0	01	1	9205-9208		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9209-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-9202		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9203-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9202-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. EXHAUST BRAKE<NF8> (E) ID=14 L=44	9-09917-427-0	01	1	9202-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	17	1	9202-		●
104	CLIP; HEADLAMP HARNESS (D) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=19 L=20	9-09525-832-0	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (E) ID=19 L=20	9-09525-832-0	01	1	9208-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A)	1-09700-605-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (B) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (C) ID=15 L=42	9-09716-203-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-		●
115	CLIP; DOOR HARNESS AUSTRALIA PACKAGE<D2Y> (A) L=142	8-94232-619-0	02	1	9312-	●	●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (B) 1 SET=5 PIECE	1-09987-214-0	09	1	9206-		●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (C) ID=9	5-09707-027-0	02	1	9206-		●
115	CLIP; DOOR HARNESS POWER WINDOW<A30> (D)	8-94138-987-0	01	1	9211-		●
121	CLIP; FACIA HARNESS (A) ID=41 L=40	1-09700-596-0	01	1	9202-	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9202-9307	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9308-	●
121	CLIP; FACIA HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) ID=27 L=32	1-09700-712-1	03	1	9308-		●
121	CLIP; FACIA HARNESS (C) ID=31 L=50	1-09700-870-1	01	1	9202-9208	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
130	CLIP; WASHER HARNESS (A) L=147	1-09987-219-0	01	1	9202-9202	●	●
130	CLIP; WASHER HARNESS (B) ID=7-10	8-94472-578-0	01	1	9203-	●	●
131	CLIP; HARNESS,A/C SW (A) ID=6.5	8-94206-730-0	01	1	9202-9301	●	●
131	CLIP; HARNESS,A/C SW (B) ID=7-10	8-94472-578-0	01	1	9302-	●	●
147	BRACKET; HARNESS,HEADLAMP	1-71998-471-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=85	8-94232-611-0	02	1	9202-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=85	8-94232-611-0	02	1	9202-		●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=142	8-94232-619-0	08	1	9202-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	08	1	9202-		●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=85	8-94232-611-0	03	1	9308-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	10	1	9308-9310		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	09	1	9311-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-		●
154	BRACKET; STARTER EARTH CABLE 6HE1 STD ENG(46L)	1-47465-518-0	01	1	9202-		●
171	CLIP; STARTER HARNESS (C) L=300	1-09707-001-0	01	1	9207-	●	●
171	CLIP; STARTER HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=63	1-09700-418-1	01	1	9202-	●	●
171	CLIP; STARTER HARNESS 6HE1 STD ENG(46L) (B) L=140	5-09707-031-0	01	1	9202-9206		●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-0	01	1	9207-	●	●
176	CLIP; BACK SW HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) ID=11	1-09700-415-0	01	1	9202-	●	●
178	GROMMET; HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEEL BASE 4200MM(42W) T=25 ID=28 OD=35 T=25	1-09332-011-1	01	1	9205-	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9202-	●	●
178	GROMMET; HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> ID=15 OD=20 T=22	9-09956-181-0	02	1	9202-	●	●
178	GROMMET; HARNESS AIR DRYER<PS7> T=24 ID=19 OD=23 T=24	1-09332-103-0	01	1	9206-		●
182	CLIP; HARNESS,OIL FILTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=11 H=45 L=25	1-09700-866-0	01	1	9202-	●	●
182	CLIP; HARNESS,OIL FILTER 6HE1 STD ENG(46L) (B) L=140	5-09707-031-0	01	1	9202-		●
194	CLIP; BAND L=180	1-09707-162-0	05	1	9202-	●	●
208	CLIP; HARNESS,MAG VLV (A) L=63	1-09700-418-1	01	1	9202-	●	●
208	CLIP; HARNESS,MAG VLV 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. EXHAUST BRAKE<NF8> (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206		●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9202-	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
223	CLIP; AIR TANK HARNESS ID=11 L=41	1-09700-403-0	04	1	9202-	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	03	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	04	1	9203-	●	●
230	CLIP; C/MBR HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=20 L=50	9-09917-430-0	02	1	9202-	●	●
230	CLIP; C/MBR HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> (B) ID=11 L=41	1-09700-403-0	02	1	9202-		●
252	CLIP; CONNECTOR FIX W/SPONGE RUBBER	1-09709-150-0	01	1	9202-	●	●
286	BRACKET; HARNESS,SELECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-82699-167-0	01	1	9202-	●	●
312	BRACKET; CLIP HARNESS (B)	1-82699-109-0	01	1	9202-	●
312	BRACKET; CLIP HARNESS FULLER M/T<X9B> (A)	1-47475-868-0	01	1	9202-	●	●
313	BOLT; BRKT M6X20 FLANGE	0-28080-620-0	01	1	9202-	●
433	SPACER; BOX HARNESS	1-82699-574-0	01	1	9202-	●	●

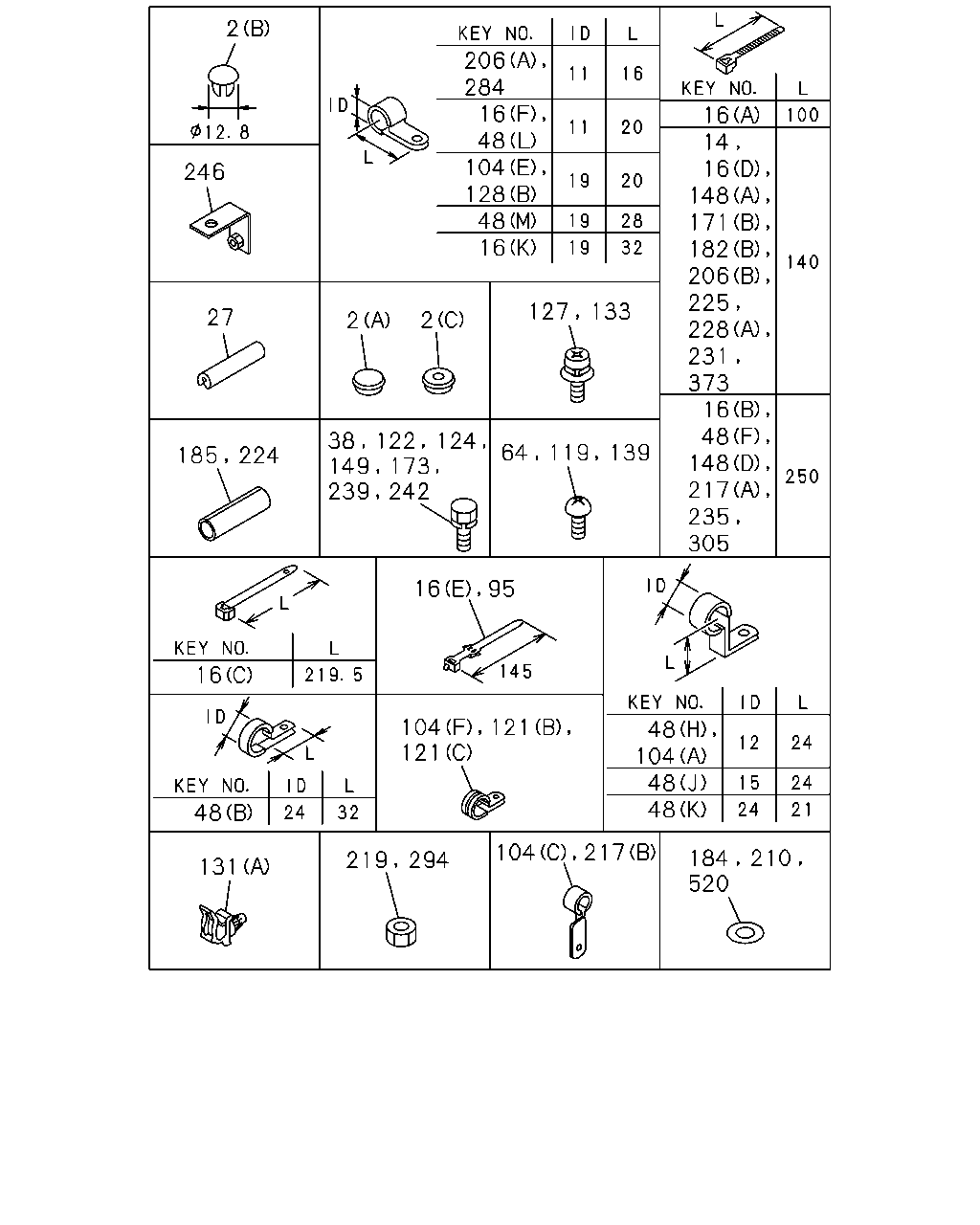

2 206 284 16 48 104 128 48 16 16 14 16 148 171 182 206 225 228 231 373 16 48 148 217 235 305 246 127 133 27 2 2 149 239 64 119 139 185 224 16 104 121 121 48 104 48 48 48 184 520 210 219 294 131 38 122 124 173 242 16 95 217 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47	1-09983-039-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-9311	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS AUSTRALIA PACKAGE<D2Y> (C) OD=47	1-09983-038-1	02	1	9312-	●	●
2	GROMMET; CLIP HOLE,HARNESS EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8	1-09983-065-0	04	1	9312-	●	●
14	CLIP; BAND,HARNESS FULLER M/T<X9B> L=140	5-09707-031-0	02	1	9202-	●	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	05	1	9202-	●	●
16	CLIP; HARNESS (E) L=135	1-09987-143-1	03	1	9202-	●	●
16	CLIP; HARNESS (B) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (I) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS FULLER M/T<X9B> (F) ID=11 L=20	9-09525-035-0	03	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (D) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=219.5	1-09987-136-0	05	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=219.5	1-09987-136-0	04	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (J) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (K) ID=19 L=32	9-09525-866-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (H) ID=20 L=50	9-09917-430-0	01	1	9202-		●
27	PROTECTOR; EDGE L=2040	1-71997-513-1	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X16 FLANGE	0-28080-816-0	03	1	9202-9202	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9202-9208	●	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	02	1	9202-9208	●	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9209-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	04	1	9203-9211	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	03	1	9212-	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9209-	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
38	BOLT; CLIP,HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXHAUST BRAKE<NF8> (J) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (C) ID=11 L=41	1-09700-403-0	09	1	9202-9205	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (C) ID=11 L=41	1-09700-403-0	07	1	9206-9208	●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20 L=50	9-09917-430-0	07	1	9202-9208	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (A) ID=20 L=50	9-09917-430-0	11	1	9202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	07	1	9202-9205	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	08	1	9202-9206		●
48	CLIP; FRAME HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	9207-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> (C) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	06	1	9202-9202	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	06	1	9202-9202		●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	06	1	9203-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	10	1	9206-9206	●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) (C) ID=11 L=41	1-09700-403-0	04	1	9207-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	12	1	9202-9203	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	13	1	9204-	●
48	CLIP; FRAME HARNESS (M) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	02	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (K) D=24 L=21	1-09700-380-0	01	1	9202-9208	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (L) ID=11 L=20	9-09525-035-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	01	1	9203-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	14	1	9202-9202		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=20 L=50	9-09917-430-0	03	1	9203-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	19	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	21	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=11 L=41	1-09700-403-0	06	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (H)	1-09700-605-0	01	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (F) L=250	5-09707-030-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (E) ID=14 L=44	9-09917-427-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (D) ID=22 L=52	9-09917-431-0	01	1	9205-9208		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9209-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-9202		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9203-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9202-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. EXHAUST BRAKE<NF8> (E) ID=14 L=44	9-09917-427-0	01	1	9202-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	17	1	9202-		●
64	SCREW; CLIP FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9202-	●	●
95	CLIP; CABLE L=145	1-09987-143-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (D) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=19 L=20	9-09525-832-0	01	1	9202-9207	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=19 L=20	9-09525-832-0	01	1	9208-	●
104	CLIP; HEADLAMP HARNESS EXC. POWER WINDOW<A30> (E) ID=19 L=20	9-09525-832-0	01	1	9208-		●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (A)	1-09700-605-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (B) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> LIGHTING SYSTEM ECE<SLC> (C) ID=15 L=42	9-09716-203-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS POWER WINDOW<A30> (F) ID=21 L=28	1-09700-673-1	01	1	9208-		●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M4X13	1-09981-148-0	02	1	9206-		●
121	CLIP; FACIA HARNESS (A) ID=41 L=40	1-09700-596-0	01	1	9202-	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9202-9307	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-1	03	1	9308-	●
121	CLIP; FACIA HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) ID=27 L=32	1-09700-712-1	03	1	9308-		●
121	CLIP; FACIA HARNESS (C) ID=31 L=50	1-09700-870-1	01	1	9202-9208	●	●
122	BOLT; FACIA HARNESS CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-	●	●
124	BOLT; GRAND,FACIA M6X22 W/LK&PL WASHER	1-09980-584-0	01	1	9202-9303	●	●
124	BOLT; GRAND,FACIA M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9304-	●	●
127	SCREW; FACIA HARNESS CLIP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
131	CLIP; HARNESS,A/C SW (A) ID=6.5	8-94206-730-0	01	1	9202-9301	●	●
131	CLIP; HARNESS,A/C SW (B) ID=7-10	8-94472-578-0	01	1	9302-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9202-	●	●
139	BOLT; BRKT FULLER RT6609 M/T(X8M) M6X20 FLANGE	0-28080-620-0	01	1	9305-		●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=85	8-94232-611-0	02	1	9202-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=85	8-94232-611-0	02	1	9202-		●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=142	8-94232-619-0	08	1	9202-	●
148	CLIP; BAND,HEADLAMP HARNESS EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	08	1	9202-		●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=140	5-09707-031-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=85	8-94232-611-0	03	1	9308-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	10	1	9308-9310		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142	8-94232-619-0	09	1	9311-		●
148	CLIP; BAND,HEADLAMP HARNESS HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) L=250	5-09707-030-0	01	1	9311-		●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-430-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9304-9307	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9308-	●
149	BOLT; HEADLAMP HARNESS EARTH EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9308-		●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-537-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9308-		●
171	CLIP; STARTER HARNESS (C) L=300	1-09707-001-0	01	1	9207-	●	●
171	CLIP; STARTER HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=63	1-09700-418-1	01	1	9202-	●	●
171	CLIP; STARTER HARNESS 6HE1 STD ENG(46L) (B) L=140	5-09707-031-0	01	1	9202-9206		●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-0	01	1	9207-	●	●
173	BOLT; STARTER EARTH M10X16 FLANGE	0-28081-016-0	01	1	9202-9212	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9301-	●	●
182	CLIP; HARNESS,OIL FILTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=11 H=45 L=25	1-09700-866-0	01	1	9202-	●	●
182	CLIP; HARNESS,OIL FILTER 6HE1 STD ENG(46L) (B) L=140	5-09707-031-0	01	1	9202-		●
184	WASHER; PL,STARTER EARTH ID=10.5	1-09503-265-0	01	1	9301-	●	●
185	SLEEVE; RUBBER 6HE1 STD ENG(46L) ID=9 OD=14 L=35	8-94127-043-0	01	1	9202-		●
206	CLIP; FUEL TANK HARNESS (B) L=140	5-09707-031-0	02	1	9202-	●	●
206	CLIP; FUEL TANK HARNESS FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L FMCSR<PK6> (A) ID=11 L=16	9-09525-022-0	01	1	9202-	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9301-	●	●
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	04	1	9202-	●	●
224	SLEEVE; RUBBER,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> ID=17 OD=21 L=40	1-09337-012-0	01	1	9206-	●	●
225	CLIP; AIR TANK HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> L=140	5-09707-031-0	01	1	9206-		●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	03	1	9202-9202	●	●
228	CLIP; COOLER HARNESS AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	04	1	9203-	●	●
231	CLIP; BAND,OIL PRESS 6HE1 STD ENG(46L) L=140	5-09707-031-0	01	1	9202-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS L=250	5-09707-030-0	01	1	9202-	●	●
239	BOLT; GRAND M8X20	0-28410-820-0	01	1	9202-9204	●	●
239	BOLT; GRAND M8X20 FLANGE	0-28480-820-0	01	1	9205-9212	●	●
239	BOLT; GRAND M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9301-	●	●
239	BOLT; GRAND M5X8	9-92040-508-0	01	1	9202-9204	●	●
239	BOLT; GRAND M5X8	0-20800-508-0	01	1	9205-	●	●
242	BOLT; BRKT,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X20 FLANGE	0-28181-020-0	01	1	9202-	●	●
246	BRACKET; CLIP,SPD SENSOR FULLER RT6609 M/T(X8M)	1-14119-175-0	01	1	9305-		●
284	CLIP; HARNESS,GLOW PLUG 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 L=16	9-09525-025-0	01	1	9202-	●	●
294	NUT M6	9-09110-406-0	01	1	9202-	●
294	NUT FULLER M/T<X9B> M10	9-09110-510-0	01	1	9202-	●	●
305	CLIP; ENG HARNESS 6HE1 STD ENG(46L) L=250	5-09707-030-0	01	1	9202-		●
373	CLIP; BAND,GEN HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=140	5-09707-031-0	01	1	9202-	●	●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9301-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
