Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#11568) — 224 parça

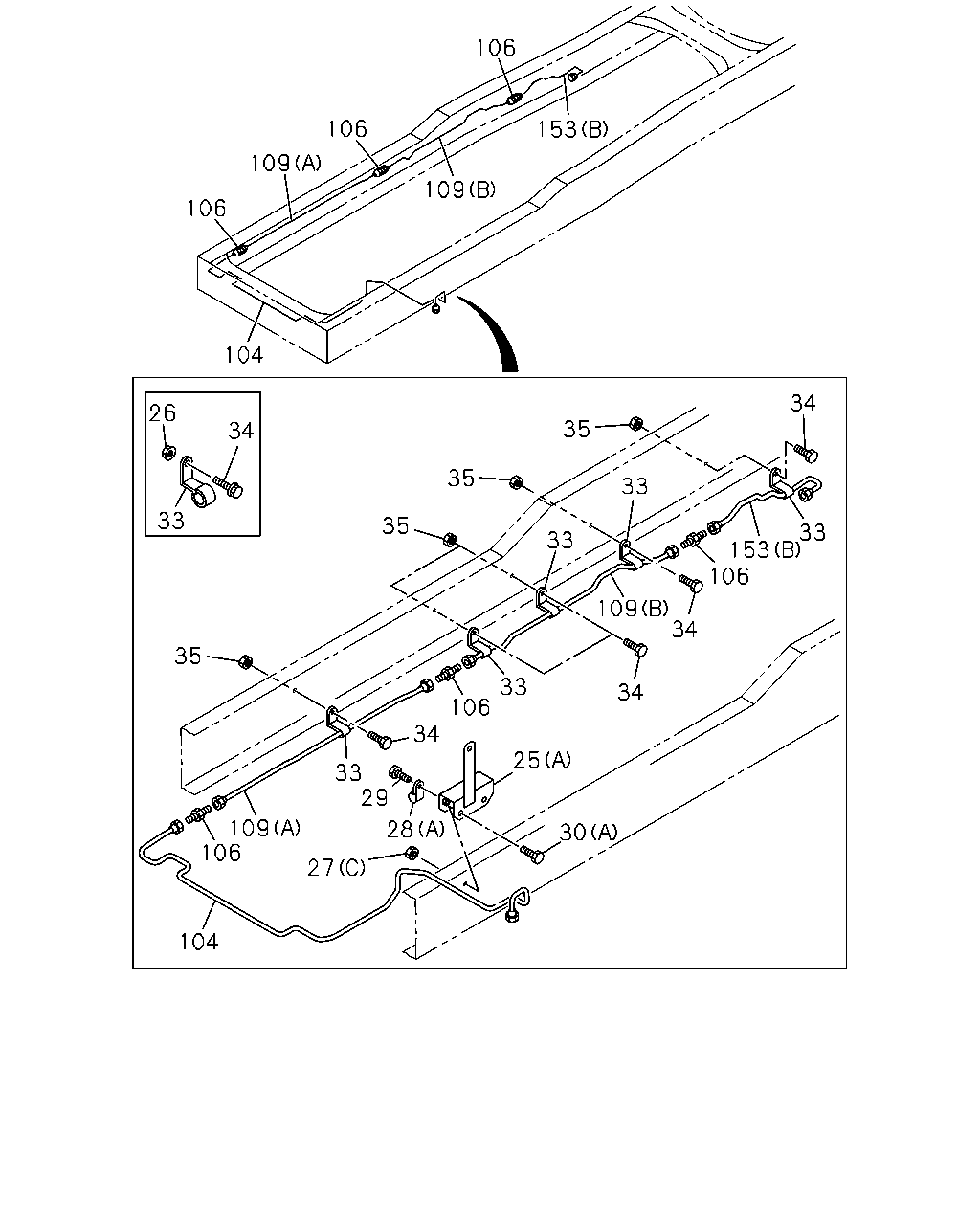

106 106 153 109 109 106 104 34 26 35 34 33 35 33 33 35 33 153 106 109 34 35 33 106 34 34 25 33 29 109 106 28 30 27 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47478-406-0	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

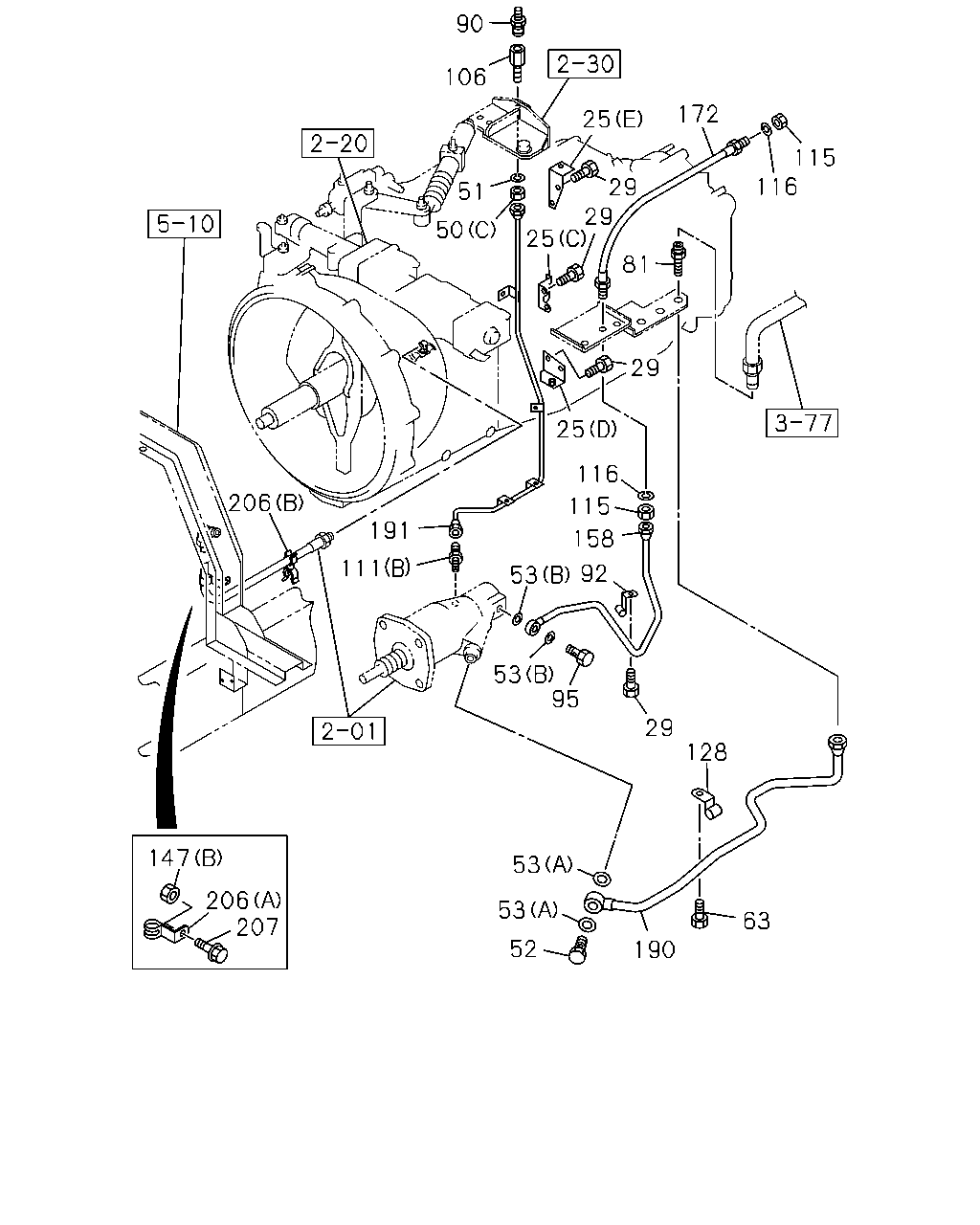

90 106 172 25 115 116 29 29 25 51 50 81 29 25 116 206 115 191 158 111 92 53 53 95 29 128 147 53 206 207 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47478-406-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-
81	UNION; AIR PIPE ZF M/T<X9E>	1-09664-233-0	01	1	0105-
90	NIPPLE; OIL PIPE ZF M/T<X9E>	1-31829-485-0	01	1	0105-
92	CLIP; OIL PIPE ZF M/T<X9E> ID=9 L=32	9-09524-865-0	01	1	0105-
95	BOLT; EYE,OIL PIPE ZF M/T<X9E> M14X27 FLANGE	1-09675-086-0	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
128	CLIP; AIR PIPE ZF M/T<X9E> ID=13	1-09701-030-1	01	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER ZF M/T<X9E>	1-49119-466-2	01	1	0105-
172	HOSE; FLEX,CLU BOOSTER ZF M/T<X9E> L=400	1-09364-263-0	01	1	0105-
190	PIPE; AIR,UNION TO MINIPAC ZF M/T<X9E>	1-49119-465-1	01	1	0105-
191	PIPE; OIL,UNION TO MINIPAC ZF M/T<X9E>	1-49163-427-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-

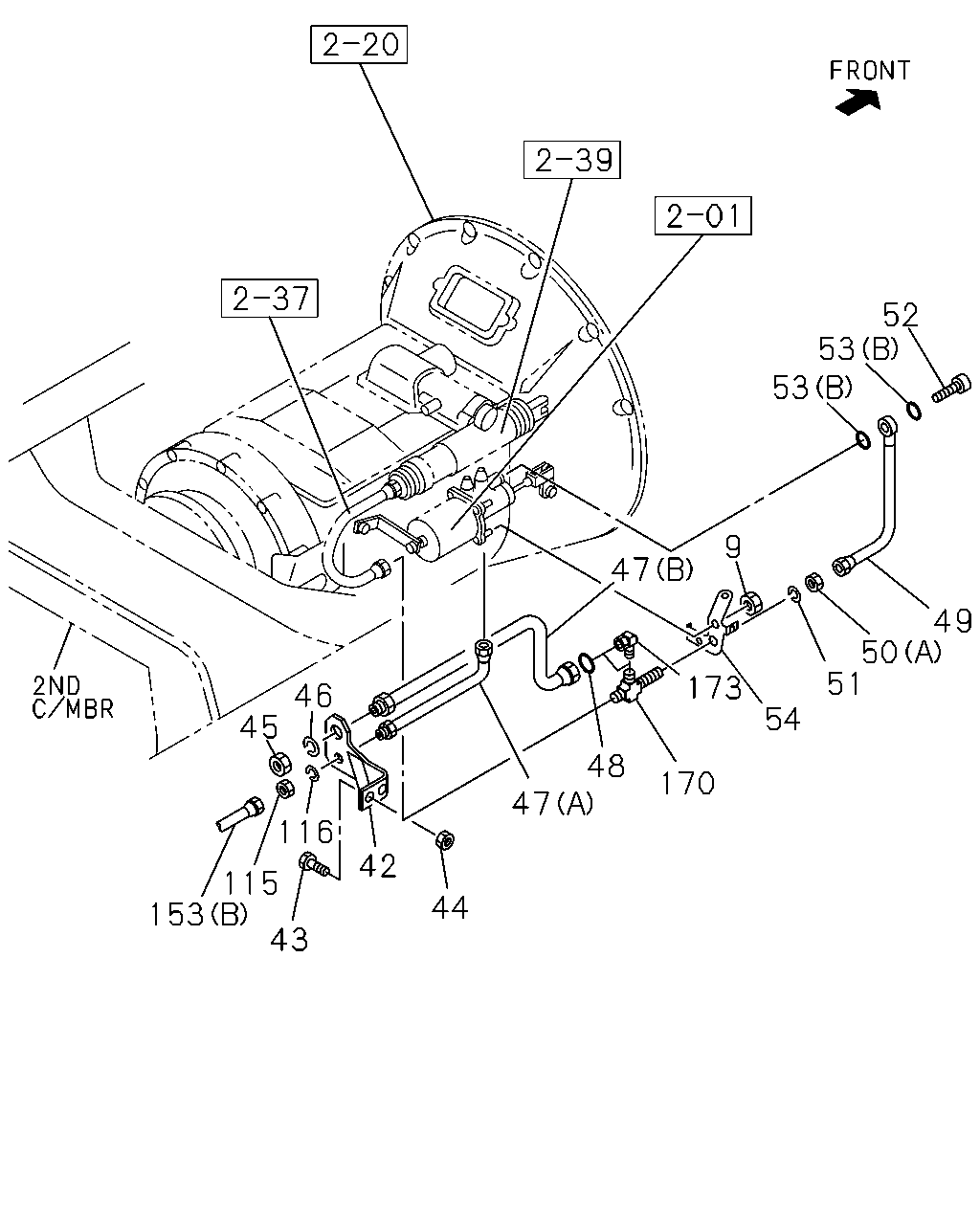

52 53 53 9 47 49 50 51 173 46 54 45 48 170 47 116 42 115 153 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=293	1-49117-734-0	01	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0105-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE ISUZU M/T<X9A>	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
170	UNION; AIR PIPE ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8>	1-09656-640-0	01	1	0105-
173	CONNECTOR ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-

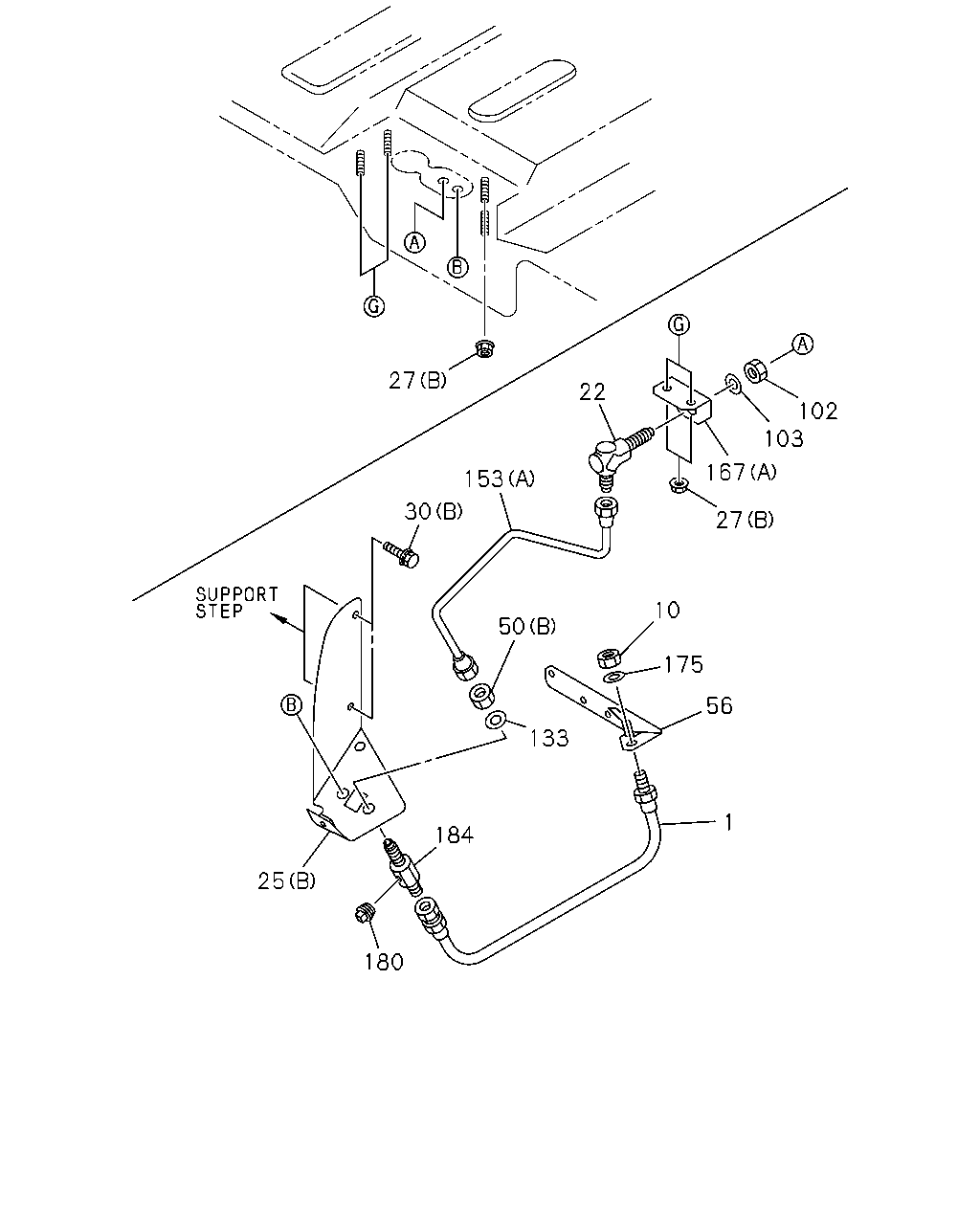

27 22 102 103 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47478-406-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) M20	9-99111-420-0	01	1	0105-
50	NUT; UNION ZF M/T<X9E> (C) M12	9-09840-280-0	01	1	0105-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0105-

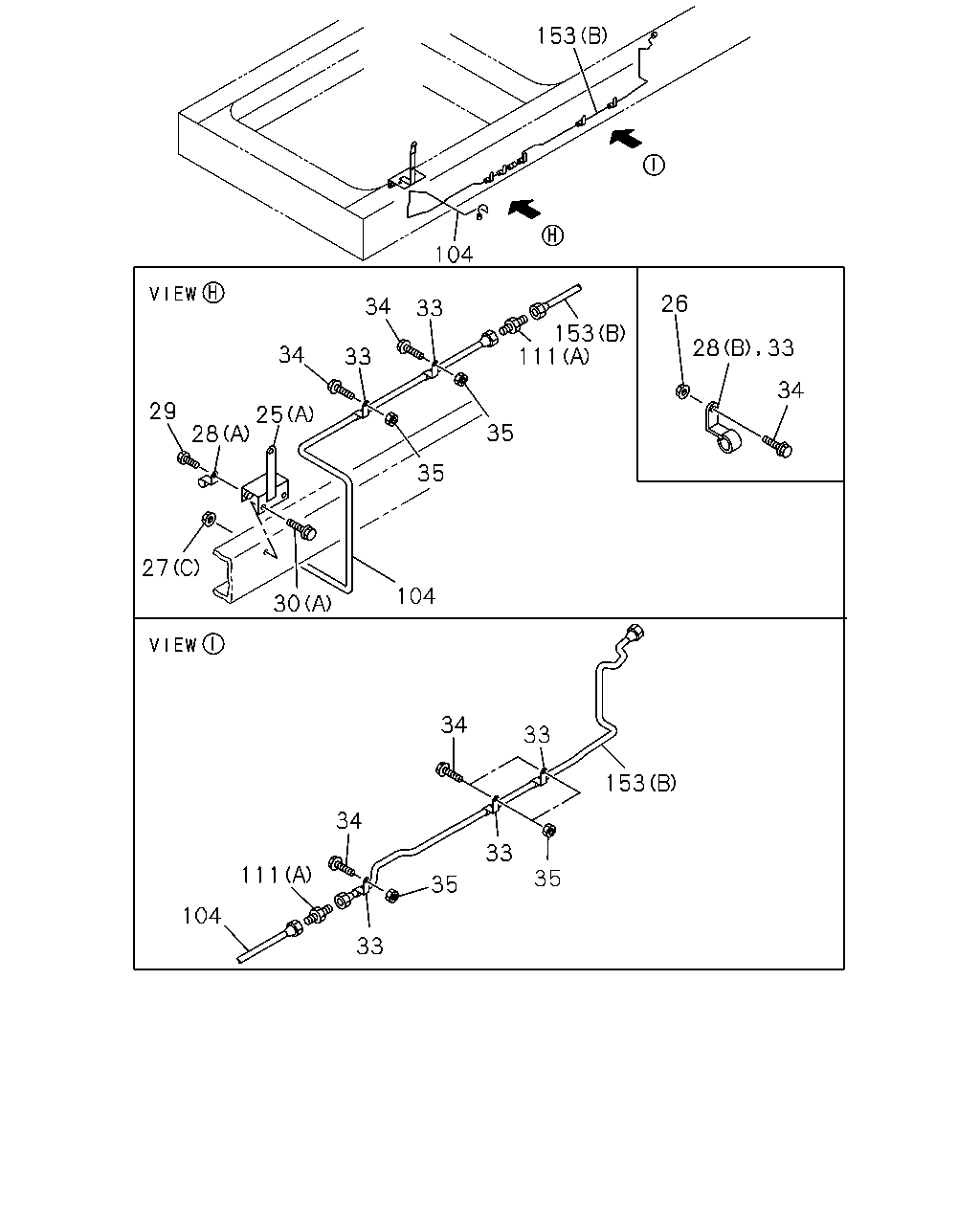

153 104 26 34 33 153 111 34 33 34 29 25 35 28 35 27 104 30 34 33 153 34 33 111 35 35 104 33 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47478-406-0	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE (A) ID=9 L=20	9-09524-835-0	01	1	0105-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> M8X16 FLANGE	0-28080-816-0	01	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	05	1	0105-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ISUZU M/T<X9A> ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0105-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

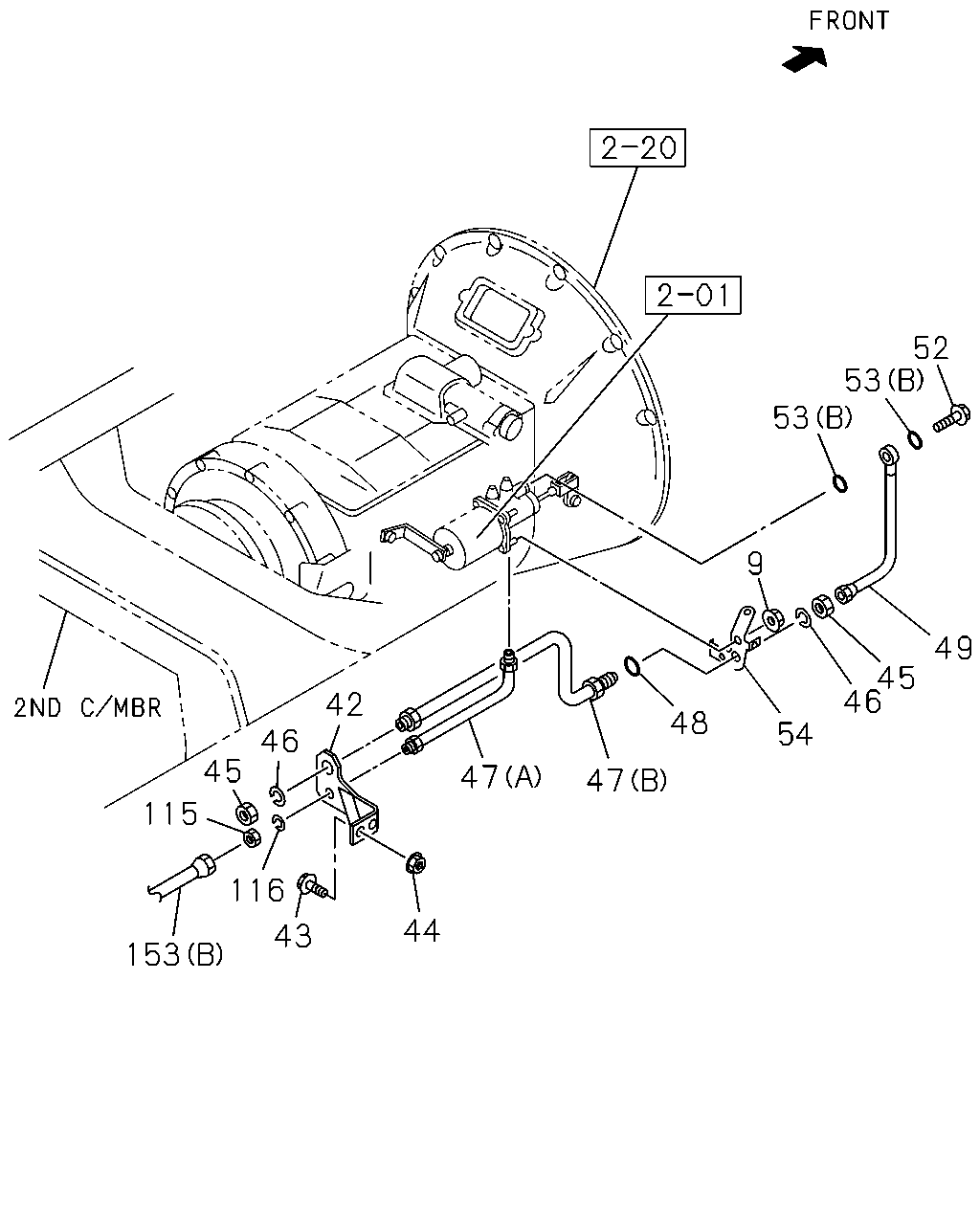

52 53 53 9 49 45 46 42 48 54 46 45 47 47 115 116 44 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0105-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0105-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=293	1-49117-734-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE ISUZU M/T<X9A>	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-

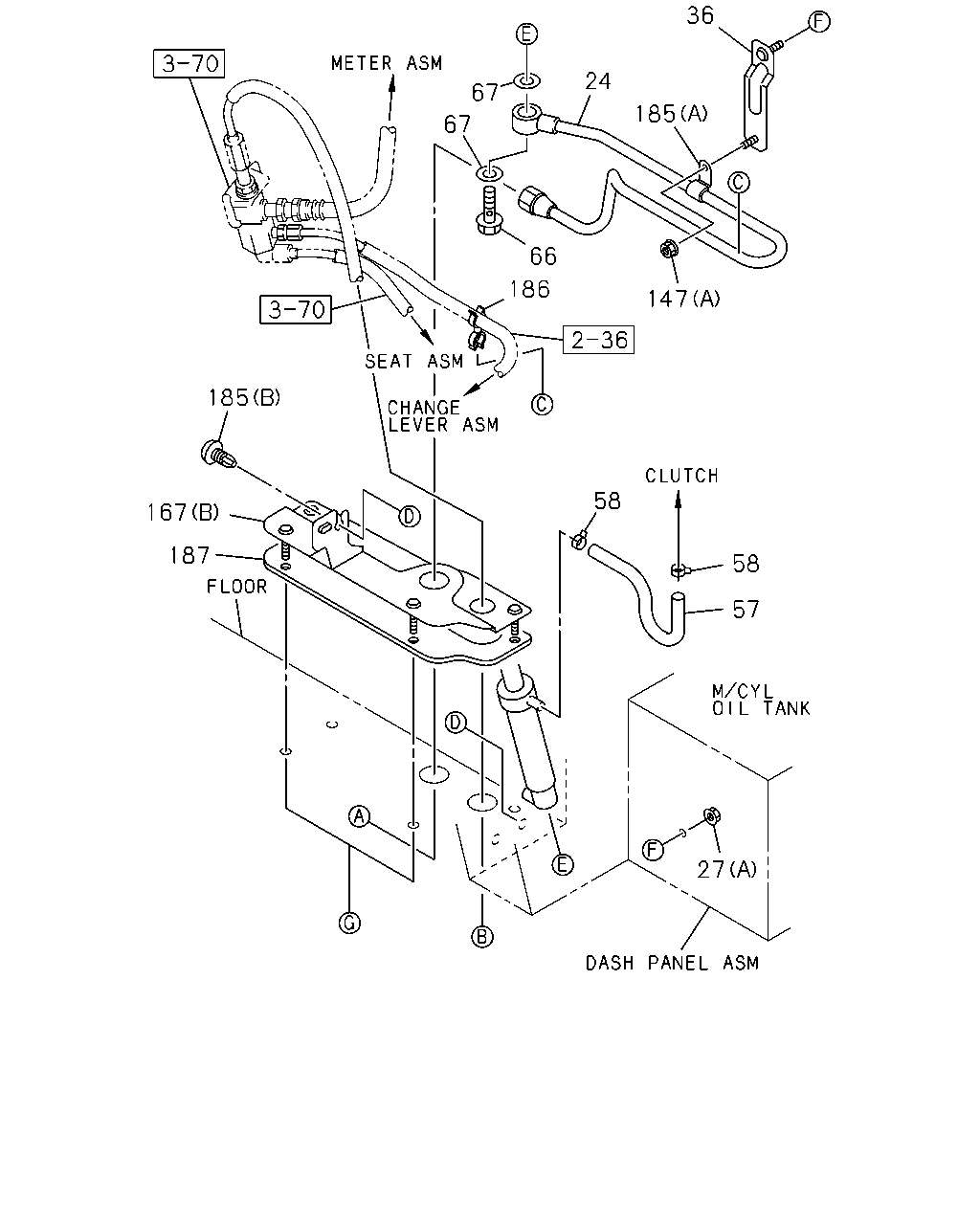

36 24 67 185 67 66 186 147 185 58 167 187 58 57 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0105-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0105-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
