Isuzu WW
▶
TRUCKS
▶
EXR
▶
10864 - EXR LHD FUEL TANK 200L+200L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01A - CLUTCH
▶
2-01A — CLUTCH
(#11565) — 47 parça
Tümü
A - MJA7U M/T
B - MJA6A M/T
◀

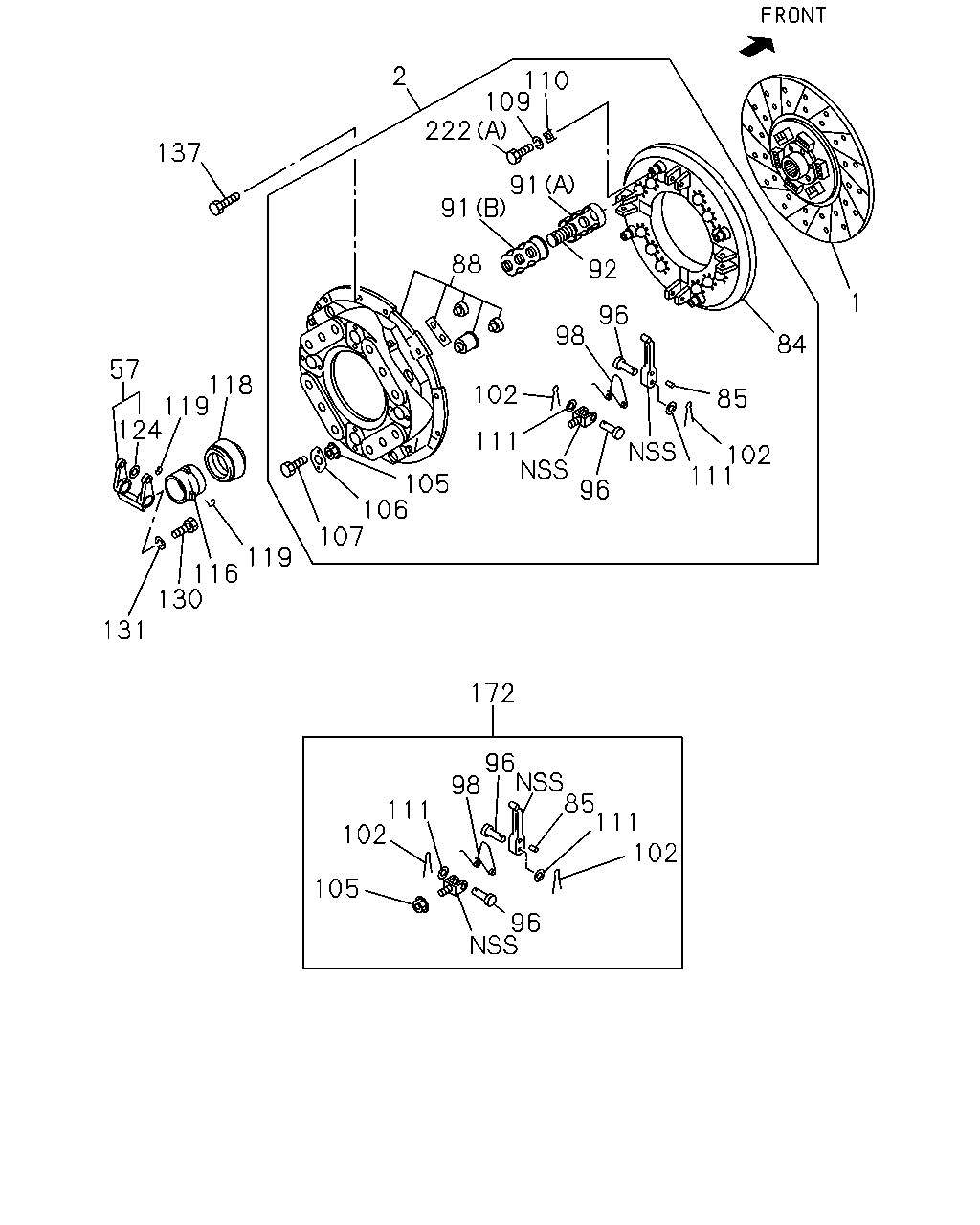

[201A] DISC AND PLATE (29 parça)

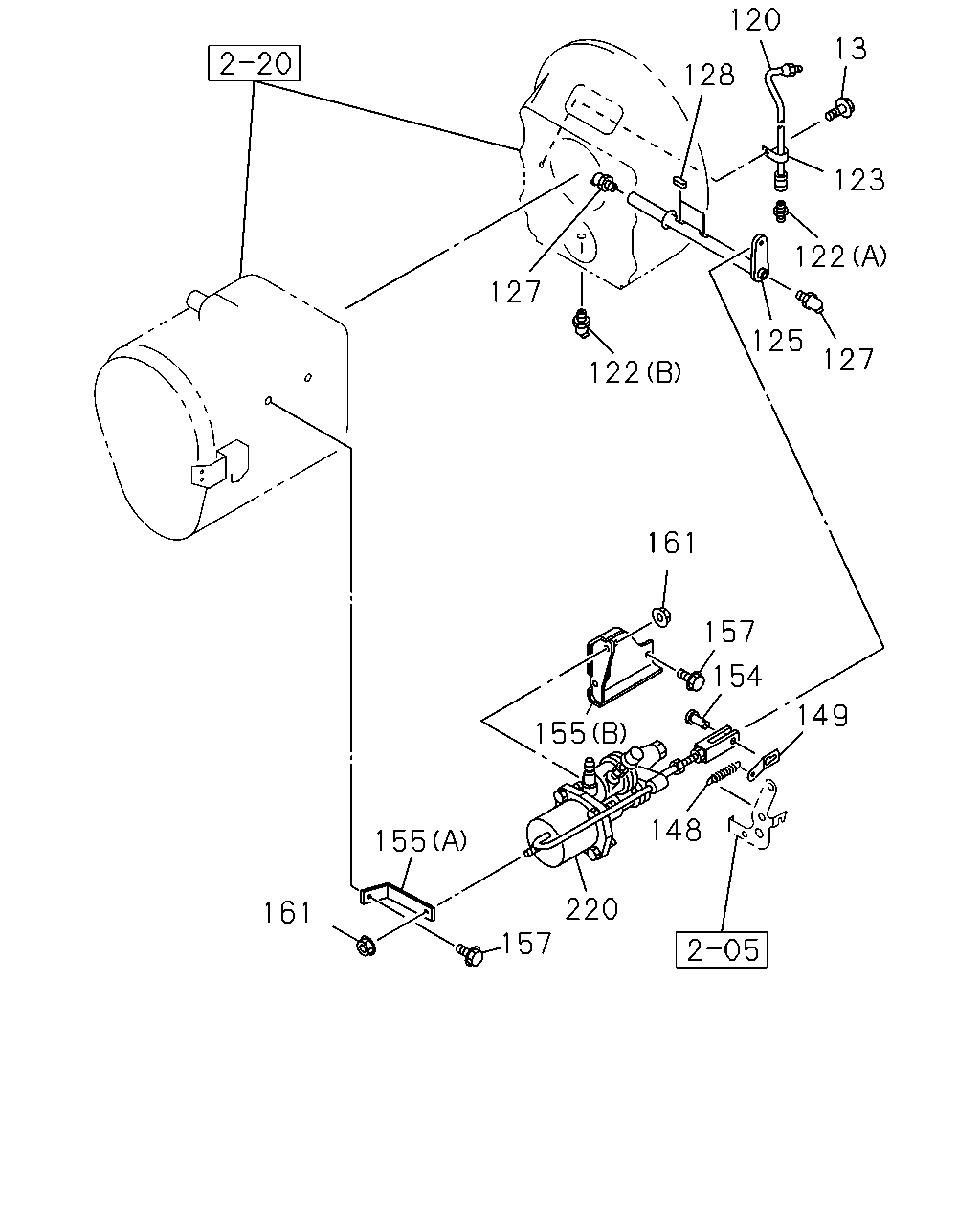

[201A] BOOSTER AND BRACKET (18 parça)
▶
2
110
109
222
137
91
91
88
92
1
96
98
84
57
118
119
124
102
85
111
102
111
105
106
107
96
119
116
130
131
172
96
98
85
111
102
111
102
105
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
17"
1-31240-897-0
01
1
0105-
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-277-1
01
1
0105-
●
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
0105-
●
●
84
PLATE; PRESSURE
1-31221-041-0
01
1
0105-
●
●
85
BUSHING; RELEASE LEVER
1-31239-003-0
08
1
0105-
●
●
88
COVER SUB ASM; CLU
1-31210-008-0
01
1
0105-
●
●
91
SEAT; SPR
(A)
1-31219-032-0
04
1
0105-
●
●
91
SEAT; SPR
(B)
1-31219-033-0
04
1
0105-
●
●
92
SPRING; CLU
1-09580-297-0
12
1
0105-
●
●
96
PIN; RELEASE LEVER
L=77
1-31232-010-0
08
1
0105-
●
●
98
SPRING; RETURN
1-31233-001-0
04
1
0105-
●
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
0105-
●
●
105
NUT; SUPPORT
9-31235-061-0
04
1
0105-
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0105-
●
●
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
0105-
●
●
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
0105-
●
●
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
0105-
●
●
111
WASHER; PL,STRAP
ID=14
9-09651-098-0
08
1
0105-
●
●
116
BLOCK; SHIFT,CLU
1-31321-073-2
01
1
0105-
●
●
118
BEARING; CLU RELEASE
1-09820-112-0
01
1
0105-0111
●
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
0112-
●
●
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
0105-
●
●
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
0105-
●
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
0105-
●
●
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
0105-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
0105-
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
0105-
●
●
172
LEVER KIT; RELEASE,CLU
1-87830-526-1
01
1
0105-
●
●
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
0105-
●
●
120
13
128
123
122
127
125
127
122
161
157
154
149
155
148
155
220
157
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0105-
●
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0105-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 L=23
1-09660-710-0
01
1
0105-
●
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5?
9-09031-110-0
01
1
0105-
●
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
0105-
●
●
125
SHAFT; CLU
1-31342-305-0
01
1
0105-
●
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
0105-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
0105-
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0105-
●
●
149
EYE; SPRING,RETURN SPRING
1-31426-052-0
01
1
0105-
●
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
0105-
●
●
155
BRACKET; MINIPACK
(A)
1-31429-289-1
01
1
0105-
●
●
155
BRACKET; MINIPACK
(B)
1-31429-402-0
01
1
0105-
●
●
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
0105-
●
●
161
NUT; BRKT
M10 FLANGE
0-91150-210-0
03
1
0105-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>
1-31800-490-2
01
1
0105-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>
1-31800-466-1
01
1
0105-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-466-1
01
1
0105-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
